| Featured Space and Satellite Products this Week |
|
|
| Space-Qualified Rubidium Frequency Atomic Clock | |
Space Qualified Atomic Clock
from Safran Group
|
| This MiniRAFS from Safran Group is a Space-Qualified Atomic Clock for LEO, MEO, and GEO orbits with a design life of more than 20 years. It has a phase noise of -135 to -64 dBc/Hz and a return loss of greater than 20 dB. It has harmonics of less than 30 dBc and spurious signals of less than -80 dB. It requires a DC supply of 15.5-16.5 V. It is ideal for applications such as space scientific missions, secure satellite communications, tracking and guidance control, and advanced low satellite orbit digital communications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Tolerant Solid-State Data Recorder | |
Solid State Recorder
from Mercury Systems
|
| The RH3440 from Mercury Systems is a Solid State Recorder that has an industrial-grade 440 GB SLC NAND flash memory. The SSDR requires a power supply of 3.25-12.3 V and has a power consumption of up to 14 W. It weighs less than 620 g and has a compact 3U form factor. The SSDR is suitable for LEO satellites, nuclear industry, medical industry, high-altitude aircraft, airborne weapons, mission-critical ground computing subsystems, missiles launch vehicles, and scientific missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.4 m Multiband Marine VSAT Antenna System | |
Satellite Terminal
from Intellian
|
| The v240M from Intellian is a SATCOM terminal with a Tx frequency range of 13.75-14.5 GHz (Ku-band) and 5.85-6.425 GHzm (C-band). It supports a wide range of modem interface formats such as ethernet port, RS-232C, and console. It features an optional Modem Mediator and Wi-Fi supported ACU which provides convenient connection to the ACU for setup and system monitoring. It weighs 880 Kg, measures 390 x 414 cm, and has a reflector diameter of 240 cm. It is ideal for maritime applications. |
| |
Download Datasheet
Product Details | |
|
|
|

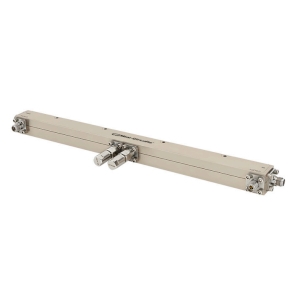

| 500-40000 MHz, 10 dB Dual-Directional Coupler | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K5R44W+ from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 0.5-40 GHz. This dual-directional coupler has a coupling of 1 dB and a coupling flatness of +/- 1.0-1.4 dB. It has a mainline loss of 1.6-5.0 dB and a directivity of 11-30 dB. It has a return loss of 25-33 dB. It has a power handling capacity of up to 16 W and requires a DC current supply of 0.56 A. This wideband coupler has a mass of 195 g and is ideal for 5G, mobile, fixed satellite, and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band to L-Band Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT137 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 13.75-14.50 GHz to an L-band frequency of 950-1700 MHz. It has a conversion loss of 20 dB and a phase noise of up to -125dBc/Hz (at 1MHz). It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-40 GHz 10 dB Fixed Coaxial Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32K-10 from Spectrum Control is a Space Qualified Fixed Attenuator with a frequency range of DC-40 GHz. This coaxial attenuator has a nominal attenuation of 10 dB and a deviation of +/- 0.5-1.0 dB. It has a nominal impedance of 50 Ohms. The attenuator has a peak power rating of 200 W and a power coefficient of less than 0.005 dB/W. This fixed coaxial attenuator is designed to meet the environmental requirements of MIL-DTL-3933 and is suitable for space and airborne applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|
| SmallSat Spacecraft Platform for LEO Applications | |
Satellite Bus & Platform
from Terran Orbital Corporation
|
| The Nebula from Terran Orbital Corporation is a Satellite Platform that can accommodate large payload mass on a standard 15-inch ESPA port, as well as 24-inch ESPA Grande port. The platform uses a Hall-Effect thruster with a thrust capacity of 1.1 mN and a specific impulse of 2150 sec. It has a launch mass of 250 Kg and measures 82 x 58 x 39 cm (without solar panels). This smallsat satellite platform is ideal for small satellite constellations for commercial customers or defense applications. |
| |
Download Datasheet
Product Details | |
|
|
|

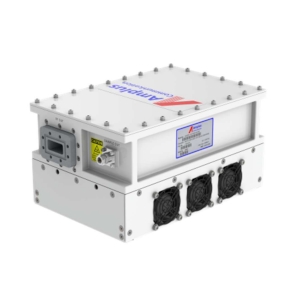

| 50 W C-Band Block Upconverter | |
Block Upconverter
from Amplus Communication
|
| The AM-9338 50 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. This block upconverter has a spurious value of -55 dBc and a phase noise range of -93 to -63 dBc/Hz. This block upconverter weighs 10 Kg and measures 300 x 200 x 150 mm(L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. It is ideal for high power BUCs for VSAT and Satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53821 from Modular Devices is a Space Qualified Solid State Relay with a bias voltage range of 4.7-5.3 V. This space-qualified solid state relay incorporates a Wide band gap (WBG) semiconductors such as GaN (Gallium Nitride) and SiC (Silicon Carbide) for high performance and is magnetically coupled and can be user-configured for continuous or pulse latching. It has a mass of 50 g and has a rugged hermetically sealed case which can withstand severe environmental conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
| CubeSat Power Control and Distribution Unit | |
Power Conditioning and Distribution Unit (PCDU)
from AAC Clyde Space
|
| The STARBUCK-NANO-PICO from AAC Clyde Space is a Power Conditioning and Distribution Unit (PCDU) designed to meet the volume and power demands typically required for 1U CubeSat missions. It has a maximum battery voltage of 8.2 V and supports an I2C interface. This Power Conditioning and Distribution Unit has a radiation tolerance of 10 KRad. The STARBUCK-NANO-PICO has a mass of 86 g and measures 95.89 x 90.17 x 16.2 mm. It is optimized for low-earth orbit CubeSat missions. |
| |
Download Datasheet
Product Details | |
|
|
|

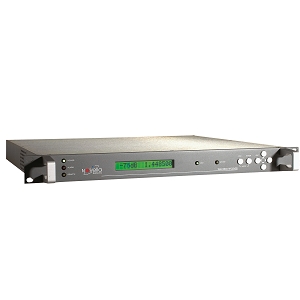

| 400-950 MHz Digital Beacon Tracking Receiver | |
Satellite Beacon Receiver
from Novella SatComs
|
| The B250 Series from Novella SatComs is a Satellite Beacon Receiver with an input frequency range of 400 – 950 MHz and an impedance of 50 Ohms. The beacon receiver supports the remote control options that include RS232 or RS422/RS485 with a D-type 9P F connector, serial emulation over TCP/IP with an RJ45 connector, and SNMP and HTTP over TCP/IP Ethernet with an RJ45 connector. The receiver is suitable for antenna tracking of NATO, Skynet, or DSCS military beacons. |
| |
Download Datasheet
Product Details | |
|
|
|
| 28 V Dual DC to DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFK282R5S from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 16-50 V an output voltage of 2.5 V. This converter has a capacitance of 2000 µF and a ripple voltage of 30-80 mVpp. The converter has an undervoltage lockout, fully isolated magnetic feedback with in-built short circuit protection. It weighs 38 grams and measures 37.08 × 28.70 × 9.14 mm in dimension. It is ideal for use in programs requiring high reliability, small size, and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|

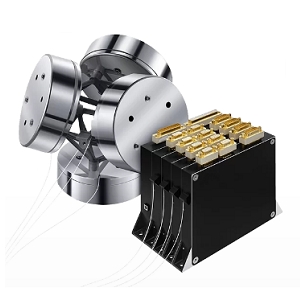

| Space-Qualified Inertial Reference Unit for Earth Observation | |
Inertial Measurement Unit
from Cielo inertial Solutions
|
| The STARLIGHT 1000 IRU from Cielo is a Fibre Optic Inertial Measurement Unit (IMU) that has a gyro dynamic measurement range of up to ± 35 deg/sec and bias stability of less than 0.001 deg/h. It requires a DC supply of 30-48 V and has a power consumption of up to 52 W. This IMU has a mass of 8 kg and measures 200 x 240 x 240 mm (optical pyramid). It is ideal for space navigation applications such as EO SATS, COM SATS, line of sight stabilization, space-based radar, and guidance. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 W Ka-Band Antenna Mount Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA4525P from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31.0 GHz and a bandwidth of 2500 MHz. This CE-compliant amplifier system requires a voltage supply of 200-240 V AC. It features an advanced cooling design that enables operation at +60 degrees C and in direct sunlight and supports RS485, RS232, Ethernet, SMP, or Webpage GUI interfaces. The amplifier system weighs 16 Kg and measures 44 x 22 x 22 cm. |
| |
Download Datasheet
Product Details | |
|
|
|

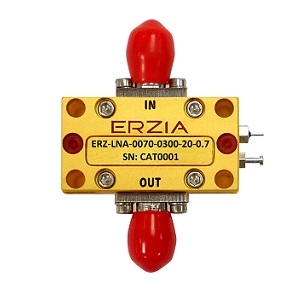

| L-Band Low Noise Amplifier for Space Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-LNA-0070-0300-20-0.7 from ERZIA is an RF Amplifier that operates in a frequency range of 0.7 to 3 GHz.It has a max. input VSWR of 2.5:1 and an output VSWR of 1.5:1. It requires a DC supply voltage of 9-15 V and has a power consumption of 0.5 W. It features gold-plated compact aluminum housing, solder-filtered pins for DC connection and SMA female RF connectors. It is ideal for industrial, laboratory, satcom, telecom, space, aerospace, and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

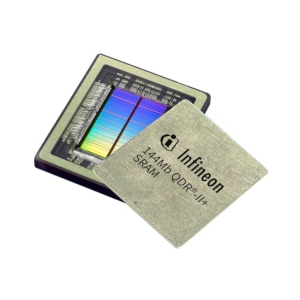

| 144Mb Quad Data Rate II+ Radiation Hardened SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1642KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 8M × 18 configuration with two-word burst mode. This SRAM has a maximum operating frequency of 250 MHz and a maximum operating current of 900 mA. The SRAM is available in a 165-ball Ceramic Column Grid Array (CCGA) and measures 21 × 25 × 2.83 mm. It is suitable for applications such as radar (SAR, LiDAR) and on-orbit image processing. |
| |
Download Datasheet
Product Details | |
|
