| Featured Space and Satellite Products this Week |
|
|
| Space-Qualified Rubidium Frequency Atomic Clock | |
Space Qualified Atomic Clock
from Safran Group
|
| This MiniRAFS from Safran Group is a Space-Qualified Atomic Clock for LEO, MEO, and GEO orbits with a design life of more than 20 years. It has a phase noise of -135 to -64 dBc/Hz and a return loss of greater than 20 dB. It has harmonics of less than 30 dBc and spurious signals of less than -80 dB. It requires a DC supply of 15.5-16.5 V. It is ideal for applications such as space scientific missions, secure satellite communications, tracking and guidance control, and advanced low satellite orbit digital communications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 V N-Channel Enhancement Mode MOSFET | |
Space Qualified MOSFETs
from Microchip Technology
|
| The JANSR2N7593U3 from Microchip Technology is a N-Channel Enhancement Mode MOSFET with a drain-source voltage of 250 V. It has a gate-source breakdown voltage of over 20 V. This rad-hard MOSFET has a low RDS(on) and low total gate charge of typically 30 nC. It features fast switching, easy paralleling and hermetically sealed construction. It is available in a surface-mount ceramic package and is ideal for applications in DC–DC converters, motor control and switch mode power supplies. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-end Hydra Star Tracker for Telecom Applications | |
Star Tracker
from Sodern
|
| The HYDRA ACCESS from Sodern is a Star Tracker with a slew rate of 5-8 deg/sec and has a bias of less than 11 arcsec. This star tracker requires a supply voltage of 5 V. The star tracker has an optical head vibration of 30g RMS and an output rate of 8 Hz. It has a mass of 1.4 Kg (optical head) and measures 147 (Diameter) x 283 mm. The HYDRA ACCESS star tracker has a lifetime of up to 10 years in LEO and 18 years in GEO and is ideal for telecommunications and earth observation satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 18.70-19.20 GHz Test Loop Translator for Satcom Applications | |
Test Loop Translator
from Jersey Microwave
|
| The KATLT-285290-187192-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 28.50-29.00 GHz and an output frequency range of 18.70-19.20 GHz. This test loop translator has an LO frequency of 9.80 GHz. It requires a power supply of 90-260 V AC and has a power consumption of up to 25 W. The test loop translator has a weight of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 900-2300 MHz Ceramic Balun for GPS Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-232+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 900-2300 MHz. This ceramic balun has an amplitude unbalance of 0.6-0.9 dB. It has an insertion loss of 0.71-1.47 dB and a maximum RF power rating of up to 2 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. The RF balun is suitable for GPS, WCDMA, PCS, and cellular applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Electric Propulsion Gimbal Thruster Assemblies | |
Gimbal
from Moog
|
| The Model-T 4 Phase from Moog is a Gimbal that can be configured for wide rotation on both axes with a total rotational range of +/- 36 degrees (X & Y axis). The gimbal thruster assembly weighs 5 Kg and measures 222 x 267 x 267 mm. It requires a supply voltage of 24-28 VDC. It provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, Arc-jet, and NTO/MMH, and has successfully been used for orbit raising and station keeping of heavier payload satellites. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|
| 125 W Ku-Band SATCOM Transceivers | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 125W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. It supports Ethernet, RS-232 and RS-485 monitoring and control interfaces. The transceiver requires an input power supply of 100-250 V AC and has a power consumption of up to 1640 VA. It has a mass of 66 kg and measures 965 x 330 x 318 mm. The transceiver is designed for SCPC, MCPC and DAMA applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 8:1 Redundancy System for L-band Frequency Converters | |
SATCOM Redundancy Switch
from WORK Microwave
|
| The RSCC-8 from WORK Microwave is a SATCOM Redundancy Switch with a frequency range of 40 MHz to 2.2 GHz. This switch has an isolation of 70 to 75 dB and an insertion loss of 4.5 to 6.2 dB. The switching system has a switching speed of 100-400 mS. It requires an input supply of 240 V AC and has a maximum power consumption of 7 W. The switch has a mass of 5.5 kg and measures 483 x 44 x 470 mm. It is ideal for upconverters and downconverters with integrated uplink power control. |
| |
Download Datasheet
Product Details | |
|
|
|

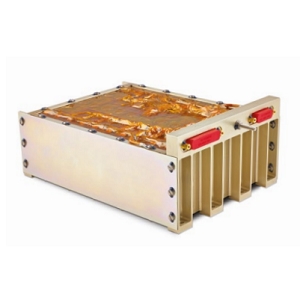

| Space-Qualified 15 Ah Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s10p 28V 15Ah from EnerSys is a Satellite Battery with a capacity of 15 Ah and an energy of 432 Wh. It is qualified for the ASTRIUM in CNES MICROSAT series of low Earth orbit (LEO) spacecraft with the design being utilized for a variety of applications including civilian, military, and other commercial applications. This satellite battery operates without the need for cell-balancing electronics and is currently functioning in both LEO and geostationary Earth orbit (GEO) satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

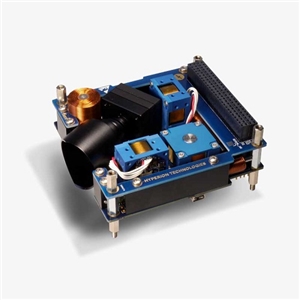

| Fully autonomous Integrated ADCS system for Low Power Applications | |
ADCS System
from AAC Clyde Space
|
| The iADCS200 from AAC Clyde Space is an Autonomous Attitude Determination and Control System (ADCS) that is designed for small satellites and 3U CubeSats. The ADCS system supports I2C, RS-422, RS-485, UART and CAN interfaces. It features an internal fire-and-forget controller which frees up the host processor’s workload, providing nadir, sun and target-pointing modes, as well as backup detumbling and control system has target pointing, sun pointing, nadir pointing, and fast spin mode. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite Link Emulator for Spacecraft Payload and Modem Testing | |
Satellite Link Emulator
from Polaris
|
| The PSLE-70-10D from Polaris is a Satellite Link Emulator that is designed for geostationary satellites. This satellite link emulator has a wide Doppler frequency shift range of -1 to +1 MHz and a noise floor of less than -125 dBc/Hz. The satellite link emulator measures 19 x 5.25 x 21 inches and is ideal for applications such as satellite modem testing, VSAT testing, satellite payload testing, UAV tests, earth terminal tests, satellite system integration test beds, and mobile transceiver tests. |
| |
Download Datasheet
Product Details | |
|
|
|

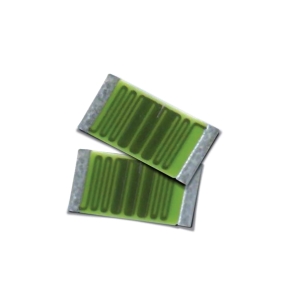

| 10 kOhms to 50 GOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (2512) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 25 ppm/ degrees C. It has a power rating of 2 W and a voltage rating of 3000 V. It is screened and qualified to MIL-PRF-55342, MIL-PRF-49462, and NASA EEE-INST-002 (level 1 & 2). It is a surface mount resistor which measures 6.35 x 3.18 x 0.76 mm and is ideal for military, electronic warfare, and space applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|
| Airborne Stabilized VSAT System for SatCom Applications | |
SATCOM Antenna
from Orbit Communication Systems
|
| The MPT 30 Ku from Orbit Communication Systems is a Ku-Band SATCOM Antenna with a Tx Frequency of 13.75-14.5 GHz and an Rx Frequency of 10.95-12.75 GHz. It supports Ethernet/ Serial/ARINC429 interfaces and a continuous cable-less polarization compensation for Ku-band. This airborne stabilized multiband VSAT system is ideal for mission aircraft, ISR platforms, Unmanned Aerial Systems (UAS), helicopters and VSAT communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|

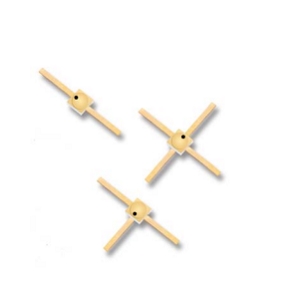

| 300-400 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2205 from Skyworks is a space-qualified Silicon Beam-Lead diode with a frequency range of 2-8 GHz. It has a forward voltage of 300-400 mV and a maximum current of up to 100 mA. It has a power dissipation of 75 mW / junction and a resistance of up to 5 Ohms. It has a total capacitance of 0.60 pF and a reverse breakdown voltage of up to 3 V. This diode has a ceramic-chip package and is designed for microwave integrated circuits, mixers, and detectors applications. |
| |
Download Datasheet
Product Details | |
|
|
|

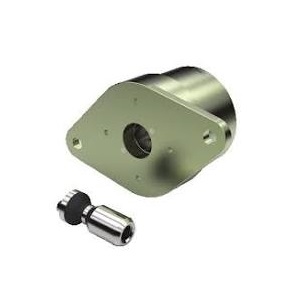

| Hold Down & Release Mechanism for Satellites | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The 9102 from Ensign-Bickford Aerospace & Defense Company (EBAD) is an Attach and Release Mechanism with a proof load rating of 22.2 kN and a release load rating of 17.8 kN. The mechanism has a mass of 130 g and is ideal for applications such as antennas, reflectors, solar arrays, deployable radiators, booms, masts, scientific instruments, satellite and spacecraft deployments, missile payload separation, launch vehicles, and missile stage and fairing separation. |
| |
Download Datasheet
Product Details | |
|
|
|

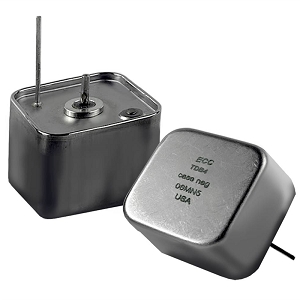

| 120 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB4010124 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 120000 µF. This capacitor has a direct current leakage of 300 µA to 3 mA and an equivalent series resistance of 25 mOhm. The capacitor has a mass of 74 g and measures 1.0 x 1.0 x 0.766 (L x W x H) inches. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
