| Featured Space and Satellite Products this Week |
|
|

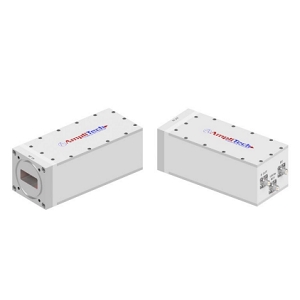

| 7.75 to 8.50 GHz X-Band Low Noise Block Downconverter | |
Low Noise Block
from AmpliTech
|
| The APT5-LNB-07750850-40K15-WR112 from AmpliTech is a Low Noise Block Downconverter that converts an input RF frequency from 7.75 -8.50 GHz to output IF frequency from 800-1550 MHz. The low noise block downconverter weighs 375 g in a compact enclosure that measures 6 x 3 x 2 inches with WR 112 waveguide and SMA female interfaces. It is suitable for smallsats, LEO, MEO, GEO, and portable/fixed X-Band teleport applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5000 ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44905 from TE Connectivity is a Space-Qualified Temperature Sensor with a resistance of 5000 ohms. It consists of a pressed disk ceramic sensor and thermally conductive epoxy coating that meet outgassing requirements. This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space, low and mid-range temperature, tight tolerance instrumentation and applications requiring sensing small changes in temperature. |
| |
Download Datasheet
Product Details | |
|
|
|

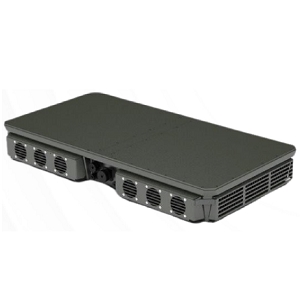

| Ku-band Electronically Scanned Array Antenna Satellite Terminal | |
Satellite Terminal
from ReQuTech AB
|
| The RESA M Ku from ReQuTech AB is a Satellite Terminal with a transmit frequency range of 13.75 to 14.5 GHz (GEO), 14 to 14.5 GHz (OneWeb) and a receive frequency range of 10.7 to 12.75 GHz(GEO), 10.7 to 12.75 GHz (OneWeb). It is MIL-STD designed with field-replaceable fan bays for all-weather IP68 operations. It is a fully integrated SATCOM terminal covers LEO and GEO constellations for on-the-move and on-the-pause applications. |
| |
Download Datasheet
Product Details | |
|
|
|

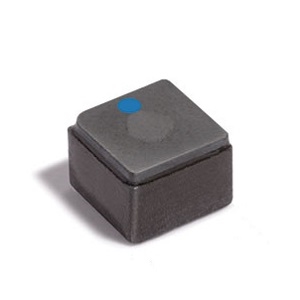

| 0.13-12.0 µH Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE449PGA from Coilcraft is a Space Qualified Inductor with an inductance range of 0.13-12 µH and an inductance tolerance of +/- 20 %. The inductors have an operating voltage of 0–80 V and features tin-lead (Sn-Pb) termination for the best possible board adhesion and have passed NASA low outgassing specifications. The inductor passes vibration testing up to 80 G and shock testing up to 1000 G. It measures 0.134 x 0.093 x 0.038 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 500 W C-Band Solid State Satcom Amplifier | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCD6500Q from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.425 GHz. The amplifier system has a spurious of -60 dBc and a maximum VSWR of 1.3:1. It features a modular architecture and QuadMod SSPAs that consist of four identical, forced air cooling system and fully inter-changeable RF plug-in modules. It weighs 82 Kg and measures 483 x 311 x 746 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.25-10.00 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-3800D from Mini Circuits is a Space Qualified RF Filter with a frequency range of 4250-10000 MHz. The filter has a frequency cut-off of 3 dB at 3.8 GHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|

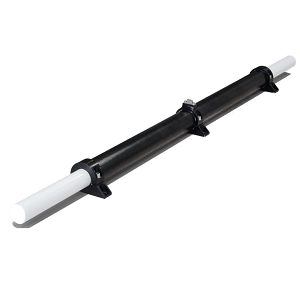

| Demisable Magnetorquer for Middle/Large Size Spacecrafts | |
Magnetorquer
from LusoSpace
|
| The MTQ400 from LusoSpace is a Magnetorquer with a magnetic dipole moment of +/- 400 AM^2 and a linearity error of less than 1.5 %. It has a residual magnetic moment of less than 0.5 % and a time constant of less than 250 ms. It requires a supply voltage of +/- 28 V and consumes less than 15 W of power. It has a mass of 7 Kg and measures 950 x 80 x 80 mm. It is ideally suited for middle/large-sized spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
|

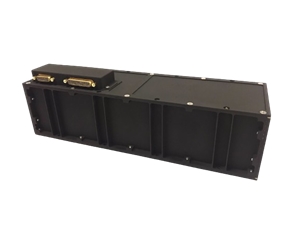

| 270 Ah Space-Qualified Lithium-ion Battery | |
Satellite Battery
from Dragonfly Aerospace
|
| The Battery Module by Dragonfly Aerospace is a Lithium-ion battery with a design life of 5 years in LEO. It has a nominal voltage rating of 29.7 V and a battery capacity of 270 Ah. This ITAR-free battery is TiD screened for above 20 kRad with in-built over/under voltage and over current protection. This flight-proven LFP (Lithium Iron Phosphate) spacecraft energy storage solution weighs 4.73 kg and measures 350 x 108 x 110 mm (L x W x H). |
| |
Download Datasheet
Product Details | |
|
|
|

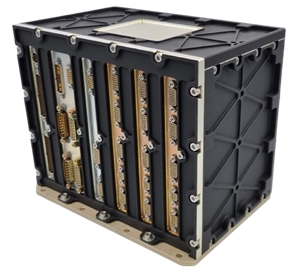

| 28 V Electrical Power System for Nano, Micro, and Mini Satellites | |
Power Conditioning and Distribution Unit (PCDU)
from Dragonfly Aerospace
|
| The EPS-LP-1k5 from Dragonfly Aerospace is a Power Conditioning and Distribution Unit (PCDU) with a design life of up to 8 years. It has a nominal bus voltage of 29.7 V and a total battery power rating of 1500 W. This PCDU system supports CAN, DCL and telemetry and telecommands communication interfaces. It features a battery charge current and battery under voltage protection. It has a mass of 3.3 kg and measures 211 x 153 x 175 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

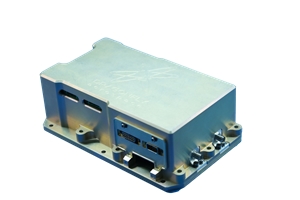

| X-band Space Transmitter for LEO Spacecraft | |
Space Transmitter
from Dragonfly Aerospace
|
| The HDRTx from Dragonfly Aerospace is a Space Transmitter with a transmit frequency range of 8.025-8.4 GHz and a dual channel output up to 3 W of RF power per channel. It has a symbol rate of 50-300 Msps and can achieve a maximum data transmission rate of up to 1.3 Gbps per channel. The transmitter has a mass of 0.95 kg and measures 177 x 115 x 57.6 mm. It has a design life of up to 8 years in LEO and ideal for low Earth orbit spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
|

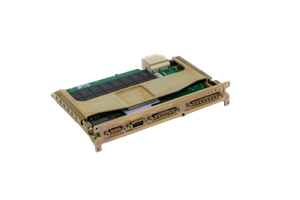

| 512 GB Solid-State Mass Memory for LEO Spacecraft | |
Space Qualified Memory
from Dragonfly Aerospace
|
| The SSMM from Dragonfly Aerospace is a Space Qualified Memory with storage capacity of 512 Gb density with a read and write speeds of up to 26 Gbps. It has a latch-up detection circuitry with all internal power supplies and has a built-in ECC and bad block management function. It requires a nominal supply voltage of 5 V and a power consumption of 6W. This solid state mass memory has a mass of 0.35 kg and measures 160 x 107 x 29 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

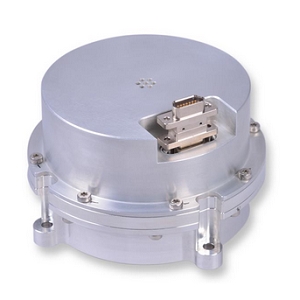

| Reaction Wheel for SmallSats | |
Reaction Wheel
from Astrofein
|
| The RW35 from Astrofein is a Reaction Wheel that is designed for SmallSats and has a lifetime of up to 5 years with an integrated wheel drive electronics for latch-up protection. It has an angular momentum of 0.1 Nms and a rotation speed range of 5000 rpm. The reaction wheel requires a supply voltage of 18-34 V and has a maximum consumption of less than 2.0 W. It has a mass of less than 0.5 kg and measures 102 x 102 x 58 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|
| 50 W Radiation Hardened Isolated DC to DC Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-15S-A-H from Microchip Technology is a Radiation-Hardened DC-to-DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 15 V. It has a radiation tolerance TID of greater than 100 krad (Si) and a SEE immunity of 82 MeV·cm2/mg. It has a low mass of 120 g and measures 3.055 x 2.055 x 0.5 inches. It is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

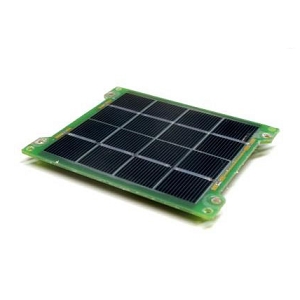

| Solar Panel for CubeSats with Built-in Electromagnetic Coil | |
Satellite Solar Panel
from SPUTNIX
|
| The SXC-SSS-03 from SPUTNIX is a Satellite Solar Panel with Si photo-electric converters and has built-in electromagnetic coils. It has an open circuit voltage of 5.4 V and a short circuit current of 330 mA. It has a power voltage of 4.4 V. It has a mass of 32 g and measures 98 x 82.6 x 8.6 mm. The panel is suitable for side edges of 1U CubeSats, both SPUTNIX and ISIS frames, several panels can be combined for 2U and 3U frames. |
| |
Download Datasheet
Product Details | |
|
|
|

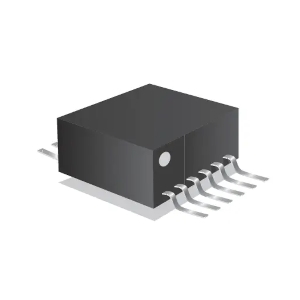

| 21 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS308 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 21 mH. This space grade transformer has a turns ratio of 1:1:100:100 and requires an ET reference voltage of 144 V. It has a direct current resistance of 2.9 Ohms and a peak primary current of 10 A. It is built to meet MIL-STD-981 specifications with low thermal expansion and transfer molded packaging which makes it ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
|
|

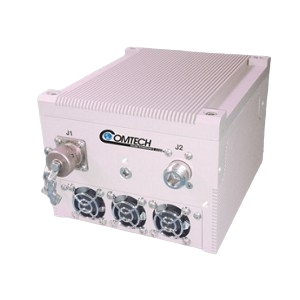

| 40W X-Band GaN SATCOM Block Upconverter for Satcom Uplinks | |
Block Upconverter
from Comtech Xicom Technology
|
| The Bobcat 40X from Comtech Xicom Technology is a SATCOM Block Upconverter that converts an input IF frequency of 950-1450 MHz to an output RF frequency of 7.9-8.4 GHz. It requires a DC supply of 22-56 V and draws a DC power of 120 W. The BUC supports Ethernet and RS-232 interfaces for monitoring and control. It has a rugged MIL-STD-810 certified module that weighs 2.31 Kg. This X-band Block Upconverter is ideal for satcom uplinks. |
| |
Download Datasheet
Product Details | |
|
