| Featured Space and Satellite Products this Week |
|
|
| 17.8 to 19.3 GHz Ka-Band Low Noise Block Downconverter | |
Low Noise Block
from AmpliTech
|
| The APT5-LNB-17801930-92K10-WR42 from AmpliTech is a Low Noise Block Downconverter that converts an input RF frequency from 17.8–19.3 GHz to output IF frequency from 920-2420 MHz. It has an input VSWR of 1.25:1 and an output VSWR of 1.3:1. The low noise block downconverter weighs 2 lbs and measures 5.5 x 2.5 x 2.5 inches with WR 42 waveguide and SMA female interfaces. It is suitable for smallsats, LEO, MEO, GEO, and portable/fixed Ka-Band teleport applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 70-130 MHz Space OCXO for Transponders and GNSS Receivers | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROX5555S from Rakon Limited is a Space Qualified Oscillator with a nominal frequency of 70-130 MHz. This oscillator has a frequency stability of +/- 24 ppb and a frequency stability adjustment of +/- 1 ppm over 15 years. It has a phase noise of -90 to -145 dBc/Hz and an output power of up to 7 dBm. It is an ideal solution for telecommunications payload applications such as atomic clocks, signal generation, transponders, GNSS receivers, digital cards, down and up converters, and synthesizers. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.5 m Auto-Acquire Drive-Away Satellite Antenna System | |
SATCOM Antenna
from C-COM
|
| The 1500 from C-COM is a SATCOM Antenna with a transmit frequency range of 13.75-14.50 GHz (Ku band), 5.850-6.725 GHz (C-Band (Linear)) and 5.85-6.425 GHz (C-Band (Circular)). It has a reflector weight of 115 Kg and a total weight of 267 Kg. It is designed to work with the iNetVu 7000C controller and is suitable for industries such as oil & gas exploration, military communications, disaster management, SNG, emergency communications backup and cellular backhaul applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hermetically Sealed 3.3 V High Gain Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-0822704K from Broadcom is a Space Qualified Optocoupler with a forward voltage range of 1-1.8 V and an insulation leakage current of 1 µA. It has a low output saturation voltage of 0.11 V. This surface-mount optocoupler has a capacitance value of 4 pF. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, transportation, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Power Processing Unit (PPU) for Hall Effect Thrusters | |
Power Processing Unit for Thruster
from Airbus
|
| The Elektro from Airbus is a Power Processing Unit (PPU) that provides power conditioning and control for the Hall Effect Thrusters, with lifetime of 15 years in GEO orbit. The Elektro has an anode operating capability of up to 400V (Isp vs thrust) and is designed for dual-mode operation in the range of 300-400V. It features a flexible design that offers different possible thruster configurations and can drive one or two HETs. The PPU has a mass of 20.5kg and measures 393 x 270 x 271 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.75-13.25 GHz Test Loop Translator for Frequency Translation | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-13-11.2 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 12.75-13.25 GHz and an output frequency range of 10.7 to 11.2 GHz. It has an input/output return loss of 18 dB and a conversion loss of 15-25 dB. It has a noise figure of 15-25 dB and a phase noise of up to -120 dBc/Hz. It has a mass of 4.5-6.4 Kg and measures 19 x 1.75 x 20 inches. It is ideal for applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|
| 950-2200 MHz Bi-Directional Coupler for Mobile Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The BDCA1-6-22+ from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 900-2200 MHz. This wideband coupler has a coupling range of 6-7.97 dB and a VSWR of 1.15:1. It has a directivity of 17.40-41.94 dB and a mainline insertion loss of 1.13-1.75 dB. It requires a DC current supply of 0.25 A and has a power handling capability of 37-57 W. It has a hermetically sealed package with mass of 25 g and is suitable for DCS, PCS and mobile satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|

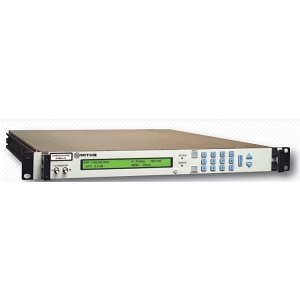

| 3.4-12.75 GHz Three-Channel Block Downconverter for Satcom Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-98-37991AHV-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 3.4-12.75 GHz and an output frequency of 70 MHz. It has a minimum power output of 20 dBm and an output impedance of 75 Ohms. It supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces for monitoring and control. This frequency downconverter is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0181-03-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency of DC-18 GHz. It has an average power of 2 W. It is qualified using qualification testing guided by MIL-DTL-3933 level T and has three standard screening levels. This RoHS-compliant attenuator has maximum weight of 14.2 g and has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

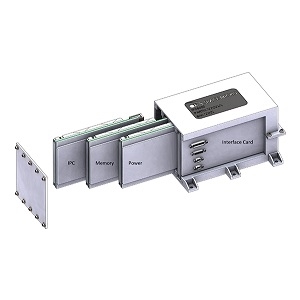

| Radiation Tolerant Image Processing Computer | |
Satellite On-Board Computer (OBC)
from Space Micro
|
| The IPC-8000 from Space Micro is a Satellite On-Board Computer utilizes UltraScale FPGAs in a VPX backplane and based on reconfigurable FPGA resource designed to meet the demands of high-bandwidth applications. It features next-gen processing and memory functions in a compact 3U OpenVPX standard compliant. It has a rad-tolerant of up to 100 krads and supports RS-422, GPIO and LVDS interfaces. It has a real-time 12 bit JPEG compression and measures 7.9 x 5.9 x 4.4 in. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation-Hardened 32-bit Microcontroller for Aerospace Applications | |
Space Qualified Microcontroller
from Microchip Technology
|
| The SAMRH71 from Microchip Technology is a Space-Qualified Microcontroller that is based on a 32-bit Arm Cortex -M7 RISC processor with a Floating Point Unit (FPU) targeted for aerospace. It has TID immunity successfully tested up to 100 Krad (Si) and no Single Event Latch-up below a LET threshold of 78 MeV.cm2 /mg. It requires a supply voltage of 3.0-3.6 V. The SAMRH71 is ideal for critical mission applications such as on-board computing, sensor management, and connectivity. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-band Beacon Receiver for Satellite Communication | |
Satellite Beacon Receiver
from Narda-MITEQ
|
| The BR-L from Narda-MITEQ is a Satellite Beacon Receiver with an input frequency of 940-2150 MHz and an impedance value of 50 Ohms. It supports the remote control options that include RS232 and RS422/RS485 and 10/100 Base-T ethernet interface. It requires an AC supply voltage of 90-250 V and a power consumption of 50 W. It has a mass of 6.8 kg and measures 19 x 22 x 1.75 inches. The beacon receiver is suitable antenna positioning and uplink power control applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|

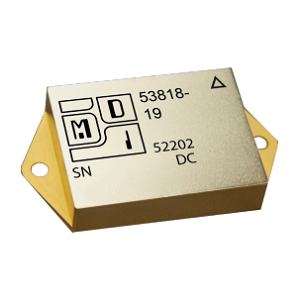

| Radiation-Hardened Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53818 from Modular Devices is a Space Qualified Solid State Relay with a bias voltage of 4.7-5.3 V and a bias current of 30-50 mA. It has a contact resistance of 0.075-0.2 Ohms and a power consumption of up to 10 W. It has a delay time of 12-20 µS and a dynamic energize time of 12-30 µS. The solid-state relay uses a wide bandgap power semiconductor for high performance and has magnetically coupled command for fast response. It has a mass of 32 grams and a rugged hermetic package. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Dual Output DC-DC Converter for Low Profile Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MGH2812D from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 12-50 V an output voltage of 12 V. The MGH converter is manufactured in a fully certified and qualified MIL-PRF-38534 facility and has an efficiency of up to 77%. The converter provides an undervoltage lockout and fully isolated magnetic feedback with in-built short circuit protection. The converter is ideal for use in programs requiring high reliability, small size, and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-Precision Reaction Wheel for Imaging Satellites | |
Reaction Wheel
from Dragonfly Aerospace
|
| The RW-1Nms from Dragonfly Aerospace is a Reaction Wheel that is designed for imaging satellites that demand exceptional platform stability and precise control while minimising disturbance torques. It has a rotation speed range of ±10000 rpm. This ITAR-free reaction wheel is designed with latch-up protection and has regenerative braking system. It requires a supply voltage of 12-36 V and has a peak power of 108 W. The reaction wheel has a mass of 1.0 kg and measures 102.8 x 100 x 50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 175 W Ka-Band Antenna Mount Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA4517P from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31.0 GHz and a bandwidth of 2500 MHz. It has a spurious of less than -60 dBc and a phase noise of less than -50 dBc. It features an advanced cooling design that enables operation at +60 degrees C and in direct sunlight and supports RS485, RS232, Ethernet, SMP and Webpage GUI interfaces. The amplifier system weighs 16 Kg and measures 44 x 22 x 22 cm. |
| |
Download Datasheet
Product Details | |
|
