| Featured Space and Satellite Products |
|
|
| 7.25–7.75 GHz Redundant Plate Low-Noise Amplifier System | |
SATCOM Amplifier System
from AmpliTech
|
| The APT-LNA-PLATE-XBAND from AmpliTech is a SATCOM Amplifier System with a frequency range of 7.25–7.75 GHz and a small signal gain of 52 dB. The low noise amplifier requires a DC voltage supply of 13-18 V and can be remotely switched into operation using 24 VDC redundancy control. This amplifier system has an LNA system input VSWR of 1.3:1 and an LNA system output VSWR of 1.5:1. The amplifier is suitable to amplify small signals for IF down conversion and demodulation. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50-6000 MHz SMT Low Noise Amplifier | |
RF Amplifier
from Mini Circuits
|
| The Cma-545+ from Mini Circuits is a RF Amplifier which operates from 0.05-6 GHz. It is bonded to a multilayer integrated LTCC substrate and hermetically sealed under a controlled nitrogen atmosphere with gold-plated covers and eutectic AuSn solder. It has been tested to MIL requirements for gross leak, fine leak, thermal shock, vibration, acceleration, mechanical shock, and HTOL. It is ideal for sensitive receiver applications such as cellular, ISM, GSM, WCDMA, LTE, WiMAX and WLAN. |
| |
Download Datasheet
Product Details | |
|
|
|

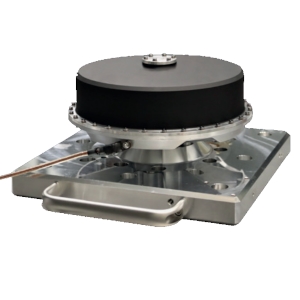

| High Capability Actuator for Small Satellite | |
Space Actuator
from Airbus
|
| The HCA 4-1 from Airbus is a Space Actuator that is based on high torque reaction wheels that has a maximum angular momentum of 4.0 Nms and a maximum reaction torque of 0.980 Nm. This actuator is integrated with digital TM/TC interface based on RS422/485 and performs monitoring and test functions. It has a mass of 5.90 Kg and measures 240 x 190 x 150 mm. The actuator features small satellite user fast maneuver capability with enhanced pointing control which makes it ideal for EO applications. |
| |
Download Datasheet
Product Details | |
|
|
|

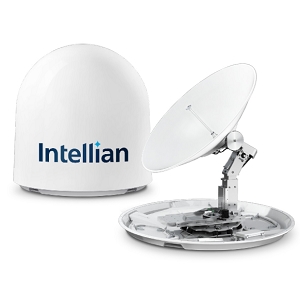

| 1.5 M Wideband Ka-Ku Band Convertible Maritime VSAT Terminal | |
Satellite Terminal
from Intellian
|
| The v150NX Ka from Intellian is a Satellite Terminal with a transmitter frequency 27.5-30 GHz and a receiver frequency 17.7-20.2 GHz. This VSAT antenna system has a Tx gain of 50.3 dBi and an Rx gain of 47.0 dBi. It has an unlimited azimuth range and has a reflector diameter of 150 cm. This VSAT terminal system has a circular and dual-polarized reflector and has a G/T of 23.5 dB/K. It supports ethernet port, RS-232C, RS-422C and console range of modem interface formats. |
| |
Download Datasheet
Product Details | |
|
|
|

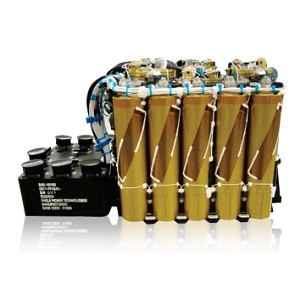

| 100 Ah Capacity Lithium Cobalt Oxide Battery For GEO Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The SAR-10199 from EaglePicher Technologies is a Satellite Battery with a nameplate capacity of 100 Ah/3663 Wh. It features a built-in cell safety protection and designed for radiation total-dose exposure. It weighs 35 Kg and measures 50.8 x 27.3 x 27.3 cm. It is qualified for space flight and suitable for military communications and surveillance, commercial communication and broadcasting, NASA research, environmental monitoring and global navigation and tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V High-Reliability Schottky Rectifier | |
Space Qualified Diode
from Infineon Technologies
|
| The 15CLQ100 from Infineon Technologies is a Space Qualified Diode with a maximum DC reverse voltage of 100 V and a maximum average forward current of 35 A. It has a maximum thermal resistance of 1.60 degrees C/W. It features a guard ring for enhanced ruggedness and has a surface mount hermetically sealed package. It is fully qualified according to MIL-PRF-19500 for space applications and is suitable for high frequency switching power supplies and resonant power converters. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | MUNICH NEW SPACE SUMMIT 2024 | | The Munich New Space Summit serves as a vital platform for the convergence of experts, researchers, industry professionals, and policymakers to engage in discussions, share insights, and explore collaborations within the realm of commercial space exploration. The event encompasses diverse facets of New Space, including satellite development and initiatives driven by private companies and entrepreneurial endeavors. Click here to learn more. | | | |
|
|
| 25 W Airborne Qualified Ku Band Aerostream Transceiver | |
SATCOM Transceiver
from Wavestream Corporation
|
| The UST25A00A from Wavestream Corporation is a SATCOM Transceiver with a transmit RF frequency of 13.75-14.5 GHz and an IF frequency of 950-1700 MHz. It has a small signal gain of 53 dB and a rated output power of 44 dBm. It has noise figure of 10 dB and minimum image rejection of 40 dB. It has a phase noise of up to -122 dBc/Hz. It incorporates next generation Spatial Power Advantage technology to provide high power output with greater efficiency and reliability for airborne satellite. |
| |
Download Datasheet
Product Details | |
|
|
|

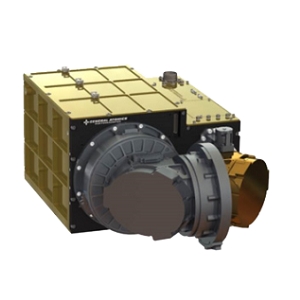

| Optical Communication Terminal for Multi-domain Communications | |
Satellite Laser Communication Terminal
from General Atomics
|
| The Optical Communication Terminal from General Atomics is a Satellite Laser Communication Terminal with an aperture of 70 mm and a link range of up to 5500 Km. It has on-off keying of 2.5 Gbps and a power consumption of 10 W. The SDA v3.0 OCT compliant communication terminal has transmit fiber laser of range 1530-1565 and has a slew time of 25 deg/s. It has a higher data rates and alternate coherent communication protocols (DPSK, DQPSK) with CCSDS 141-10 compatibility. |
| |
Download Datasheet
Product Details | |
|
|
|

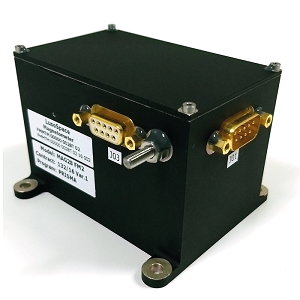

| Three-Axis Space-Qualified Magnetometer for LEO Missions | |
Magnetometer
from LusoSpace
|
| The MAG28 from LusoSpace is a Magnetometer provides three-axis analogue readings of the surrounding magnetic field, and it is housed in a compact enclosure for easy integration. It requires a supply voltage of 15-40 V. The magnetometer features AMR technology and is fully qualified for space applications according to ECSS (ESA) standards and MIL standards. It has a mass of 300 g and measures 85 x 53 x 60 mm. The magnetometer is ideal for providing attitude reference in LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|

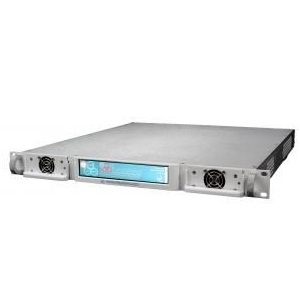

| Ka-Band to L-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The FN-D-KXL1-24122-K5 from ETL Systems is a Block Downconverter that converts an input frequency of 18.8 – 20.0 GHz to an output frequency of 950-2150 MHz. The Ka-band to L-band block downconverter features hot swap and replaceable RF frequency converter modules and supports remote control and monitoring via RJ45 Ethernet port with SNMP and web browser interface. It has field replaceable redundant configuration and local control and monitoring via HMI touchscreen. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.250-2.725 GHz Ceramic RF Balun for WIMAX Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS3-272+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 2250 to 2725 MHz. It has an impedance ratio of 3 and a maximum insertion loss of 1 dB. The balun has a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. This RoHS-compliant balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for applications such as WLAN, WIMAX/WIBRO, MMDS, and radar. |
| |
Download Datasheet
Product Details | |
|
|
|
| 30000 ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44909 from TE Connectivity is a Space-Qualified Temperature Sensor with a resistance of 30000 ohms and a beta value of 3943 K. It consists of a pressed disk ceramic sensor and thermally conductive epoxy coating that meet outgassing requirements. This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space applications, low and mid-range temperature applications, tight tolerance instrumentation and applications requiring sensing small changes in temperature. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | |
|
|

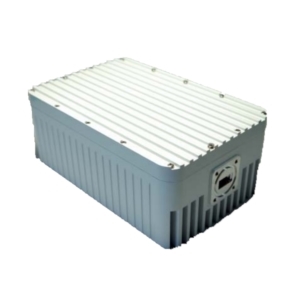

| 20 W Ku-Band Block Upconverter for SATCOM Applications | |
Block Upconverter
from KMIC Technology
|
| The KMU137145B11 from KMIC Technology is a Block Upconverter that converts an input IF frequency of 950-1700 MHz to an output RF frequency of 13.75-14.5 GHz. It has a spurious of -60 dBc. It requires a DC input voltage of 36-70 V and has a power consumption of 150 W. The converter supports RS-232 and RS-485 interfaces for monitoring and control. It weighs 3.5 Kg and measures 233 x 140 x 88 mm. The block upconverter is ideal for high power BUCs for VSAT and SatCom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

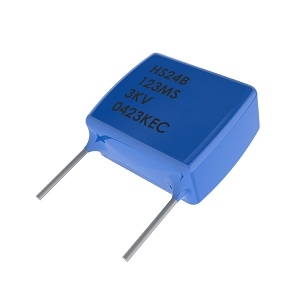

| 560 pF Space Grade Ceramic Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 05HS21N560K from KEMET is a Space Qualified Capacitor with Capacitance 560 pF. This ceramic capacitor has a capacitance tolerance of +/- 20 % and a rated DC voltage of 500 V. It is designed with the C0G and X7R dielectric that features a maximum of 125°C operating temperature and is screened to MIL-PRF-49467. It is ideal for aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters, and high-voltage coupling applications. |
| |
Download Datasheet
Product Details | |
|
|
|

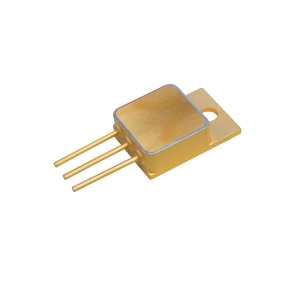

| 100 V Rad Hard N-Channel Enhancement Mode MOSFET | |
Space Qualified MOSFETs
from STMicroelectronics
|
| The STRH100N10 from STMicroelectronics is a Space Qualified MOSFETs that has a drain-source voltage of 100 V and a continuous drain current of 30-48 A. It has a pulsed drain current of 192 A and an on-state drain-source resistance of 63 mohm. This MOSFET has a gate source voltage of ±20 V and a gate source threshold voltage range of 1.5-5.5 V. This ESCC 5205/021-certified N-channel power MOSFET has hermetic packaging and suitable for in-satellite power conversion applications. |
| |
Download Datasheet
Product Details | |
|
