| Featured Space and Satellite Products |
|
|
| 7.25–7.75 GHz Redundant Plate Low-Noise Amplifier System | |
SATCOM Amplifier System
from AmpliTech
|
| The APT-LNA-PLATE-XBAND from AmpliTech is a SATCOM Amplifier System with a frequency range of 7.25–7.75 GHz and a small signal gain of 52 dB. The low noise amplifier requires a DC voltage supply of 13-18 V and can be remotely switched into operation using 24 VDC redundancy control. It has a mass of 15 kg and measures 19 x 17 x 10 inches. It has an LNA system input VSWR of 1.3:1 and an LNA system output VSWR of 1.5:1. The amplifier is suitable to amplify small signals for IF down conversion and demodulation. |
| |
Download Datasheet
Product Details | |
|
|
|

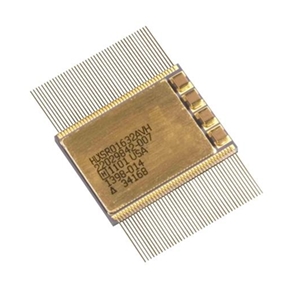

| 512K x 32 Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HLXSR01632 from Honeywell Aerospace is a Radiation-Hardened Static RAM with a configuration of 512K x 32-bit memory. It has an asynchronous operation with CMOS-compatible I/O and is immune to latch up. The SRAM operates over the full military temperature range and requires a core supply voltage of 1.5 V and an I/O supply voltage of 3.3V. It has a mass of 7 g and measures 21.67 x 28.91 x 4.01 mm. The SRAM is designed for use in low-voltage systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|

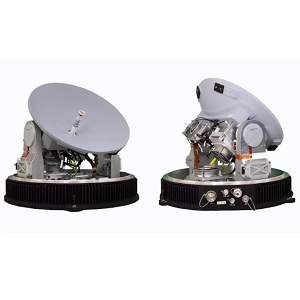

| 13.75 to 14.50 GHz Ku-Band SATCOM On-The-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-20M Ku from General Dynamics Mission Systems is a Satellite Terminal with a transmit frequency range of 10.95-12.75 GHz and a receive frequency range of 13.75-14.50 GHz. It supports a wide range of commercial modem systems. It weighs 155 lbs and measures 24.5 inches (h) and 24.0 inches (radome diameter). It was specifically designed for ground vehicle command, control and communications (C3) missions where beyond the line of sight (BLOS) SATCOM capabilities are mission critical. |
| |
Download Datasheet
Product Details | |
|
|
|

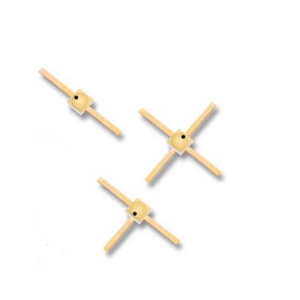

| 350-450 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2207 from Skyworks is a Space Qualified Diode with a frequency range of 12.4-18.0 GHz. This diode has a forward voltage of 350-450 mV and a maximum current of up to 100 mA. It has a power dissipation of 75 mW/junction and a resistance of up to 13 Ohms. This space-qualified diode has a total capacitance of 0.25 pF and a reverse breakdown voltage of up to 3 V. It has a ceramic hermatic package and is suitable for applications in microwave integrated circuits, mixers, and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|

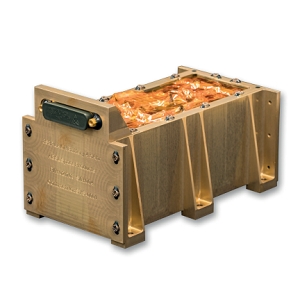

| Space-Qualified 4.5 Ah Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s3p 28V 4.5Ah from EnerSys is a Satellite Battery with a capacity of 4.5 Ah and an energy of 129.6 Wh. This satellite battery has a voltage range of 20-33.6 V with a nominal voltage of 28 V. It has a 8s3p configuration and features ABSL Li-ion cell technology. The battery does not require cell balancing electronics and was originally built for use in the Korean Space Launch Vehicle (KSLV). This satellite battery has a space heritage and used in missions such as KSLV-1 Launcher, CYGNSS, and Oculus-ASR. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 W Ku Band Satcom Transceiver | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 4W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14.0-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. It has a Tx gain of 67 dB and an Rx gain of 75-100 dB. It has a 1-dB compression point of 36 dBm and a noise figure of 1-2 dB. It supports Ethernet, RS-232 and RS-485 interfaces. It requires an input power supply of 100-250 V AC and has a power consumption of up to 100 VA. It has a mass of 12 kg and measures 549 x 229 x 178 mm. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | MUNICH NEW SPACE SUMMIT 2024 | | The Munich New Space Summit serves as a vital platform for the convergence of experts, researchers, industry professionals, and policymakers to engage in discussions, share insights, and explore collaborations within the realm of commercial space exploration. The event encompasses diverse facets of New Space, including satellite development and initiatives driven by private companies and entrepreneurial endeavors. Click here to learn more. | | | |
|
|
| 100V N-Channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNA57160 from Infineon Technologies is a Space Qualified MOSFET with a continuous drain current range of 75 A. It has a pulsed drain current of 3006 A and a low static drain-to-source on-state resistance of 12 mOhms. It is a single event effect (SEE) hardened and has a light weight, hermetically sealed surface mount package. This space-qualified MOSFET is qualified according to MIL-PRF-19500 for space applications and is suitable for DC-DC converters and motor drives. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250-760 MHz GHz Ceramic RF Balun for Signal Process Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS3-72+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 250 to 760 MHz. It has an impedance ratio of 3 and a maximum insertion loss of 1.3 dB. The balun has a maximum RF power rating of up to 2 W. It features LTCC construction and is aqueous washable. This RoHS-compliant cermaic RF balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for applications such as VHF/UHF, Signal process and Instrumentation. |
| |
Download Datasheet
Product Details | |
|
|
|

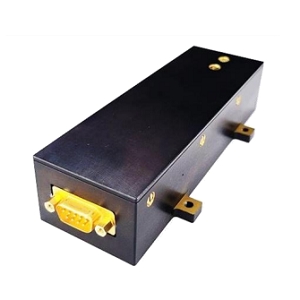

| Three–Axis Magnetometer (TAM) for Satellite | |
Magnetometer
from SENSORPIA
|
| The MS-22 from SENSORPIA is a Magnetometer that senses attitude by measuring 3-axis components of the earth’s magnetic field. It has a linearity of ± 0.1 % and a maximum axis alignment of ± 1 degrees. This magnetometer supports an analog output communication interface and has a bandwidth of 10 Hz. It requires an input voltage of 15 V and has a power consumption of less than 1.1 W. It weighs 350 g and measures 50 × 155 × 35 mm. This magnetometer is developed for attitude control for satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

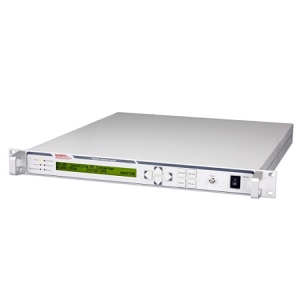

| 27.5-31 GHz Ka-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-Ka4 / VSCD-Ka4 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 27.5-31 GHz and an intermediate frequency of 5100/5170 MHz. The converter is designed to support the demanding requirements of analog and digital satellite transmissions, such as TV uplinks and high-speed data networks, and is ideal for fixed satellite ground stations as well as in satellite newsgathering (SNG) vehicles, fly-aways, and other mobile or portable applications. |
| |
Download Datasheet
Product Details | |
|
|
|

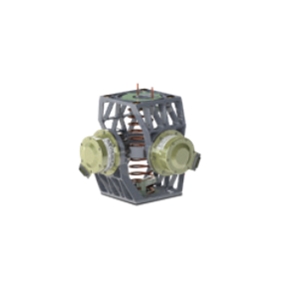

| Electric Propulsion Thruster Gimbal Assemblies | |
Gimbal
from Moog
|
| The Model-M 3 Phase from Moog is a Gimbal that can be configured for wide rotation on both axes with a total rotational range of +/- 28 degrees (X & Y axis). It features dual axis gimbal driven by rotary actuators for cross-axis positioning, and a potentiometer for position telemetry. It provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, Arc-jet, and NTO/MMH, and has been used for orbit raising and station keeping of heavier payload satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

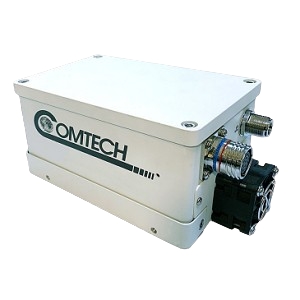

| 50W Ku-Band GaN SATCOM Block Upconverter for Satcom Uplinks | |
Block Upconverter
from Comtech Xicom Technology
|
| The Bobcat 50Ku from Comtech Xicom Technology is a Block Upconverter that converts an input IF frequency of 950-1700 MHz to an output RF frequency of 13.75-14.5 GHz. It has a small signal gain of 50-60 dB. It requires a DC supply of 22-56 V and draws a DC power of 170 W. It supports Ethernet and RS-232 interfaces for monitoring and control. It has a rugged MIL-STD-810 certified module that weighs 2.04 Kg and measures 6.8 x 3.88 x 3.9 inches. It is ideal for satcom uplinks. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | |
|
|

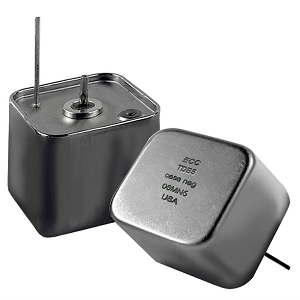

| 150 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB5010154 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 150000 µF. It is rated for greater than 2000 hrs and utilizes sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte. It has a mass of 87 g and measures 1.0 x 1.0 x 0.912 inches. This space-qualified capacitor is suitable for applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|

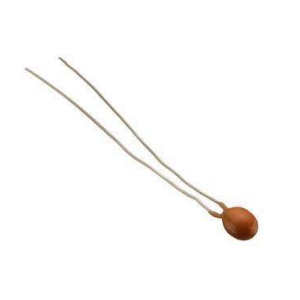

| 2252 ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44902 from TE Connectivity is a Space Qualified Temperature Sensor with a resistance of 2252 ohms and a tolerance of +/- 0.1 Degrees C (0°C to 70°C). It consists of a pressed disk ceramic sensor and thermally conductive epoxy coating that meet outgassing requirements. This thermistor is ideal for extended space applications, low and mid-range temperature, tight tolerance instrumentation and applications requiring sensing small changes in temperature, and applications with outgassing requirements. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4-Channel Satellite Link Emulator for Payload Testing | |
Satellite Link Emulator
from dBm Corporation
|
| The SLE9250 from dBm Corporation is a Satellite Link Emulator with a center frequency of 1200 MHz and a 1 dB RF bandwidth of 250 MHz. The emulator has a delay slew rate of 0.3 ps/sec up to 20 us/ms. It requires a primary power AC supply voltage of 90-264 V. This satellite link emulator features removable non-volatile memory to meet military/classified laboratory requirements and RF link emulation such as delay, Doppler, path loss, and phase shift frequency hopping. It weighs up to 47 lbs (4-channel. |
| |
Download Datasheet
Product Details | |
|
|
|

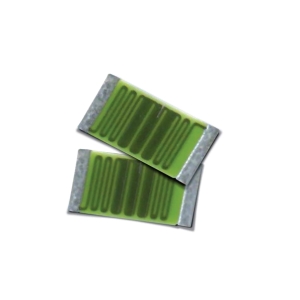

| 10 kOhms to 50 GOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (3512) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. It features patented Micropen precision printing technology that provides ultra-precision and thick-film high-voltage rating. The resistor is constructed using a thick film resistive element and a 96% alumina substrate. It is screened and qualified to MIL-PRF-55342, MIL-PRF-49462, and NASA EEE-INST-002 (level 1 & 2). This surface mount resistor ideal for military, electronic warfare, and space applications. |
| |
Download Datasheet
Product Details | |
|
