| Featured Space and Satellite Products |
|
|

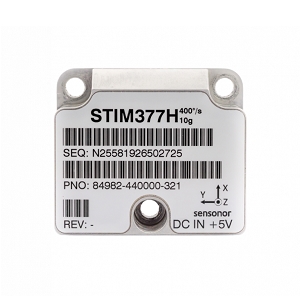

| 3-Axis Inertia Measurement Unit for Satellites and Launch Vehicles | |
Inertial Measurement Unit
from Safran Group
|
| The STIM377H from Safran Group is an Inertial Measurement Unit that consists of 3 high-accuracy MEMS-based gyros, 3 high-stability accelerometers and 3 inclinometers in a miniature package. It features a gyro that is based on Safran ButterflyGyro using a single-crystal silicon technology with an electronically calibrated axis alignment. It is ideal for satellites, military land navigators, satellite launchers, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.5 Meter Carbon Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1521 AGILIS from Sat-Lite Technologies is a SATCOM Antenna that supports multi-band C, X, Ku, and Ka-band frequencies. It has a Tx gain of up to 51.0 dB (Ka-band) and an Rx gain of up to 47.6 dB (Ka-band). It has a cross-polarization of up to -35 dB. The antenna is ideal for Federal and State emergency responders, Homeland Security, FEMA, Oil and Gas Industry, IP Based Communications, Broadcast SNG, Event Broadcasting, Critical Up-Linking / Redundancy and Tactical Operation Support applications. |
| |
Download Datasheet
Product Details | |
|
|
|

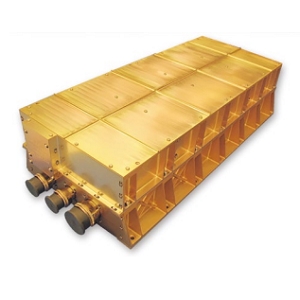

| 126 Ah Space-Qualified Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s84p 28V 126Ah from EnerSys is a Satellite Battery with a capacity of 126 Ah and an energy of 3528 Wh. It has a voltage range of 20-33.6 V with a nominal voltage of 28 V. It is qualified for the for NASA’s Lunar Reconnaissance Orbiter (LRO) spacecraft with the design being utilized for a variety of applications including civilian, military, and other commercial applications. This satellite battery operates without the need for cell-balancing electronics and can be provided with or without switching relays. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-40 GHz Dual-Directional Coupler for Mobile Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K0144+ from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 1-40 GHz. This dual-directional coupler has a coupling of 10 dB and a coupling flatness of +/- 0.8-1.2 dB. It has a mainline loss of 1.4-3.7 dB and a directivity of 11-32 dB. It has a power handling capacity of up to 16 W and requires a DC current supply of 0.63 A. This RoHS-compliant wideband coupler has a mass of 120 g with 2.92 mm female connector and is ideal for 5G, mobile, fixed satellite, and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|

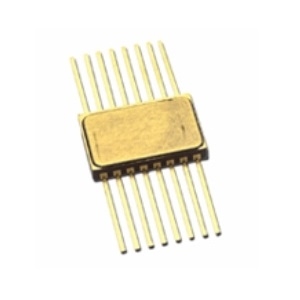

| 3.3 V Hermetically Sealed High Gain Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-0822704H from Broadcom is a Space Qualified Optocoupler with a forward voltage range of 1-1.8 V. This optocoupler has a high gain output stage featuring an open collector output providing both lower saturation voltage and higher signaling speed than possible with conventional photo-Darlington optocouplers. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, transportation, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|

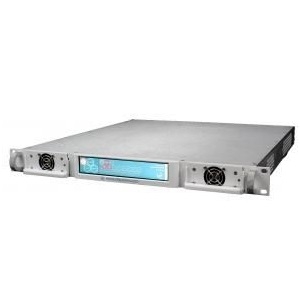

| 17.3-21.2 GHz K-Band Agile Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The FN-D-KXL1-24131 from ETL Systems is a Block Downconverter that converts an input frequency of 17.3-21.2 GHz and an output frequency of 950-1950 MHz. It features hot swap and replaceable RF frequency converter modules and supports remote control and monitoring via RJ45 Ethernet port with SNMP and web browser interface. Its applications include teleports and Earth stations, satellite operations, government and defense applications, telemetry, tracking and command, and high resilience applications. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | MUNICH NEW SPACE SUMMIT 2024 | | The Munich New Space Summit serves as a vital platform for the convergence of experts, researchers, industry professionals, and policymakers to engage in discussions, share insights, and explore collaborations within the realm of commercial space exploration. The event encompasses diverse facets of New Space, including satellite development and initiatives driven by private companies and entrepreneurial endeavors. Click here to learn more. | | | |
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0181-02-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency of DC-18 GHz. It has an average power of 2 W and a peak power of 500 W. It is qualified using qualification testing guided by MIL-DTL-3933 level T and has three standard screening levels. This RoHS-compliant attenuator has maximum weight of 14.2 g and has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 16 W Ku-Band Block Upconverter for SatCom Applications | |
Block Upconverter
from KMIC Technology
|
| The KMU137145B10 from KMIC Technology is a Block Upconverter that converts an input IF frequency of 950-1700 MHz to an output RF frequency of 13.75-14.5 GHz. The converter has a spurious of -60 dBc and phase noise of up to -103 dBc/Hz (1 MHz). It requires a DC input voltage of 36-70 V. The converter supports RS-232 and RS-485 interfaces for monitoring and control. It weighs 3.5 Kg and measures 233 x 140 x 88 mm. The block upconverter is ideal for high power BUCs for VSAT and SatCom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

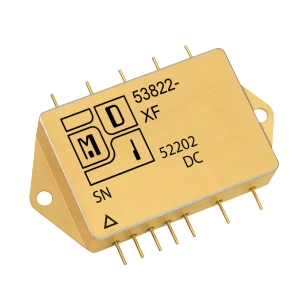

| Radiation-Hardened Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53822 from Modular Devices is a Space Qualified Solid State Relay with a bias voltage range of 4.7-5.3 V and a bias current of 30-50 mA. It has a radiation tolerance TID of 100 kRads (S and SE Grades). It incorporates a Wide band gap (WBG) semiconductors such as GaN and SiC for high performance and is magnetically coupled and can be user-configured for continuous or pulse latching. It has a mass of 60 g and has a rugged hermetically sealed case which can withstand severe environments. |
| |
Download Datasheet
Product Details | |
|
|
|

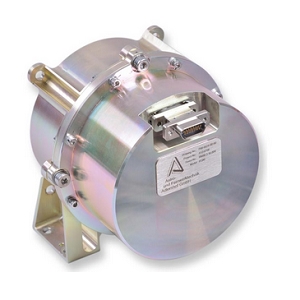

| 0.35 Nms Reaction Wheel for SmallSats | |
Reaction Wheel
from Astrofein
|
| The RW90 from Astrofein is a Reaction Wheel that is designed for SmallSats and has a lifetime of up to 7 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 0.35 Nms (at 7800 rpm) and a torque of 0.015 Nm. It has a rotation speed range of 6000 rpm, a maximum rotational speed of 7800 rpm and a moment of inertia of 4.2*10^-4 kgm². This reaction wheel supports RS485 and RS422 interfaces. It has a mass of 0.9 kg and measures 100 x 100 x 60 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

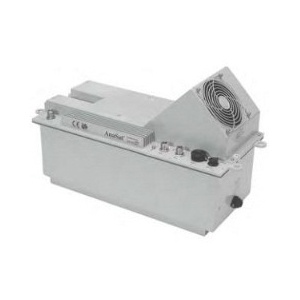

| 100 W Ku-Band SATCOM Transceivers | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 100W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. This transceiver has a Tx gain of 81 dB and an Rx gain of 75-100 dB. It supports RS-232 and RS-485 monitoring and control interfaces. It requires an input power supply of 100-250 V AC and has a power consumption of up to 1600 VA. It has a mass of 60 kg and measures 965 x 330 x 318 mm. The transceiver is designed for SCPC, MCPC and DAMA applications. |
| |
Download Datasheet
Product Details | |
|
|
|

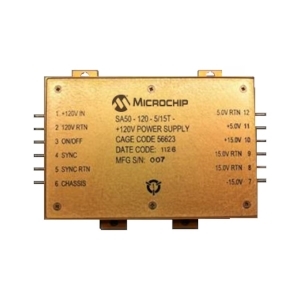

| 50 W Radiation-Hardened Isolated DC-DC Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-5-12T-A-H from Microchip Technology is a Rad-Hardened DC-to-DC Converter that converts a DC input voltage of 86-158 V to a DC output voltage of 5-15 V. It delivers an output power of up to 50 W and has an efficiency of up to 85% at full load conditions. It has a line regulation of 10-120 mV and a load regulation of 50-400 mV. It has a radiation tolerance TID of greater than 100 krad (Si). It is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
| MUNICH NEW SPACE SUMMIT 2024 | | |
|
|

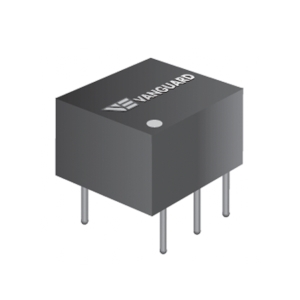

| 70 µH Space Grade Pulse Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SPT304 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 70 µH. This transformer has a turns ratio of 1CT:2CT and requires a primary voltage of 2.5 V. It has a primary direct current resistance of 0.20 ohms and a secondary direct current resistance of 0.40 ohms. The transformer features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC. It has an interwinding capacitance of 18 pF and low leakage inductance of 150 nH. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1500 W C-Band Solid State Amplifier for SATCOM Applications | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCM61500M from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.725 GHz. The amplifier system has a residual noise of -70 dBW/4 kHz and an AM/PM conversion of 3.5 degrees/dB. The amplifier system requires a power supply of 180-264 VAC and has a power consumption of 7-9.3 kW. It features a modular architecture and ModuMAX SSPAs that consist of RF plug-in modules. The amplifier system weighs 253 Kg and measures 483 x 577 x 695 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

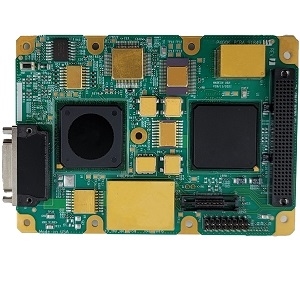

| Single Board Computer for Image Processing Applications | |
Satellite On-Board Computer (OBC)
from Space Micro
|
| The PROTON400K from Space Micro is a Single Board Computer (SBC) that is designed on a patented Hardened-Core watchdog mitigation technology. This high-performance SBC is built around an advanced dual-core PowerPC that has 2 GB DDR 3 with EDAC and 4 Mb boot MRAM. It has multiple memory option and supports Ethernet, UART and CAN interfaces. It is ideal for high-performance computing, payload electronics, image processing, signal processing, and command and data handling applications. |
| |
Download Datasheet
Product Details | |
|
