| Featured Space and Satellite Products |
|
|
| Inertia Measurement Unit for Satellites and Launch Vehicles | |
Inertial Measurement Unit
from Safran Group
|

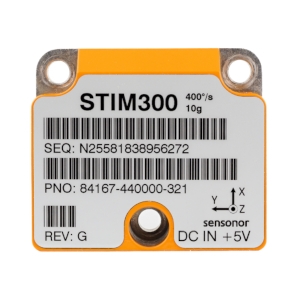

| The STIM300 from Safran Group is an Inertial Measurement Unit with an input angular rate of +/- 400 degrees/sec and bias stability of 0.3 degrees/h. This IMU has a sampling frequency of 2000 samples/sec and an angular random walk of 0.15 Degrees/vh. The STIM300 is ideal for satellites, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 50-4000 MHz SMT Low Noise Monolithic Amplifier | |
RF Amplifier
from Mini Circuits
|
| The CMA-5043+ from Mini Circuits is a RF Amplifier that operates from 0.05-4 GHz. It has a gain of 7.2-25.4 dB and a noise figure of 0.65-1.44 dB. It is an E-PHEMT based Ultra-Low Noise MMIC Amplifier which is bonded to a multilayer integrated LTCC substrate and hermetically sealed under a controlled nitrogen atmosphere with gold-plated covers. The amplifier is ideal for base station infrastructure, portable wireless, CATV & DBS, MMDS & Wireless LAN, and LTE applications. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Electric Propulsion Thruster Gimbal Assemblies | |
Gimbal
from Moog
|

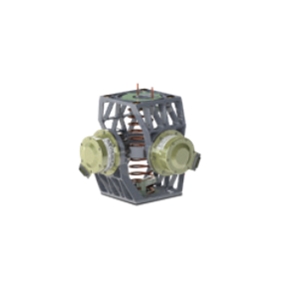

| The Model-M 2 Phase from Moog is a Gimbal that are based on the Moog Rotary Actuator having demonstrated a minimum of 15 year on-orbit design life on multiple missions. It features dual axis gimbal driven by rotary actuators for cross-axis positioning, a potentiometer for position telemetry, and space-qualified stepper motors with harmonic drive transmission. It provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, and Arc-jet. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 7.90 to 8.40 GHz X-Band SATCOM On-The-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|

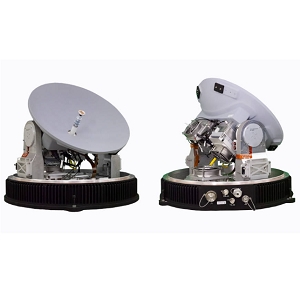

| The M20-20M X from General Dynamics Mission Systems is a Satellite Terminal with a transmit frequency range of 7.90-8.40 GHz. The terminal has an antenna size of 20.5 inches which supports a wide range of commercial modem systems and has an acquisition time of less than 5 sec. It measures 24.5 x 24.0 x 27.5 inch. This satellite terminal was specifically designed for ground vehicle command, control and communications (C3) missions where beyond the line of sight SATCOM capabilities are mission critical. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Ejector Release Mechanism for Satellite Dispensing | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|

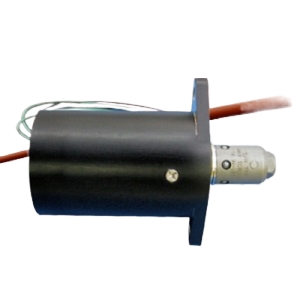

| The E2000 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Attach and Release Mechanism with a maximum release load of 8900 N. This mechanism has a proof load of 11,125 N and a maximum torque of 70 in-lb. It has a coupler kick off-force of 8.5 lbF and a misalignment capability of +/- 5 degrees (engagement and deployment). It is suitable for applications such as satellite solar array deployments, satellite dispensing, off angle optical cover, and antenna releases. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Ka-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-29.75-19.95 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 29.5-30 GHz and an output frequency range of 19.7-20.2 GHz. The test loop translator requires an input supply voltage of 90-250 VAC and has a power consumption of 40 W. It measures 19 x 1.75 x 20 inches. The test loop translator is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet |
Product Details | |
|
|
| Sponsored by MUNICH NEW SPACE SUMMIT 2024 | | MUNICH NEW SPACE SUMMIT 2024 | | The Munich New Space Summit serves as a vital platform for the convergence of experts, researchers, industry professionals, and policymakers to engage in discussions, share insights, and explore collaborations within the realm of commercial space exploration. The event encompasses diverse facets of New Space, including satellite development and initiatives driven by private companies and entrepreneurial endeavors. Click here to learn more. | | | |
|
|
| 45 V High-Efficient Schottky Rectifier | |
Space Qualified Diode
from Infineon Technologies
|
| The 20CLQ045 from Infineon Technologies is a Space Qualified Diode with a maximum DC reverse voltage of 45 V and a maximum average forward current of 20 A. This Hi-Rel Schottky rectifier has a low forward voltage drop of 0.48-0.74 V. It features a guard ring for enhanced ruggedness and has a surface mount hermetically sealed package. The diode is fully qualified according to MIL-PRF-19500 for space applications and is suitable for high frequency switching power supplies and resonant power converters. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 10000 Ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44908 from TE Connectivity is a Space Qualified Temperature Sensor with a resistance of 10000 ohms and a tolerance of +/- 0.1 Degrees C (0°C to 70°C). It has a beta value of 3987 K and a beta tolerance of 0.4 %. This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space, low and mid-range temperature, tight tolerance instrumentation, applications requiring sensing small changes in temperature and applications with outgassing requirements. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 25-28 GHz Ka-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|

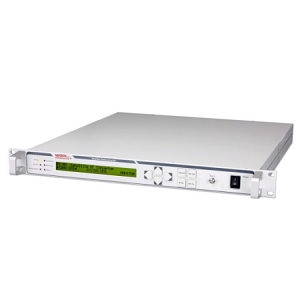

| The VHCD-Ka21 / VSCD-Ka21 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 25-28 GHz and an intermediate frequency of 5100/5170 MHz. It requires an input supply of 100-240 V AC and has a power consumption of 35 W. It supports remote control through RS232, RS422/485 interfaces, Ethernet supporting a TCP/IP command interface, a Web browser interface, and SNMP. It features automatic reference recognition and an adjustable gain equalizer. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 100 V Radiation-Hardened N-Channel Power MOSFET | |
Space Qualified MOSFETs
from STMicroelectronics
|
| The STRH8N10 from STMicroelectronics is a Space-Qualified MOSFET that has a drain-source voltage of 100 V and a continuous drain current of 6 A. It has a pulsed drain current of 24 A and an on-state drain-source resistance of 27 mohm. It has a gate charge of 18.5 nC and is 100% avalanche-tested. This N-channel power MOSFET features fast-switching and high reliability performance. It has an SMD.5 hermetic packaging and suitable for in-satellite power conversion, motor control, and power switch circuits. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Magnetometer for Attitude Control of Large and Small Satellites | |
Magnetometer
from Astrofein
|
| The Magnetometer ACM from Astrofein is a Magnetometer that has a range of ±60000 nT and a resolution of 100 pT/LSB. It has a noise range of 50 pT/vHz and a linearity of 0.025%. This high precision magnetometer is developed in cooperation with Magson GmbH with two different measurements modes having Ethe electronics and sensors are qualified according vibration specs for Ariane, Delta and Sojus launchers. This space-qualified magnetometer is ideal for attitude control of large and small satellites. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 930-1800 MHz L-Band Beacon Tracking Receivers | |
Satellite Beacon Receiver
from Skybrokers BV
|

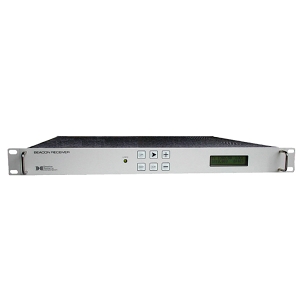

| The 3430-LD from Skybrokers BV is a Satellite Beacon Receiver with an input frequency range of 930-1800 MHz and a frequency selection of 10 kHz steps. This beacon receiver has a tracking slope of 0.5 V/dB and tracking linearity of 0.25 dB. It has a beacon input level range of -30 to -90 dBm and a minimum lock input level of -110 dBm. It requires an AC voltage supply of 90-260 V and a power consumption of 45 W. The beacon receiver is ideal for antenna step tracking and automatic uplink power control. |
| |
Download Datasheet |
Product Details | |
|
|
| Sponsored by MUNICH NEW SPACE SUMMIT 2024 | | |
|
|
| 5600-6200 MHz Ceramic Balun for WIMAX Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-622+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 5600-6200 MHz. This ceramic balun has an amplitude unbalance of 0.6 dB and a phase unbalance of 6 degrees. It has an insertion loss of 1.0 dB and a maximum RF power rating of 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant balun is suitable for WLAN, 802.11, WIMAX, and radar applications. |
| |
Download Datasheet |
Product Details | |
|
|
|
| High Force Linear Actuator for Space Applications | |
Space Actuator
from Moog
|
| The Model-N from Moog is a Space Actuator with a resolution of 0.0008 inches and a stroke of 0.87 inches. This actuator has a force of 180 lbf at 0.54 in/sec and a maximum force of 500 lbf. It requires a maximum current of 30 A and has a high axial stiffness of 25,000 lb/in. The actuator uses spherical ball rod ends and has a mass of 3.9 lbs. It incorporates 3-phase BLDC motors and high precision ball screw drive that provides extra fine resolution linear movement. The actuator is ideal for space applications. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Satellite Link Emulator for Geostationary Satellites | |
Satellite Link Emulator
from Polaris
|
| The PSLE-L-10D from Polaris is a Satellite Link Emulator that is designed for geostationary satellites has a frequency range of 950-1450 MHz and an operating bandwidth of 10 MHz. This satellite link emulator has an attenuation of -40 dB and a phase noise range of -84 to -127 dBc/Hz. This satellite link emulator measures 19 x 7 x 21 inches and is ideal for applications such as satellite modem tests, VSAT tests, satellite payload tests, UAV tests, earth terminal tests, satellite system integration test beds, and mobile transceiver tests. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 820 pF Space Grade Ceramic Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 20HS21N821KC from KEMET is a Space Qualified Capacitor with a capacitance of 820 pF and has a capacitance tolerance of ± 20%. This ceramic capacitor has a rated DC voltage of 2000 V and a surge current of 30 mA. It is designed with the C0G and X7R dielectric that features a maximum of 125°C operating temperature and is screened to MIL-PRF-49467. It is ideal for aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters and high-voltage coupling applications. |
| |
Download Datasheet |
Product Details | |
|
