| Featured Space and Satellite Products |
|
|
| Plasma Thruster for Satellite Orbit Raising & Navigation Applications | |
Spacecraft Thruster
from Safran Group
|
| The PPS 5000 from Safran Group is a Plasma Thruster that has a thrust of 150-300 mN. This spacecraft thruster has a mass of 12.3 Kg and a specific impulse of 1,730-2,000 sec. It has a power consumption of 2,500-5,000 W and requires a supply voltage of 300-400 V. The thruster has a very high specific impulse and offers an excellent thrust-to-electrical power ratio which makes it ideal for handling satellite orbit raising and station-keeping for a wide range of telecom and navigation satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|

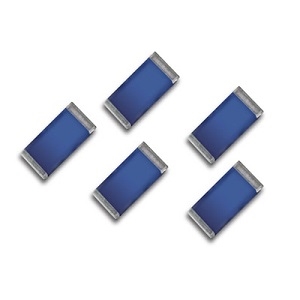

| 27-30 kOhms Precision Military and Space Qualified Chip Resistor | |
Space Qualified Resistor
from TT Electronics
|
| The RM0402 from TT Electronics is a Space Qualified Chip Resistor with a resistance range of 27-30 kOhms and a resistance tolerance of +/- 0.1-10%. This resistor has a temperature coefficient of resistance of 50 ppm/degrees C and is qualified to MIL-PRF-55342 Space Level T. The chip resistor is designed using TaN film technology and has a Sn/Pb solder over nickel barrier terminations. It measures 0.040 x 0.021 x 0.012 inches and is ideal for all high-reliability military and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

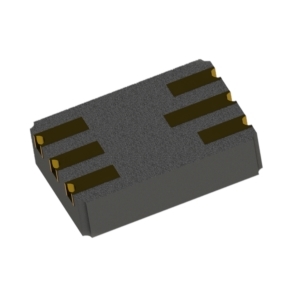

| 6 Pin LCC Radiation Assured Optocoupler | |
Space Qualified Optocoupler
from Micropac Industries
|
| The 66224-339 from Micropac Industries is a Space Qualified Optocoupler with a forward voltage range of 0.8-1.7 V and a static reverse current of 100 µA. It features a high gain infrared LED coupled N-P-N silicon phototransistor coupled inside a hermetic six-pin LCC package. This optocoupler is designed for applications such as the space environment electronic systems, eliminates ground loops with signal ground isolation, level shifting, line receiver, switch mode power supplies, and motor control. |
| |
Download Datasheet
Product Details | |
|
|
|
| 29-31 GHz Ka-Wideband 1.15 m Ruggedized Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4MIL Ka from Orbit Communication Systems is a Space-Qualified Satellite Terminal with a Ka-band transmitter frequency range of 29-31.0 GHz and a receiver frequency range of 19.2-21.2 GHz. It is designed and tested for the strictest MIL-STD-810G environmental conditions. It is has an optional fast manual band swapping with multiple BUCs per system and provides reliable, high-capacity, long-range multiband communication to navy vessels under extreme conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
| Magnetorquer Rods for Gravity-Gradient-Controlled Satellites | |
Magnetorquer
from NewSpace Systems
|
| The NCTR-M012 from NewSpace Systems is a Magnetorquer with a magnetic moment of 1.19 Am2. It has a linearity of less than +/- 5 % and a residual moment of less  than 0.01 Am2. The magnetorquer has a mass of less than 53 g and measures 94 x 15 x 13 mm. It is ideal for applications such as active damping for spin-stabilized, momentum-biased, and gravity-gradient-controlled satellites, momentum dumping of reaction wheels in three-axis stabilized spacecraft, and simple magnetic stabilization. |
| |
Download Datasheet
Product Details | |
|
|
|
| 175 W Ka-Band Antenna Mount TWT Amplifiers | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA4517 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31.0 GHz and a bandwidth of 2500 MHz. It has a spurious of less than -60 dBc and a phase noise of less than -50 dBc. This CE-compliant amplifier features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, Ethernet, SMP, and Webpage GUI interfaces. This system weighs 16 Kg and measures 44 x 22 x 22 cm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | | |
|
|
| 73.8-90.2 mH Space Qualified Fixed Chip Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S26248 from Vanguard Electronics is a Space Qualified Inductor with an inductance range of 82.0-90.2 mH. This fixed chip inductor has a tolerance of +/- 10 % and a DC resistance of 0.212 Ohms. It has a dielectric withstanding voltage of 200 V and a maximum DC current rating of 675 mA. The inductor has a self-resonant frequency of 915 MHz and a test frequency of 50 MHz. It features a Transfer Molded package and internal welded terminations. The inductor is qualified to MIL-STD-981 specifications. |
| |
Download Datasheet
Product Details | |
|
|
|

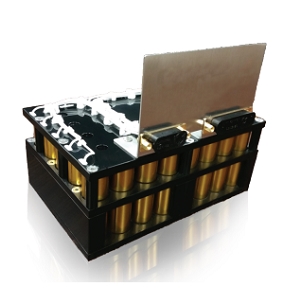

| 15.5 Ah Lithium-Ion Space Qualified Battery for Satellite Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The SAR 10215 from EaglePicher Technologies is a Satellite Battery with a capacity of 15.5 Ah and an energy density of 343 Wh/L. It has a maximum continuous discharge current of 15 A and an operating voltage range of 32-33.6 V. It is space-qualified and suitable for military communications and surveillance, commercial communication and broadcasting, environmental monitoring, global navigation, and tracking, scientific and exploratory satellite missions, and launch vehicle applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 19.70-20.20 GHz SATCOM Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The KATLT-295300-197202-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 29.50-30 GHz and an output frequency range of 19.70-20.20 GHz. The test loop translator supports RS-422 and RS-485 interfaces and features an auto-switchover of external references. It requires a power supply of 90-260 V AC. The test loop translator has a weight of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-9.9 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-3100D from Mini Circuits is a Space Qualified RF Filter with 3400 to 9900 MHz. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 3.1 GHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint space-qualified ceramic RF filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

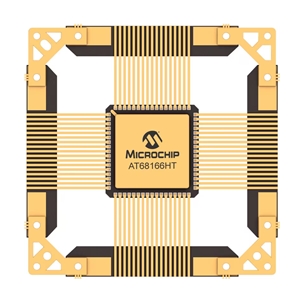

| 5 V Tolerant Radiation Hardened 16 Mbit SRAM | |
Space Qualified Memory
from Microchip Technology
|
| The AT68166HT from Microchip Technology is a Space Qualified Memory that is organized as 512K x 16 bits. It requires a standby supply current of 6-10 mA with a dynamic operating current range of 12-170 mA (read) and 105-145 mA (write). This dynamic memory features TTL-compatible inputs and outputs and has a 950 Mils Wide MQFPT68 package. It is ideal for fast computing and low power consumption applications such as aerospace electronics, portable instruments and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

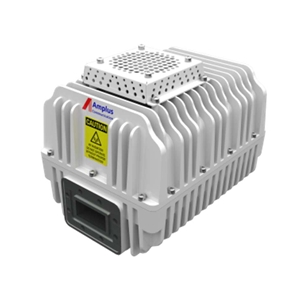

| 20 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 20 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It requires an AC voltage supply of 220 V. This block upconverter weighs 10 Kg and measures 175 x 130 x 115 mm (L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. It is ideal for wide area telephony, video conferencing, VSAT satellite earth stations and data communications systems. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | |
|
|
| 15 V Dual Output DC to DC Converter for Space Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MGA2815D from Crane Aerospace & Electronics is a DC-to-DC Converter that converts an input voltage range of 16-40 V to an output voltage of 15 V. The converter’s thick-film hybrid technique provides optimum miniaturization and its advanced feed-forward compensation technique delivers good dynamic response and audio rejection. The converter also features an inhibit function to disable internal switching and inhibit the unit’s output. It is ideal for aerospace, military, and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

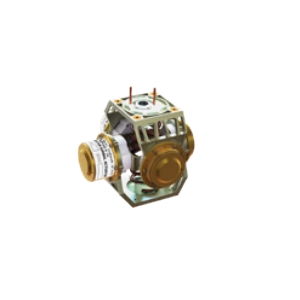

| Electric Propulsion Thruster Gimbal Assemblies | |
Gimbal
from Moog
|
| The Model-S 3 Phase from Moog is a Gimbal that are based on the Moog Rotary Actuator having demonstrated a minimum of 15 year on-orbit design life on multiple missions. It features dual axis gimbal driven by rotary actuators for cross-axis positioning, a potentiometer for position telemetry and space-qualified stepper motors with harmonic drive transmission. This actuator provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, and Arc-jet. |
| |
Download Datasheet
Product Details | |
|
|
|

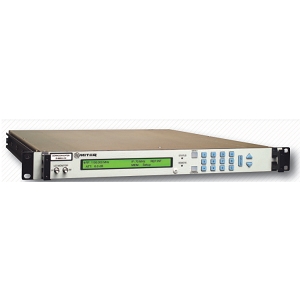

| 9.5-12.75 GHz Quad Channel Block Downconverter for SATCOM Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-98-37991DHV-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 0.95-12.75 GHz and an output frequency of 70 MHz. It has a minimum power output of 20 dBm and an output impedance of 75 Ohms. It supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces for monitoring and control. This frequency downconverter is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|

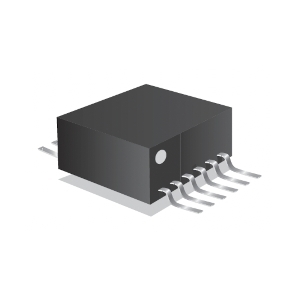

| 5.3 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS203 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 5.3 mH. It has a turns ratio of 1:50:50 and requires a primary voltage of 70 V. It has a dielectric withstanding voltage of 500 V AC and an insulation resistance of 10K MOhm. It is built to meet MIL-STD-981 space standard specifications and features tin-lead terminations and welded internal connections. The SCS203 measures 0.610 x 0.610 x 0.475 inches and is ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
