| Featured Space and Satellite Products |
|
|
| 3-Axis Inertial Measurement Unit for Satellites | |
Inertial Measurement Unit
from Safran Group
|
| The STIM318 from Safran Group is an Inertial Measurement Unit that consists of 3 high-accuracy MEMS-based gyros, 3 high-stability accelerometers, and 3 inclinometers in a miniature package. This IMU has a range of 400 degrees/sec. It has a gyro angular random walk of 0.15 degrees/vh and an accelerometer bias instability of 0.003 mg. It has a mass of 57 g and measures 44.8 x 38.6 x 21.5 mm. The STIM318 is ideal for satellites, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|

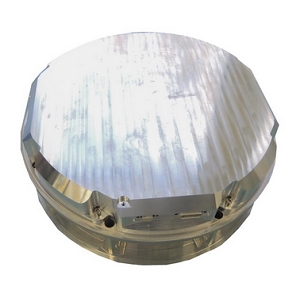

| 12 Nms Reaction Wheel for Highline | |
Reaction Wheel
from Astrofein
|
| The RW800 from Astrofein is a Reaction Wheel that is designed for Highlines and has a lifetime of up to 15 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 12 Nms and a torque of 0.2 Nm. It has a rotation speed range of 3600 rpm and supports RS485 and CAN interfaces. The reaction wheel requires a supply voltage of 23-34 V and a power consumption of 2.5-140 W. It has a mass of 6 kg and measures 250 x 250 x 100 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2m Ka-Band Auto Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA120KA-EU from Norsat is a SATCOM Antenna with a transmit frequency range of 29-31 GHz and a receive frequency range of 18.7-21.2 GHz. It has an 8-segment carbon fiber reflector of reflector aperture of 1.2 m. It features an easy-to-use LinkControl interface and an automatic 3-axis acquisition. It weighs 32 Kg (reflector/feed) and measures 84.5 x 62 x 49 cm (L x W x H). The antenna offers rugged and reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5-12.8 MHz Space OCXO for Instrumentation and Base stations | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROX5242T1 from Rakon Limited is a Space Qualified Oscillator with a nominal frequency of 5-12.8 MHz. This oscillator has a frequency stability of ± 0.1 ppb and a free run accuracy of ± 0.02 ppm. It has a harmonic value of -40 dBc. The oscillator requires a supply voltage of 12 V and has a power consumption of 2.5-7 W. This oscillator measures 52 x 42 x 19 mm of package size and is an ideal for instrumentation, stratum 2 timing modules, and base stations applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multiple Heads Star Tracker for Embedded FDIR Functions | |
Star Tracker
from Sodern
|
| The HYDRA-M from Sodern is a Star Tracker with a slew rate of 5-8 deg/sec and has a bias of less than 11 arcsec. It features baffle protection for the optical head for direct sun and earth illumination and software integrated into the spacecraft processor. The star tracker an output rate of 8-16 Hz. It has a mass of 1.4 Kg (optical head) and measures 166 x 160 x 283 mm. The HYDRA-M has a lifetime of up to 10 years in LEO and 18 years in GEO and is ideal for telecommunications and earth observation satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1000 W C-Band GaN Transceiver for SATCOM Applications | |
SATCOM Transceiver
from Communications & Power Industries
|
| The TR511 from Communications & Power Industries is a SATCOM Transceiver with an input frequency range of 950-1450 MHz and an output frequency range of 4.4-5.0 GHz. The transceiver is designed with automatic self protection circuitry that prevents overdrive damages and has a quick disconnect waveguide connectors, and remote M&C over Ethernet. It requires an input power supply of 180-240 V and has a peak power of 1000 W. The transceiver is ideal for troposcatter applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | | |
|
|

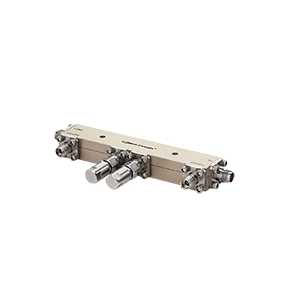

| 2-40 GHz Dual-Directional Coupler for Mobile Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K0244 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 2-40 GHz. It has a coupling of 10 dB and a coupling flatness of +/- 0.6-1 dB. It has a mainline loss of 1.4-3.3 dB. It has a return loss of 11.7-32 dB (In & Thru). It has a power handling capacity of up to 16 W and requires a DC current supply of 0.56 A. This RoHS-compliant wideband coupler has a mass of 120 g with 2.92 mm female connector and is ideal for 5G, mobile, fixed satellite, and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ejector Release Mechanism for Satellite Dispensing | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The E4000 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Attach and Release Mechanism with a max. release load of 17800 N. It requires an operating current of 2.25-6.5 A. The mechanism has a mass of 530 g and measures 4.8 × 3.825" (height with coupler × diameter with flange). It is suitable for applications such as solar array and instrument deployment, satellite dispensing, hinged cover release and other space applications where an off angle deployment is desired. |
| |
Download Datasheet
Product Details | |
|
|
|
| 18.2-20.2 GHz Wideband Ka-Band Ethernet-Controlled Low Noise Block | |
Low Noise Block
from Orbital Research
|
| The Wideband Ka-Band LNB from Orbital Research is a Low Noise Block with an input RF frequency of 18.2-20.2 GHz and an IF frequency of 950-2000 MHz. It requires a DC supply of 10-28 V. This RoHS and REACH-compliant LNB has a low noise figure with high gain antennas and switchable filters for exceptional image rejection. This IP67-rated LNB weighs 500 g and measures 44 x 44 x 154 mm. It is ideal for oil & gas remote operations, commercial/shipping projects and for global data networks. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0180-20-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-18 GHz. It has a stainless steel passivated finish construction with the highest level of screening compatible and has a space qualification of MIL-DTL-3933 level T which is suitable for all space flight applications. It has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| Solar Panel with Si photo-electric converters for CubeSats | |
Satellite Solar Panel
from SPUTNIX
|
| The SXC-SSE-03 from SPUTNIX is a Satellite Solar Panel with Si photo-electric converters and has built-in electromagnetic coils. It has an open circuit voltage of 5.4 V and a short circuit current of 330 mA. It has a power voltage of 4.4 V. The panel has a super-diode protection circuit and built-in planar coils. It has a mass of 32 g and measures 98 x 98 x 8.6 mm. It is suitable for side edges of 1U CubeSats, both SPUTNIX and ISIS frames, several panels can be combined for 2U and 3U frames. |
| |
Download Datasheet
Product Details | |
|
|
|

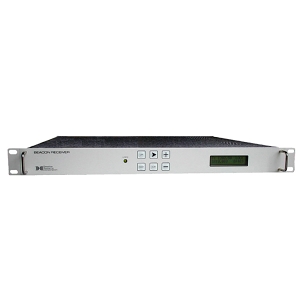

| 950-1800 MHz L-Band Beacon Tracking Receivers | |
Satellite Beacon Receiver
from Skybrokers BV
|
| The 3430-L from Skybrokers BV is a Satellite Beacon Receiver designed to meet provide a linear DC reference voltage proportional to the received signal level of a satellite beacon or narrow-band SCPC carrier. The beacon receiver supports the remote control options that include RS232/RS485 with a F-type female input and has a pre-detection noise bandwidth of 50 kHz that facilitates accurate tracking at very low C/N levels. The beacon receiver is ideal for antenna step tracking and automatic uplink power control. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | |
|
|
| 30000 Ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44910 from TE Connectivity is a Space-Qualified Temperature Sensor with a resistance of 30000 ohms. It consists of a pressed disk ceramic sensor and thermally conductive epoxy coating that meet outgassing requirements. This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space applications, low and mid-range temperature applications, tight tolerance instrumentation and applications requiring sensing small changes in temperature and outgassing requirements. |
| |
Download Datasheet
Product Details | |
|
|
|
| 500 W C-Band Solid State Amplifier for SATCOM Applications | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCM6500Q from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.725 GHz. It has a spurious of -70 dBc and a maximum VSWR of 1.3:1. The amplifier system requires a power supply of 180-264 VAC and has a power consumption of 2.8-3.7 kW. It features a modular architecture with ModuMAX amplifiers and QuadMod SSPAs that consist of RF plug-in modules. It weighs 82 Kg (RF unit) and measures 483 x 311 x 746 mm (W x H x D). |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Radiation-Hardened Isolated DC-DC Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-15S-A-P from Microchip Technology is a radiation-hardened DC-to-DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 15 V. This isolated DC-DC converter is based on forward converter topology and features patented magnetic feedback. The converter has a radiation tolerance TID of 100krad (Si) and a SEE immunity of 82 MeV·cm2/mg. The converter is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

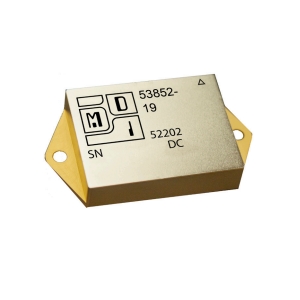

| 600 V Radiation Hardened Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53853 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage of 4.75-5.25 V and a bias current of 10-25 mA. This space-qualified relay has a maximum contact voltage rating of 600 V and a delay time of 30-60 µS. The relay has a radiation tolerance TID of up to 100 Krads. The solid-state relay uses a wide bandgap power semiconductor for high performance and has a magnetic latch relay configuration. The relay has a mass of 32 g and comes in a rugged hermetic package. |
| |
Download Datasheet
Product Details | |
|
