| Featured Space and Satellite Products |
|
|
| Plasma Thruster for Satellite Orbit Raising & Navigation Applications | |
Spacecraft Thruster
from Safran Group
|
| The PPS 5000 from Safran Group is a Plasma Thruster that has a thrust of 150-300 mN. This spacecraft thruster has a mass of 12.3 Kg and a specific impulse of 1,730-2,000 sec. It has a power consumption of 2,500-5,000 W and requires a supply voltage of 300-400 V. The thruster has a very high specific impulse and offers an excellent thrust-to-electrical power ratio which makes it ideal for handling satellite orbit raising and station-keeping for a wide range of telecom and navigation satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13-18 GHz Ku-band Power Amplifier for Point-to-Point Radio Applications | |
RF Amplifier
from Qorvo
|
| The TGA2514 from Qorvo is a space-qualified RF Amplifier that operates at a frequency range of 13-18 GHz and has a small signal gain of 24 dB. The amplifier designed using a 0.25-µm 3MI pHEMT production process and is RF-tested on-wafer to ensure performance compliance. It requires an input power of 21 dBm and has a power dissipation of 33.3 W. The TGA2514 measures 2.87 x 3.90 x 0.10 mm and is suitable for Ku band VSAT Transmitter and point-to-point radios applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka to Ku-band Convertible Maritime VSAT Antenna System | |
Satellite Terminal
from Intellian
|
| The v85NX Ka from Intellian is a SATCOM Antenna System with a transmitter frequency range of 29.0-30.0 GHz and a receiver frequency range of 19.2-20.2 GHz. The antenna system has an elevation range of -20 to 115 degrees and an unlimited azimuth range. It supports ethernet port, RS-232C, and RS-422C modem interfaces. The satellite terminal has an empty dome weight of 25 Kg and an antenna control unit weight of 5.2 Kg. Its antenna control unit measures 43.1 x 35.0 x 4.4 cm (W x D x H). |
| |
Download Datasheet
Product Details | |
|
|
|

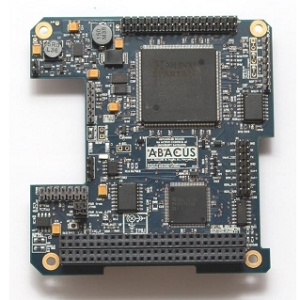

| Onboard Computer Hardware Platform for Satellite Missions | |
Satellite On-Board Computer (OBC)
from GAUSS Srl
|
| The ABACUS from GAUSS Srl is a Satellite On-Board Computer (OBC) unit with a general-purpose hardware platform suited for a wide range of satellite missions. It has a clock frequency of up to 100MHz and has 10 analog inputs and more than 45 possible digital GPIO channels. It is powered from the 5V satellite bus and incorporates 9DoF IMU with 3 axis magnetometer, accelerometer and gyroscope. It weighs 62 grams and measures 90.14 x 95.86 x 23.24 mm externally including all the connectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 300-400 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2282 from Skyworks is a Space Qualified Diode with a frequency range of 12.4-18.0 GHz. It has a power dissipation of 75 mW/junction and a resistance of up to 5 Ohms. This silicon-beam diode has a total capacitance of 0.60 pF and a reverse breakdown voltage of up to 3 V. It features low noise and low intermodulation distortion. This Schottky barrier mixer has a ceramic hermatic package and is suitable for applications in microwave integrated circuits, mixers, and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-Band to L-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT600 from Peak Communications is a Test Loop Translator that translates an input C-band frequency of 5.85-6.65 GHz to an L-band frequency of 950-1750 MHz. This translator requires a power supply of 90-264 VAC. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. It weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | | |
|
|

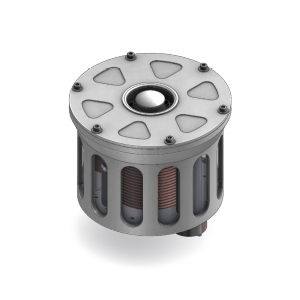

| 7 mN Hall Effect Thruster for CubeSats and Small Satellites | |
Spacecraft Thruster
from Busek
|
| The BHT-100 from Busek is a Spacecraft Thruster with a nominal thrust of 7 mN and a specific impulse of 1000 seconds. It is compatible with propellants such as Xenon and Iodine and has a discharge power of 100 W. The thruster has a demonstrated impulse of 45.36 kN-s and a predicted total impulse value of 250 kN-s. It requires a DC supply voltage of 200 V. It has a thruster mass of 1.16 Kg and measures 5.5 x 8 cm (L x D). It is ideal for high-power space propulsion solutions for CubeSats and small satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| High Force Linear Actuator for Space Applications | |
Space Actuator
from Moog
|
| The Model-F from Moog is a Space Actuator with a resolution of 0.00094 inches and a stroke of 3.675 inches. This actuator has a max. force of 3,250 lbf. It requires a max. current of 30 A and has a high axial stiffness of 295,000 lb/in. The actuator uses spherical ball rod ends and has a mass of 18.0 lbs. It incorporates 3-phase, multi-pole, permanent magnet, brushless DC motors and high precision ball screw drive that provides extra fine resolution linear movement. The actuator is ideal for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

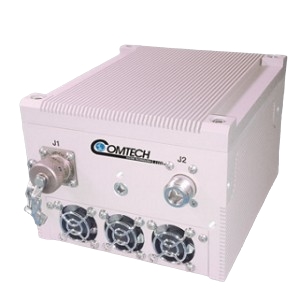

| 50W X-Band GaN SATCOM Block Upconverter for SATCOM Uplinks | |
Block Upconverter
from Comtech Xicom Technology
|
| The Bobcat 50X from Comtech Xicom Technology is a SATCOM Block Upconverter that converts an input IF frequency of 950-1450 MHz to an output RF frequency of 7.9-8.4 GHz. It requires a DC supply of 22-56 V and has a DC power consumption of 160 W. The BUC supports Ethernet and RS-232 interfaces for monitoring and control. It has a rugged MIL-STD-810 certified module that weighs 2.31 Kg and measures 5.8 x 5.1 x 3.9 inches. This X-band Block Upconverter is ideal for satcom uplinks. |
| |
Download Datasheet
Product Details | |
|
|
|
| 150 V N-Channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNA67164 from Infineon Technologies is a Space Qualified MOSFETs with a continuous drain current range of 56 A. It has a pulsed drain current of 224 A and a low static drain-to-source on-state resistance of 0.018 Ohms. It has a total inductance of 2.8 nH. It is a single event effect (SEE) hardened and has a light weight hermetically sealed surface mount package. It is qualified according to MIL-STD-750 for space applications and is suitable for DC-DC converters and motor controllers. |
| |
Download Datasheet
Product Details | |
|
|
|

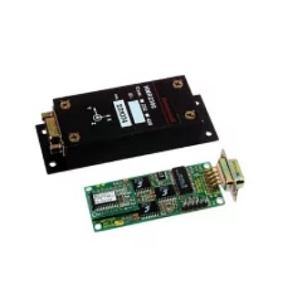

| Three-Axis Magnetometer for Proximity Detection and Medical Devices | |
Magnetometer
from Honeywell Aerospace
|
| The HMC2003 magnetic hybrid from Honeywell Aerospace is a Magnetometer that has an resolution of 40 μgauss and a sensitivity of 0.98-1.02 V/gauss. It has three precision low-noise instrumentation amplifiers with 1kHz low pass filters to provide accurate measurements. This magnetometer has has very low magnetic material content and is ideal for applications such as precision compassing, navigation systems, attitude reference, traffic detection, proximity detection and medical devices. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3000 to 8000 MHz Ceramic Balun for Point-to-Point Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-83+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 3000-8000 MHz. This ceramic balun has an amplitude unbalance of 1.8-2.5 dB and a phase unbalance of 12-19 degrees. It has an insertion loss of 1.6-1.9 dB and a maximum RF power rating of up to 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for ISM and point-to-point applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Space Simulation Conference | | |
|
|

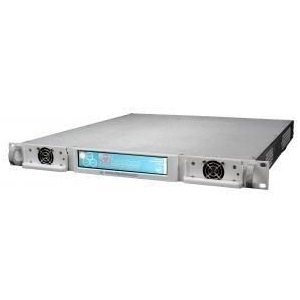

| 17.3-21.2 GHz K-Band Block Downconverter for Satellite Operationsv | |
Block Downconverter
from ETL Systems
|
| The FN-D-KXL1-24224 from ETL Systems is a Block Downconverter that converts an input frequency of 17.3–21.2 GHz to an output frequency of 950-1950 MHz. It has a maximum conversion gain of 35 ± 1.5 dB with a gain step size of 0.25 ± 0.15 dB. It features hot swap and replaceable RF frequency converter modules and supports remote control and monitoring via RJ45 Ethernet port with SNMP and web browser interface. Its typical applications include teleports and Earth stations. |
| |
Download Datasheet
Product Details | |
|
|
|

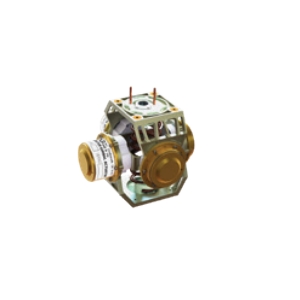

| Electric Propulsion Thruster Gimbal Assemblies | |
Gimbal
from Moog
|
| The Model-S 2 Phase from Moog is a Gimbal that are based on the Moog Rotary Actuator having demonstrated a minimum of 15 year on-orbit design life on multiple missions. It features dual axis gimbal driven by rotary actuators for cross-axis positioning, a potentiometer for position telemetry and space-qualified stepper motors with harmonic drive transmission. It provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, Arc-jet, and NTO |
| |
Download Datasheet
Product Details | |
|
|
|
| 4-Channel Satellite Link Emulator for Payload Testing | |
Satellite Link Emulator
from dBm Corporation
|
| The SLE9125 from dBm Corporation is a Satellite Link Emulator with a center frequency of 140 MHz and a 1 dB RF bandwidth of 125 MHz. The emulator has a delay slew rate of 0.3 ps/sec up to 20 us/ms. It requires a primary power AC supply voltage of 90-264 V. This Satellite Link Emulator features removable non-volatile memory to meet military/classified laboratory requirements and RF link emulation such as delay, Doppler, path loss, and phase shift frequency hopping. It weighs up to 47 lbs. |
| |
Download Datasheet
Product Details | |
|
|
|

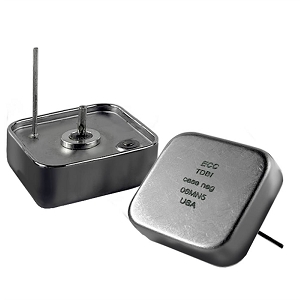

| 20 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1016203 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 20000 uF. This lead-free RoHS-compliant capacitor is rated for greater than 2000 hrs and utilizes sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte. This space-qualified capacitor is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
