| Featured Space and Satellite Products |
|
|
| Space-Qualified Rubidium Frequency Atomic Clock | |
Space Qualified Atomic Clock
from Safran Group
|
| This MiniRAFS from Safran Group is a Space-Qualified Atomic Clock for LEO, MEO, and GEO orbits with a design life of more than 20 years. This miniaturized atomic clock has harmonics of less than 30 dBc and spurious signals of less than -80 dB. The atomic clock has a mass of 0.45 kg and measures 53 x 67.5 x 107.5 mm. It is ideal for applications such as space scientific missions, secure satellite communications, tracking and guidance control, and advanced low satellite orbit digital communications. |
| |
Download Datasheet
Product Details | |
|
|
|

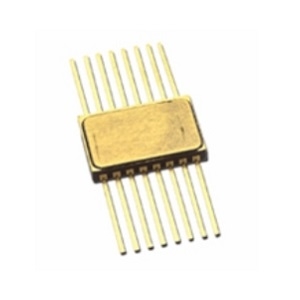

| Hermetically Sealed Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-9800104K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It has a forward voltage range of 1.5-1.85 V and an insulation leakage current of 1 µA. It has a capacitance value of 4 pF and a power consumption of 40-200 mW. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, transportation, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 30-31 GHz Ka-Band SATCOM On-The-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-20M Ka MIL from General Dynamics Mission Systems is a Satellite Terminal with a transmit frequency range of 30-31 GHz and a receive frequency range of 20.20-21.20 GHz. The terminal has an antenna size of 20.5 inches which supports a wide range of commercial modem systems. This satellite terminal was specifically designed for ground vehicle command, control and communications (C3) missions where beyond the line of sight (BLOS) SATCOM capabilities are mission critical. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-1 Kohms Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The EGS-1-80 from Vishay is a Space Qualified Resistor with a resistance range of 0.1-1 KOhm. This resistor has a power rating of 1 W and a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It features a complete welded construction and is high-temperature silicone coated. The resistor has a mass of 0.21 g and measures 0.250 x 0.085 x 0.02 Inches. This axial lead resistor is qualified to MIL-PRF-39007 and is available in non-inductive styles (type N) with Ayrton-Perry winding. |
| |
Download Datasheet
Product Details | |
|
|
|

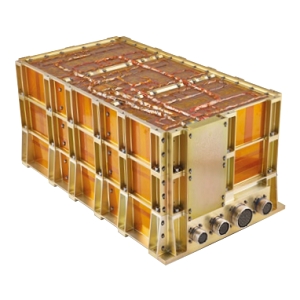

| 156 Ah Space-Qualified Li-ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s104p 28V 156Ah from EnerSys is a Satellite Battery with a capacity of 156 Ah and an energy of 4492.8 Wh. This satellite battery has a mass of 49.9 kg and measures 300 x 530 x 240 mm. It is qualified for the NASA Solar Dynamic Observatory (SDO) mission. This satellite battery operates without the need for cell-balancing electronics and includes redundant switching relays that are mounted via a shock and vibration suppression system to ensure reliable operation during launch environments. |
| |
Download Datasheet
Product Details | |
|
|
|

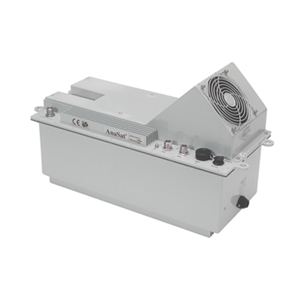

| 32 W Ku-Band SATCOM Transceivers | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 32W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. This transceiver has a Tx gain of 76 dB and an Rx gain of 75-100 dB. It has a 1-dB compression point of 45 dBm and a noise figure of 2 dB. It supports RS-232 and RS-485 monitoring and control interfaces. It has a mass of 20 kg and measures 549 x 229 x 317 mm. The transceiver is designed for SCPC, MCPC and DAMA applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|
| 0.16-4.7 µH Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE486PYA from Coilcraft is a Space Qualified Inductor with an inductance range of 0.16-4.7 µH and an inductance tolerance of ± 20 %. It has a DC resistance of 2.15-36 mOhms. They have a self-resonant frequency range of 18-183t4 MHz and an RMS current of 3.2-16.7 A. The inductors feature tin-lead (Sn-Pb) termination for the best possible board adhesion and have passed NASA low outgassing specifications. It has a mass of 0.40-0.51 g and measures 0.216 x 0.208 x 0.122 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 400 W C-Band Antenna Mount TWT Amplifiers | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA6140 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 5.850-7.025 GHz. This CE-compliant SATCOM amplifier system requires an AC voltage supply of 200-240 V and has a maximum power requirement of 1450 VA. It features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, and Ethernet. This SATCOM amplifier system weighs 25 Kg and measures 588 x 254 x 280 cm. |
| |
Download Datasheet
Product Details | |
|
|
|

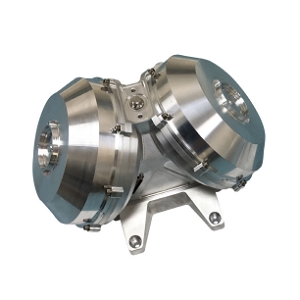

| 30 mNm Torque Reaction Wheel Assembly for Small Satellites | |
Reaction Wheel
from Honeywell Aerospace
|
| The HR04 from Honeywell Aerospace is a Satellite Reaction Wheel that is designed for small satellites with a mission life of about 5 years and a storage life of about 1 years. It has a radiation tolerance of greater than 20 Krad (Si) and supports the CAN, LVDS, CMOS and RS-422 digital bus interface for speed and torque command which has high-output, low-jitter performance for precision position and pointing control, plug-and-play ACS insertion, minimized vehicle integration time, and application scalable optimization. |
| |
Download Datasheet
Product Details | |
|
|
|

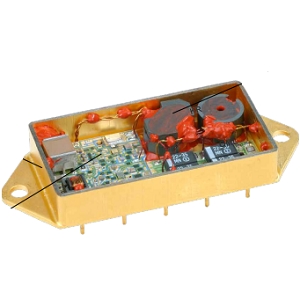

| 0.5-5 GHz Space Qualified EMI Filters | |
Space Qualified RF Filter
from Crane Aerospace & Electronics
|
| The SFMC28-461 from Crane Aerospace & Electronics is a Space Qualified RF Filter with Frequency 0.5-5 MHz and a minimum attenuation value of 55-60 dB. It has a nominal voltage of 28 V and a maximum throughput current of 2.7 A. It has a TID of 1000 krad (Si) as per MIL-STD-883 specification used for maximum tolerance in space environments. It measures 73.91 x 28.32 x 10.16 mm in dimensions and are ideal for aerospace, military/defense, space, medical and industrial applications. |
| |
Download Datasheet
Product Details | |
|
|
|

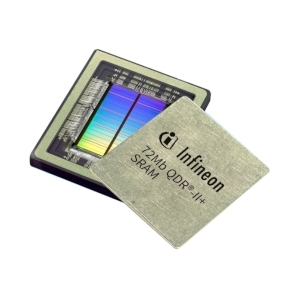

| 72 Mb Radiation-Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1545AV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 72 Mb density and 2M × 36 configuration with two-word burst mode. The SRAM features separate independent read and write data ports for concurrent transactions and double data rate (DDR) interfaces on both read and write ports. It requires a power supply voltage of 1.7-1.9 V. The SRAM is available in a 165-ball Ceramic Column Grid Array (CCGA). It is suitable for military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-8.15-7.5 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 7.9-8.4 GHz and an output frequency range of 7.25-7.75 GHz. It has an I/O return loss of 18 dB and a conversion loss of 15-25 dB. It requires an input supply voltage of 90-250 VAC. It has a mass of 4.5-6.4 Kg and measures 19 x 1.75 x 20 inches. It is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|
| 12 V Dual EMI Filtered DC to DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The FMTR2812D from Crane Aerospace & Electronics is a DC to DC Converter with an o/p voltage range of 11.64-12.00 V and attenuation of up to 50 dB. It has an input frequency of range 500-675 kHz and a duty cycle of 60 %. It features a fully isolated magnetic feedback with an in-built EMI input filter and comes with short circuit protection. It is available in a hermetically sealed module measuring 76.33 × 38.23 × 10.16 mm and is ideal for ideal for use in military, aerospace and other high reliability applications. |
| |
Download Datasheet
Product Details | |
|
|
|

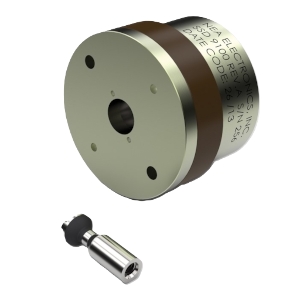

| Hold Down and Release Mechanism for Satellite Deployment | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The 9100 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Attach and Release Mechanism with a proof load rating of 7.6 kN. It has a low output shock of less than 300 g/s (preload) and a release time of less than 50 ms. It has a mass of 70 g and is ideal for applications such as antennas, reflectors, solar arrays, deployable radiators, booms, masts, scientific instruments, satellite and spacecraft deployments, missile payload separation, launch vehicles, and missile stage and fairing separation. |
| |
Download Datasheet
Product Details | |
|
|
|

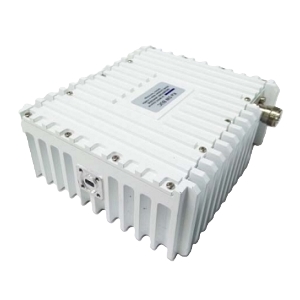

| 5 W Ka-Band Block Upconverter for SATCOM Applications | |
Block Upconverter
from KMIC Technology
|
| The KMU288291B05 from KMIC Technology is a Block Upconverter that converts an input IF frequency of 950-1250 MHz to an output RF frequency of 28.85-29.15 GHz. The converter has a spurious of -60 dBc and phase noise of up to -100 dBc/Hz (1 MHz). It requires a DC input voltage of 18-36 V and has a power consumption of 40 W. The converter has a very low power consumption and small size. It weighs 1.5 Kg and measures 150 x 130 x 55 mm. It is ideal for high power BUCs for VSAT and SatCom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

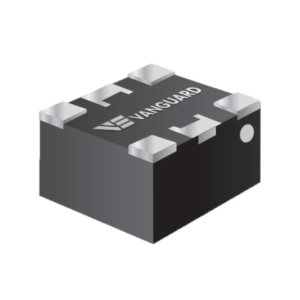

| 8.9 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS204 from Vanguard Electronics is a Space Qualified Power Transformer with a primary voltage of 40 V and a primary current of 5 A. It has an inductance of 8.9 mH and a turns ratio of 1:100:100. This transformer has a dielectric withstanding voltage of 500 V AC. It is a space-grade transformer measures 0.405 x 0.405 x 0.300 inches and comes in a transfer molded package with tin-lead terminations. This transformer has a design that meets the MIL-STD-981 space standards and is ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
