| Featured Space and Satellite Products |
|
|
| 3-Axis Inertial Measurement Unit for Satellites | |
Inertial Measurement Unit
from Safran Group
|
| The STIM318 from Safran Group is an Inertial Measurement Unit that consists of 3 high-accuracy MEMS-based gyros, 3 high-stability accelerometers, and 3 inclinometers in a miniature package. This IMU has a range of 400 degrees/sec. It has a gyro angular random walk of 0.15 degrees/vh and an accelerometer bias instability of 0.003 mg. It has a mass of 57 g and measures 44.8 x 38.6 x 21.5 mm. The STIM318 is ideal for satellites, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| High resolution Star Tracker for Earth Observation from GEO and LEO | |
Star Tracker
from Jena-Optronik GmbH
|

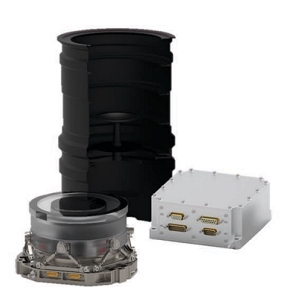

| The ASTRO XP from Jena-Optronik GmbH is a Star Tracker that has an attitude error in plane of less than 0.1 arcsec. This star tracker has an time tag accuracy of less than 0.1 ms and field of view of less than 0.3 deg. It requires a DC power supply of 28 V. It has a mass of 2.5 kg and sun exclusion angle of 30 degrees. The star tracker has been developed to meet the specific requirements for high accuracy star tracking in science missions and high resolution Earth observation from GEO and LEO. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10.70-12.75 GHz Ku-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|

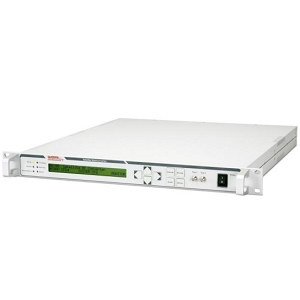

| The VHCD-KuKuT / VSCD-KuKuT from WORK Microwave is a Block Downconverter that has an input RF frequency range of 10.7-12.75 GHz, weighs 8.4 Kg (Indoor housing) and measures 483 x 44 x 505 mm (Indoor housing). The converter is designed to support the demanding requirements of modern satellite transmission applications and is ideal for systems where an accurate phase relationship is required between two converter channels, as in the case for monopulse tracking system down conversion. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-40 MHz Ultra-Miniature Precision VCTCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|

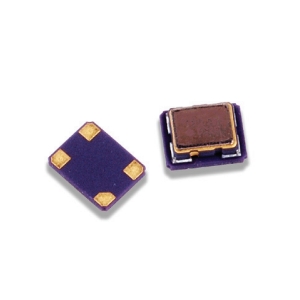

| The C23 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 1.5 ppm. This temperature compensated crystal oscillator requires a supply voltage of 2.5 Vdc and a supply current of 2 mA. It has a low period jitter of 3-5 ps rms and an integrated phase jitter of 0.3-1.0 ps rms. This RoHS-compliant oscillator has an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| 98 cm Satellite Antenna System for Communication Applications | |
SATCOM Antenna
from C-COM
|
| The FLY-98G from C-COM is a SATCOM Antenna with a transmit frequency range of 29.50-30.0 GHz and a receiver frequency range of 19.20-20.20 GHz. It is designed to work with the iNetVu 7710 controller and is compliant for use on Avanti Hylas Ka-sat services. It has a mass of 28.6 Kg and measures 109 x 109 x 29 cm. It is ideally suited for industries such as oil & gas exploration, military communications, disaster management, emergency communications backup, and cellular backhaul. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3000 Ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|

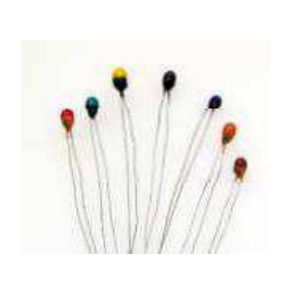

| The 44904 from TE Connectivity is a Space Qualified Temperature Sensor with a resistance of 3000 ohms and a tolerance of ± 0.1 Deg C (0°C to 70°C). It has a beta value of 3891 K and thermally conductive epoxy coating with 10% WVR. This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space applications, low and mid-range temperature applications, tight tolerance instrumentation and applications requiring sensing small changes in temperature and outgassing requirements. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|
| 6-40 GHz Dual-Directional Coupler for Mobile Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|

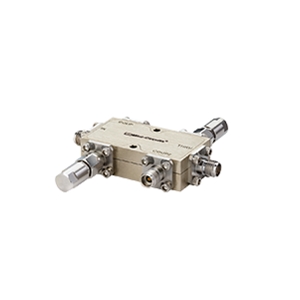

| The ZDDC30-K0644 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 6-40 GHz. This coupler has a coupling of 30 dB and a coupling flatness of +/- 0.4-1 dB. It has a mainline loss of 0.4-1.3 dB and a directivity of 10-29 dB. It has a power handling capacity of up to 20 W and requires a DC current supply of 0.63 A. This RoHS-compliant wideband coupler has a mass of 85 g with 2.92 mm female connector and is ideal for 5G, mobile, fixed satellite, and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|

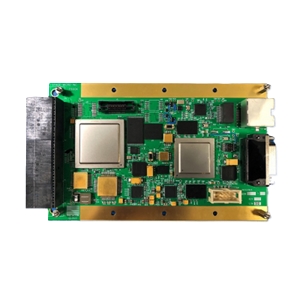

| Multi-Core Single Board Computer for Image Processing Applications | |
Satellite On-Board Computer (OBC)
from Space Micro
|
| The PROTON 600K from Space Micro is a Satellite On-Board Computer (OBC) that is an advanced radiation hardened 3U Open VPX Single Board Computer with eight ARM Cortex cores. This rad-hardened SBC has a 128 MB Dual Quad-SPI Serial NOR FLASH with on-chip ECC 64 GB eMMC 5.1 (for EM/SDU only). The SBC has a mass of 475 g and is ideal for high-performance computing, multiple operating systems, command and data handling, image processing and signal processing applications. |
| |
Download Datasheet
Product Details | |
|
|
|

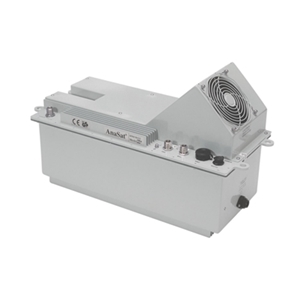

| 8 W Ku-Band SATCOM Transceivers | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 8W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. It features built-in test facilities for improved maintainability and frequency agile radio equipment for independent Tx and Rx frequency selection. It supports RS-232 and RS-485 monitoring and control interfaces. It has a mass of 15 kg and measures 549 x 229 x 239 mm. The transceiver is designed for SCPC, MCPC and DAMA applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0182-06-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency range of DC to 18 GHz. This RoHS-compliant attenuator features a stainless steel passivated finish construction and qualified according to the testing guided by MIL-DTL-3933 level T qualification. It has a maximum weight of 14.2 g and has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| Three-Axis Space-Qualified Magnetometer for LEO Missions | |
Magnetometer
from LusoSpace
|

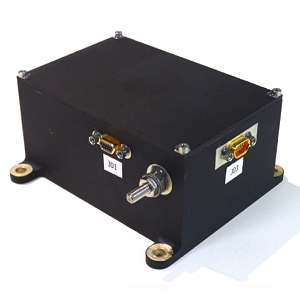

| The MAG15 from LusoSpace is a Magnetometer that provides three-axis analogue readings of the surrounding magnetic field and it is housed in a compact enclosure for easy integration. It has a bandwidth of 50 Hz and has space heritage of Sentinel, Sentinel 3, Sentinel-5p, SEOSAT, CHEOPS and BIOMASS missions. It requires a supply voltage of +/- 15 V and has a power consumption of 1 W. The magnetometer is ideal for providing attitude reference in LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 17.2-22.2 GHz Wideband Ka-Band Low-Noise Block Downconverter Block | |
Low Noise Block
from Orbital Research
|
| The Wideband Ka LNB-Superior from Orbital Research is a Low Noise Block with an input RF frequency of 17.2-22.2 GHz and an IF frequency of 950-3750 MHz. This LNB has an image rejection value of 50 dB and an output phase noise of -55 to -120 dBc/Hz. It has a IP67-rated LNB that weighs 500 g and measures 44 x 44 x 154 mm. This LNB is ideal for wide-band gateway carriers, Comms On the Move, In-Flight entertainment systems, military operations, global data networks, and IoT or NextGen applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|
| Space-Qualified Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|

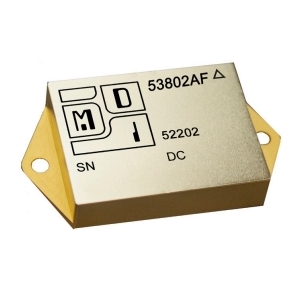

| The 53803 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage of 4.7-5.3 V. This relay has a command current of 0.1-2 mA and a contact current of 20 A. It has a delay time of 20-75 uS and a dynamic energize time of 5-30 uS. It has high voltage, low resistance and hermetic package. This relay has a steady state power dissipation of 10 W and is radiation hardened up to 100 kRads. It has a magnetic latch relay configuration with an SPST switch configuration. |
| |
Download Datasheet
Product Details | |
|
|
|

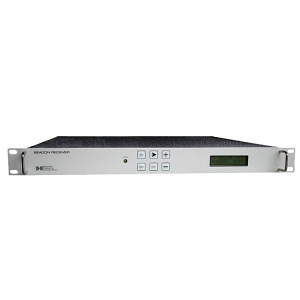

| 930-2050 MHz L-Band Beacon Tracking Receiver | |
Satellite Beacon Receiver
from Skybrokers BV
|
| The 3430-LF from Skybrokers BV is a Satellite Beacon Receiver designed to meet provide a linear DC reference voltage proportional to the received signal level of a satellite beacon or narrow-band SCPC carrier. It has a beacon input level range of -30 to -90 dBm and a minimum lock input level of -110 dBm. The beacon receiver requires an AC voltage supply of 90-260 V and a power consumption of 45 W. The beacon receiver is ideal for antenna step tracking and automatic uplink power control. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|

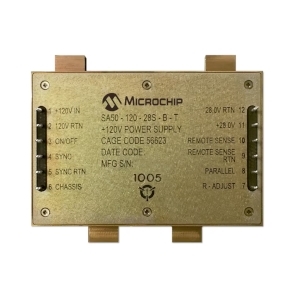

| The SA50-120-5S-A-P from Microchip Technology is a DC to DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 5 V. This radiation-hardened converter delivers an output power of up to 50 W. The converter has a radiation tolerance TID of 100krad (Si) and a SEE immunity of 82 MeV·cm2/mg. It has a low mass of 120 g and measures 3.055 x 2.055 x 0.5 inches. The converter is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ion Thruster Gimbal Mechanisms | |
Gimbal
from Moog
|
| The Ion Thruster Gimbal from Moog is a thruster gimbal that can be configured for wide rotation on both axes with a total rotational range of +/- 5 deg (X & Y axis). The gimbal assembly has an on-orbit design life of 15 years. It features dual axis gimbal actuated by linear actuators for cross axis positioning and space-qualified stepper motors with lead-screw actuation. It provides vector-pointing capabilities for various propulsion thruster configurations including Xenon, Arc-jet, and NTO/MMH. |
| |
Download Datasheet
Product Details | |
|
