| Featured Space and Satellite Products |
|
|
| 1000 Hz Software-defined Advanced GNSS Simulator | |
GNSS Simulator
from Safran Group
|
| The GSG-7 from Safran is a GNSS Simulator with advanced simulation capabilities of real-time synchronization, Hardware-in-the-Loop (HIL) integration, and simulation of all-in-view satellite signals. It can be used alone or in combination with other Skydel-powered simulators like the GSG-8 or Wavefront and Anechoic test solutions. The GSG-7 is available in an enclosure that measures 48 x 41 x 9 cm with HDMI/USB/Ethernet ports and various RF connectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7.9-8.4 GHz X-band 1.15 m Ruggedized Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|

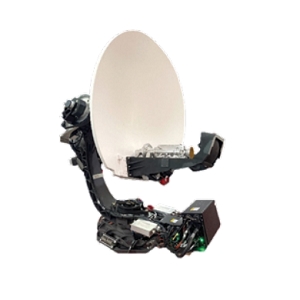

| The OceanTRx 4 Mil X from Orbit Communication Systems is a Space-Qualified Satellite Terminal with an X-band transmitter frequency range of 7.9-8.4 GHz. It features simultaneous operation or automatic switching of dual and multiple bands. The terminal is has an optional fast manual band swapping with multiple BUCs per system and provides reliable, high-capacity, long-range multiband communication to navy vessels under extreme conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-2 GHz L-Band Monolithic Low Noise RF Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA3801-FAB from United Monolithic Semiconductors is a Space Qualified RF Amplifier that operates from 1-2 GHz. It has a linear gain of 28 dB. It is proposed in leadless surface mount hermetic metal ceramic 6 x 6 mm² package and has active bias network. This RoHS-compliant amplifier is dedicated to space communications and is also well suited for a wide range of applications, such as space, military and commercial communication systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 700-2150 MHz Radio Link Emulator for Satellite Communication | |
Satellite Link Emulator
from Square Peg Communications Inc
|
| The RLS-2100 from Square Peg Communications Inc is a Satellite Link Emulator that operates with a frequency of 700 to 2150 MHz. The link simulator is controlled using a touch-screen or keyboard with Ethernet, RS-232, RS-422, RS-485 and USB interfaces. This satellite link emulator is ideal for hardware-in-the-loop physical layer testing and end-to-end network performance testing applications of wideband satellite and terrestrial radio communications systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6 Pin LCC Single Channel Optocoupler | |
Space Qualified Optocoupler
from Micropac Industries
|
| The 66138-009 from Micropac Industries is a Space Qualified Optocoupler with a forward voltage range of 0.7-1.7 V and a static reverse current of 100 µA. This phototransistor output optocoupler features a high gain infrared LED coupled to a high gain silicon phototransistor coupled inside a hermetic six-pin LCC package. It is designed for applications such as the eliminating ground loops, level shifting, line receiver, switch mode power supplies and motor control. |
| |
Download Datasheet
Product Details | |
|
|
|
| 45 V High-Efficient Schottky Rectifier for Space Applications | |
Space Qualified Diode
from Infineon Technologies
|
| The 35CLQ045 from Infineon Technologies is a Space Qualified Diode with a max. DC reverse voltage of 45 V and a max. average forward current of 35 A. It has a maximum thermal resistance of 1.4 deg C/W. It features a guard ring for enhanced ruggedness and has a surface mount hermetically sealed package. The diode is qualified according to MIL-PRF-19500 for space applications and is suitable for high frequency switching power supplies and resonant power converters. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | Convergence India Expo 2025 | | Establishing a dynamic platform for global connections, innovation, and the forging of enduring international partnerships, the Convergence India Expo 2025 edition serves as a melting pot for professionals, digital trailblazers, international businesses, and government leaders across IT, ICT, Broadcast, IoT, Fintech, and Embedded Technology. Anticipating over 55,000 industry visitors, 1,200 brands, and participants from 40+ countries, it's your perfect platform to connect with potential clients and tech luminaries. Click here to learn more | | | |
|
|
| Rechargeable Lithium Cobalt Oxide Battery For GEO Missions | |
Satellite Battery
from EaglePicher Technologies
|

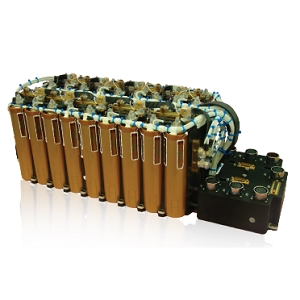

| The SAR-10197 from EaglePicher Technologies is a Satellite Battery with a specific energy of 104.9 Wh/kg. It is a Lithium-Ion–Lithium Cobalt Oxide rechargeable battery with 15-years of operational mission life. It is qualified for space flight and suitable for military communications and surveillance, commercial communication and broadcasting, NASA research, environmental monitoring and global navigation and tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| -100 V P-Channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNA597160 from Infineon Technologies is a Space-Qualified MOSFET that is designed for power devices in space and other radiation environments. It has a lightweight simple drive requirements and fast-switching qualified according to MIL-PRF-750 for space applications. This MOSFET characterized for single event effects (SEE) with useful performance up to an LET of 80 (MeV/(mg/cm2)). It is ideal for DC-DC converter and motor drives applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25 Nms Reaction Wheel for Highline Applications | |
Reaction Wheel
from Astrofein
|

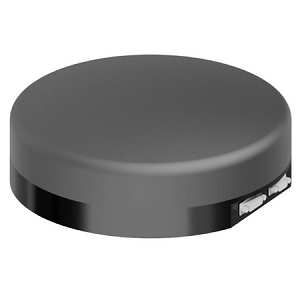

| The RW1500 from Astrofein is a Reaction Wheel that is designed for Highlines and has a lifetime of up to 15 years with an integrated wheel drive electronics for latch-up protection. This space-qualified reaction wheel has an angular momentum of 25 Nms and a torque of 0.2 Nm. It has a rotation speed range of 4000 rpm and supports RS485 and CAN interfaces. This space qualififed reaction wheel by Astrofien has a mass of 6 kg and measures 320 x 320 x 120 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 20.20-21.20 GHz Test Loop Translator for SATCOM Applications | |
Test Loop Translator
from Jersey Microwave
|
| The KATLT-300310-202212-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 30-31 MHz and an output frequency range of 20.20-21.20 GHz. It supports RS-422 and RS-485 interfaces. It requires a supply voltage of 90-260 V AC and has a power consumption of up to 25 W. This translator has a mass of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1500-3100 MHz Ceramic Balun for WIMAX Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-33+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 1500 to 3100 MHz. It has an amplitude unbalance of 0.6 dB and a phase unbalance of 5 degrees. It has an insertion loss of 1.0 dB and a maximum RF power rating of 3 W. This balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g. This RoHS-compliant balun is suitable for WLAN, WIMAX, WIBRO and WCDMA applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Cryogenic Fine Positioning Linear Actuator | |
Space Actuator
from Moog
|
| The Cryogenic Fine Positioning Actuator by Moog is a Space Actuator designed to produce very small linear output steps using conventional actuator technology. It has a high gear ratio gear transmission and a power consumption of up to 8 W. This space actuator has a weight of 1.2 lbs and measures 1.4 inches diameter x 6.6 inches length in dimensions. It features sealed bellow assembly at the output which is designed to operate in Cryogenic space environment. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | |
|
|
| 80 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|

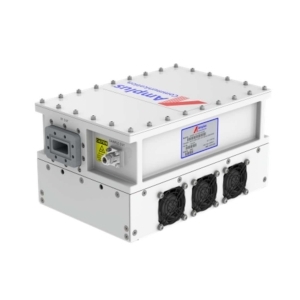

| The AM-9338 80 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It has an input VSWR of 1.5:1 and an output VSWR of 1.3:1. It requires a AC voltage supply of 200-240 V. This upconverter weighs 10 Kg. It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and Satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 150 pF Space Grade Ceramic Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 30HS23N151KC from KEMET is a Space Qualified Capacitor with a capacitance of 150 pF and has a capacitance tolerance of ± 10%. It has a rated DC voltage of 3000 V and a surge current of 30 mA. It has a lead spacing of 9.53 mm and measures 0.470 x 0.400 x 0.270 Inches (L x H x T). It is ideal for aerospace engine compartments, switch mode power supplies, DC/DC converters, inverters and high-voltage coupling applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 400 W C-Band Solid State Satcom Amplifier for SATCOM Applications | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCM6400Q from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.725 GHz. It has a spurious of -70 dBc and a maximum VSWR of 1.3:1. The amplifier system requires a power supply of 180-264 VAC. It features a modular architecture with ModuMAX amplifiers and QuadMod SSPAs that consist of RF plug-in modules. The amplifier system weighs 82 Kg (RF unit) and measures 483 x 311 x 746 mm (W x H x D). |
| |
Download Datasheet
Product Details | |
|
