| Featured Space and Satellite Products |
|
|
| Inertia Measurement Unit for Satellites and Launch Vehicles | |
Inertial Measurement Unit
from Safran Group
|
| The STIM300 from Safran Group is an Inertial Measurement Unit with an input angular rate of +/- 400 degrees/sec and bias stability of 0.3 degrees/h. It has a sampling frequency of 2000 samples/sec and an angular random walk of 0.15 Degrees/vh. It has a mass of 55 g and measures 44.8 x 38.6 x 21.5 mm. The STIM300 is ideal for satellites, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|

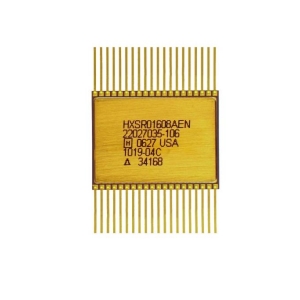

| 2M x 8 Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HXSR01608 from Honeywell Aerospace is a Space Qualified Memory that is configured as 2M x 8.It is a high performance 2,097,152 word x 8-bit static random access memory that is fabricated with 150nm silicon-on-insulator CMOS (S150) radiation-hardened technology. The memory cell is single event upset hardened with four layer metal power busing and small collection volumes of SOI provide superior single event effect and dose rate hardening. |
| |
Download Datasheet
Product Details | |
|
|
|

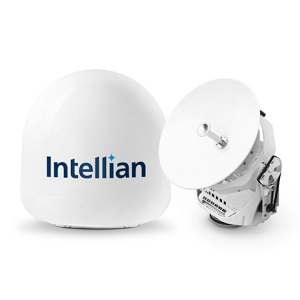

| 45 cm Ku-band Maritime VSAT Terminal | |
Satellite Terminal
from Intellian
|
| The v45C from Intellian is a 45cm Maritime VSAT Terminal that operates in the Ku-Band with a transmitter frequency range of 13.75-14.5 GHz and a receiver frequency range of 10.7-12.75 GHz. It uses the AptusNX antenna management platform which is a responsive web user interface to manage and control. It is designed to deliver enhanced connectivity and user experience to smaller boats and vessels, including fishing, leisure, commercial, and government. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 kOhms to 50 GOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (4020) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. It has a power rating of 2 W and a voltage rating of 4000 V. It has a tolerance range of 0.1-20% and the parts are packed in accordance with EIA-481 tape and reel specifications. The resistor is constructed using a thick film resistive element. It measures 10.16 x 5.08 x 0.76 mm and is ideal for military, electronic warfare, and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Photon Solar Panels for CubeSat Power Generation | |
Satellite Solar Panel
from AAC Clyde Space
|
| The PHOTON-SIDE from AAC Clyde Space is a Satellite Solar Panel with a power generation capacity of up to 9 W per 3U populated face. It has a stowed height of 3.5 mm and weighs 135 g. The side solar panels are designed to fit at the side panels of CubeSat structures, to provide optimized power generation from any side of the satellite. This solar panel is available in 1U, 2U, 3U and 6U face sizes and is ideal for CubeSat deployment mechanisms. |
| |
Download Datasheet
Product Details | |
|
|
|

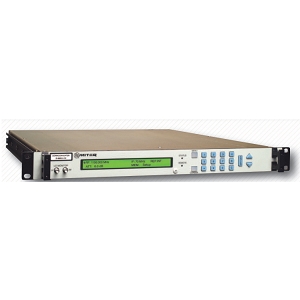

| 2.2-12.75 GHz Quad Channel Block Downconverter for SATCOM Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-98-37991D2HV-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 2.2-12.75 GHz and an output frequency of 70 MHz. The downconverter has a spurious output of 60 dBc up to 0 dBm. The frequency downconverter supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces for monitoring and control. This frequency downconverter is designed for advanced satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | Convergence India Expo 2025 | | Establishing a dynamic platform for global connections, innovation, and the forging of enduring international partnerships, the Convergence India Expo 2025 edition serves as a melting pot for professionals, digital trailblazers, international businesses, and government leaders across IT, ICT, Broadcast, IoT, Fintech, and Embedded Technology. Anticipating over 55,000 industry visitors, 1,200 brands, and participants from 40+ countries, it's your perfect platform to connect with potential clients and tech luminaries. Click here to learn more | | | |
|
|
| 0.22-33 µH Space Grade Tin/Lead Shielded Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-3232DZ-1L from Vishay is a Space Qualified Inductor with an inductance range of 0.22-33 µH and an inductance tolerance of +/- 20 %. The inductor features a shielded construction with IHLP design and and Tin/lead Sn/Pb plated terminals. It is suitable for PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery powered devices, DC/DC converters in distributed systems, and DC/DC converters for FPGAs. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.9-8.7 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-2700A from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2900-8700 MHz. The high-pass filter has a frequency cut-off of 3 dB at 2700 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

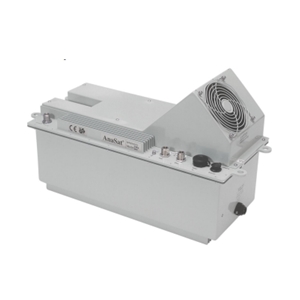

| 0 W Ku-Band SATCOM Transceivers | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 0W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 14-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. This transceiver has a Tx gain of 31 dB and an Rx gain of 75-100 dB. It requires an input power supply of 100-250 V AC and has a power consumption of up to 100 VA. It has a mass of 10 kg and measures 549 x 229 x 178 mm. The transceiver is designed for SCPC, MCPC and DAMA applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5000 Ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44906 from TE Connectivity is a Space-Qualified Temperature Sensor with a resistance of 5000 ohms and an interchangeability of +/- 0.1 Degrees C (0°C to 70°C). It has a beta value of 3891 K and a thermally conductive epoxy coating that exhibits less than 0.66% TML and 0.10% WVR. It is ideal for extended space, low and mid-range temperature, tight tolerance instrumentation and applications requiring sensing small changes in temperature. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Single EMI Filtered DC-DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The FMTR2812S from Crane Aerospace & Electronics is a DC to DC Converter with an output voltage range of 11.64-12.36 V and attenuation of up to 50 dB. It has a capacitance of 50 pF for enhancing stability and has a ripple voltage of 60 mVpp. It has a line regulation of 15-50 mV and load regulation of 15-50 mV. It is available in a hermetically sealed module measuring 76.33 × 38.23 × 10.16 mm and is ideal for ideal for use in military, aerospace and other high reliability applications. |
| |
Download Datasheet
Product Details | |
|
|
|

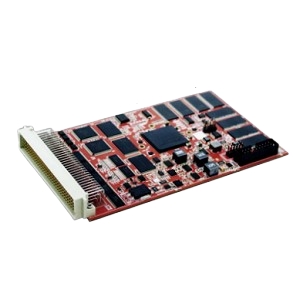

| Satellite OnBoard Computer for Command Control with Redundancy | |
Satellite On-Board Computer (OBC)
from CAVU Aerospace UK
|
| The OBC-1 from CAVU Aerospace UK is a Satellite On-Board Computer (OBC) that uses an ARM Cortex-M3 processor on FPGA and an advanced Microchip/Microsemi SmartFusion2 Flash-based FPGA design. It features single board flash based FPGA computer with on-board current and temperature monitoring. It has a mass of 75 g. It is designed to withstand a variety of space environments and is suitable for critical space missions. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | |
|
|

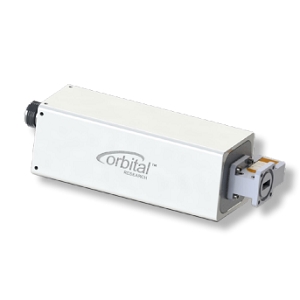

| 17.2-21.2 GHz Wideband Ka-Band Ethernet-Controlled Low Noise Block | |
Low Noise Block
from Orbital Research
|
| The Wideband Ka LNB-Enhanced from Orbital Research is a Low Noise Block with an input RF frequency of 17.2-21.2 GHz. This RoHS-compliant LNB has a ultra low phase noise with high gain antennas and switchable filters for exceptional image rejection. This LNB is ideal for wide-band gateway carriers, Comms On the Move, In-Flight entertainment systems, military operations, global data networks, and IoT or NextGen applications. |
| |
Download Datasheet
Product Details | |
|
|
|

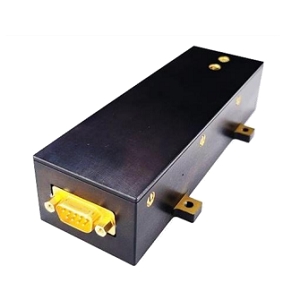

| Three–Axis Magnetometer (TAM) for Satellite | |
Magnetometer
from SENSORPIA
|
| The MS-22-1 from SENSORPIA is a Magnetometer that senses attitude by measuring 3-axis components of the earth’s magnetic field. The magnetometer supports an analog output communication interface and has a bandwidth of 10 Hz. It requires an input voltage of 15 V and has a power consumption of less than 1.1 W. This magnetometer weighs 350 g and measures 50 × 155 × 35 mm. It is developed for attitude control for satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

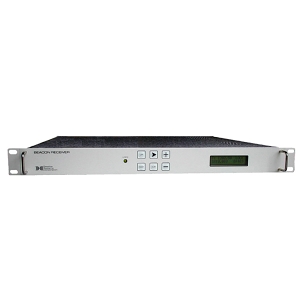

| 950-2050 MHz L-Band Beacon Tracking Receiver | |
Satellite Beacon Receiver
from Skybrokers BV
|
| The 3430-LW from Skybrokers BV is a Satellite Beacon Receiver designed to meet provide a linear DC reference voltage proportional to the received signal level of a satellite beacon or narrow-band SCPC carrier. It supports the remote control options that include RS232/RS485 with a F-type female input. It requires an AC supply of 90-260 V and a power consumption of 45 W. It is ideal for antenna step tracking and automatic uplink power control. |
| |
Download Datasheet
Product Details | |
|
|
|
| 21 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS205 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 21 mH. It is built to meet MIL-STD-981 space standard specifications and features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 20 A. The SCS205 measures 0.61 × 0.61 × 0.475 inches and is MIL-STD-981 and is ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
