| Featured Space and Satellite Products this Week |
|
|
| 15-75 mN Stationary Plasma Thruster | |
Spacecraft Thruster
from Safran Group
|
| The PPS X00 from Safran Group is a Spacecraft Thruster with a thrust range of 15-75 mN and a specific impulse of 1300-1650 sec. This thruster uses Xenon and Krypton as propellants and has a discharge current of 0.7-3.3 A. It has an efficiency of 48 % and requires a supply voltage of 250-350 V. The PPS-X00 has a mass of less than 3.2 kg and a lifespan exceeding 5,000 hours. It is designed for LEO applications and to handle small satellites in orbit raising and station keeping. |
| |
Download Datasheet
Product Details | |
|
|
|

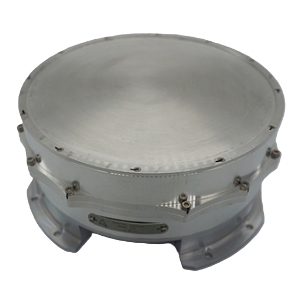

| 4 Nms Reaction Wheel for SmallSat Highline Applications | |
Reaction Wheel
from Astrofein
|
| The RWT250 from Astrofein is a Reaction Wheel that is designed for SmallSat Highline and has a lifetime of up to 7 years with an integrated wheel drive electronics for latch-up protection. It has an internal compensation of friction, time delays, high torque and speed stability at low noise. This reaction wheel requires a supply voltage of 23-34 V. The RWT250 has a rotation speed range of 5000 rpm and supports RS485 and CAN interfaces. This reaction wheel has a mass of 3 kg and measures 200 x 200 x 100 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-4.2 GHz C-Band Low Noise Block with External Reference | |
Low Noise Block
from Orbital Research
|
| The 3400X from Orbital Research is a Low Noise Block with an input RF frequency of 3.4-4.2 GHz and an IF frequency of 950-1750 MHz. This external reference LNB is enhanced to meet demanding specifications such as superior gain flatness, local oscillator (LO) stability and VSWR. It has a mass of 580 g and measures 144 x 68 x 39 mm. This RoHS and REACH complaint LNB is built for commercial and military SATCOM applications and is ideal to mitigate rain fade in temperate regions. |
| |
Download Datasheet
Product Details | |
|
|
|

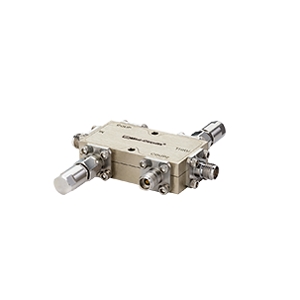

| 18-40 GHz Dual-Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC20-K1844 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 18-40 GHz. It has a mainline loss of 0.6-1.4 dB and a directivity of 10-23 dB. The coupler has a return loss of 11.7-28 dB (In & Thru) and 11.7-25 dB (coupling). It has a power handling capacity of up to 20 W and requires a DC current supply of 0.63 A. This wideband coupler has a mass of 85 g with 2.92 mm female connector and is ideal for 5G, mobile, fixed satellite, and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 144 Mb Radiation-Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1644KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 4M × 36 configuration with two-word burst mode. This SRAM has a maximum operating frequency of 250 MHz and a maximum operating current of 1080 mA. The SRAM features separate independent read and write data ports for concurrent transactions and double data rate (DDR) interfaces on both read and write ports. It is suitable for military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

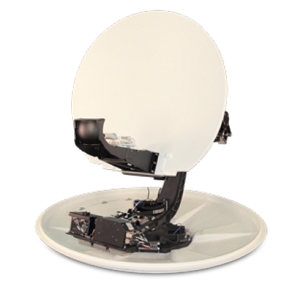

| 27.5-30 GHz X-band Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 Ka from Orbit Communication Systems is a Satellite Terminal with an X-band transmitter frequency range of 27.5-30.0 GHz and a receiver frequency range of 17.7-20.2 GHz. It has a continuous azimuth range of -30° to +120°. It was designed for supporting the mission and business critical broadband needs of navy vessels, commercial and container ships, offshore drilling platforms and large yachts, fast one-day deployment, simple updates and minimal maintenance. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | Convergence India Expo 2025 | | Establishing a dynamic platform for global connections, innovation, and the forging of enduring international partnerships, the Convergence India Expo 2025 edition serves as a melting pot for professionals, digital trailblazers, international businesses, and government leaders across IT, ICT, Broadcast, IoT, Fintech, and Embedded Technology. Anticipating over 55,000 industry visitors, 1,200 brands, and participants from 40+ countries, it's your perfect platform to connect with potential clients and tech luminaries. Click here to learn more | | | |
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0181-10-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-18 GHz. It has a stainless steel passivated finish construction with the highest level of screening compatible and has a space qualification of MIL-DTL-3933 level T which is suitable for all space flight applications. It has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1250 W Ku-Band TWT SATCOM Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA53250P from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 13.75 to 14.50 GHz / 12.75 to 14.50 GHz / 13.75 to 14.80 GHz / 12.75 to 13.25 GHz. It has an input/output VSWR less than 1.3:1 and a harmonic value of less than -60 dBc. It has a transmit band noise power of less than -70 dBW/4 kHz. This CE-compliant amplifier system requires an AC voltage supply of 200-240 V and has a maximum power requirement of 5500 VA. |
| |
Download Datasheet
Product Details | |
|
|
|

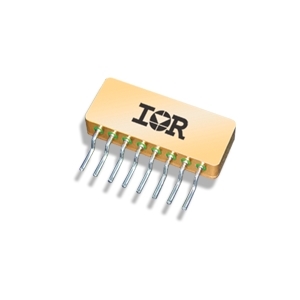

| 100 V Radiation Hardened Solid-State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA710SE10A2SK from Infineon Technologies is a Space Qualified Solid State Relay with a contact resistance of 0.070-0.165 ohms. It has a turn-on delay of 6.5-25 ms and a turn-off delay of 25-50 ms. It has an output capacitance of 365 pF and a thermal resistance of 1.7 degrees C/W. The relay has a hermetically sealed package with total dose capability of up to 100kRads (Si) and optically coupled. It has an 8-pin surface mount international rectifier’s R5 technology and actuated by standard logic inputs. |
| |
Download Datasheet
Product Details | |
|
|
|

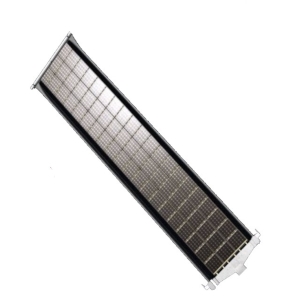

| Resilient Solar Array For Interplanetary Missions | |
Satellite Solar Panel
from Redwire Space
|
| The Roll Out Solar Array (ROSA) from Redwire Space is a Satellite Solar Panel with a power-to-mass ratio of 100-120 W/kg and a stowed power density of 40 kW/m³. It has a space heritage of supporting IROSA mission, DART mission, PPE, LEO, MEO, GEO and interplanetary missions. This solar array solution is designed for electric propulsion direct drive, lunar and Martian surface arrays, ultra-high power Systems for space stations or space tugs, constellation Arrays and resilient, retractable systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| NTC Thermistor for Critical Temperature Control Applications | |
Space Qualified Temperature Sensor
from QTI Sensing Solutions
|
| The RTH44 MIL-PRF-23648/20 from QTI Sensing Solutions is a Space Qualified Temperature Sensor with an operating temperature range of -55 to 125 degrees C. The sensor meets or exceeds all of the requirements of MIL-PRF-23648/20 and is certified by the Defense Logistics Agency, qualified products list QPL-23648. It is suitable where temperature control/compensation is required for crucial applications like amplifier stabilization, power control, and microprocessor interfacing. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Rack Mount Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT1004 from Peak Communications is a Test Loop Translator with an input frequency range of 13.75-14.5 GHz and an output frequency range of 10.95-12.75 GHz. It requires an input supply voltage of 90-264 VAC and has a power consumption of 30 W. This rack mount test loop translator has a mass of 9.5 Kg and measures 1.75 x 19 x 21 inches (H x W x D). It designed for applications requiring frequency translation and alignment of earth station systems operating in the Ku frequency band. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | |
|
|
| 12 V Space Qualified DC-DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2812D from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 16-40 V. The MFL converters are manufactured in a fully certified and qualified MIL-PRF-38534 facility and have an efficiency of up to 86%. It has a line regulation range of 0-100 mV. It has a capacitance of 500 uF and a ripple voltage of 50-120 mVpp. The converter measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, small size and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|
| Low Noise MMIC Amplifier for Satellite and Telemetry Communications | |
RF Amplifier
from MicroWave Technology
|
| The MLA-01122B from MicroWave Technology is an RF MMIC Low Noise Amplifier with a frequency of 1-12 GHz. It requires a supply of 7 V and has a drain current of 75 mA. It is a fully-matched single-stage broadband low-noise MMIC amplifier utilizing high-reliability low-noise GaAs PHEMT technology. It measures 1.57 x 1.31 x 0.1 mm and is ideal for applications such as satellite communications, microwave radios, instrumentation, wideband systems and commercial wireless applications. |
| |
Download Datasheet
Product Details | |
|
|
|

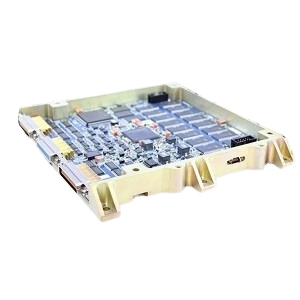

| Satellite On-Board Computer Module for LEO Applications | |
Satellite On-Board Computer (OBC)
from CAVU Aerospace UK
|
| The OBCM from CAVU Aerospace UK is a Satellite On-Board Computer (OBC) that uses an ARM Cortex-M3 processor on FPGA and an advanced Microchip/Microsemi SmartFusion2 and ProASIC3 Flash-based FPGA design. It supports CAN2.0 (Up to 1Mbps), full-duplex RS-422, half-duplex RS-485, RS-232, I2C, and SPI serial interfaces. It has an expected life of 3-5 years in low-earth orbit. It is designed to withstand a variety of space environments and is suitable for deep space missions. |
| |
Download Datasheet
Product Details | |
|
|
|

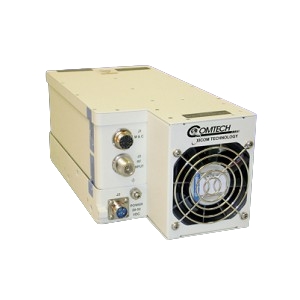

| 50 W X-Band High Power SSPA Block Upconverter | |
Block Upconverter
from Comtech Xicom Technology
|
| The XTSLIN-50X-B1 from Comtech Xicom Technology is a SATCOM Block Upconverter that converts an input IF frequency of 950-1450 MHz to an output RF frequency of 7.9-8.4 GHz. The BUC has a harmonics value of -60 dBc. It requires a DC supply of 22-56 V and has a linear power consumption of 300 VA. The BUC supports Ethernet, RS-232 and RS-485 interfaces for monitoring and control. It has a high efficiency GaN technology module that weighs 4.6 Kg and measures 11.16 x 5.4 x 4.43 inches. |
| |
Download Datasheet
Product Details | |
|
