| Featured Space and Satellite Products |
|
|
| 1.2 Meter Glass Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1223 Celero from Sat-Lite Technologies is a Flyaway Antenna with a transmit frequency range of 5.85-14.5 GHz and a receive frequency range of 3.625-12.75 GHz. This Intelsat compliant antenna measures 37.5 x 27.5 x 14.5 inches (pedestal case), 31.5 x 31.5 x 16.5 inches (4 piece, reflector case), and 51 x 31.5 x 13.5 inches (2 piece, reflector case). This antenna is ideal for IP-based communications, video conferencing, commercial and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

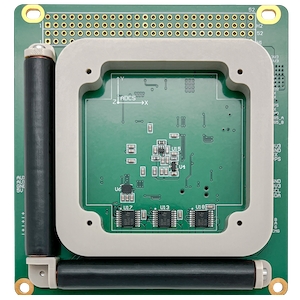

| Integrated ADCS systems for CubeSats and SmallSats | |
ADCS System
from Tensor Tech
|
| The ADCS-MTQ from Tensor Tech is a ADCS System with maximum torque of 0.01 mNm and an control accuracy of 5 deg. It has a pointing knowledge of 0.3 degrees and is designed with variable-speed, single-gimbal control moment gyroscope optimizing the torque-to-power-ratio. The ADCS system is integrated with RS-485 or UART interfaces and has a power consumption of 1 W. It has a mass of 140 g. This ADCS is ideal for CubeSat and SmallSat applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.65-6.5 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-2700 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2650-6500 MHz. It has a stop band rejection loss of 20-40 dB and a pass band insertion loss of 1.3-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint filter is suitable for applications such as sub-harmonic rejection and transmitters /receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hermetically Sealed High-Speed Logic Gate Optocoupler | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8957104K from Broadcom is a Space Qualified Optocoupler with a forward voltage range of 1.0-1.85 V and an insulation leakage current of 1 µA. This 2 channel optocoupler is designed for military and aerospace, transportation, medical, isolation of high-speed logic systems, computer-peripheral interfaces, switching power supplies, pulse transformer replacement, ground loop elimination and digital isolation for A/D, D/A conversion applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 950-1950 MHz SATCOM Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The KATLT-300310-095195-005 from Jersey Microwave is a Test Loop Translator with an input frequency range of 30-31 GHz and an output frequency range of 950-1950 MHz. This test loop translator has an LO frequency of 29.5 GHz. It requires a power supply of 90-260 V AC and has a power consumption of up to 25 W. It has a weight of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|

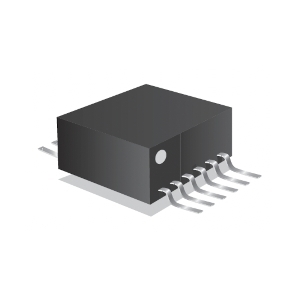

| 2.2 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS304 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 5.23 mH. This transformer has a peak withstanding current of 10 A and a direct current resistance of 0.72 Ohms. It has a turns ratio of 1:50:50 and requires a primary voltage of 72 V. This transformer has a minimum dielectric withstanding voltage of 500 V AC. The SCS304 transformer measures 0.610 x 0.610 x 0.475 inches and is ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | Convergence India Expo 2025 | | Establishing a dynamic platform for global connections, innovation, and the forging of enduring international partnerships, the Convergence India Expo 2025 edition serves as a melting pot for professionals, digital trailblazers, international businesses, and government leaders across IT, ICT, Broadcast, IoT, Fintech, and Embedded Technology. Anticipating over 55,000 industry visitors, 1,200 brands, and participants from 40+ countries, it's your perfect platform to connect with potential clients and tech luminaries. Click here to learn more | | | |
|
|
| 60 Ah Lithium-Ion Battery for LEO and Lunar Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The LP 33165 from EaglePicher Technologies is a Satellite Battery with a nominal capacity of 60 Ah and a specific energy of 109 Wh/kg. This Lithium-Ion battery has a nominal voltage 28 V battery that uses proprietary prismatic cell technology with electronics enclosure. It is ideal for low-earth orbit and geosynchronous-earth satellite missions, planetary exploration, reusable launch vehicles, deep space exploration and lunar missions. |
| |
Download Datasheet
Product Details | |
|
|
|

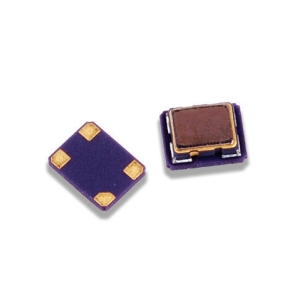

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C12 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 1.00 ppm. The oscillator has an SSB phase noise of up to -150 dBc/Hz and a start-up time of 10 ms. It produces clipped sine wave with an output voltage of 1 V peak-to-peak. It comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

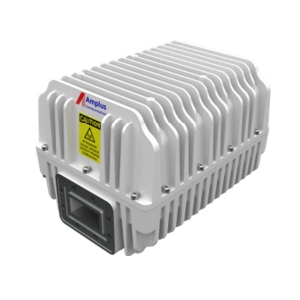

| 10 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 10W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It has an LO frequency of 4.9-7.375 GHz and a gain of 65-69 dB. This block upconverter weighs 2.5 Kg and measures 175 x 130 x 115 mm(L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. It is ideal for high power BUCs for VSAT and Satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.4 Nms Reaction Wheel for SmallSats | |
Reaction Wheel
from Astrofein
|
| The RW100 from Astrofein is a Reaction Wheel that is designed for SmallSats and has a lifetime of up to 7 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 0.4 Nms and a torque of 0.02 Nm. This reaction wheel has a rotation speed range of 6000 rpm and supports RS485 and RS422 interfaces. This reaction wheel has a mass of 0.8 kg and measures 100 x 100 x 60 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

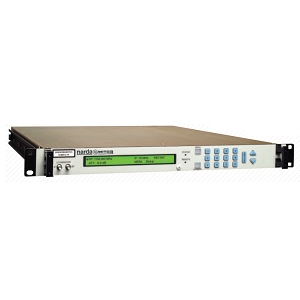

| 18.3-20.2 GHz Block Downconverter for Satellite Communication Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-9813-5-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 18.3-20.2 GHz. This BUC has a maximum noise figure of 12 dB at maximum gain. It has a spurious output of 65 dBc and a phase noise of up to -69 dBc/Hz (1K). The downconverter weighs 6.9 kg and measures 19 x 1.75 x 20 inches. The BUC is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2-40 GHz Dual-Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC30-K0244 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 2-40 GHz. It has a mainline loss of 0.3-1.4 dB and a directivity of 10-32 dB. The coupler has a return loss of 11.7-35 dB (In & Thru) and 11.7-32 dB (coupling). It has a power handling capacity of up to 20 W. This RoHS-compliant coupler has a mass of 95 g with 2.92 mm female connector and is ideal for 5G, mobile, fixed satellite and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | |
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0181-06-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-18 GHz. It has an average power consumption of 2 W and a peak power of 500 W. This attenuator has an attenuation value of 6 dB. It has a maximum weight of 14.2 g and has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 144 Mb Radiation-Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1643KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 8M × 18 configuration with four-word burst mode. This SRAM has a maximum operating frequency of 300 MHz. It requires a power supply voltage of 1.7-1.9 V and an I/O supply voltage of 1.4-1.5 V. The SRAM is available in a 165-ball Ceramic Column Grid Array (CCGA) and measures 21 × 25 × 2.83 mm. It is suitable for military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 600-650 W X-band SATCOM Transceiver | |
SATCOM Transceiver
from ACORDE
|
| The ACMTR-X Medium Power Series from ACORDE is a SATCOM Transceiver with a Tx input frequency range of 950-1450 GHz and an Rx input frequency range of 7.25-7.75 GHz. It has a noise figure of less than 15 dB and a spurious of -60 dBc. It requires an AC input supply of 85-264 V and has a power consumption of up to 650 W. The transceiver has a mass of 10.5 kg and measures 320 x 207 x 145 mm. It is designed for satellite communication systems. |
| |
Download Datasheet
Product Details | |
|
