| Featured Space and Satellite Products |
|
|
| 4900-5875 MHz Ceramic Balun for WIMAX Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-592+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 4900-5875 MHz. This balun has an amplitude unbalance of 0.6 dB and a phase unbalance of 5 degrees. It has an insertion loss of 0.24 dB and a maximum RF power rating of 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant balun is suitable for WLAN, WIMAX and Radar applications. |
| |
Download Datasheet
Product Details | |
|
|
|

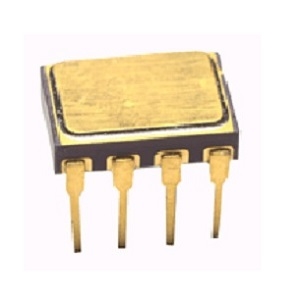

| Hermetically Sealed High-Speed Logic Gate Optocoupler | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8957002K from Broadcom is a Space Qualified Optocoupler with a forward voltage range of 1-1.85 V and an insulation leakage current of 1 µA. This surface-mount optocoupler has a input capacitance value of 15 pF. This single channel optocoupler is designed for military and space, transportation, medical, isolation of high-speed logic systems, computer-peripheral interfaces, pulse transformer replacement, ground loop elimination and digital isolation for A/D, D/A conversion applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8m Ku-Band Auto Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA180KU-IEC from Norsat is a SATCOM Antenna with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. The antenna with an elevation speed of 0.1-3°/s. The antenna features an easy-to-use LinkControl interface and an automatic 3-axis acquisition. It weighs 50 Kg (reflector) and measures 121 x 44 x 68 cm (L x W x H). The antenna offers rugged and reliable satellite links for remote enterprise, energy, emergency and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 72Ah Lithium-Ion Rechargeable Cell | |
Satellite Battery
from EnerSys
|
| The 72Ah Lithium-Ion Rechargeable Cell from EnerSys is a Satellite Battery with a capacity of 72 Ah. This satellite battery has a gravimetric energy density of 147 Wh/kg and a volumetric energy density of 337 Wh/L. It has a voltage range of 2.7-4.1 V with a maximum continuous charge/discharge of 70 A. This satellite battery features Quallion Zero Volt technology and offers reliability of performance and supply chain security with a space-qualified product. This battery is qualified for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

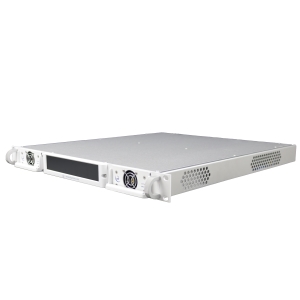

| 10.7-12.75 GHz Ku-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-KX-115 from ETL Systems is a Block Downconverter that converts an input frequency of 10.7-12.75 GHz to an output frequency of 1100-2150 MHz. It features hot swap and replaceable RF frequency converter modules and supports remote control and monitoring via RJ45 Ethernet port with SNMP and web browser interface. It has typical applications include teleports and Earth stations, satellite operations, government and defense applications, and telemetry. |
| |
Download Datasheet
Product Details | |
|
|
|

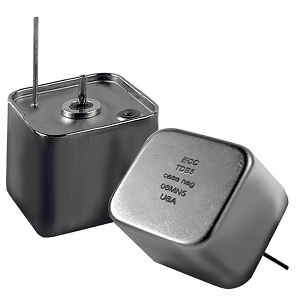

| 100 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB5016104 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 100,000 µF. This capacitor has a direct current leakage of 375 µA to 3.75 mA and an equivalent series resistance of 20 mOhm. It comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | Convergence India Expo 2025 | | Establishing a dynamic platform for global connections, innovation, and the forging of enduring international partnerships, the Convergence India Expo 2025 edition serves as a melting pot for professionals, digital trailblazers, international businesses, and government leaders across IT, ICT, Broadcast, IoT, Fintech, and Embedded Technology. Anticipating over 55,000 industry visitors, 1,200 brands, and participants from 40+ countries, it's your perfect platform to connect with potential clients and tech luminaries. Click here to learn more | | | |
|
|

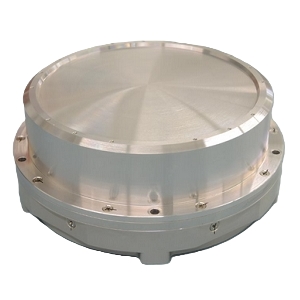

| 4 Nm Reaction Wheel for SmallSat Line | |
Reaction Wheel
from Astrofein
|
| The RW250 2.0 from Astrofein is a Reaction Wheel that is designed for SmallSats and has a lifetime of up to 7 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 4 Nms and a torque of 0.1 Nm. This space-qualified reaction wheel has a maximum rotational speed range of 5000 rpm and supports RS485 and RS422 interfaces. This smallsat reaction wheel has a wheel mass of 2.7 kg and measures 180 x 180 x 82 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-Value Ka-Band VSAT Transceiver | |
SATCOM Transceiver
from Skyware Technologies
|
| The XRF 3600 from Skyware Technologies is a SATCOM Transceiver with a Tx output frequency range of 29-30 GHz and an Rx input frequency range of 19.2-20.2 GHz. It has the capability to operate over Ka-Band frequencies. It supports S-Band modem technologies with flexible 10 and 50 MHz reference compatibility. The ruggedized IP-67 sealed enclosure integrates a BUC, PLL LNB, field-configurable circular polarizer, OMT and TRF guaranteeing consistent communications performance. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 KOhm to 50 MOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (0805) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. It has a power rating of 200 mW and a voltage rating of 600 V. It has a tolerance range of 0.1-20% and the parts are packed in accordance with EIA-481 tape and reel specifications. The resistor is constructed using a thick film resistive element and a 96% alumina substrate. This surface mount resistor measures 2.01 x 1.27 x 0.64 mm and is ideal for military, electronic warfare and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

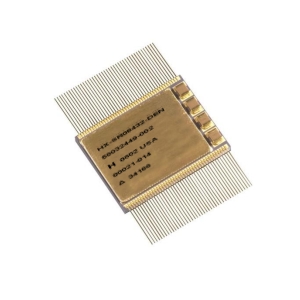

| 2M x 32-bit Monolithic Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HXSR06432 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 2M x 32-bit memory. This space-qualified SRAM is available with CMOS-compatible I/O ports. The memory cell is single event upset hardened with four layer metal power busing and small collection volumes of SOI provide superior single event effect and dose rate hardening. It has a mass of 11.3 g. The SRAM is designed for use in low-voltage systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|

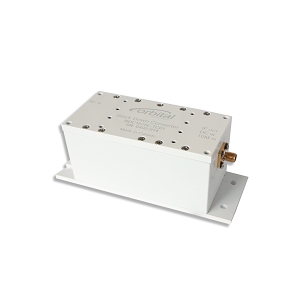

| 17.7-22.2 GHz Ka-band Low Noise Block Downconverter | |
Low Noise Block
from Orbital Research
|
| The Ka-Band BDC from Orbital Research is a Low Noise Block with an input RF frequency of 17.7-20.2 GHz (low band), 19.2-21.2 GHz (medium band) and 20.2-22.2 GHz (high band). It requires a DC supply of 16-26 V and has a power consumption of less than 4 W. This RoHS and REACH-compliant LNB has a low noise figure with high gain antennas and exceptional image rejection. This LNB weighs 450 g and is designed for military, mobile commercial and BSS SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

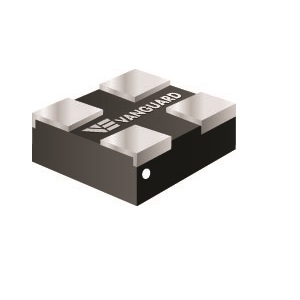

| 27 µH Space Qualified Power Inductors | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S60043 from Vanguard Electronics is a Space Qualified Inductor with inductance value of 27 µH. This power inductor has a tolerance of +/- 12 % and a DC resistance of 0.013-0.052 Ohms. It features tin-lead terminations and internal welded terminations. It is qualified to MIL-STD-981 specifications and measures 0.7 × 0.7 × 0.4 inches. It is designed for filter inductors, ripple suppressors, common mode chokes, isolation transformers, power supplies, DC/DC and SEPIC converter applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Convergence India Expo 2025 | | |
|
|
| 800 W C-band Solid State Power Amplifier System | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCD6800M from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.425 GHz. The amplifier system has a spurious of -60 dBc and a maximum VSWR of 1.3:1. It requires a power supply of 180-264 VAC and has a power consumption of 4.9-6.5 kW. It features a modular architecture and QuadMod SSPAs that consist of four identical and fully inter-changeable RF plug-in modules. It weighs 115 Kg (RF unit) and measures 483 x 577 x 695 mm (W x H x D). |
| |
Download Datasheet
Product Details | |
|
|
|

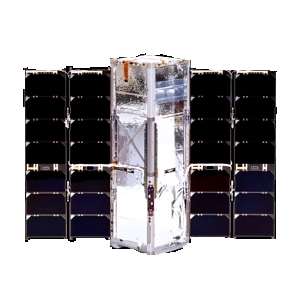

| 27-34 W Solar Arrays for 3U CubeSats | |
Satellite Solar Panel
from Blue Canyon Technologies
|
| The Solar Arrays 3U from Blue Canyon Technologies is a Satellite Solar Panel with carbon fiber and honeycomb structures. This double panel solar arrays pair with GN&C for maximum performance with release mechanisms and solar array drive assemblies (SADAs) for optimum sun-pointing operations. It has standard arrays include 30 percent efficient cells with Frangibolt release mechanisms for minisatellites and magnetic dipole mitigation. It is suitable for CubeSats and minisatellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 200 V N-channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNJ6S7230 from Infineon Technologies is a Space Qualified MOSFETs with a drain-to-source breakdown voltage of 200 V. It has a gate threshold voltage of 2-4 V. It has a low total gate charge of 42 nC and a power dissipation of 75 W. The MOSFET is a Single event effect (SEE) hardened and hermetically sealed with light weight surface mount package. It is qualified according to MIL-STD-750 for space applications and is suitable for DC-DC converters and motor controllers. |
| |
Download Datasheet
Product Details | |
|
