| Featured Space and Satellite Products |
|
|

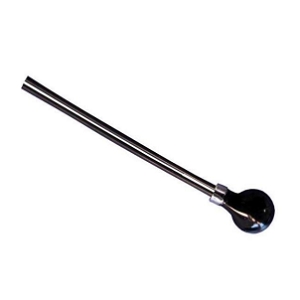

| 10 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The G10K4D451 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3575 K. It time response of less than 40 sec (in air). It features a robust epoxy resin encapsulated construction mounted on a flat aluminum alloy housing. It is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, vision systems, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|

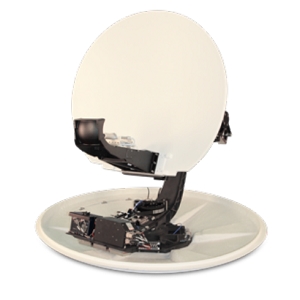

| 13.75-14.5 GHz Ku-band Maritime Stabilized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 WGX Ku from Orbit Communication Systems is a Satellite Terminal with a Ku-band transmitter frequency range of 13.75-14.5 GHz and a receiver frequency range of 10.95-12.7 GHz. It features an electronics field replaceable units (FRUs) for streamlined maintenance with advanced WEB-UI monitoring, diagnostics and troubleshooting capabilities. It was designed for connectivity between satellites in GEO/MEO/LEO constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

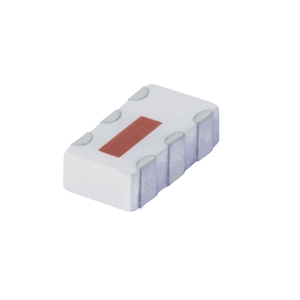

| 5-10.1 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-4400D from Mini Circuits is a Space Qualified RF Filter with a frequency range of 5000 to 10100 MHz. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. It has a frequency cut-off of 3 dB at 4400 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. It is suitable for applications such as sub-harmonic rejection and transmitters /receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| On-Board Computer for Nano-Satellite Platforms | |
Satellite On-Board Computer (OBC)
from STM Defense International
|
| The NANOSATPRO from STM Defense International is a Satellite On-Board Computer (OBC) that is designed for low-earth orbit operations and has a lifetime of up to 2 years in orbit. It has a radiation tolerance TiD of 30 kRAD (Si) with SEE protection provided through Triple Modular Redundancy (TMR) in FPGA, EDAC in memory units, Watchdog on software and Latch-up Current Limiter (LCL) in power units. The OBC has a mass of 100 grams. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band to C-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT142 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 12.25-12.75 GHz to an C-band frequency of 3.7-4.2 GHz. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. The test loop translator weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
|

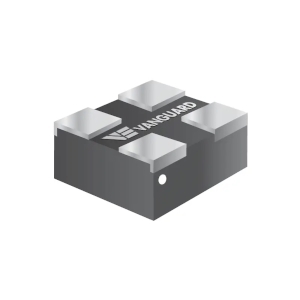

| 23 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS107 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 23 mH. It features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 6 A. The SCS107 is built to meet MIL-STD-981 specifications and is outgassing compliant as per ASTM E595. It comes in a surface mount package and measures 0.26 × 0.26 × 0.24 inches. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | | |
|
|
| Three-Axis Magnetic Field Sensors | |
Magnetometer
from Bartington Instruments
|
| The Mag-13 MCD from Bartington Instruments is a Magnetometer with circular enclosure with low noise. It has a maximum bandwidth of 1100 Hz at full scale and scaling of 40 mV/µT. It requires a supply voltage of 12-17 V. It has a mass of 82.5 g and measures Ø 25.4 x 203mm. It is ideal for a magnetic field monitoring, feedback sensors in active magnetic field cancellation systems, magnetic signature measurements and electromagnetic surveys applications. |
| |
Download Datasheet
Product Details | |
|
|
|

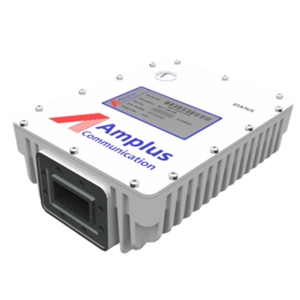

| 3 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 3 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It requires a DC voltage supply of 18-60 V and has a power consumption of 28 W. This block upconverter weighs 1.6 Kg. It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and Satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

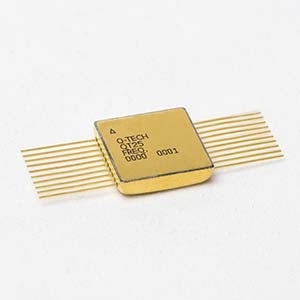

| 0.75-150 MHz Space Qualified Voltage Controlled SAW Oscillator | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT625L from Q-Tech Corporation is a Space Qualified Oscillator with an operating frequency range of 0.75-150 MHz. It has a frequency stability of 5-65 ppm and provides square wave output with a rise/fall time of 2.5-5 nsec. It has a radiation tolerance of up to 100 kRad (Si) and comes in a hermetically sealed, 20-pin FlatPack measuring 15.88 x 15.88 x 3.81 mm. It is screened to MIL-PRF-55310, modified MIL-PRF-38534 and is suitable for space flight missions. |
| |
Download Datasheet
Product Details | |
|
|
|

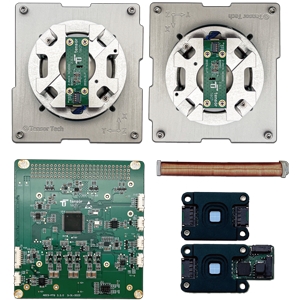

| 20m Integrated ADCS for CubeSats and SmallSats | |
ADCS System
from Tensor Tech
|
| The ADCS-20m from Tensor Tech is a ADCS System with maximum torque of 2 mNm and an control accuracy of 0.1 deg. It has a pointing knowledge of 0.3 deg and is designed with variable-speed, single-gimbal control moment gyroscope optimizing the torque-to-power-ratio. This ADCS is integrated with RS-485 or UART interfaces and has a power consumption of 4.4 W at half momentum. It has a mass of 740 g. This ADCS is ideal for CubeSat and SmallSat applications. |
| |
Download Datasheet
Product Details | |
|
|
|

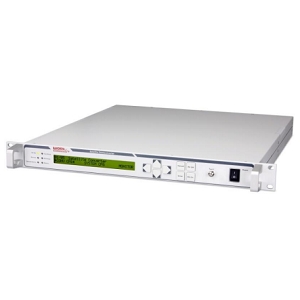

| 10.7-12.75 GHz Ku-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHSBD-Ku / VSSBD-Ku from WORK Microwave is a Block Downconverter that has an input RF frequency range of 10.7-12.75 GHz and an LO frequency of 9.75-11.25 GHz. It supports remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, Ethernet supporting TCP/IP command interface, Web browser interface and SNMP. The converter features automatic reference recognition and an adjustable gain equalizer. It weighs 8.4 Kg (Indoor housing). |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-40 GHz Dual-Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC30-K0144 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 1-40 GHz. It has a mainline loss of 0.2-1.6 dB and a directivity of 10-33 dB. The coupler has a return loss of 11.7-37 dB (In & Thru) and 11.7-34 dB (coupling). It has a power handling capacity of up to 20 W and requires a DC current supply of 0.63 A. It has a mass of 95 g with 2.92 mm female connector. It is ideal for 5G, mobile, fixed satellite and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | |
|
|
| Hermetically Sealed High-Speed Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-9800101K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It has a forward voltage range of 1.5-1.85 V and an insulation leakage current of 1 µA. It has a capacitance value of 4 pF. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, transportation, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5 W Ka-band VSAT Transceiver | |
SATCOM Transceiver
from Skyware Technologies
|
| The XRX35F09CD from Skyware Technologies is a SATCOM Transceiver with a Tx output frequency range of 29-30 GHz and a Tx input frequency range of 950-1950 MHz. It features an RHCP/LHCP polarization with a single IP67 rated enclosure with fan-less convection cooling. It requires an input power supply of 15-50 V DC and has a supply current of 95-120 mA. It has a mass of 3.8 kg and suitable for VSAT modems with easy integration into a wide range of systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0182-01-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-18 GHz. This attenuator has an attenuation value of 1 dB and an attenuation accuracy of +/- 0.3 dB. It has an average power consumption of 2 W and a peak power of 500 W. It has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
