| Featured Space and Satellite Products |
|
|

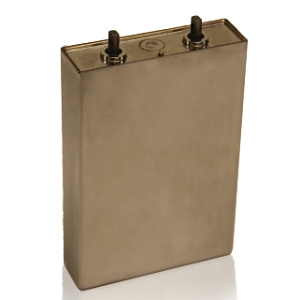

| 43 Ah Rechargeable Lithium-Ion Cell for Satellite Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The LP 33450 from EaglePicher Technologies is a Satellite Battery with a nominal capacity of 43 Ah. This Lithium-Ion cell has an energy density of 378 Wh/L and a specific energy of 153 Wh/kg. It has a long operation lifetime of over 40,000 low-earth orbit cycles at 40% depth of discharge (DOD) over 10 years. It is suitable for aerospace, mars lander, low-earth orbit satellite missions, mid-earth orbit satellite missions, GEO satellite missions, scientific and exploratory satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|

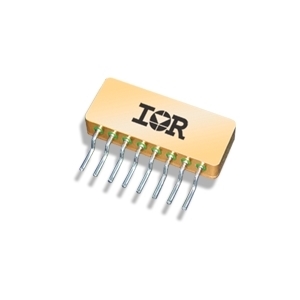

| 100 V Radiation Hardened Solid-State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA710SE10A2FP from Infineon Technologies is a Space Qualified Solid State Relay with a contact resistance of 0.070-0.100 ohms and a maximum output voltage of 100 V. It has an output capacitance of 365 pF and a thermal resistance of 1.7 degrees C/W. The relay has a hermetically sealed package with total dose capability of up to 100kRads (Si) and optically coupled. It has an 8-pin surface mount international rectifier’s R5 technology and actuated by standard logic inputs. |
| |
Download Datasheet
Product Details | |
|
|
|

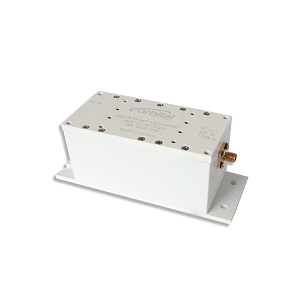

| Ku-Band Block Downconverter with Multiple Local Oscillators | |
Low Noise Block
from Orbital Research
|
| The BDCKUMULTIPLELO from Orbital Research is a Ku-band Block Downconverter with an input RF frequency of 10.7-12.75 GHz and an output RF frequency of 950-2000 MHz. It supports SMA (S) connectors for input and SMA (S) for output connectors. It weighs 450 g and measures 4.50 x 1.57 x 1.83 m. This Ka-band BDC with fixed frequency oscillators is designed for commercial and military SATCOM applications, including large satellite teleports, small earth stations and communications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.3 V Radiation Hardened Isolated DC to DC Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-3R3S-A-P from Microchip Technology is a DC to DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 3.3 V. It has a output ripple voltage 25 mVpp and an output current of 0.1 A. The converter has a radiation tolerance TID of 100krad (Si) and a SEE immunity of 82 MeV·cm2/mg. It has a low mass of 120 g and measures 3.055 x 2.055 x 0.5 inches. The converter is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

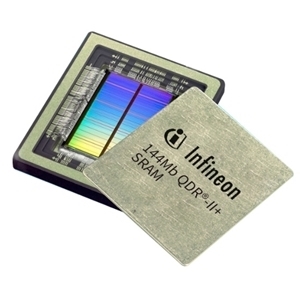

| 144 Mb Radiation-Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1645KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 4M × 36 configuration with four-word burst mode. It is equipped with 1.8 V QDR II+ Four-word burst architecture with Cypress’s state-of-the-art RadStop technology with a radiation tolerance of up to 200 Krad total dose and a latch up immunity of 120 MeV.cm2/mg. It is available in a 165-ball Ceramic Column Grid Array (CCGA). It is suitable for military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 W Ultralinear Ka-Band Antenna Mount HPA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5525 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31 GHz. It has a bandwidth of 2500 MHz and a peak TWT power of 250 W. This ultra linear antenna mount has spurious value of -60 dBc and a phase noise value of 10 dB. It supports comprehensive remote control facility standard interfaces such as RS485, RS232, and Ethernet. This CE-compliant antenna mount has a mass of 21 kg and measures 520 x 260 x 260 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | | |
|
|
| InGaP HBT MMIC amplifier for High Reliability RF Applications | |
RF Amplifier
from Teledyne e2v HiRel Electronics
|
| The TDGB014CL2 from Teledyne e2v HiRel Electronics is a Space Qualified RF amplifier that operates from 0.1-14 GHz. It requires a maximum supply voltage of 4.2 V and has a P1dB value of 16.3 dBm. This gain block has a IP3 value of 28 dBm and is designed using Heterojunction Bipolar Transistor (HBT), Indium Gallium Phosphide (InGaP) process and utilizes proprietary MMIC design techniques. This space-qualified amplifier is ideal for general-purpose, high-reliability RF and microwave amplification needs. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-Power Rigid Array Solution for SmallSats | |
Satellite Solar Panel
from Redwire Space
|
| The HiPASS from Redwire Space is a Satellite Solar Panel that supports ESPA class electric propulsion missions. The SADA-compatible HiPASS is engineered with low-cost graphite panels that are designed to minimize manufacturing risk and complexity. This solar panel has a panel size of 30" x 54" x 7.5" (Stowed Wing) with 54" x 144" x 8" (Deployed Wing). It is ideal for SmallSats, solar array constellations, ESPA-class electric propulsion missions and Solar Array Drive Assembly (SADA) applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7900-8400 MHz Test Loop Translator for Satcom Applications | |
Test Loop Translator
from Jersey Microwave
|
| The XTLT-790840-095145-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 7900-8400 MHz and an output frequency range of 950-1450 MHz. It supports RS-422 and RS-485 interfaces and features an auto-switchover of external references. It requires a power supply of 90-260 V AC and has a power consumption of up to 25 W. It has a weight of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 45 V High-Efficient Schottky Rectifier for Space Applications | |
Space Qualified Diode
from Infineon Technologies
|
| The 30LJQ045 from Infineon Technologies is a Space Qualified Diode with a maximum DC reverse voltage of 45 V and a maximum average forward current of 30 A. It has a peak one cycle non-repetitive surge current of 100 A. It features a guard ring for enhanced ruggedness and has a surface mount hermetically sealed package. It is fully qualified according to MIL-PRF-19500 for space applications and is suitable for high frequency switching power supplies and resonant power converters. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The G4K7D421 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3422 K. This temperature sensor time response of less than 40 sec (in air). It features a robust epoxy resin encapsulated construction mounted on a flat aluminum alloy housing. The sensor is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, vision systems, panel temperature measurement, and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 V N-channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNJ6S7234 from Infineon Technologies is a Space Qualified MOSFETs with a drain-to-source breakdown voltage of 250 V. It has a gate threshold voltage of 2-4 V and a continuous drain current value of 7.8-12.4 A. It has a pulsed drain current of 49.6 A. It is qualified according to MIL-STD-750 for space applications and features very low RDS(on), faster switching with reduced power loss and increases power density for high speed switching applications such as DC-DC converters and motor controllers. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | |
|
|
| 98 cm Satellite Antenna System for SATCOM Applications | |
SATCOM Antenna
from C-COM
|
| The FLY-981 from C-COM is a SATCOM Antenna with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. It has a transmit midband gain of 41.20 dBi. It has an elevation range of 0-90 degrees and an azimuth range of +/- 175 degrees. The antenna is ideally suited for industries such as oil & gas exploration, military communications, disaster management, SNG, emergency communications backup and cellular backhaul. |
| |
Download Datasheet
Product Details | |
|
|
|
| 20 W X-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACMB-X20W-E1-V3 from ACORDE is a Block Upconverter with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. It has a spurious of less than -60 dBc and phase noise of up to -110 dBc/Hz (100 kHz). It weighs 4.3 Kg and measures 281 x 160 x 85 mm. The converter is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 Nms Reaction Wheel for Highline | |
Reaction Wheel
from Astrofein
|
| The RW6000 from Astrofein is a Reaction Wheel that is designed for Highlines and has a lifetime of up to 15 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 100 Nms and a torque of 0.2 Nm. This reaction wheel has a maximum rotational speed range of 4200 rpm and supports RS485 and RS422 interfaces. This space-qualified reaction wheel has a wheel mass of 12 kg and measures 460 x 460 x 150 mm. |
| |
Download Datasheet
Product Details | |
|
