| Featured Space and Satellite Products |
|
|
| Three-Axis Magnetic Field Sensors | |
Magnetometer
from Bartington Instruments
|
| The Mag-13 U from Bartington Instruments is a Magnetometer with circular enclosure with low noise. This magnetometer has a measurement range of ±1000 µT and a frequency response of ±5% amplitude error DC to 100 Hz. This RoHS-compliant magnetometer has a mass of 23.5 g and measures Ø 23.2 x 150 mm. It is ideal for a magnetic field monitoring, feedback sensors in active magnetic field cancellation systems, magnetic signature measurements and electromagnetic surveys applications. |
| |
Download Datasheet
Product Details | |
|
|
|

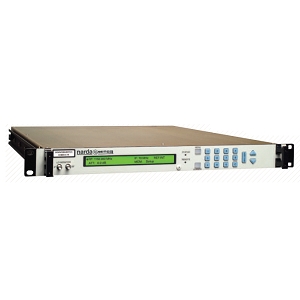

| 17.7-19.7 GHz Block Downconverter for Satellite Communication Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-9813-6-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 17.7-19.7 GHz. The downconverter has a maximum noise figure of 12 dB at maximum gain. It has a spurious output of 65 dBc and a phase noise of up to -69 dBc/Hz (1K). The SATCOM block downconverter weighs 6.9 kg and measures 19 x 1.75 x 20 inches. This downconverter is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1025123 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 12,000 µF. It has a voltage rating of 15 V and a surge voltage of 27.5 V. It has a mass of 34 g and measures 1.0 x 1.0 x 0.329 inches. It comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|

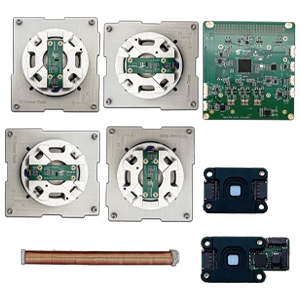

| 40m Integrated ADCS for CubeSats and SmallSats | |
ADCS System
from Tensor Tech
|
| The ADCS-40m from Tensor Tech is a ADCS System with maximum torque of 4 mNm and an control accuracy of 0.1 deg. It has a pointing knowledge of 0.3 degrees and is designed with variable-speed, single-gimbal control moment gyroscope optimizing the torque-to-power-ratio. The ADCS system is integrated with RS-485 or UART interfaces and has a power consumption of 7 W at half momentum. It has a mass of 1580 g and measures 94 x 94 x 120 mm. This ADCS is ideal for CubeSat and SmallSat applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 29-30 GHz High-Value Ka-Band VSAT Transceiver | |
SATCOM Transceiver
from Skyware Technologies
|
| The XRF 3300 from Skyware Technologies is a SATCOM Transceiver with a Tx output frequency range of 29-30 GHz and an Rx input frequency range of 19.2-20.2 GHz. It features RHCP/LHCP and cross/co-polar flexible polarization. It requires an input power supply of 15-50 V DC and has a power consumption of up to 1.5 W. This IP-67 sealed enclosure integrates a BUC, PLL LNB, field-configurable circular polarizer, OMT and TRF guaranteeing consistent communications performance. |
| |
Download Datasheet
Product Details | |
|
|
|

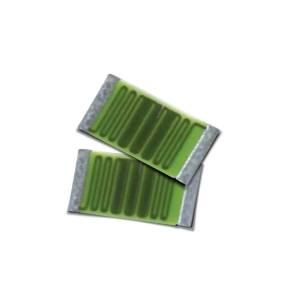

| 10 kOhms to 50 GOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (5020) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. It has a power rating of 2 W and a voltage rating of 5000 V. It has a tolerance range of 0.1-20% and the parts are packed in accordance with EIA-481 tape and reel specifications. The resistor is constructed using a thick film resistive element and a 96% alumina substrate. This surface mount resistor measures 10.16 x 5.08 x 0.76 mm and is ideal for military, electronic warfare, and space applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | | |
|
|

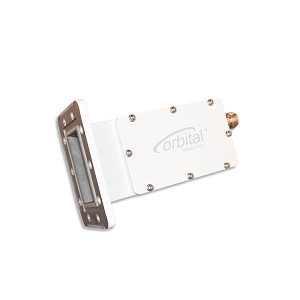

| 3.4-4.2 GHz C-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The 3300 ENHANCED Series from Orbital Research is a Low Noise Block with an input RF frequency of 3.4-4.2 GHz and an IF frequency of 950-1750 MHz. It requires a DC supply of 12-24 V and has a current consumption of 250 mA. This external reference LNB is enhanced to provide superior gain flatness, local oscillator (LO) stability and VSWR. It has a mass of 580 g and measures 144 x 68 x 39 mm. This RoHS complaint LNB is built for commercial and military SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

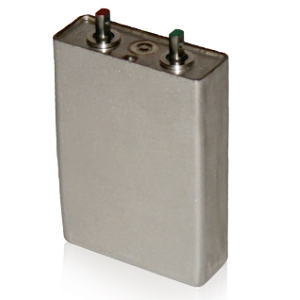

| 12 Ah Rechargeable Li-Ion Cell | |
Satellite Battery
from EaglePicher Technologies
|
| The LP 32975 from EaglePicher Technologies is a Satellite Battery with a nominal capacity of 12 Ah. This rechargeable Lithium-Ion cell has an energy density of 285 Wh/L. It has a long operation lifetime of over 40,000 low-earth orbit cycles at 40% depth of discharge (DOD) over 10 years. It is suitable for aerospace, mars lander, low-earth orbit satellite missions, mid-earth orbit satellite missions, geosynchronous-earth orbit satellite missions, scientific and exploratory satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|

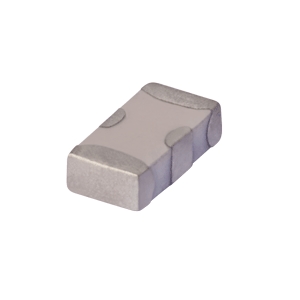

| 2.26-6.25 GHz LTCC High Pass Filter | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-2000 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2260-6250 MHz. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 2500 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters/receivers and lab use. |
| |
Download Datasheet
Product Details | |
|
|
|
| On Board Computer for CubeSats and SmallSats | |
Satellite On-Board Computer (OBC)
from Endurosat
|
| The ONBOARD COMPUTER (OBC) from Endurosat is a Satellite On-Board Computer (OBC) that uses ARM Cortex M7 processor and has program memory size of 2 MB. The On-board computer has a full set of drivers for EnduroSat modules and supports 4x RS-485, 2x RS-422, 3x UART, 2x I2C, SPI, USB, and CAN interfaces. It has a reliable data handling with 8 GB secure onboard memory and avionics for up-to 5 years in LEO. The OBC has a mass of 130 g and a flight heritage in LEO. |
| |
Download Datasheet
Product Details | |
|
|
|

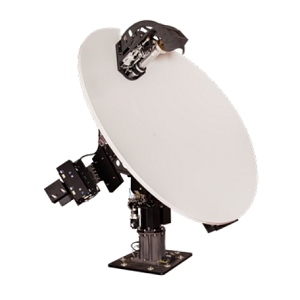

| 2.2 m Multiband Stabilized Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 7 Ka-W from Orbit Communication Systems is a Satellite Terminal that has a RHCP/LHCP electrically switchable polarization control and a system G/T of 24.2 dB/Deg K. It features an electronics field replaceable units (FRUs) for streamlined maintenance with advanced WEB-UI monitoring, diagnostics and troubleshooting capabilities. The terminal weighs less than 600 Kg. This Satellite Terminal was designed for connectivity between satellites in GEO/MEO/LEO constellations. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1300-2000 MHz Ceramic Balun for GPS Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS1-23+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 1300-2000 MHz. This ceramic balun has an amplitude unbalance of 0.3 dB and a phase unbalance of 2 degrees. It has an insertion loss of 1 dB and a maximum RF power rating of 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant balun is suitable for WCDMA, PCS and GPS applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | |
|
|

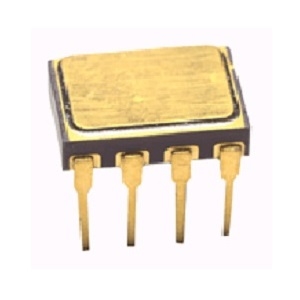

| Hermetically Sealed High-Speed Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-9085501K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It features a GaAsP light emitting diode that is optically coupled to an integrated high gain photon detector and has a common mode transient immunity of 1000-10000 V/us. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 540 W C-band SSPA for SATCOM Applications | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPKOG14550Q from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 13.75-14.5 GHz. The amplifier system requires a power supply of 180-264 VAC and has a power consumption of 5.5 kVA. It features a modular architecture and QuadMod SSPAs that consist of four identical and fully inter-changeable RF plug-in modules. The amplifier system weighs 122 Kg (RF unit) and measures 483 x 533 x 746 mm (W x H x D). |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.56-22 µH Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE515PYA from Coilcraft is a Space Qualified Inductor with an inductance range of 0.56-22 µH and an inductance tolerance of ± 20 %. These inductors have a DC resistance of 4.15-99.65 mOhms and a saturation current of 3.6-18.1 A. The inductors feature tin-lead (Sn-Pb) termination for the best possible board adhesion and have passed NASA low outgassing specifications. The inductor has a mass of 0.55-0.84 g and measures 0.216 x 0.208 x 0.201 inches (L x H x W). |
| |
Download Datasheet
Product Details | |
|
