| Featured Space and Satellite Products |
|
|
| 100 V Radiation Hardened Solid-State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA710SE10A2QP from Infineon Technologies is a Space Qualified Dual Solid State Relay with an output on-resistance of 0.070-0.100 ohms and a maximum output voltage of 100 V. It has an output capacitance of 365 pF and a thermal resistance of 1.7 degrees C/W. The relay has a hermetically sealed package with total dose capability of up to 100kRads (Si) and optically coupled. It has an 8-pin surface mount international rectifier’s R5 technology and actuated by standard logic inputs. |
| |
Download Datasheet
Product Details | |
|
|
|
| 29-30 GHz High-Value Ka-Band VSAT Transceiver | |
SATCOM Transceiver
from Skyware Technologies
|
| The XRF 3100 from Skyware Technologies is a SATCOM Transceiver with a Tx output frequency range of 29-30 GHz and an Rx input frequency range of 19.2-20.2 GHz. It supports S-Band modem technologies with flexible 10 and 50 MHz reference compatibility and available in 1.5,3, and 6 Watt transmit power options. The ruggedized IP-67 sealed enclosure integrates a BUC, PLL LNB, field-configurable circular polarizer, OMT and TRF guaranteeing consistent communications performance. |
| |
Download Datasheet
Product Details | |
|
|
|
| On-Board Computer for CubeSats and NanoSats | |
Satellite On-Board Computer (OBC)
from AAC Clyde Space
|
| The KRYTEN-M3 from AAC Clyde Space is a Satellite On-Board Computer (OBC) with a Smart Fusion 2 SoC including an ARM Cortex-M3 processor. It has a processor clock of 50 MHz and a boot image storage of 256 kB eNVM with 8 MB MRAM. It supports 12C, SPI, UART, RS-422, CAN and DTMF interfaces. It has a mass of 61.9 g and measures 95.89 x 90.17 x 5.51 mm. It is designed for CubeSat and NanoSats operations with a design life of 5 years in LEO and is ideal for commercial missions. |
| |
Download Datasheet
Product Details | |
|
|
|

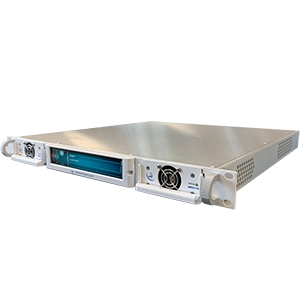

| 3.4-4.8 GHz C-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-CX-117 from ETL Systems is a Block Downconverter that converts an input frequency of 3.4 to 4.8 MHz to an output frequency of 1150-2150 MHz. This frequency converter module has a maximum conversion gain of 34 ± 2.2 dB. This 1U chassis' has a capacity of up to four hot swap frequency converter modules and its typical applications include teleports and Earth stations, satellite operations, government and defense applications, telemetry, tracking and communication. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The G2K7D411 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3422 K and a resistance of 2000 Ohm. It time response of less than 40 sec (in air). It features a robust epoxy resin encapsulated construction mounted on a flat aluminum alloy housing. The sensor is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, vision systems, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-18 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0182-10-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-18 GHz. This attenuator has an attenuation value of 10 dB. It has an average power consumption of 2 W and a peak power of 500 W. The attenuator has a maximum mass of 14.2 g and measures 24.13 mm (length). It has a space flight history of different flights such as Emirates Mars Mission, Parker Solar Probe, Europa Clipper, One Web, and GPS Satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6-40 GHz Dual-Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K0644 from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 6-40 GHz. This coupler has a coupling of 10 dB and a coupling flatness of +/- 0.4-1 dB. It has a mainline loss of 1.5-2.8 dB and a directivity of 14-31 dB. It has a power handling capacity of up to 16 W and requires a DC current supply of 0.56 A. This RoHS-compliant wideband coupler has a mass of 80 g with 2.92 mm female connector. It is ideal for 5G, mobile, fixed satellite and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|

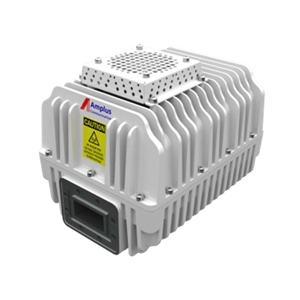

| 25 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 25 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It has an LO frequency of 4.9-7.375 GHz and a gain of 65-69 dB. It weighs 2.5 Kg and measures 175 x 130 x 115 mm. It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The BUC is ideal for wide area telephony, video conferencing, VSAT satellite earth stations and data communications systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 28-118 W Solar Arrays for 6U/12U CubeSats | |
Satellite Solar Panel
from Blue Canyon Technologies
|
| The Solar Arrays 6U/12U from Blue Canyon Technologies is a Satellite Solar Panel with carbon fiber and honeycomb structures. This double/triple panel solar arrays pair with GN&C for maximum performance with release mechanisms and solar array drive assemblies (SADAs) for optimum sun-pointing operations. It has standard arrays include 30 percent efficient cells with Frangibolt release mechanisms for minisatellites and magnetic dipole mitigation. It is suitable for CubeSats and minisatellites. |
| |
Download Datasheet
Product Details | |
|
|
|

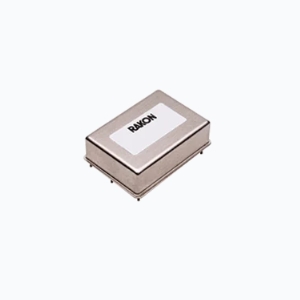

| 10-20 MHz Space OCXO for Instrumentation and Base stations | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROD3827T2 from Rakon Limited is a Space Qualified Oscillator with a nominal frequency of 10-20 MHz. This oscillator has a frequency stability of 0.5 ppb and a free run accuracy of ± 1 ppm. The oscillator requires a supply voltage of 3.3 V and has a power consumption of 2-5 W. This oscillator measures 52 x 42 x 25 mm of package size and is an ideal for edge grand masters, DU/CU/servers, cell-site routers, front-haul switches, NIC time cards, test equipment and GNSS modules applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TLR-14.25 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 14-14.5 GHz and an output frequency range of 0.95-1.45 GHz. This translator requires an input supply voltage of 90-250 VAC and has a power consumption of 40 W. It has a mass of 4.5-6.4 Kg and measures 19 x 1.75 x 20 inches. This translator is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|

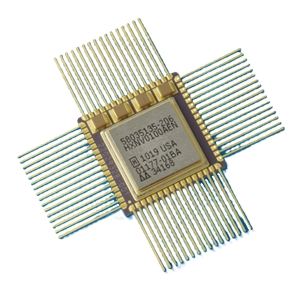

| 64K x 16 Non-Volatile Magneto-Resistive RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HXNV0100 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 64K x 16 bit memory. It has a write access time of 140 ns and a storage capacity of 1 Mb. This non volatile MRAM has an integrated power up and power down circuitry that controls the condition of the device during power transitions. It measures 52.32 x 52.32 x 4.83 mm with 64 Lead Shielded Ceramic Quad Flat Pack. The SRAM is designed for use in low-voltage systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|

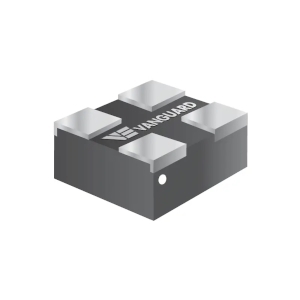

| 21 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS106 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 21 mH. It has a direct current resistance of 2.9 ohms. It features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 22 A. The SCS106 is built to meet MIL-STD-981 specifications and is outgassing compliant as per ASTM E595. It comes in a surface mount package and measures 0.535 × 0.535 × 0.31 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8 Meter Glass Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1822 Celero from Sat-Lite Technologies is a Flyaway Antenna with a transmit frequency range of 5.85-14.5 GHz. It has an azimuth range of ± 35° continuous and an elevation range of 0-90 degrees of reflector bore sight. This Intelsat compliant antenna measures 34 x 29 x 17.75 inches (pedestal case), 49 x 22 x 11.5 inches (legs case), 44 x 80 x 18 inches (2 piece, reflector case), and 39 x 41 x 13.5 inches (4 piece, reflector case). This antenna is ideal for commercial and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 80 Nms Reaction Wheel for Small Satellites | |
Reaction Wheel
from Astrofein
|
| The µCMG from Astrofein is a Reaction Wheel that is designed for small satellites and has a lifetime of up to 11 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 8 Nms and a torque of 14 Nm. This space-qualified reaction wheel has a maximum rotational speed range of 3820 rpm and also supports RS485 and RS422 interfaces. This reaction wheel has a wheel mass of 8 kg and measures 188 x 188 x 240 mm. |
| |
Download Datasheet
Product Details | |
|
