| Featured Space and Satellite Products |
|
|
| Ku-Band to L-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT140 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 14.0-14.5 GHz to an output L-band frequency of 950-1450MHz. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. This translator weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
|

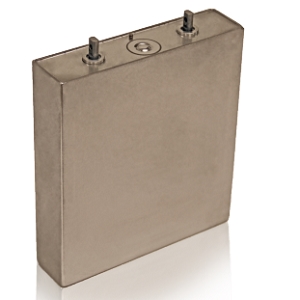

| 60 Ah Rechargeable Lithium-Ion Cell for Satellite Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The LP 33037 from EaglePicher Technologies is a Satellite Battery with a nominal capacity of 60 Ah. It has a long operation lifetime of over 40,000 low-earth orbit cycles at 40% depth of discharge (DOD) over 10 years. The satellite battery weighs 1.6 Kg. It is suitable for aerospace, mars lander, low-earth orbit satellite missions, mid-earth orbit satellite missions, geosynchronous-earth orbit satellite missions, scientific and exploratory satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|

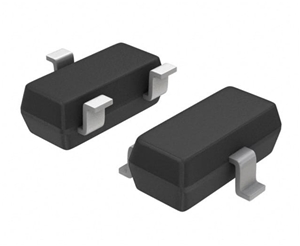

| 50 V Space Qualified N-channel MOSFET for Power Management | |
Space Qualified MOSFETs
from onsemi
|
| The BSS138LT from onsemi is a Space Qualified N-channel MOSFET has a drain-source breakdown voltage of over 50 V and a gate threshold voltage of 0.85-1.5 V. This RoHS-compliant MOSFET is available in a surface-mount package that measures 2.9 x 2.4 x 1 mm. It is ideal for DC−DC converters, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 300-400 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2857 from Skyworks is a Space Qualified Diode with a frequency range of 2-8 GHz. This diode has a forward voltage of 300-400 mV and a maximum current of up to 100 mA. It has a power dissipation of 75 mW/junction and a resistance of up to 5 Ohms. It features low noise and low intermodulation distortion. This barrier mixer has a ceramic hermetic package and is suitable for applications in microwave integrated circuits, mixers and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 400 W Ultralinear Ku-Band Antenna Mount HPA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5340 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 13.75-14.80 GHz. This antenna has a wide input voltage range that can operate from mains supplies worldwide, redundant control that contains control and drive circuits for 1:1 redundancy, a stand-alone setting that automatically sequences to transmit mode and a wide range of accessories, including controllers, waveguide networks, and cable assemblies. |
| |
Download Datasheet
Product Details | |
|
|
|

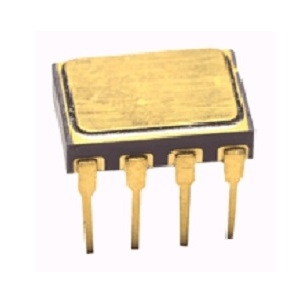

| Hermetically Sealed High-Speed Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-9800102K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It features a GaAsP light emitting diode that is optically coupled to an integrated high gain photon detector. This optocoupler is designed for military and aerospace, telephone ring detection, microprocessor system interface, transport, medical, and life critical systems, voltage level shifting, and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| Attitude Determination and Control System for Micro Satellites | |
ADCS System
from Elecnor Deimos
|
| The READY-100 from Elecnor Deimos is a ADCS System that is designed to provide high accuracy and precision attitude control for 6U and 16U CubeSats. It has an attitude estimation accuracy of less than 1 degrees and an agility of 1 degrees/sec. It has an attitude estimation accuracy of less than 10 m and has a lifetime of up to 5 years. It has a mass of 8 Kg and has a High Precision version that meets the requirements of demanding Earth Observation missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 27.5-30 GHz Ka-band Maritime Stabilized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 WGX Ka-W from Orbit Communication Systems is a Satellite Terminal with a Ka-Wideband transmitter frequency range of 27.5-30.0 GHz. This VSAT system has a RHCP/LHCP electrically switchable polarization control. It features an electronics FRUs for streamlined maintenance with advanced WEB-UI monitoring, diagnostics and troubleshooting capabilities. It was designed for connectivity between satellites in GEO/MEO/LEO constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

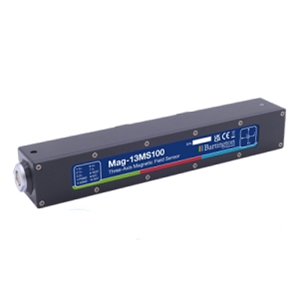

| Three-Axis Magnetic Field Sensors | |
Magnetometer
from Bartington Instruments
|
| The Mag-13 MSS from Bartington Instruments is a Magnetometer with submersible square enclosure. It requires a supply voltage of 12-17 V and a current consumption of 35-41 mA. This RoHS-compliant magnetometer has a mass of 300 g and measures 30 x 30 x 251 mm. It is ideal for a magnetic field monitoring, feedback sensors in active magnetic field cancellation systems, magnetic signature measurements and electromagnetic surveys applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Dual DC to DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFK2812S from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 16-50 V an o/p voltage of 12 V. It has an o/p current of 2.08 A and an o/p power of up to 25 W. The converter has an undervoltage lockout, fully isolated magnetic feedback with in-built short circuit protection. It weighs 38 grams and measures 37.08 × 28.70 × 9.14 mm in dimension. It is ideal for use in programs requiring high reliability, small size and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|

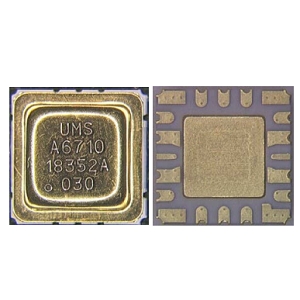

| 8-12.75 GHz X-Band Monolithic Low Noise RF Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA6710-FAB from United Monolithic Semiconductors is Space Qualified RF Amplifier that operates from 8-12.75 GHz. It has a linear gain of 22.5 dB and saturated output value of 37 dBm. It requires a DC bias voltage of 55 V. This SMD GaAs semiconductor has leadless surface mount hermetic metal ceramic 6 x 6 mm² package. This amplifier is dedicated for a wide range of applications such as space, military and commercial communication system. |
| |
Download Datasheet
Product Details | |
|
|
|

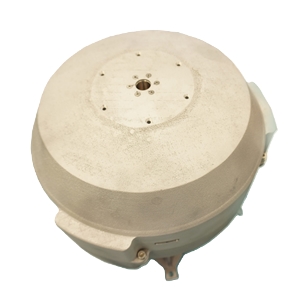

| 25 Nms Reaction Wheel for Highline | |
Reaction Wheel
from Astrofein
|
| The MBRW from Astrofein is a Reaction Wheel that is designed for Highlines and has a lifetime of up to 10 years with an integrated wheel drive electronics for latch-up protection. This reaction wheel has an angular momentum of 25 Nms and a torque of 0.2 Nm. It has a maximum rotational speed range of 10,000 rpm and supports RS485 and RS422 interfaces. This reaction wheel has a wheel mass of 11 kg and measures 275 x 275 x 170 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

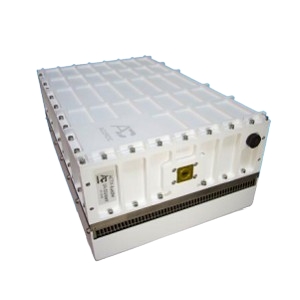

| 100 W Ka-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACTX-Ka100W-Ex-V3 from ACORDE is a Block Upconverter with an input frequency range of 950-2000 MHz and an output frequency range of 27.5-31 GHz. The converter requires a DC input voltage of 85-265 V and has a power consumption of 650 W. It weighs 14 Kg. The converter is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.95-4.75 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-1810D from Mini Circuits is a Space Qualified RF Filter with a frequency range of 1950-4750 MHz. This filter has a stop band rejection loss of 20-40 dB and a pass band insertion loss of 1.3-2 dB. It has a stop band VSWR of 20:1. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters/receivers and lab use. |
| |
Download Datasheet
Product Details | |
|
|
|

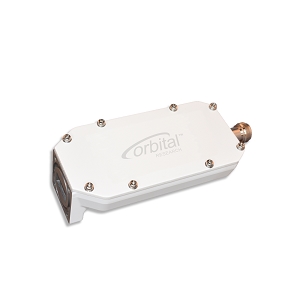

| 10.70-12.75 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The 5300 ENHANCED Series from Orbital Research is a Low Noise Block with an input RF frequency of 10.70-12.75 GHz and an IF frequency of 950-2100 MHz. It requires a DC supply of 12-24 V and has a current consumption of 220 mA. This external reference LNB is enhanced to provide superior gain flatness, local oscillator (LO) stability and VSWR. This RoHS and REACH complaint LNB is built for consumer video and broadband applications. |
| |
Download Datasheet
Product Details | |
|
