| Featured Space and Satellite Products |
|
|

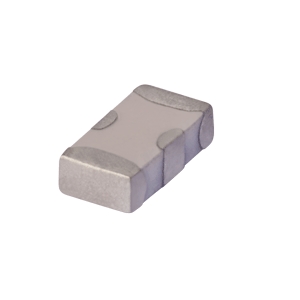

| 1.95-4.75 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-1810 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 1950-4750 MHz. This high pass filter has a stop band rejection loss of 20-40 dB. The filter has a frequency cut-off of 3 dB at 1810 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters/receivers and lab use. |
| |
Download Datasheet
Product Details | |
|
|
|
| 29.5-30 GHz High-Value Ka-Band VSAT Transceiver | |
SATCOM Transceiver
from Skyware Technologies
|
| The XRC33F16CD-mk2 from Skyware Technologies is a Ka-band SATCOM Transceiver that has an integrated BUC, LNB, OMT and TRF. The transceiver features with durable IP-67 rated enclosure. It requires an input power supply of 15-50 V for transmitter. The Ka-band transceiver subsystem has a mass of 1800 g and has the capability to operate over Ka-Band frequencies. It supports flexible field-configurable circular polarization and a broad array of L-Band or S-Band IF modems. |
| |
Download Datasheet
Product Details | |
|
|
|

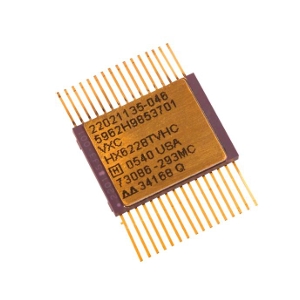

| 128K x 8-bit Monolithic Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6228 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 128K x 8-bit memory. It operates over the full military temperature range. This space-qualified SRAM is available with CMOS or TTL compatible I/O ports. The memory cell is single event upset hardened with multi layer metal power busing and small collection volumes of SOI provide superior single event effect and dose rate hardening. The SRAM is designed for use in low-voltage systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|

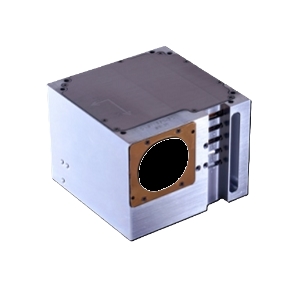

| Attitude Control System for CubeSats & LEO Applications | |
ADCS System
from Blue Canyon Technologies
|
| The XACT-50 from Blue Canyon Technologies is an Attitude Control System (ACS) that is designed for use in 6U CubeSats for LEO orbits with a spacecraft lifetime greater than 5 years. It has a pointing accuracy of ±10 arcsec for 2 axes. The XACT-50 requires a DC supply of 12 V and supports an RS-422 interface. It has a low-jitter reaction wheel design and user-friendly software that supports simulation, integration, and customization. It has a mass of 1.23 Kg and measures 100 x 100 x 75.4 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

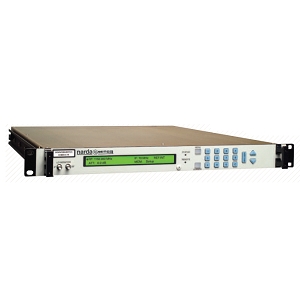

| 8–8.5 GHz Block Downconverter for Satellite Communication Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-9805-1-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 8–8.5 GHz. It has a maximum noise figure of 12 dB at maximum gain and an image rejection of 80 dB. This MIL-STD-188-164A compliant downconverter requires an AC voltage supply of 100-240 V and supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces. It is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|

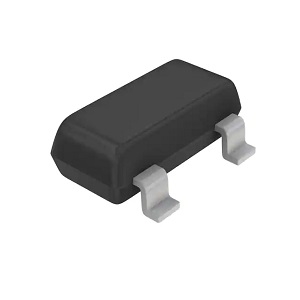

| 60 V Space Qualified N-channel MOSFET for Power Management | |
Space Qualified MOSFETs
from onsemi
|
| The 2N7002LT1 from onsemi is a Space Qualified N-channel MOSFET has a drain-source breakdown voltage of over 60 V and a gate threshold voltage of 1-2.5 V. It has a continuous drain current of up to 800 mA and a thermal resistance of 556°C/W. It has a drain-source on-resistance of 7.5-13.5 ohms. This RoHS-compliant MOSFET is available in a surface-mount package that measures 2.9 x 1.3 x 1 mm. It is ideal for automotive and other applications requiring unique site and control change requirements. |
| |
Download Datasheet
Product Details | |
|
|
|

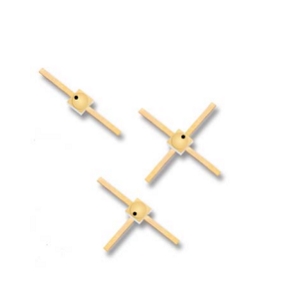

| 325-425 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2850 from Skyworks is a Space Qualified Diode with a frequency range of 8.2-12.4 GHz. This diode has a forward voltage of 325-425 mV. It has a power dissipation of 75 mW/junction and a resistance of up to 8 Ohms. This silicon-beam diode has a total capacitance of 0.4 pF and a reverse breakdown voltage of 3 V. It features low noise and low intermodulation distortion. It has a ceramic hermetic package and is suitable for applications in microwave integrated circuits, mixers and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|

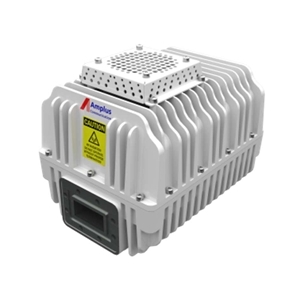

| 30 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 30W from Amplus Communication is a Block Upconverter with an input frequency of 950-1825 MHz and an output frequency of 5.85-7.025 GHz. It requires a AC voltage supply of 200-240 V and has a power consumption of 180 W. This ISO 9001/14001 certified block upconverter weighs 2.5 Kg and measures 175 x 130 x 115 mm (L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. It is ideal for high power BUCs for VSAT and Satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

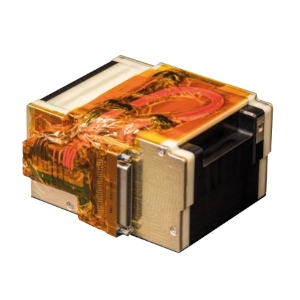

| 11.6 Ah Li-ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 3s4p 10.8V 11.6Ah from EnerSys is a Satellite Battery with a configuration of 3s4p. This lithium-ion battery has a nameplate capacity of 11.6 Ah and an energy of 125 Wh. It has a voltage range of 20-33.6 V. It has a mass of 0.98 Kg and a measures of 98 x 86 x 59.8 mm. The battery has a streamlined design that includes a single connector and does not require cell balancing electronics making it easy to use and integrate into the spacecraft for high profile civilian and military missions. |
| |
Download Datasheet
Product Details | |
|
|
|

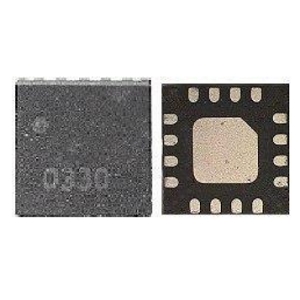

| 10-16 GHz GaAs Monolithic Low Noise Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA2066-QAG from United Monolithic Semiconductors is a Space Qualified RF Amplifier that operates from 10-16 GHz. It has a linear gain of 16 dB and a gain flatness of up to +/- 20 dB. This low noise amplifier has a gate length of 0.25 μm. This SMD GaAs semiconductor has leadless surface mount hermetic metal ceramic 3 x 3 mm² package. This RoHS-compliant amplifier is designed for a wide range of applications such as telecommunication (point to point, point to multi point, VSAT), ISM and military. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7900-8400 MHz Test Loop Translator for Satcom Applications | |
Test Loop Translator
from Jersey Microwave
|
| The XTLT-790840-725-775-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 7900-8400 MHz and an output frequency range of 7250-7750 MHz. The test loop translator supports RS-422 and RS-485 interfaces. It requires a power supply of 90-260 V AC and has a power consumption of up to 25 W. The test loop translator has a weight of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|

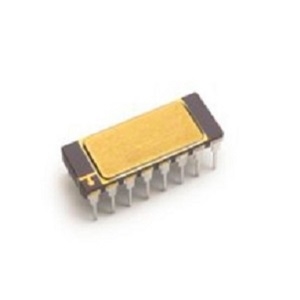

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-9800201K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It has a low output saturation voltage of 0.11 V. It is designed for military and aerospace, telephone ring detection, microprocessor system interface, transportation, medical, and life critical systems, voltage level shifting, current loop receiver, process control input/output isolation, harsh industrial environments, EIA RS-232-C line receiver and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.3 V Radiation Hardened Isolated DC to DC Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-3R3S-A-H from Microchip Technology is a DC to DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 3.3 V. This isolated DC-DC converter is based on forward converter topology and features patented magnetic feedback. The converter has a radiation tolerance TID of 100krad (Si). It has a low mass of 120 g and measures 3.055 x 2.055 x 0.5 inches. The converter is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

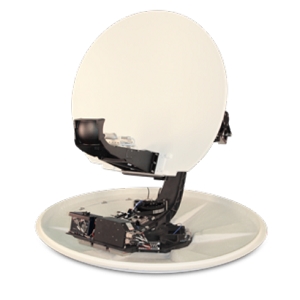

| 27.5-30 GHz Ka-band Maritime Stabilized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 WGX Ka from Orbit Communication Systems is a Satellite Terminal with a Ka-band transmitter frequency range of 27.5-30.0 GHz. It features an electronics field replaceable units (FRUs) for streamlined maintenance with advanced WEB-UI monitoring, diagnostics and troubleshooting capabilities. The SATCOM terminal weighs 215 Kg and measures 1.55 × 1.69 m (radome size). It was designed for connectivity between satellites in GEO/MEO/LEO constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

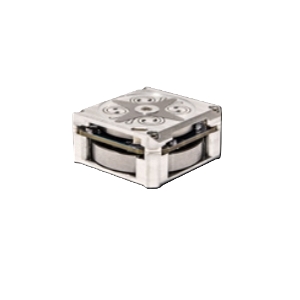

| Reaction Wheel for LEO Orbit & Deep Space Applications | |
Reaction Wheel
from Blue Canyon Technologies
|
| The RWP015 from Blue Canyon Technologies is a Reaction Wheel that has a maximum torque of 0.004 Nm and a momentum of 0.015 Nms. This reaction wheel consists of an advanced lubrication system that ensures a low jitter. This reaction wheel supports direct analog torque command as well as digital command and telemetry option interfaces. It has a mass of 0.13 Kg and measures 42 x 42 x 19 mm. The reaction wheel is ideal for LEO orbit and deep space exploration missions. |
| |
Download Datasheet
Product Details | |
|
