| Featured Space and Satellite Products this Week |
|
|
| DC-32 GHz Space-Qualified Fixed Coaxial Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32J-19.5 from Spectrum Control is a Space Qualified Fixed Attenuator with a frequency range of DC to 32.0 GHz. This coaxial attenuator has a nominal attenuation of 19.5 dB and a deviation of 1 dB. It has a nominal impedance of 50 Ohms and a standing wave ratio of 1.25. The attenuator has a peak power rating of 500 W and a power co-efficient of less than 0.005 dB/W. It is designed to meet the environmental requirements of MIL-DTL-3933 and is suitable for space and airborne. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TLR-13 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 12.75-13.25 GHz and an output frequency range of 0.95-1.45 GHz. It has an input/output return loss of 18 dB and a conversion loss of 15-25 dB. It supports an RS-485 or RS-422 serial interface. It has a mass of 4.5-6.4 Kg and measures 19 x 1.75 x 20 inches. It is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|

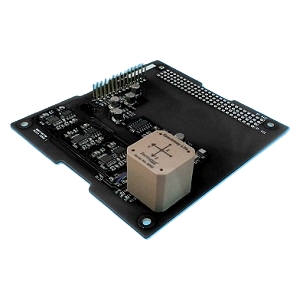

| Three-Axis Magnetometer for Spaceflight Applications | |
Magnetometer
from Bartington Instruments
|
| The Spacemag-Lite from Bartington Instruments is a Magnetometer with a measurement range of ± 60 µT and a frequency response of 5% amplitude error DC to 100 Hz. The magnetometer has an offset error of ± 100 nT and a calibration error of ± 0.5%. It requires a supply voltage of 3.3-5V and a current consumption of 8.5-35 mA. It has a mass of 42-94 g and measures 20 x 20 x 20 mm. It is ideal for a variety of low Earth orbit missions, CubeSat integration and spaceflight applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 120 W Ultralinear Q-Band Antenna Mount HPA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA4612 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 42.5-45.5 GHz. It has a bandwidth of upto 2000 MHz and a peak TWT power of 120 W. It has a gain of more than 70 dB. It requires an AC input of 100-240 V and a full load current of 6.3 A. It supports comprehensive remote control facility standard interfaces such as RS485, RS232, and Ethernet. This CE-compliant antenna mount has a mass of 21 kg and measures 520 x 260 x 260 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 dB Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZCDC10-E6653+ from Mini-Circuits is a Space Qualified Coupler with an operating frequency range of 6-65 GHz. This wideband coupler has a coupling of 10 dB and a coupling flatness of +/- 0.5-1 dB. It has a directivity of 7-28 dB and a return loss of 10.1-29.0 dB. The coupler requires a DC current of 0.46 A and has a power handling capability of up to 11 W. This coupler is ideal for lab testing applications as well as for power monitoring over wide bands, 5G, mobile and fixed satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Single Board Computer Low Earth Orbit Satellites | |
Satellite On-Board Computer (OBC)
from CesiumAstro
|
| The SBC-1461 from CesiumAstro is a Satellite On-Board Computer (OBC) that features a 1.4 GHz ARM 64-bit quad-core Cortex processor with an integrated security engine and a 2GB SDRAM with ECC. It supports Ethernet 1000BASE-T, 10GBASE-KR, SGMII, RS-485, RS-422, and JTAG data interfaces. It comes in a compact packaged form factor of 50 x 84 x 13 mm and uses rugged MIL-spec Nano-D connectors. It is designed for military and commercial use on LEO satellites and airborne platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

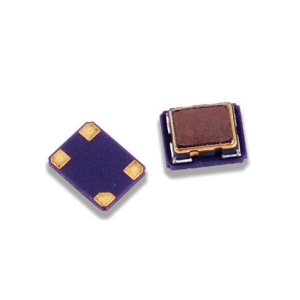

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C14 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 2.0 ppm. It has a low period jitter of 3-5 ps rms. The oscillator has an SSB phase noise of up to -150 dBc/Hz and a start-up time of 10 ms. It produces clipped sine wave with an output voltage of 1 V peak-to-peak. This oscillator comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

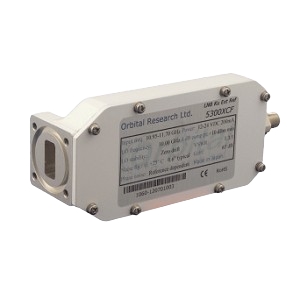

| 12.25-12.75 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1130S-500X-WF60 from Orbital Research is a Low Noise Block with an input frequency of 12.25-12.75 GHz and an output frequency of 950-1450 MHz. It has an MTBF of more than 175k hours and has a P1dB compression value of 10 dBm. It requires a DC supply of 12-24 V. This external reference LNB is enhanced to provide superior gain flatness and noise figure. It has a mass of 350 g and measures 125 x 60 x 23 mm. This RoHS complaint LNB is built for fixed or mobile satellite communications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5 KOhm Space Qualified Surface Temperature Sensors | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 5K3A355 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3892 K and a resistance of 5000 Ohm. This temperature sensor time response of less than 25 sec (in air) and dissipation constant of 2 mW/degree C. It features a robust epoxy coated chip with copper leads. The sensor is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|

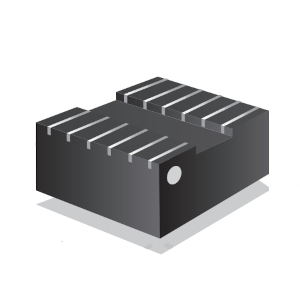

| 5.3 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS402 from Vanguard Electronics is a Space Qualified Power Transformer with a primary voltage of 70 V. It is an SMD (Surface Mount Device) with an inductance of 5.3 mH and a DCR of 1.5 ohms. This current sense transformer has a turns ratio of 1:50:50:50:50. It comes in a T-3 package with a DWV (Dielectric Withstand Voltage) of 500 V. The termination type is Pb (Lead) with a tin/lead finish and is MIL-STD-981 compliant. It measures 0.75 x 0.75 x 0.475 in and is suitable for space-grade applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 98 cm Satellite Antenna System for SATCOM Applications | |
SATCOM Antenna
from C-COM
|
| The Ka-98V from C-COM is a SATCOM Antenna with a transmit frequency range of 28.10-30.0 GHz and a receive frequency range of 18.30-20.20 GHz. This ViaSat/General Dynamics-compliant antenna system requires a motor supply voltage of 24 V. It has a total platform weight of 63 kg. This antenna is ideally suited for satellite communication applications for industries such as SNG, disaster management, oil and gas exploration, military communications, cellular backhaul and emergency services. |
| |
Download Datasheet
Product Details | |
|
|
|
| 222-444 W Solar Arrays for CubeSats | |
Satellite Solar Panel
from Blue Canyon Technologies
|
| The Solar Arrays Microsat from Blue Canyon Technologies is a Satellite Solar Panel with carbon fiber and honeycomb structures. This multi panel solar arrays pair with GN&C for maximum performance with release mechanisms and solar array drive assemblies (SADAs) for optimum sun-pointing operations. It has standard arrays include 30 percent efficient cells with Frangibolt release mechanisms for minisatellites and magnetic dipole mitigation. This solar panel is suitable for CubeSats and minisatellites. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| Attitude Determination and Control System for SmallSats | |
ADCS System
from Elecnor Deimos
|
| The READY-200 from Elecnor Deimos is a ADCS System that is designed to provide high configurable attitude control for small satellites in LEO orbits. It has an attitude estimation accuracy of less than 0.007 degrees and an agility of 90 degrees in 110 sec. This ADCS has an geolocation accuracy of less than 10 m and a power of 80 W. It has a target satellite mass range of 150-300 kg off-the-shelf and has a High Precision version that meets the requirements of demanding Earth Observation missions. |
| |
Download Datasheet
Product Details | |
|
|
|

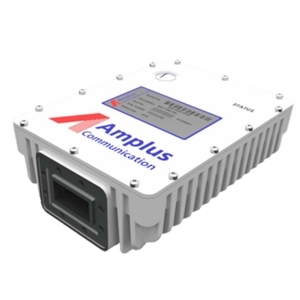

| 4 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 4 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It requires a DC voltage supply of 18-60 V and has a power consumption of 28 W. This block upconverter weighs 1.6 Kg and measures 175 x 130 x 60 mm(L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

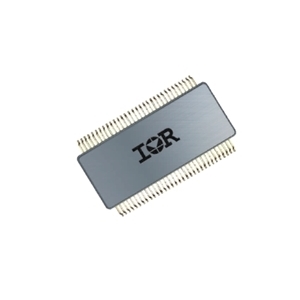

| 100 V Radiation Hardened Solid State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA701FP10A8QP from Infineon Technologies is a Space Qualified Solid State Relay with a contact resistance of 0.24-0.75 ohms and a maximum output voltage of 100 V. It has an output capacitance of 145 pF and an MTBF of 24.6 Mhrs per channel. This relay has an output leakage current of 10-25 μA and has a total dose capability of up to 100kRads (Si) and is optically coupled. This relay is available in a 64-pin flatpack and is compliant with MIL-PRF-38534 space standards. |
| |
Download Datasheet
Product Details | |
|
