| Featured Space and Satellite Products |
|
|

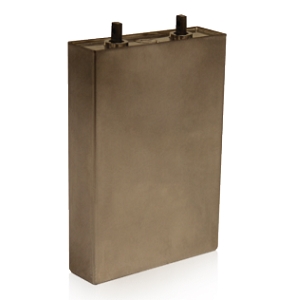

| 30 Ah Rechargeable Lithium-Ion Cell for Satellite Missions | |
Satellite Battery
from EaglePicher Technologies
|
| The LP 33081 from EaglePicher Technologies is a Satellite Battery with a nominal capacity of 60 Ah. This lithium-ion battery features a prismatic cell design and hermetically-sealed construction. It has a long operation lifetime of over 40,000 low-earth orbit cycles at 40% depth of discharge (DOD) over 10 years. The battery weighs 950 g and measures 3.79 x 6.02 x 1.16 inches. It is suitable for aerospace, mars lander, low-earth orbit satellite missions, mid-earth orbit satellite missions, geosynchronous-earth orbit satellite missions, scientific and exploratory satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10.7-12.75 GHz Ku-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-KX-109 from ETL Systems is a Block Downconverter that converts an input frequency of 10.7-12.75 GHz to an output frequency of 1100-2150 MHz. This frequency converter module has a maximum conversion gain of 33.7 ± 1.8 dB with a gain step size of 0.25 ± 0.15 dB. It has an input/output return loss of -11 dB to -15 dB and a maximum noise figure of 14.5 dB. It has typical applications include teleports and Earth stations, satellite operations, government and defense applications, telemetry, tracking and command, and high resilience applications. |
| |
Download Datasheet
Product Details | |
|
|
|

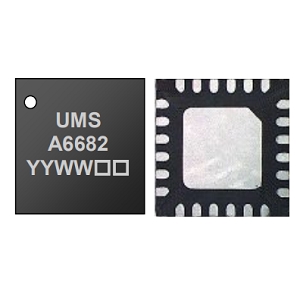

| 24-27.5 GHz GaN Monolithic RF Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA6682-QKB from United Monolithic Semiconductors is a Space Qualified RF Amplifier that operates from 24-27.5 GHz. It has a gain of 25 dB and an output power value of 36 dBm. This power amplifier has a gate bias voltage of -7 to -1 V and a drain bias voltage of 27 V. It provides high linearity with low consumption and can be used as a driver stage. This SMD leadless surface mount hermetic metal ceramic 24 leads 4 x 4 mm² package and an maximum input power of 25 dBm. This RoHS-compliant amplifier is designed to range of application such as SatCom, 5G communication, radio, VSAT and Radar. |
| |
Download Datasheet
Product Details | |
|
|
|

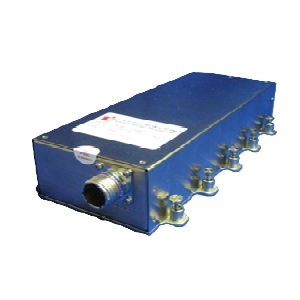

| Ku-Band Airborne Transceiver for SATCOM Applications | |
SATCOM Transceiver
from ITS Electronics
|
| The TR-13A7514A5-1035-1 from ITS Electronics is a Ku-Band Airborne Transceiver is a high performance Block Up-Converter (BUC) and Block Down-Converter (BDC) combined within single housing. It has a BUC input frequency range of 0.95-1.7 GHz and an output frequency of 13.75-14.5 GHz. It has an BDC input frequency range of 10.7-12.75 GHz and an output frequency range of 0.95-2.15 GHz. This transceiver is integrated with RS422 and has a BUC output power P1dB of 10 dBm and requires a DC power supply of 18-36 V. It has a mass of 4 lbs and measures 10.5 x 5.2 x 2.13 inches. It is ideal for SATCOM and Point-to-Point applications. |
| |
Download Datasheet
Product Details | |
|
|
|

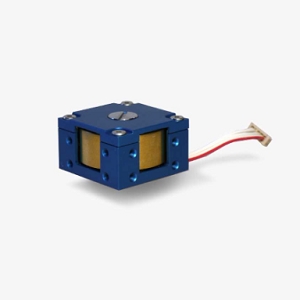

| Reaction Control Wheels for Attitude Control of CubeSats | |
Reaction Wheel
from AAC Clyde Space
|
| The RW222 from AAC Clyde Space is a Reaction Wheel that is specifically designed for 1-3U CubeSat platforms. It has a maximum torque of 2 mN.m and a total momentum storage of +/- 3-6 mNms. The reaction wheel has a mass of TBC gms and supports I2C interface. This Reaction Wheel requires a DC supply of 3.25-3.5 V and has a bus logic level voltage of 3.3-5.1 V. It has an internal fire-and-forget controller that frees up the host processor’s workload. It measures 25 x 25 x 15 mm and is ideal for attitude control of CubeSats and other small platforms. |
| |
Download Datasheet
Product Details | |
|
|
|

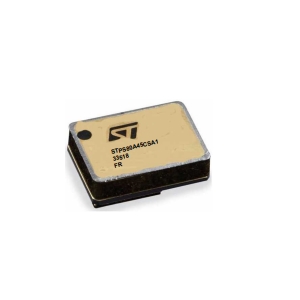

| 45 V Radiation Hardened Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS80A45CHR from STMicroelectronics is a Space Qualified Diode with a repetitive peak reverse voltage of 45 V and a forward current of 2 x 40 A. It has a reverse leakage current of up to 18 µA and a junction capacitance of 610 pF. The diode is screened to comply with the ESCC5000 specification and has a radiation tolerance TID of up to 3 Mrad(Si) and a single effect burnout (LET) of 61.2 MeV.cm/mg. It has a maximum reverse voltage rise rate of 10 kV/μs and comes in a SMD 5 ceramic hermetic package of mass 0.92 g. This rectifier diode ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| -50 V Space Qualified P-channel MOSFET for Power Management | |
Space Qualified MOSFETs
from onsemi
|
| The BSS84L from onsemi is a Space Qualified Single P-channel MOSFET has a drain-source breakdown voltage of over -50 V and a gate threshold voltage of -0.9 to -2.0 V. This MOSFET has a continuous drain current of up to -130 mA and a thermal resistance of 556°C/W. It has a drain-source on-resistance of 4.7-10 ohms and a power dissipation of less than 225 mW. This RoHS-compliant MOSFET is available in a surface-mount package that measures 2.9 x 2.4 x 1 mm. It is ideal for automotive and other applications requiring unique site and control change requirements. |
| |
Download Datasheet
Product Details | |
|
|
|

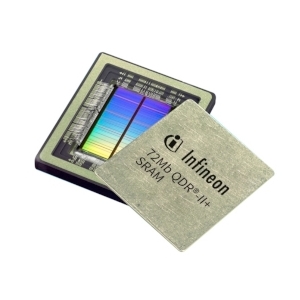

| 72 Mb Radiation-Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS1544AV18 from Infineon Technologies is a Space Qualified Memory with a 72 Mb density and 4M x 36 configuration with two-word burst mode. It is equipped with 1.8 V QDR II+ architecture with Cypress’s state-of-the-art RadStop technology. The SRAM features separate independent read and write data ports for concurrent transactions and internally synchronized self-timed writes. It requires a power supply voltage of 1.7-1.9 V. It is available in 165-ball CCGA configuration. It is suitable for applications such as radar (SAR, LiDAR) and on-orbit image processing. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

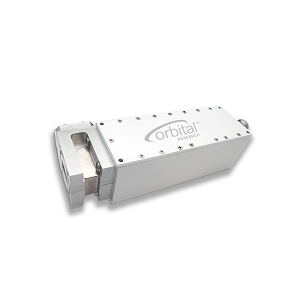

| Ku-Band Low Noise Block with Fixed Local Oscillator | |
Low Noise Block
from Orbital Research
|
| The Ku FIXED LO EXT REF from Orbital Research is a Low Noise Block with an input RF frequency of 10.7-12.75 GHz and an IF frequency of 950-3000 MHz. This Ku-band Phase Locked Loop (PLL) LNB provides a bandwidth of up to 1000-2050 MHz and has a noise figure of 0.8 dB. It has a gain of 60 dB and has a gain ripple value of ± 2.5 dB over 1 MHz. It requires a DC supply of 17-24 V and has a current consumption of 350 mA. It has a mass of 675 g and measures 132 x 47 x 47 mm. This LNB is designed for both commercial and military satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|

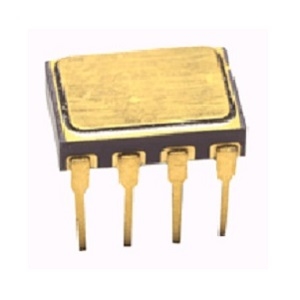

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8978503K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It has a forward voltage range of 1-1.8 V. It features a GaAsP light emitting diode that is optically coupled to an integrated high gain photon detector. It is designed for military and aerospace, high reliability systems, microprocessor system interface, transportation, medical, and life critical systems, isolated input line receiver, EIA RS-232-C line receiver, voltage level shifting, isolated input line receiver, isolated output line driver, and logic applications. |
| |
Download Datasheet
Product Details | |
|
|
|

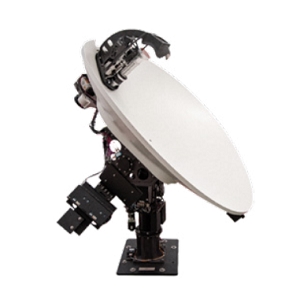

| 27.5-30 GHz Ku-band Maritime Stabilized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 7MIL Ku from Orbit Communication Systems is a Satellite Terminal with a Ku-band Tx frequency of 13.75 to 14.5 GHz and an Rx frequency of 10.70 to 12.75 GHz. The terminal has a continuous azimuth, an elevation range of -32° to +113° and a cross elevation range of -25° to +25°. It features an electronics field replaceable units (FRUs) for streamlined maintenance with advanced remote monitoring, diagnostics and troubleshooting capabilities. It weighs less than 960 Kg and was designed for connectivity between GEO/MEO/LEO/HEO sat constellations. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Dual DC to DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFX2812S from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 16-50 V an output voltage of 12 V. This converter has a capacitance of 2000 µF. It uses a synchronization feature that is included with the converter that allows the user to match the switching frequency of the converter to the frequency of a system clock. The converter has an undervoltage lockout, fully isolated magnetic feedback with in-built short circuit protection. It weighs 55 grams and ideal for use in programs requiring high reliability, small size and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|

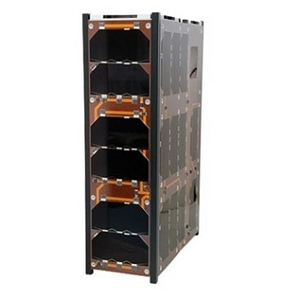

| Solar Panel for Nanosat and CubeSats | |
Satellite Solar Panel
from ISISPACE
|
| The Small satellite solar panels from ISISPACE is a Satellite Solar Panel that is designed for Small satellites with a radiation tolerance of 2 years in LEO orbit. This Space-grade GaAs Triple-junction solar cells that requires a supply voltage of 3 V. It is compatible with QuadPack and ISIPOD Launch Adapters with ISISPACE Structures & products. It has passed vibration, mechanical shock and thermal vacuum tests and includes Coarse sun sensors and temperature sensors. This solar panel has a mass of 50-300 g and is ideal for 1U/2U/3U CubeSats and 6U/12U/24U Nano satellites applications. |
| |
Download Datasheet
Product Details | |
|
|
|

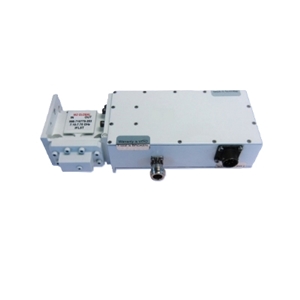

| 7.25-7.75 GHz X-Band Low Noise SATCOM Amplifiers | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The LXA7S45 from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 7.25-7.75 GHz. It has gain stability of ±0.5 dB for long term and a maximum output power of -50 dBm. The amplifier system has a residual noise of -70 dBW/4 kHz and an AM/PM conversion of 1 degrees/dB. It has a maximum VSWR of 1.3:1 and requires a power supply of 90-265 VAC. It utilize HEMT and GaAs FET technology these amplifiers have been designed for both fixed and transportable applications. The amplifier system measures 212.6 x 2.81 x 1.88 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

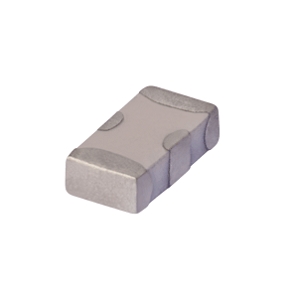

| 2-5.2 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-1910 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 2000-5200 MHz. This high pass filter has a stop band rejection loss of 20-40 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 1910 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters/receivers and lab use. |
| |
Download Datasheet
Product Details | |
|
