| Featured Space & Satellite Products |
|
|
| 4 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 4K3A354 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3892 K and a resistance of 4000 Ohm. This temperature sensor time response of less than 25 sec (in air) and dissipation constant of 2 mW/degree C. It features a robust epoxy coated chip with copper leads. It is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2m Ku-Band Auto Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA120KU-NA from Norsat is a SATCOM Antenna with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. It is linear polarized with a cross-polarization of 35 dB. It has an 8-segment carbon fiber reflector of reflector aperture of 1.2 m. It requires an AC supply voltage of 110-230 V and has a maximum power consumption of 550 W. The antenna offers rugged and reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5.3 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS401 from Vanguard Electronics is a Space Qualified Power Transformer with a primary voltage of 70 V. It is an SMD (Surface Mount Device) with an inductance of 5.3 mH and a DCR (Direct Current Resistance) of 1.5 ohms. This current sense transformer has a turns ratio of 1:50:50:50:50 . It comes in a T-3 package with a DWV of 500 V. The termination type is Pb (Lead) with a tin/lead finish and is MIL-STD-981 compliant. It measures 0.75 x 0.75 x 0.475 in and is suitable for space-grade applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Tolerant Image Processing Computer | |
Satellite On-Board Computer (OBC)
from Space Micro
|
| The IPC-7000 from Space Micro is a Satellite On-Board Computer (OBC) based on reconfigurable radiation-mitigated Virtex 7 FPGAs. The image processing computer features a user-programmable FPGAs or SMI option including real-time 12-bit JPEG compression. It has a radiation tolerance of up to 100 krads and supports SpaceWire and LVDS interfaces. It requires an i/p supply voltage of 28 V and has a power consumption of up to 40 W. It has a mass of 5.8 Kg and measures 10.55 x 7 x 4.35 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band to L-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT145 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 14.0-14.8 GHz to an output L-band frequency of 950-1250MHz. It requires a power supply of 90-264 VAC. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. The translator weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
|

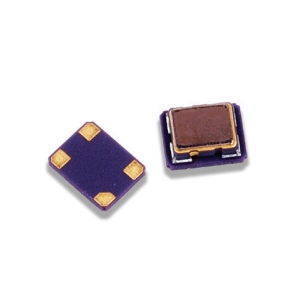

| 10-40 MHz Ultra-Miniature Precision VCTCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C24 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 2.0 ppm. It has a low period jitter of 3-5 ps rms. The oscillator has an SSB phase noise of up to -150 dBc/Hz and a start-up time of 10 ms. It produces clipped sine wave with an output voltage of 1 V peak-to-peak. This oscillator comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| 1600-3300 MHz Bi-Directional Coupler for Mobile Satellites | |
Space Qualified Coupler
from Mini Circuits
|
| The BDCA1-7-33+ from Mini-Circuits is a Space Qualified Coupler with an operating frequency range of 1600-3300 GHz. This wideband coupler has a coupling range of 6.5-7.1 dB and a VSWR of 1.10-1.15. It has a directivity of 17-27 dB and a mainline loss of 1.6-1.9 dB. The coupler requires a current supply of 0.25 A and has a power handling capability of 24-32 W. It has a mass of 25 g and is ideal for defense communication, wireless communication, ISM and mobile satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 W Ka-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACTX-Ka40W-Ex-V5 from ACORDE is a Block Upconverter with an input frequency range of 950-2000 MHz and an output frequency range of 27.5-31 GHz. This block upconverter requires a DC input voltage of 85-265 V and has a power consumption of 250 W. It weighs 5 Kg and measures 190 x 140 x 125 mm. This block converter is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|

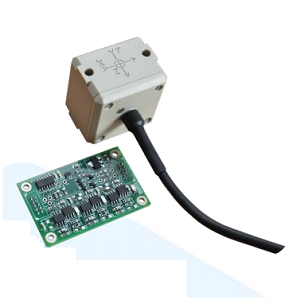

| Aerospace Three-Axis Magnetometer | |
Magnetometer
from Bartington Instruments
|
| The Mag669 from Bartington Instruments is a Magnetometer that has 2-part assembly with separate sensor head and electronics. It requires a supply voltage of ± 15 V and a current consumption of 32.5 mA. This RoHS-compliant magnetometer has a mass of 200 g (for sensor head) with 15 g (for electronics) and measures 31 x 40 x 40 mm (for sensor head) with 55 x 35 x 10 mm (for electronics). This magnetometer is ideal for a magnetic anomaly detection, navigation and vector compensation in airborne magnetometry. |
| |
Download Datasheet
Product Details | |
|
|
|

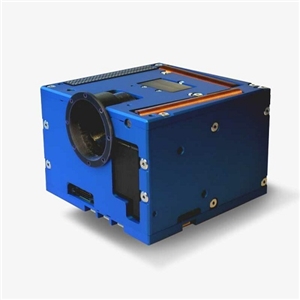

| Autonomous ADCS for SmallSats & 6U CubeSats | |
ADCS System
from AAC Clyde Space
|
| The iADCS400 from AAC Clyde Space is an Autonomous Attitude Determination and Control System (ADCS) that is designed for small satellites and 6U CubeSats. It requires a DC supply of 4.9-15 V. It supports I2C, RS-422, RS-485, UART, and CAN interfaces. The iADCS400 has an internal fire-and-forget controller, which frees up the host processor’s workload, providing nadir and target pointing modes, as well as backup de-tumbling, intentional spin modes and slewing for 6 to 12 U satellites or platforms with similar |
| |
Download Datasheet
Product Details | |
|
|
|

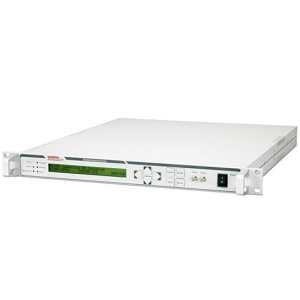

| 18.10-21.20 GHz Ka-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-KaKaT / VSCD-KaKaT from WORK Microwave is a Block Downconverter that has an input RF frequency range of 18.10-21.20 GHz and an intermediate frequency of 2440-2450 MHz. It supports remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, Ethernet supporting TCP/IP command interface, Web browser interface, and SNMP. The converter features automatic reference recognition and an adjustable gain equalizer. It weighs 8.4 Kg and measures 483 x 44 x 505 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-32 GHz Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32J-27 from Spectrum Control is a Space Qualified Fixed Attenuator with a frequency range of DC to 32.0 GHz. It supports SMK (2.92 mm) connectors and mates nondestructively with SMA (3.5 mm) and SMK (2.92 mm) connectors. It has a mass of 13 g and features a passivated stainless steel body and connectors with gold-plated beryllium copper contacts. It is designed to meet the environmental requirements of MIL-DTL-3933 and is suitable for space and airborne applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

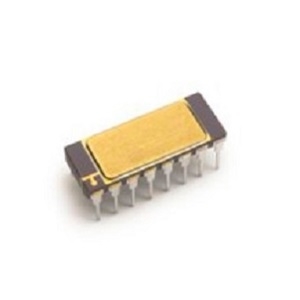

| Hermetically Sealed High-Speed Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-0824203K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. This 16-Pin DIP ceramic pack optocoupler is designed for military and aerospace, high reliability systems, microprocessor system interface, medical, and life critical systems, isolated input line receiver, EIA RS-232-C line receiver, voltage level shifting, harsh industrial environments, current loop receiver, system test equipment isolation and process control I/o isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|

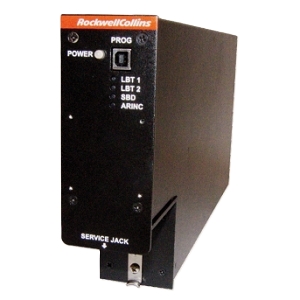

| Dual-Channel Iridium SATCOM Transceiver | |
SATCOM Transceiver
from Collins Aerospace
|
| The IRT-2110 from Collins Aerospace is a Iridium-based SATCOM Transceiver that operates with a DC power of 28 V and is certified for use in high-altitude environments up to 55,000 ft. This Airborne SATCOM Transceiver is designed to deliver secure global voice and data communications over the Iridium satellite network. It integrates a single Iridium transceiver (LBT) and a dedicated Short Burst Data (SBD) modem, providing continuous connectivity for both cockpit voice and data link services. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Radiation Hardened Solid-State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The 5962-1324901KXA from Infineon Technologies is a Space Qualified Solid State Relay with an output on-resistance of 0.070-0.100 ohms and a maximum output voltage of 100 V. It has an output capacitance of 365 pF and a thermal resistance of 1.7 degrees C/W. The relay has a hermetically sealed package with total dose capability of up to 100kRads (Si) and optically coupled. It has an 8-pin surface mount international rectifier’s R5 technology and actuated by standard logic inputs. |
| |
Download Datasheet
Product Details | |
|
