| Featured Space & Satellite Products |
|
|

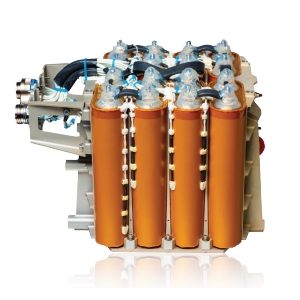

| 112 Ah Space-Qualified Lithium-Ion Rechargeable Battery | |
Satellite Battery
from EaglePicher Technologies
|
| The SAR-10207 from Eagle Picher Technologies is a Satellite Battery with a capacity of 112 Ah and an energy of 3315 Wh. This satellite battery has a continuous discharge current of 80 A and an operating voltage range of 24-32.8 V. It is space-qualified and suitable for low-earth orbit and geosynchronous-equatorial orbit (GEO) applications. It incorporates lithium-ion-cells which makes it ideal for military communications and surveillance, commercial communication and broadcasting, NASA research, environmental monitoring, global navigation, and tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Miniature Reaction Wheel Torque Actuator for Mini & Micro Satellites | |
Reaction Wheel
from Microsat Systems Canada Inc
|
| The MicroWheel 200 from Microsat Systems Canada Inc. is a Miniature Reaction Wheel Torque Actuator that is designed for mini-satellites and microsatellites with an in-orbit life of less than 7 years. This wheel has a flight heritage of more than 200 years of operational wheel time and requires a 28 V unregulated power line. It consists of an optional angular rate sensor which is integrated with a microcontroller. It implements speed and torque control loops for the reaction wheel, allowing it to accurately track speed or torque commands from a satellite’s attitude control computer. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.3 V Radiation Hardened Isolated DC to DC Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-3R3-12T-A-H from Microchip Technology is a DC to DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 3.3 V. This converter delivers an output power of up to 50 W and has an efficiency of up to 86% at full load conditions. It has a output ripple voltage 25 mVpp and an output current of 0.1 A. It is based on forward converter topology and features patented magnetic feedback. It measures 3.055 x 2.055 x 0.5 inches. The converter is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

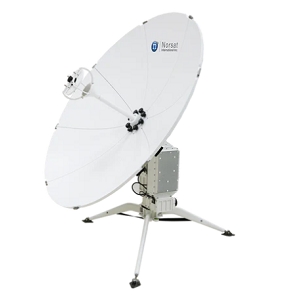

| 1.2m Ku-Band Auto Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA120KU-NA from Norsat is a SATCOM Antenna with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. It has an Rx gain of 41.5 dBi and a Tx gain of 42.8 dBi. It has an interfacility link cable of 10 m and a reflector diameter of 1.2 m. It has a cross-polarization on the axis of greater than 35 dB and has an operational wind rating of 36 km/h. It requires an AC supply voltage of 110-230 V. It has a mass of 22-30 kg and measures 84.5 x 62 x 49 cm. It is ideal for remote enterprise, energy, emergency, media, and other commercial applications. |
| |
Download Datasheet
Product Details | |
|
|
|

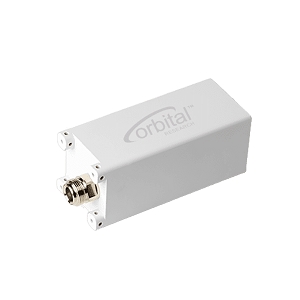

| 17.3-21.2 GHz Ka-Band Low Noise Block with Fixed Local Oscillators | |
Low Noise Block
from Orbital Research
|
| The 694XA SERIES from Orbital Research is a Low Noise Block with an input RF frequency of 17.3-21.2 GHz and an IF frequency of 950-2000 MHz. This Ka-band LNB provides a bandwidth of up to 1000 MHz and has a noise figure of 1.4 dB. It has a gain of 60 dB and has a gain ripple value of ± 0.5 dB over any 10 MHz. This LNB has an image rejection value of -40 dBm and has a P1dB compression value of 10 dBm. It requires a DC supply of 12-24 V and has a current consumption of 300 mA. It is designed for mobile satellite communication and SATCOM-on-the-Move (SOTM) applications. |
| |
Download Datasheet
Product Details | |
|
|
|

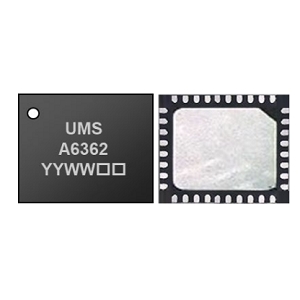

| 17.7 to 19.7 GHz GaAs Monolithic Power Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA6362-QXG from United Monolithic Semiconductors is a Space Qualified RF Amplifier that operates from 17.7-19.7 GHz. It has a gain of 22 dB and an output power value of 34.5 dBm. This power amplifier has a gate bias voltage of -2 to 0 V and a drain bias voltage of 6.5 V. This GaAs monolithic amplifier has an input return loss of 14 dB. It integrates a power detector and allows gain control. This circuit is manufactured with a pHEMT process and an maximum input power of 42 dBm. This RoHS-compliant amplifier is designed for Point To Point Radio or K-band Satcom application. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | High Performance Surface Mount Baluns | | Space-qualified broadband baluns operate up to 32 GHz with best-in-class common mode rejection, phase and amplitude balance, MIL-STD-981 Class S & B certification, and proven reliability with thousands of units in orbit for satellite and aerospace applications. Click Here | | | |
|
|
| 2K x 18 Non-Volatile Radiation Hardened Magneto-Resistive RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6218 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 2K x 18 bit memory. This Magneto-resistive Random Access Memory is a high performance 2048 word x 18 bit memory that is fabricated with 0.8 um SOI RICMOS IV Technology. It has a junction temperature of 175 deg C. This low power first-in first-out (FIFO) memories is available with either TTL or CMOS compatible I/O. It provide solutions for a wide variety of data buffering needs, including high-speed data acquisition, multiprocessor interfaces and communications buffering. |
| |
Download Datasheet
Product Details | |
|
|
|
| 650 W Ultralinear Ka-Band Antenna Mount HPA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5565P-LC from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.0-31.0 GHz. This Ka-band amplifier system has a TWT output power of 650 W and a gain greater than 70 dB. It has an input/output VSWR less than 1.3:1 and a harmonic less than -60 dBc. It requires a voltage supply of 100-240 V AC and has a maximum power requirement of 1500 VA. It features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, Ethernet, SMP, and Webpage GUI interfaces. This amplifier weighs 21 Kg. |
| |
Download Datasheet
Product Details | |
|
|
|

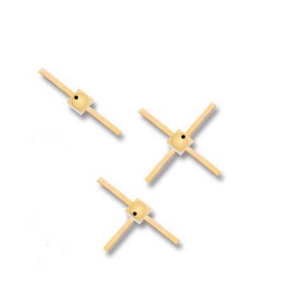

| 220-300 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DMF2826 from Skyworks is a Space Qualified Diode with a frequency range of 8.2-12.4 GHz. This diode has a forward voltage of 220-300 mV and a maximum current of up to 100 mA. It has a power dissipation of 75 mW/junction and a resistance of up to 8 Ohms. This silicon-beam diode has a total capacitance of 0.4 pF and a reverse breakdown voltage of 2 V. It features low noise and low intermodulation distortion. This Schottky barrier mixer has a ceramic hermetic package and is suitable for applications in microwave integrated circuits, mixers and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 950-2000 MHz Ceramic Balun for GPS Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS1-222-75+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 950-2000 MHz. This ceramic balun has an amplitude unbalance of 0.9 dB and a phase unbalance of 5 degrees. It has an insertion loss of 1 dB and a maximum RF power rating of 3 W. The RF ceramic balun features a cost-efficient and aqueous washable design with LTCC construction. This space-qualified RF ceramic balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant RF ceramic balun is suitable for WCDMA, PCS and GPS applications. |
| |
Download Datasheet
Product Details | |
|
|
|

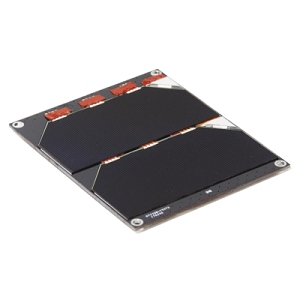

| 1U CubeSat Solar Panel for LEO Orbit | |
Satellite Solar Panel
from Aphelion Orbitals
|
| The 1U Solar Panel from Aphelion Orbitals is a Satellite Solar Panel with a 2-year minimum design lifespan in LEO applications. This radiation-tolerant solar panel has a built-in LM76 temperature sensor and rough sun sensor and has thermal design considerations to prevent warping and improve reliability. It utilizes Hirose 1.25mm connectors for both power and digital interfaces, with a 4-pin connector for power output and a 8-pin connector for the temperature and light sensor. It is qualified according to ESA and Ru479.0061JT standards measures 40.15 x 80.15 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT1000 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 13.75-14.50 GHz to an output Ku-band frequency of 11.85-12.60 GHz. This translator has a maximum input power of 15 dBm and an output return loss of 15 dB. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. The test loop translator weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | |
|
|
| 3 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 3K3A353 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a beta value of 3892 K and a resistance of 3000 Ohm. This temperature sensor time response of less than 25 sec (in air) and dissipation constant of 2 mW/degree C. This temperature sensor features a robust epoxy coated chip with copper leads. This temperature sensor is ideal for applications such as satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|

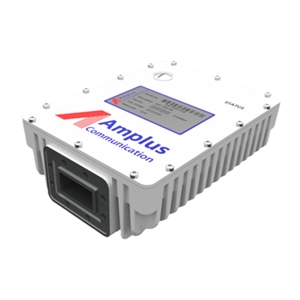

| 5 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 5 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. This block upconverter has a spurious value of -55 dBc and a phase noise range of -93 to -63 dBc/Hz. It requires a DC voltage supply of 18-60 V and has a power consumption of 34 W. This BUC weighs 1.6 Kg and measures 175 x 130 x 60 mm(L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.25 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB3125232 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 2,250 µF. It has a direct current leakage of 100 µA to 1.00 mA and an equivalent series resistance of 60 mOhm. It has a voltage rating of 125 V. It has a mass of 65 g and measures 1.0 x 1.0 x 0.620 inches. It comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
