| Featured Space & Satellite Products |
|
|

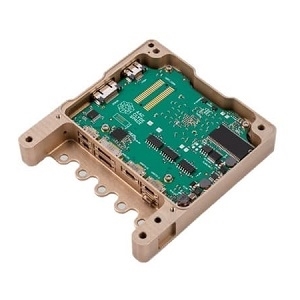

| 50 MHz SmallSat On-Board Computer with Communications Protocol Unit | |
Satellite On-Board Computer (OBC)
from AAC Clyde Space
|
| The SIRIUS OBC LEON3FT from AAC Clyde Space is a Small Satellite On-Board Computer (OBC) with a real-time operating system that runs on a 32-bit LEON3FT fault-tolerant processor. The OBC has an SDRAM of 64 MB (post-EDAC), a nonvolatile system memory NAND flash of 2 GB, and a mass memory storage capacity of 32 GB. It utilizes the SpaceWire interface for high bandwidth and on-board data transfer and CCSDS encoding standards for satellite link services. It is designed and qualified for five years of operation in low-earth orbit and is ideal for advanced satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-649 Ohms Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The EGN-2 from Vishay is a Space Qualified Resistor with a resistance range of 0.1-649 Ohm. This resistor has a power rating of 1.5 W and a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It features a complete welded construction and is high-temperature silicone coated. The resistor has a tolerance value of ±0.1%, ±0.5%, and 1% and is qualified to MIL-PRF-39007 standards. It has a dielectric withstanding voltage of up to 1000 VAC and an insulation resistance of 1000 MOhm. The resistor has a mass of 0.23 g and measures 0.312 x 0.078 x 0.020 Inches. |
| |
Download Datasheet
Product Details | |
|
|
|

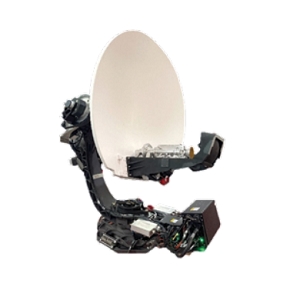

| 7.9-31 GHz X/Ka-band Maritime Ruggedized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 Mil X/Ka from Orbit Communication Systems is a Space-Qualified Satellite Terminal with an X/Ka-band transmitter frequency range of 7.9-8.4 GHz for X-band and 29-31 GHz for Ka-band. The terminal has a continuous azimuth range of -30° to +120°. It features simultaneous operation or automatic switching of dual and multiple bands and incorporates a patented algorithm that enables seamless MEO/LEO satellite handover. It is designed and tested for the strictest MIL-STD-810G environmental conditions and MIL-STD-461G EMI/EMC conditions. It weighs less than 250 Kg. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-10 µH Space Grade Tin/Lead Shielded Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-2525CZ-L6 from Vishay is a Space Qualified Inductor with an inductance range of 0.1-10 µH and an inductance tolerance of +/- 20 %. It has a direct current resistance of 1.35-97.71 mOhm. It has a heat rating current of 3-32.5 A and a DC saturation current range of 7-60 A. It features a shielded construction with IHLP design and and Tin/lead Sn/Pb plated terminals. It is suitable for PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery powered devices, DC/DC converters in distributed systems, and FPGAs. |
| |
Download Datasheet
Product Details | |
|
|
|

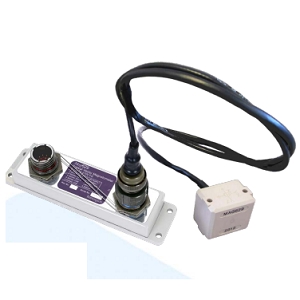

| Aerospace Three-Axis Magnetometer | |
Magnetometer
from Bartington Instruments
|
| The Mag629 from Bartington Instruments is a 3 axis Magnetometer that has 2-part assembly with separate sensor head and electronics. It has a maximum bandwidth of 1.1-1.3 kHz at full scale and an offset temperature coefficient of less than 0.6 nT/°C. It requires a supply voltage of ± 28 V. This RoHS-compliant magnetometer has a mass of 171 g (for sensor head), and 202 g (for electronics) and measures 31 x 40 x 40 mm with 165 x 42 x 43.4 mm. It is ideal for a magnetic anomaly detection, navigation and vector compensation in airborne magnetometry. |
| |
Download Datasheet
Product Details | |
|
|
|

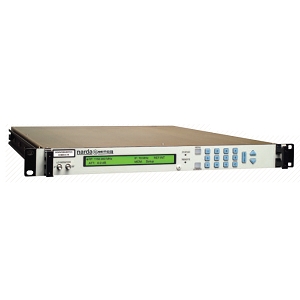

| 10.7-12.75 GHz Block Downconverter for Satellite Communication | |
Block Downconverter
from Narda-MITEQ
|
| The D-9808-6-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 10.7-12.75 GHz and an output frequency of 70 MHz. It has a frequency step size of 1 kHz and an input impedance of 50 Ohms. This downconverter has an input return loss of 17-20 dB and an output return loss of 18-26 dB. It has a minimum power output of 20 dBm. The downconverter has a maximum noise figure of 12 dB at maximum gain and an image rejection of 80 dB. It is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|

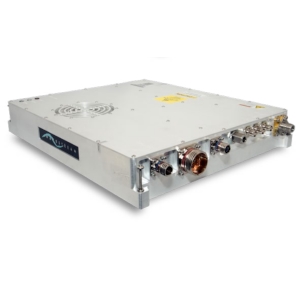

| 25 W Ku-band SATCOM Transceiver | |
SATCOM Transceiver
from Gilat Satellite Networks
|
| The UST25A00A from Gilat Satellite Networks is a Ku-Band Satcom Transceiver with a transmit frequency range of 14-14.5 GHz and an IF frequency range of 950-1450 MHz. This transceiver has a small signal gain of 53 dB. It has a phase noise of up to -122 dBc/Hz and an output spurious of -60 dBc. The transceiver features an innovative patented Spatial AdvantEdge technology that allows the generation of higher output power in a more compact product package. It requires an input supply of 115 AC and has an AC power of 255 W. It has a mass of 9.5 Kg and measures 17.5 x 13.6 x 2.5 in. |
| |
Download Datasheet
Product Details | |
|
|
|

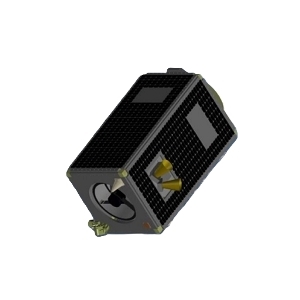

| Attitude Determination and Control System for SmallSats | |
ADCS System
from Elecnor Deimos
|
| The READY-200HP from Elecnor Deimos is a ADCS System that is designed to provide high configurable attitude control for small satellites in LEO orbits. It has a pointing stability of less than 0.0005 deg/sec. It has an attitude estimation accuracy of less than 0.005 degrees and an agility of 90 degrees in 110 sec. The ADCS system has an geolocation accuracy of less than 10 m and a power of 87 W. It has a mass of 19 kg and has a target satellite mass range of 150-300 kg off-the-shelf. It has a high precision version that meets the requirements of demanding Earth Observation missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-9.9 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-3100+ from Mini Circuits is a Space Qualified RF Filter with a frequency range of 3400 to 9900 MHz. This filter has a stop band rejection loss of 20-30 dB and a pass band insertion loss of 1.5-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. It has a frequency cut-off of 3 dB at 3100 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

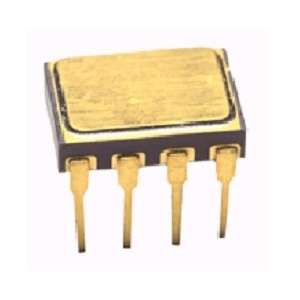

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8981002K from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It has a forward voltage range of 1-1.8 V. It features a GaAsP light emitting diode that is optically coupled to an integrated high gain photon detector and has a common mode transient immunity of 500-10000 V/us. It measures 10.29 x 8.13 x 4.32 mm and is designed for military and aerospace, high reliability systems, microprocessor system interface, transportation, medical, and life critical systems, isolated input line receiver, and EIA RS-232-C line receiver. |
| |
Download Datasheet
Product Details | |
|
|
|

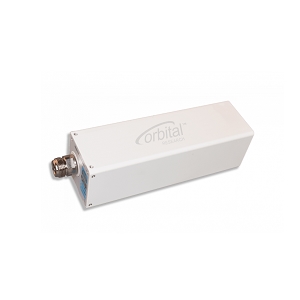

| Ka-Band Low Noise Block with Multiple Local Oscillators | |
Low Noise Block
from Orbital Research
|
| The Orbital Ka-Band LNB from Orbital Research is a Low Noise Block with an input RF frequency of 19.2-21.2GHz and an IF frequency of 950-2000 MHz. This Ka-band LNB provides a bandwidth of up to 1 GHz and has a noise figure of 1.5 dB. It has a gain of 60 dB and has a gain ripple value of ± 0.3 dB over any 10 MHz. It has an image rejection value of -40 dBm and has a P1dB compression value of 10 dBm. It requires a DC supply of 15-26 V. It has a mass of 485 g and measures 145 x 44 x 44 mm. This LNB is designed for commercial and military SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

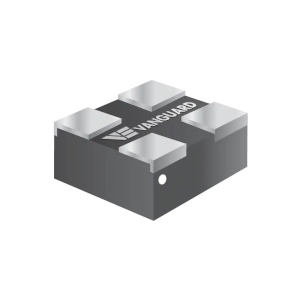

| 8.9 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS105 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 8.9 mH. This transformer has a turns ratio of 1:100 and requires a primary voltage of 144 V. It has a direct current resistance of 1.7 ohms and an insulation resistance of 10K Mohms. This transformer has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 12 A. The SCS105 is built to meet MIL-STD-981 specifications and is outgassing compliant as per ASTM E595. It comes in a surface mount package and measures 0.410 × 0.410 × 0.310 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

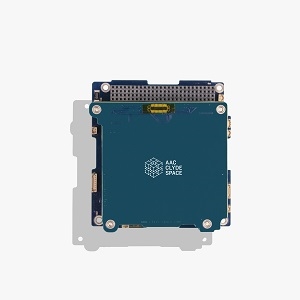

| 80 Wh CubeSat Battery for Low Earth Orbit (LEO) Missions | |
Satellite Battery
from AAC Clyde Space
|
| The OPTIMUS-80 from AAC Clyde Space is a Satellite Battery with a capacity of 80 Wh. This battery has a charge/discharge current of 5.2 A and a charge/discharge rate of 1.53 (fraction of capacity) discharge voltage limit. It has a minimum discharge voltage limit of 6.2 V and a maximum charge voltage limit of 8.4 V. It is qualified to NASA standards EP-Wi-032 and features an autonomous integrated heater system to enhance operation at low temperatures. It is compatible with International Space Station deployment safety requirements and is optimized for low-earth orbit missions. |
| |
Download Datasheet
Product Details | |
|
|
|

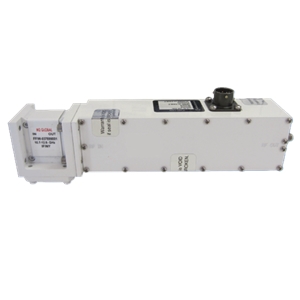

| 10.7-12.75 GHz Ku-Band Low Noise SATCOM Amplifiers | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The LKR12S70 from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 10.7-12.75 GHz. It has a gain of 60 dB and a flatness of ±0.5 dB over the full band. It has gain stability of ±0.5 dB for long term and a maximum output power of -20 dBm. The amplifier system has an AM/PM conversion of 0.05 degrees/dB. It requires a power supply of 12-24 V and utilize HEMT and GaAs FET technology these amplifiers have been designed for both fixed and transportable applications. The amplifier system measures 200.7 x 2.26 x 1.87 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-20 MHz Space OCXO for GNSS modules Applications | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROD2522S2 from Rakon Limited is a Space-Qualified Oscillator that synchronises its 1PPS and output clock to a specified 1PPS input signal from the GNSS system or the synchronization system output. It has a hysteresis value of 0.3 ppb and a supply voltage stability of ± 0.5 ppb. The oscillator requires a supply voltage of 3.3 V and has a power consumption of 2-5 W. This oscillator measures 25.4 x 22.0 x 12.1 mm of package size and is an ideal for edge grand masters, DU/CU/servers, cell-site routers, front-haul switches, NIC time cards, test equipment and GNSS modules applications. |
| |
Download Datasheet
Product Details | |
|
