| Featured Space and Satellite Products |
|
|
| 5 V Dual DC-DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2805S from Crane Aerospace & Electronics is a single output DC-DC Converter with an input voltage range of 16-40 V and an output voltage of 5 V. The MFL converter is manufactured in a fully certified and qualified MIL-PRF-38534 facility. It uses a synchronization feature that is included with the converter that allows the user to match the switching frequency of the converter to the frequency of a system clock. The converter weighs 86 grams and measures 3.005 x 1.505 x 0.400 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

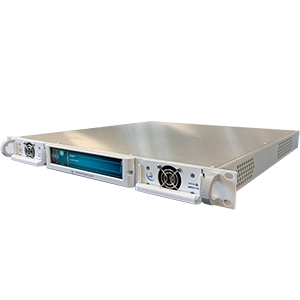

| 3.4-4.8 GHz C-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-CX-111A from ETL Systems is a Block Downconverter that converts an input frequency of 3.4 to 4.8 MHz to an output frequency of 1150-2150 MHz. The converter has a phase noise of -68 to -115 dBc/Hz and an image rejection of greater than 60 dB.This 1U chassis has a capacity of up to four hot swap frequency converter modules, and its typical applications include teleports and Earth stations, satellite operations, government and defense applications, telemetry, tracking, and command applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 2K3A352 from Variohm Eurosensor is a Space Qualified Temperature Sensor with beta value of 3892 K and a resistance of 2000 Ohm. This temperature sensor time response of less than 25 sec (in air) and dissipation constant of 2 mW/degree C. It features a robust epoxy coated chip with copper leads. The sensor is ideal for satellite electric motors, monitoring of gearboxes in satellites, temperature compensation, battery power packs, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|

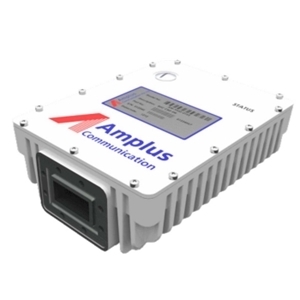

| 8 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9335 8 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It requires a DC voltage supply of 18-60 V and has a power consumption of 34 W. This block upconverter weighs 1.6 Kg and measures 175 x 130 x 60 mm (L x W x H). It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Fold-Out Solar Arrays for CubeSats and SmallSats | |
Satellite Solar Panel
from ExoTerra Resource, LLC
|
| The Fold-Out Solar Arrays (FOSA) from ExoTerra Resource, LLC is a Satellite Solar Panel with a specific power of 140 W/kg. This solar array features high impulse, radiation tolerant propulsion system that expands the mission potential by allowing them to attain and maintain targeted orbits. This solar array requires a voltage range of 28-150 V and an array power output range of 75-300 W. This fold-out solar arrays are designed to improve the power capability of CubeSats and microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened Hybrid Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53807 from Modular Devices is a Space Qualified Solid State Relay with an input bias voltage of 4.7-5.3 V. The solid-state relay uses a wide bandgap power semiconductor for high performance and is magnetically coupled and can be user configured for continuous or pulse latching with radiation tolerance TID rating of up to 100 K rads (SE). It has a mass of 30 grams and an 18-pin seam weld chassis mount rugged hermetic package. This relay is ideal for military and aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| 14.00-14.50 GHz Test Loop Translator for Satellite Communication | |
Test Loop Translator
from Jersey Microwave
|
| The KTLT-140145-127132-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 14.00-14.50 GHz and an output frequency range of 12.75-13.25 GHz. This test loop translator has an LO frequency of 1250 MHz and a return loss of 18 dB. It has a spurious of -30 dBm and an SSB phase noise of up to -120 dBc/Hz. The test loop translator has a mass of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 144 Mb Radiation Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS2642KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 8M × 18 configuration with two-word burst mode. The SRAM features separate independent read and write data ports for concurrent transactions and double data rate (DDR) interfaces on both read and write ports. The SRAM is available in a 165-ball CCGA and measures 21 × 25 × 2.83 mm. It is suitable for applications such as radar and on-orbit image processing. |
| |
Download Datasheet
Product Details | |
|
|
|

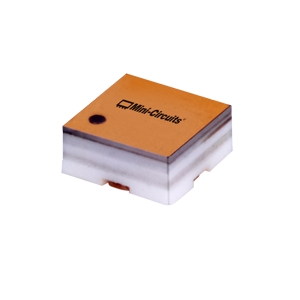

| DC to 20 GHz SMT Fixed Attenuators for Radar Applications | |
Space Qualified Fixed Attenuator
from Mini Circuits
|
| The RCAT Series from Mini Circuits is a Space Qualified Fixed Attenuator that operates at a frequency range of DC-20 GHz. It has an average power consumption of 2 W and has high attenuation accuracy and flatness. The attenuator are capable of meeting MIL requirements for gross leak, fine leak, thermal shock, vibration, acceleration, mechanical shock and HTOl. It is ideal for applications including cellular, PCS, Radar, Communications, wideband military, test and measurement equipment. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7.1-8.5 GHz X-Band Hybrid Coupler for Nanosatellites | |
Space Qualified Coupler
from WiRan
|
| The CXA from WiRan is a Space Qualified Coupler with an operating frequency range of 7.1-8.5 GHz. It has a nominal split 3.01±0.5 dB. It has a insertion loss of less than 0.8 dB and a phase balance of less than ±5°. The coupler has a return loss of greater than 17.5 dB and has a power handling capacity of less than 30 W. This X- band coupler has a mass of 35 g and allow splitting of an input RF signal equally between two output ports with a 90 degree phase shift. It is ideal for nanosatellites applications. |
| |
Download Datasheet
Product Details | |
|
|
|

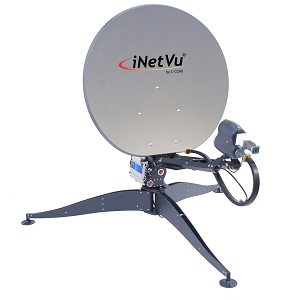

| 98 cm Satellite Antenna System for SATCOM Applications | |
SATCOM Antenna
from C-COM
|
| The FLY-981 from C-COM is a SATCOM Antenna that operates in the Ku-Band Rx frequency range from 10.70-12.75 GHz and a Tx frequency range from 13.75-14.50 GHz. It supports 3-axis motorization with an azimuth range of ± 175°. This antenna is suitable for applications that require reliable and/or remote connectivity in a rugged environment and provides affordable broadband Internet services (high-speed access, video & voice-over IP, file transfer, e-mail, or web browsing). |
| |
Download Datasheet
Product Details | |
|
|
|

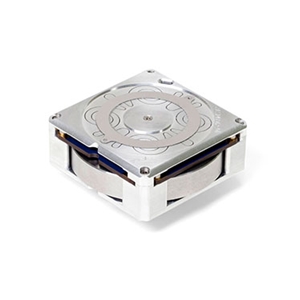

| 0.1 Nms Reaction Wheels Designed for SmallSat | |
Reaction Wheel
from Blue Canyon Technologies
|
| The RWP100 from Blue Canyon Technologies is a reaction wheel designed for SmallSat with a design life of more than 5 years. It requires a DC supply of 10-14 V. It has an advanced lubrication system and vibration isolation for low-jitter performance. It has flexible commanding options such as direct torque commanding for nominal flight operation and advanced wheel speed and PWM control. This TRL-9 flight-proven reaction wheel has a mass of 0.33 Kg and measures 70 x 70 x 25 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| 17-21.5 GHz GaN Monolithic Power Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA6251-QKB from United Monolithic Semiconductors is a Space Qualified RF Amplifier that operates from 17-21.5 GHz. It has a gain of 33 dB. This power amplifier has a drain bias voltage range of 12-20 V and a drain current of 60-250 mA. This GaN monolithic amplifier has an input return loss of 12 dB. It is developed with a GaN on SiC HEMT process and has an SMD ROHS-compliant QFN plastic package. This power amplifier is designed for a wide range of microwave systems and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite On-Board Command & Data Handling Subsystem with Redundancy | |
Satellite On-Board Computer (OBC)
from CAVU Aerospace UK
|
| The CDH1 from CAVU Aerospace UK is a Satellite On-Board Computer (OBC) that uses an ARM Cortex-M3 processor on an FPGA and an advanced Microchip/Microsemi SmartFusion2 & ProASIC3 Flash-based FPGA design. The OBC is radiation hardened up to 30 Krad (Si)/yr TID and is Latch-up Immune SEE at 60MeV. It requires a supply voltage of 5 V and has a power consumption of 3-5 W. It has a mass of 1.55 Kg. It measures 205 x 180 x 38mm and is designed to withstand a variety of space environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25 W Airborne Qualified Ka-Band Aerostream Transceiver | |
SATCOM Transceiver
from Wavestream Corporation
|
| The AJT25A10A from Wavestream Corporation is a SATCOM Transceiver with a transmit frequency range of 29.25-30 GHz and a receive frequency range of 17.8-20.2 GHz. This transceiver has an IF transmit frequency range of 950-1700 MHz and an IF receive frequency range of 950-2050 MHz. It has a small transmit signal gain of 70 dB. The transceiver requires an input AC supply of 115 V and has a power value of 255 W. It has a mass of 7.1 Kg and measures 48.3 x 23.1 x 9.2 cm. |
| |
Download Datasheet
Product Details | |
|
