| Featured Space and Satellite Products |
|
|

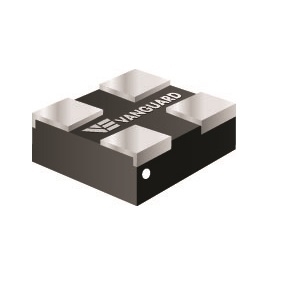

| 38 µH Space Qualified Power Inductors | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S60060 from Vanguard Electronics is a Space Qualified Inductor with inductance value of 38 µH. This power inductor has a tolerance of +/- 12 % and is thermally stable inductance within 2% over operating temperature range. This space-qualified power inductor features tin-lead terminations and internal welded terminations. It is designed for filter inductors, ripple suppressors, common mode chokes, isolation transformers, power supplies, DC/DC converters and SEPIC converter applications. |
| |
Download Datasheet
Product Details | |
|
|
|

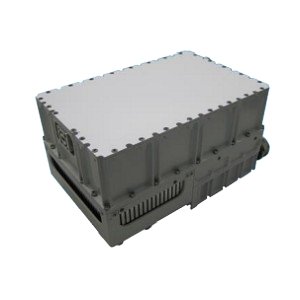

| 20 W Ka-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACTX-Ka20W-Ex-V4 from ACORDE is a Block Upconverter with an input frequency range of 950-2000 MHz and an output frequency range of 27.5-31 GHz. It has a spurious of less than -60 dBc and phase noise of up to -95 dBc/Hz (100 kHz). It measures 200 x 130 x 100 mm (DC version), and 200 x 130 x 110 mm (AC version). It is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|
| Reaction Wheel for Attitude Control of CubeSats | |
Reaction Wheel
from AAC Clyde Space
|
| The RW400 from AAC Clyde Space is a Reaction Wheel that is specifically designed for 6-12U CubeSat platforms. It has a maximum torque of +/- 8 mN.m and a total momentum storage of up to +/- 50 mNms. It requires a DC supply of 2.3-5.25 V. The reaction wheel has an internal fire-and-forget controller that frees up the host processor’s workload. It has a mass of 375 g and measures 50 x 50 x 27 mm. The reaction wheel is ideal for attitude control of CubeSats and other small platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TLR-8.15 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 7.9-8.4 GHz and an output frequency range of 0.95-1.45 GHz. The test loop translator requires an input supply voltage of 90-250 VAC and has a power consumption of 40 W. It has a mass of 4.5-6.4 Kg and measures 19 x 1.75 x 20 inches. This translator is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|

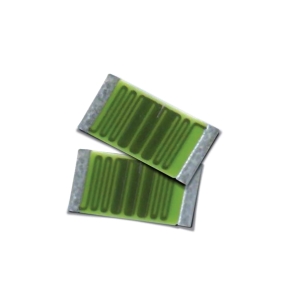

| 10 KOhm to 50 MOhms Military Grade High Voltage Chip Resistors | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (0603) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 200 ppm/ degrees C. It has a power rating of 60 mW and a voltage rating of 400 V. It has a tolerance range of 0.1-20% and the parts are packed in accordance with EIA-481 tape and reel specifications. This surface mount resistor measures 1.6 x 0.79 x 0.51 mm and is ideal for military, electronic warfare and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 23.1 V Lithium-Ferrite Modular Battery System for Small Satellites | |
Satellite Battery
from Berlin Space Technologies
|
| The BAT-110 from Berlin Space Technologies is a Satellite Battery with a nominal voltage of 23.1 V and a capacity of 172 Wh. This flight-proven battery has a design life of 5 years of LEO and is radiation tested to 30 kRad. It is protected for over charging (non-destructive) tolerant against deep discharge (non-destructive) and offers cell balancing. The battery has a mass of 3 kg and measures 240 x 119 x 87 mm³. It is a Lithium-Ferrite (Li-Fe) Cells Battery System that is ideal for small satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

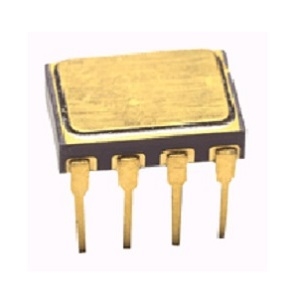

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8981001 from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. This surface-mount optocoupler has a capacitance value of 4 pF and a power dissipation of 50 mW. It has an output voltage of 20 V and an output 40 mA. It is designed for military and aerospace, high reliability systems, microprocessor system interface, transportation, medical, and life critical systems, isolated input line receiver, and EIA RS-232-C line receiver. |
| |
Download Datasheet
Product Details | |
|
|
|
| 15 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB3050153 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 15000 µF. This capacitor has a direct current leakage of 210 µA to 2.10 mA. It has a voltage rating of 50 V and a surge voltage of 55 V. It has a mass of 61 g and measures 1.0 x 1.0 x 0.620 (L x W x H) inches. This space-qualified capacitor is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|
| 750 W Ku-Band Antenna Mount HPA for Satellite Applications | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5375 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 12.75-14.80 GHz. This system has a TWT output power of 750 W. It has a spurious of less than -60 dBc and a phase noise of less than -50 dBc. It features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, Ethernet, SMP and Webpage GUI interfaces. The amplifier system weighs 21 Kg and measures 520 x 260 x 260 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Block Downconverter with Fixed Local Oscillators | |
Low Noise Block
from Orbital Research
|
| The BDCKUFIXEDLO from Orbital Research is a Ku-band Block Downconverter with an input RF frequency of 10.7-12.75 GHz and an output RF frequency of 950-3000 MHz. It has an LO leakage of up to -45 dBm. This RoHS/REACH-compliant LNB has a low phase noise of -112 dBc/Hz (10 MHz) with high gain antennas and exceptional image rejection. This Ku-band BDC is designed for commercial and military SATCOM applications including large hub antenna, earth stations and SATCOM-on-the-move. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.6-2.3 GHz Ceramic Balun for WCDMA Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS4-232+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 1600-2300 MHz. It has an impedance ratio of 4 and a maximum insertion loss of 1 dB. It has an impedance value of 50 Ohms and a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. This RoHS-compliant balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for applications such as WLAN, WCDMA and PCS applications. |
| |
Download Datasheet
Product Details | |
|
|
|

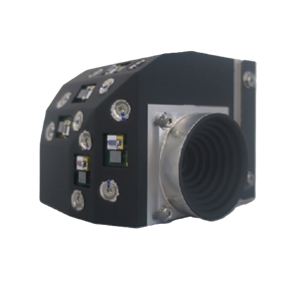

| Multi-Sensor ADCS Module for Satellite Constellations | |
ADCS System
from D-Orbit
|
| The D-Sense from D-Orbit is a Multi-Sensor ADCS Module that can track the position of the sun, the earth’s horizon, the magnetic field and the angular rate of the spacecraft. It consists of photodiodes for sun sensing, thermopiles for earth horizon sensing, a magnetometer for earth magnetic field sensing, a gyroscope for angular rate sensing, and a camera for photos, videos and star tracking. It has a mass of less than 200 g and the module measures 70 x 70 x 55 mm. It is ideal for satellite constellations. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.4 Meter Motorized Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 2433 Celero from Sat-Lite Technologies is a SATCOM flyaway antenna that supports multi-band C, X and Ku-band frequencies. It features a 2.4 meters glass fiber reflector which is configured as 4-piece segmented that is designed to provide exceptional performance in a lightweight package. The antenna has a continuous azimuth of +/- 200 degrees. It has a reflector mass of 61.8 kg and measures 51 x 50.5 x 13 inches. This SATCOM antenna is ideal for commercial defense and industrial applications. |
| |
Download Datasheet
Product Details | |
|
|
|

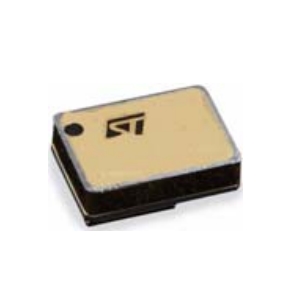

| 45 V Radiation Hardened Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS1045HR from STMicroelectronics is a Space Qualified Diode with a repetitive peak reverse voltage of 45 V and a forward current of 2 x 10 A. It has a forward surge current of 200 A and a low forward voltage drop of 0.75 V. It has a reverse current of up to 100 µA and a junction capacitance of 500 pF. It has a maximum reverse voltage rise rate of 10 kV/μs and comes in a SMD 5 ceramic hermetic package with a mass of 2 g. The schottky rectifier diode ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|

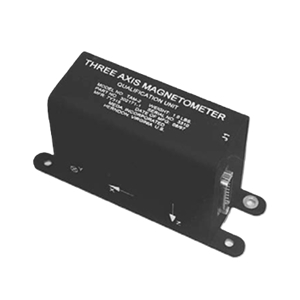

| Magnetometer for Satellite Attitude Determination and Control | |
Magnetometer
from MEDA
|
| The TAM-2 from MEDA is a Three-Axis Magnetometer with a field range of ±1000 mG and a frequency response of greater than 60 Hz. It has a voltage range of ±10.000 VDC (unbiased). It has a linearity of 0.05% of full scale and an angular maximum alignment of 0.25 Deg. It requires a supply voltage of 21-38.6 V and a current of 20 mA. It has a mass of 0.5 Kg and measures 44.5 x 143 x 76.2 mm. It is suitable for a broad range of spacecraft attitude determination and control applications. |
| |
Download Datasheet
Product Details | |
|
