| Featured Space and Satellite Products |
|
|

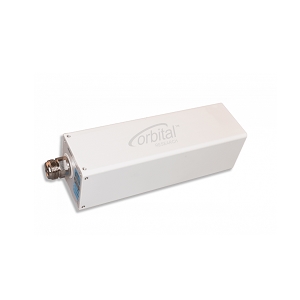

| 19.2-21.2GHz Ka-Band Low Noise Block | |
Low Noise Block
from Orbital Research
|
| The Ka ISO from Orbital Research is a Low Noise Block with an input RF frequency of 19.2-21.2GHz and an IF frequency of 950-1950 MHz. This Ka-band LNB provides a bandwidth of up to 1000 MHz and has a noise figure of 1.4 dB. It has a gain of 60 dB. This LNB has an image rejection value of -40 dBm and has a P1dB compression value of 10 dBm. It has a mass of 485 g and measures 128 x 44 x 44 mm. This LNB is designed for commercial and military satellite communication (SATCOM) applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| On-Board Computer for Microsatellites | |
Satellite On-Board Computer (OBC)
from SPUTNIX
|
| The SX-SBOX-OBC-01 from SPUTNIX is a Satellite On-Board Computer (OBC) that has an EEPROM with a capacity of 1 Mbit for storing bootloader images 16 MB MRAM for storing the main program image and for standard memory during operation. It features a radiation-resistant 32-bit microprocessor based on the SPARC v8 architecture of the Leon4FT core, operating at 80 MHz as the main computing device. It measures 171 x 111 x 51 mm. It supports a CAN interface and is designed for microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|

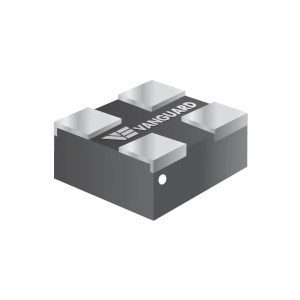

| 4.7 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS102 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 4.7 mH. This transformer has a turns ratio of 1:50 and requires a primary voltage of 40 V. It has a direct current resistance of 1.2 ohms. It has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 12 A. The SCS102 is built to meet MIL-STD-981 specifications and is outgassing compliant as per ASTM E595. It comes in a surface mount package and measures 0.410 × 0.410 × 0.240 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1 KOhm Space Qualified Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 1K3A351 from Variohm Eurosensor is a Space Qualified Temperature Sensor with beta value of 3892 K and a resistance of 1000 Ohm. It has a time response of less than 25 sec (in air) and dissipation constant of 2 mW/degree C. It features a robust epoxy coated chip with copper leads. The sensor is ideal for satellite electric motors, monitoring of gearboxes in satellites, Control panel monitoring, temperature compensation, battery power packs, panel temperature measurement and monitoring of actuators. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Beacon Receiver for Antenna Tracking Systems | |
Satellite Beacon Receiver
from SatService
|
| The sat-nms LBRX-1MT from SatService is a Satellite Beacon Receiver that measures the RF input level and provides the information as an output signal for control systems. This receiver has a full L-band tuning range of 950-2050 MHz and a 1 KHz step size. It has an input level measurement range of -30 to -80 dBm and measurement bandwidths of 6, 12, 30, and 100 kHz. The beacon receiver has a minimum C/No of 45 dBHz and a damage level of 10 dBm. It has an analog output voltage range of 0-10 V. |
| |
Download Datasheet
Product Details | |
|
|
|

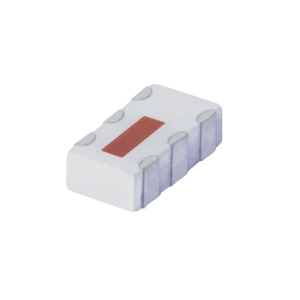

| 3.9-9.8 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-3500 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 3900 to 9800 MHz. This high pass filter has a stop band rejection loss of 20-30 dB and a pass band insertion loss of 1.5-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 3500 MHz and a maximum RF power input handling capacity of 7 W. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

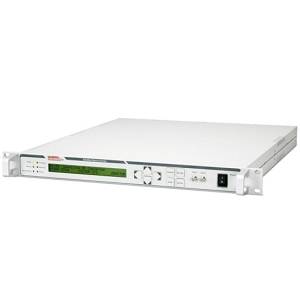

| 19.7-20.10 GHz Ka-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-Ka1Ka1T / VSCD-Ka1Ka1T from WORK Microwave is a Block Downconverter that has an input RF frequency range of 19.7-20.10 GHz and an intermediate frequency of 2140-2150 MHz. This Ka-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -108 dBc/Hz. It has an impedance of 50 Ohms and an input/output return loss greater than 20 dB. The BDC has an operational input level of -45 dBm. It has an image rejection of greater than 80 dB and a noise figure less than 12 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

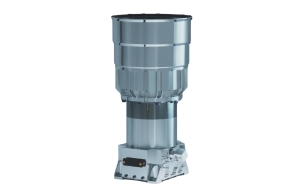

| 1 M Pixel Space detection & Navigation Camera | |
Satellite Camera
from Sodern
|
| The HICAM from Sodern is a Satellite Camera with a camera resolution of 1024 x 1024 pix. It has a programmable integration time of 240μs-30s and a sun exclusion angle of 26 degs. It supports rebounded spacewire link interface and has an embedded 1 GB SDRAM memory. It has a design life of 7 years in LEO and 15 years in GEO. This ITAR-free camera has high robustness and a magnitude up to 12 with a specific cooling system. This camera is designed for space detection, navigation, SSA and SDA missions. |
| |
Download Datasheet
Product Details | |
|
|
|

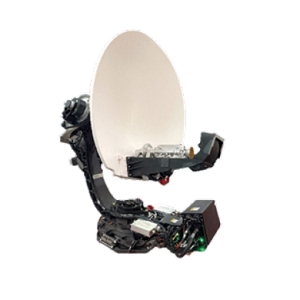

| 13.75-14.50 GHz X-band 1.15 m Ruggedized Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 Mil Ku from Orbit Communication Systems is a Space-Qualified Satellite Terminal with an Ku-band transmitter frequency range of 13.75-14.50 GHz and a receiver frequency range of 10.95-12.75 GHz. It has a HOR/VER electrically switchable polarization control. The terminal has a continuous azimuth range of -30° to +120°. It features simultaneous operation or automatic switching of dual and multiple bands and incorporates a patented algorithm that enables seamless MEO/LEO satellite handover. |
| |
Download Datasheet
Product Details | |
|
|
|

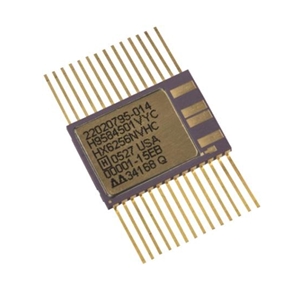

| 32K x 8-bit Monolithic Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6256 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 32K x 8-bit memory. This monolithic static RAM is a high performance 32,768 word x 8-bit static random access memory that is fabricated with Honeywell’s radiation hardened technology with a 150 angstrom gate oxide. It has a write access time of 25 ns and a storage capacity of 8 Mb. This static RAM has an average output current of 25 mA. The SRAM is designed for use in systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4900-6000 MHz Ceramic Balun for Radar Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS1-63+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 4900-6000 MHz. This ceramic balun has an amplitude unbalance of 0.3 dB and a phase unbalance of 5 degrees. It has an insertion loss of 1 dB and a maximum RF power rating of 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant balun is suitable for WLAN, WIMAX, 802.11, Radar and ISM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

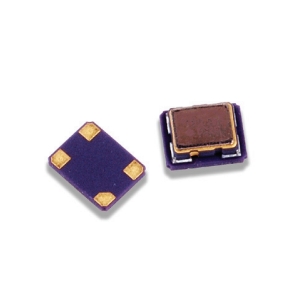

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C31 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 0.50 ppm. This crystal oscillator requires a DC supply voltage of 3.3 V and a supply current of 2 mA. The oscillator has an SSB phase noise of up to -150 dBc/Hz . It produces clipped sine wave with an output voltage of 1 V peak-to-peak. This oscillator comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

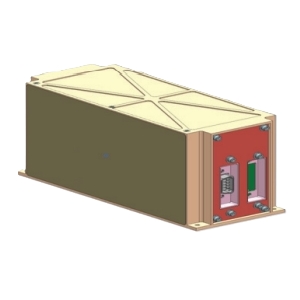

| Digital Miniature Magnetometer for Spacecraft Attitude Determination | |
Magnetometer
from Antrix Corporation Limited
|
| The Digital Miniature Magnetometer from Antrix Corporation Limited is a Triaxial Digital Miniature Magnetometer that has a dynamic measurement range of ± 60 µT and an accuracy of ± 30 nT. It requires a supply voltage of 14-16 V. It has a mass of 500 g, measures 182 x 72 x 92 mm and is ideal for spacecraft attitude determination, measuring the earth’s magnetic field along the yaw, roll, and pitch axes of the spacecraft and has been used in several remote sensing satellites and small satellites of ISRO. |
| |
Download Datasheet
Product Details | |
|
|
|

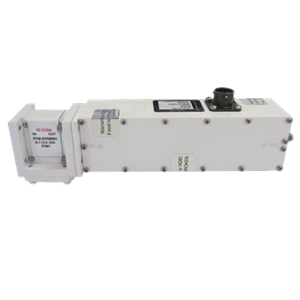

| 10.7-12.75 GHz Ku-Band Low Noise SATCOM Amplifiers | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The LKR12S65 from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 10.7-12.75 GHz. It has a gain of up to 66 dB and a gain flatness of ±0.5 dB over the full band. It has gain stability of ±0.5 dB for long term and a maximum input power of -20 dBm. This amplifier has an AM/PM conversion of 0.05 degrees/dB and has a maximum VSWR of 1.20:1. It utilizes HEMT and GaAs FET technology these amplifiers have been designed for both fixed and transportable applications. |
| |
Download Datasheet
Product Details | |
|
|
|

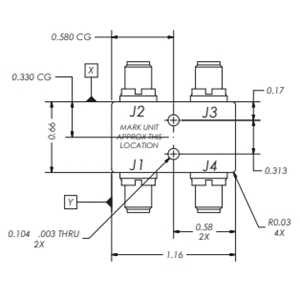

| 2000-2400 MHz Hybrid Coupler for Space Applications | |
Space Qualified Coupler
from Mercury Systems
|
| The S6118 from Mercury Systems is a Space Qualified Coupler with a passband range of 2000-2400 MHz. This hybrid coupler has a insertion loss of 0.3 dB and a isolation of greater than 20 dB. It has a VSWR of 1.25:1 and a phase balance of 90° ± 2°. This hybrid space-qualified coupler has a strip-line design with a power handling capacity of less than 20 W. This X- band coupler has a mass of 42.5 g and measures 0.50 x 0.66 x 1.16 inches. It is ideal for high reliable booster/space applications. |
| |
Download Datasheet
Product Details | |
|
