| Featured Space and Satellite Products |
|
|

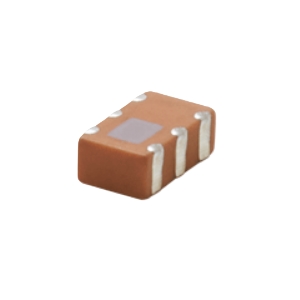

| 2.3-2.7 GHz Ceramic Balun for WLAN Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS4-272+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 2300 to 2700 MHz. This ceramic balun has an amplitude unbalance of 0.3 dB and a low phase unbalance of 5 degrees. The balun has an impedance value of 50 Ohms and a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. This RoHS-compliant balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for applications such as WLAN, WIMAX/WIBRO, MMD and Radar applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5 MP Satellite Monitoring Camera for CubeSats | |
Satellite Camera
from Crystal Space
|
| The Crystalspace Micro Camera System from Crystal Space is a Satellite Camera with a Camera Pixel VGA of 0.3-5 MP. It has a nominal power consumption of 0.5 W and a peak power consumption of 240 mW. This satellite monitoring camera supports SpaceWire, CAN, RS-485, RS-422, UART, USB, I2C, and SPI interfaces. It qualifies for IPC-A-610 Class 3 assembly standards. It has a mass of 50 g and measures 45 x 45 x 25 mm. It is ideal for densely packed satellites starting from CubeSats (for taking pictures of the Earth) to large satellites (monitoring cameras). |
| |
Download Datasheet
Product Details | |
|
|
|

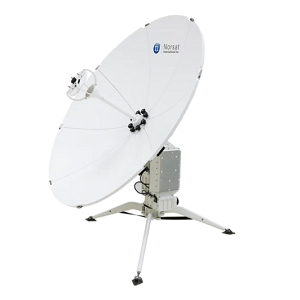

| 1.2 m Ku-Band Auto Flyaway Antenna | |
Satellite Terminal
from Norsat
|
| The WFA120KU-NA from Norsat is a Satellite Terminal with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. This Ku-band antenna has an Rx gain of 41.5 dBi and a Tx gain of 42.8 dBi. The antenna has a cross-polarization on the axis of greater than 35 dB and has an operational wind rating of 36 km/h. It requires an AC supply voltage of 110-230 V and has a power consumption of 550 W. It measures 84.5 x 62 x 49 cm. The antenna is ideal for remote enterprise, energy, emergency, media and other commercial applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2-Terminal Radiation Hardened Temperature Transducer | |
Space Qualified Temperature Sensor
from Renesas
|
| The ISL73590SEH from Renesas is a Space Qualified Temperature Sensor that is designed to measure temperatures in the range of -55°C to 125°C and also capable of operating up to +150°C. This sensor’s 50 krad (Si) low dose rate (ELDRS) shift is less than 1°C. It has a high output impedance provides excellent rejection to variations in the supply line with linear output current of 1μA/K. It is an ideal choice for RF power amplifier bias compensation, LCD bias compensation, laser diode bias compensation, sensor bias and linearization and data acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|

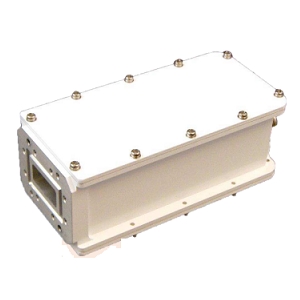

| X-Band Low Noise Block with Internal Isolator | |
Low Noise Block
from Orbital Research
|
| The Orbital X-MIC from Orbital Research is a Low Noise Block with an input RF frequency of 7.25 to 7.75 GHz and an output frequency of 0.95 to 1.45 GHz. This X-band LNB with integrated isolator provides a bandwidth of up to 0.500 GHz and has a noise figure of 0.8 dB. It has a gain of 60 dB and has a gain ripple value of ± 0.5 dB. This LNB has an image rejection value of 40 dBc and has a P1dB compression value of 15 dBm. It requires a DC supply of 12-28 V and has a power consumption of 3.8 W. This RoHS-compliant LNB has a mass of 750 g and measures 70 x 55 x 146 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

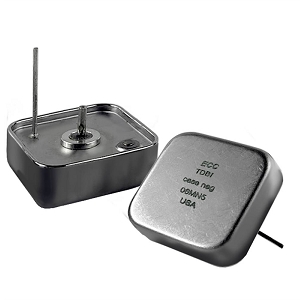

| 2.1 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1080212 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 2100 µF. This RoHS-compliant capacitor is rated for greater than 2000 hrs and utilizes sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte. It comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. This tantalum based hybrid capacitor is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|
| On-Board Computer Module for Attitude and Orbit Control | |
Satellite On-Board Computer (OBC)
from Tensor Tech
|
| The AOCS-MCB from Tensor Tech is a Satellite On-Board Computer (OBC) that uses Cortex-M7 processor on FPGA and has an SDRAM memory of 1-8 GB DDR4 with ECC and 2 Mb MRAM. It has a 4 Gb microSD memory and has embedded with orbit control and constellation control algorithms. It requires a supply voltage of 5 V and has a current consumption of 0.5 A. The OBC has a MIL-STD-1553 qualified system with real-time sensors/actuators management and measures 100 x 100 x 20 mm. It is designed for attitude and orbit control and estimation algorithms. |
| |
Download Datasheet
Product Details | |
|
|
|
| 750 W DBS-Band Antenna Mount HPA for Satellite Applications | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5475 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 17.3-18.4 GHz. It has an input/output VSWR less than 1.3:1 and a harmonic less than -60 dBc. This CE-compliant amplifier system requires an AC supply voltage of 200-240 V and has a maximum power requirement of 2450 VA. It features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, Ethernet, SMP and Webpage GUI interfaces. The amplifier system weighs 21 Kg and measures 520 x 260 x 260 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-6.19 KOhms Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The EGN-10-80 from Vishay is a Space Qualified Resistor with a resistance range of 0.1-6.19 K Ohm. This resistor has a power rating of 7 W and a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It features a complete welded construction and is high-temperature silicone coated. This resistor is MIL-PRF-39007 qualified and incorporates a complete welded construction. It is coated with high temperature silicon coating and is available in non-inductive styles. This wire wound resistor from Vishay has a mass of 3.6 g and measures 0.875 x 0.375 x 0.040 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

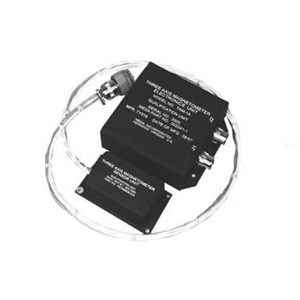

| Three-Axis Satellite Magnetometer for Space and Military Satellites | |
Magnetometer
from MEDA
|
| The TAM-1 from MEDA is a Magnetometer with field range of ± 1000 mG and a linearity of ± 0.05%. It has a frequency response of DC to 60 Hz and an accuracy of 1 %. The magnetometer has a sensitivity of 10.0 mV/mG (unbiased) and 2.5 mV/mG (biased). It requires an input DC voltage of 21-36 V and a current consumption of 40-54 mA. The magnetometer has a mass of 770 g and measures 5.23 x 14.02 x 16.38 cm. It is a space qualified magnetometer in which the sensor can be located outside the satellite platform and is ideal for space and military satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TLR-6.25 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 5.85-6.65 GHz and an output frequency range of 0.95-1.75 GHz. It has an LO frequency of 4.9 GHz and an impedance of 50 Ohms. It supports an RS-485 or RS-422 serial interface and a 10/100 Base-T ethernet interface. The test loop translator requires an input supply voltage of 90-250 VAC. It measures 19 x 1.75 x 20 inches. The translator is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.12-1.1 µH Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE483PYA series from Coilcraft are space-qualified inductors with an inductance range of 0.12-1.1 µH and an inductance tolerance of ± 20%. These inductors have a DC resistance of 1.6-13.1 mΩ and a saturation current of 17.1-45 A. They feature a self-resonant frequency range of 40-165 MHz and an RMS current of 7.5-20.3 A. The inductors use tin-lead (Sn-Pb) terminations for optimal board adhesion and comply with NASA low outgassing specifications. It has a mass ranging from 0.36-0.49 g and dimensions of 0.258 × 0.250 × 0.083 inches (L × H × W). |
| |
Download Datasheet
Product Details | |
|
|
|

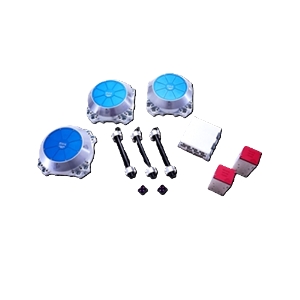

| 50 mNms Attitude Control System (ACS) for 6U CubeSats | |
ADCS System
from Blue Canyon Technologies
|
| The FLEXCORE from Blue Canyon Technologies is an Attitude Control System (ACS) that is designed for use in 6U CubeSats for LEO orbits with a spacecraft lifetime greater than 5 years. It has a momentum storage of 50 mNms per axis and a maximum torque value of up to 0.025 Nm. It consists of a powerful processing core coupled with reaction wheel assemblies and provides precise attitude knowledge and control. It has a pointing accuracy of ±7 arcsec for 3 axes and requires a DC supply of 28 V which supports an RS-422 interface. It measures about 12.1 x 11.4 x 4.9 cm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 200 W X-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACTX-X200W-E1-V1 from ACORDE is a Block Upconverter with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. This block upconverter has an L-band input VSWR of less than 1.5:1 and an X-band output VSWR of less than 1.3:1. It has a gain of greater than 75 dB and a minimum P1dB value of 53 dBm. The converter has a spurious of less than -60 dBc. The converter is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|
| 700-1100 MHz Ceramic Balun for GPS Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS1-112+ from Mini Circuits is a Space Qualified RF Balun with a frequency range of 700-1100 MHz. This ceramic balun has an amplitude unbalance of 0.01-021 dB and a phase unbalance of 0.16-8.41 degrees. It has an insertion loss of 1.12-1.56 dB and a maximum RF power rating of 3 W. The RF balun features a cost-efficient and aqueous washable design with LTCC construction. This space-qualified balun has a mass of 0.008 g and measures 0.079 x 0.049 x 0.028 inches. This RoHS-compliant balun is suitable for WCDMA, PCS and GPS applications. |
| |
Download Datasheet
Product Details | |
|
