| Featured Space and Satellite Products |
|
|
| ESCC Qualified Thin-film Temperature Sensors | |

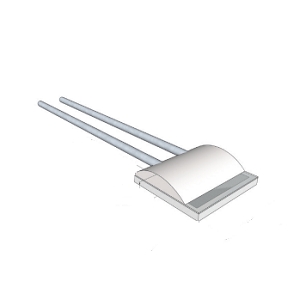

Space Qualified Temperature Sensor
from Innovative Sensor Technology AG
|
| The 4006015-02 from Innovative Sensor Technology AG is a Space Qualified Temperature Sensor with a resistance of 100 Ohms. It has a maximum operating current of 1 A and has a maximum rated current of 4 A. This ESCC qualified Hi-Rel thin-film temperature sensor measures 2.0 x 2.2 x 1.1 mm and is connected to 10 mm platinum wires. The platinum wires are designed to be processed including brazing, resistance-welding, laser-welding, crimping and TIN-soldering. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75–14.5 GHz Ku-Band Manpack Satellite Terminal | |

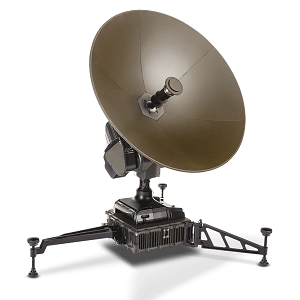

Satellite Terminal
from Gilat Satellite Networks
|
| The ST1500Ku from Gilat is a Ku-Band Manpack Satellite Terminal that supports a transmit frequency range of 13.75–14.5 GHz and a receive frequency range of 10.7–12.75 GHz. The antenna with a linear polarization has a diameter of 60 cm. The terminal measures 76 x 68 x 80 cm. It is ideal for government agents and warfighters to accomplish their missions, offering rapid connectivity to data, voice and telephony, even under the harshest conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The 7-1617529-1 from TE Connectivity is a Space Qualified General Purpose Signal Relay with double-pole relay supports switching currents of up to 5 A at 28 VDC. The relay operates with a coil voltage range of 6.3-110 VDC. It offers a typical operate time of 5 ms and a release time of 5 ms. The MIL-R-5757/10 qualified relay is hermetically sealed and weigh upto 17 g. It is ideal for for avionics, satellite systems and mission-critical applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| On-Board Processor for AI Processing and Edge Computing | |

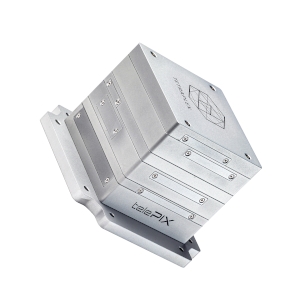

Satellite On-Board Computer (OBC)
from TelePIX
|
| The TETRAPLEX from TelePIX is a Satellite On-Board Computer (OBC) that uses 4-core RISC-V FPGA SoC and has a core frequency value of 667 MHz. It has 4 GB DDR4 memory with a mass storage of up to 128 GB. The OBP has a NVIDIA 1024-core embedded GPU and has Linux or RTOS as the operating system. This space qualified OBP has a mass of 500 g and measures 100 x 100 x 100 mm. It is designed for satellites facilitating in-space AI processing and edge computing. |
| |
Download Datasheet
Product Details | |
|
|
|
| 14.00-14.50 GHz Test Loop Translator for Satellite Communication | |
Test Loop Translator
from Jersey Microwave
|
| The KTLT-140145-117122-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 14.00-14.50 GHz and an output frequency range of 11.70-12.20 GHz. This test loop translator has an LO frequency of 2300 MHz and a minimum return loss of 18 dB. It has a spurious of -30 dBm. The test loop translator has a mass of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 V Dual DC-DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2812S from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage of 28 V. This converter has an output voltage of 12 V. It has an output power of up to 60 W and an output ripple of 30-100 mV p-p. The converter has a line regulation range of 0-20 mV and a load regulation of up to 20 mV. It measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, small size, and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|

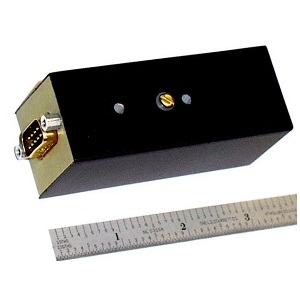

| Triaxial Fluxgate Magnetometer for Spacecrafts | |
Magnetometer
from Billingsley Aerospace and Defence
|
| The TFM100G2 from Billingsley Aerospace and Defence is a Magnetometer with a field measurement range of ± 100 μT. This magnetometer has an accuracy of ± 0.75% and a sensitivity of 100 µV/nT. It has a frequency response of 3 dB and a linearity of ± 0.015%. The magnetometer has an analog output of ± 0.025 V and requires an input supply voltage of 15-34 VDC. The magnetometer is ideal for spacecraft attitude control and general magnetic measurements. |
| |
Download Datasheet
Product Details | |
|
|
|
| 17-21.50 GHz GaAs Monolithic Low Noise Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA2050-QDG from United Monolithic Semiconductors is a Space-Qualified RF Amplifier that operates from 17.21-21.50 GHz and has a noise figure of 1.3 dB. It has a gain of 26 dB. This power amplifier has a drain bias voltage range of 4 V. It is developed with a pHEMT process and has SMD ROHS compliant QFN plastic package. This power amplifier is designed for a wide range of microwave systems, space and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2 W Ku-Band Block Upconverter for Communication Systems | |

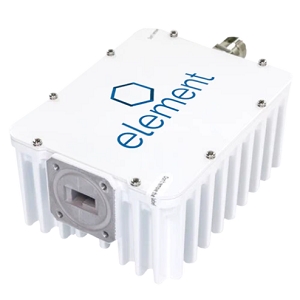

Block Upconverter
from Norsat
|
| The ELMTBKU002 from Norsat is a Block Upconverter with a transmit frequency range of 14–14.5 GHz (Standard) and 13.75–14.5 GHz (Extended). It has an IF frequency range of 950–1450 MHz (Standard). This BUC features an LO frequency of 13.05 GHz (Standard) with 12.08 GHz (Extended) and has a maximum linear gain of 60 dB. It has a gain flatness of less than 4.0 dB p-p (full band) and a saturated output power of 33.5 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Attitude Determination and Control System (ADCS) for CubeSats | |

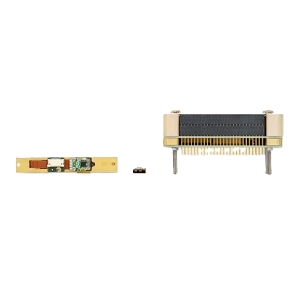

ADCS System
from Serenum Space
|
| The VAC02 ADCS from Serenum Space is a ADCS System is designed to provide high accuracy and precision attitude control for CubeSats with 1U and 3U form factor. It supports for operational modes such as stand by, B-dot, inertial pointing, sun pointing, nadir pointing and LLA target tracking. It also features compact solution with Cortex-M7 computer provides exceptional pointing awareness and performance for smaller CubeSats. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.8 mH Space Grade Gate Drive Transformer | |

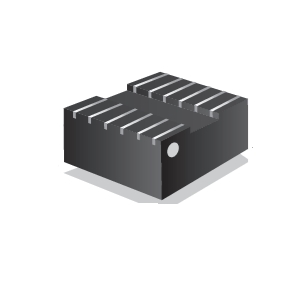

Space Qualified Power Transformer
from Vanguard Electronics
|
| The SGD301 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 2.8 mH. This transformer has a direct current resistance of 0.5 Ohms. It features tin-lead terminations and welded internal connections. It is built to meet MIL-STD-981 specifications and its compact, low profile makes it ideal for automatic placement. It is suitable for applications such as power supplies, DC/DC converters and SEPIC converters. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-4.8 GHz C-Band Satellite Downconverter | |

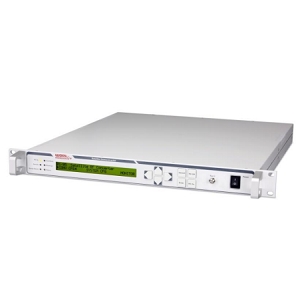

Block Downconverter
from WORK Microwave
|
| The VHCD-C1 / VSCD-C1 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 3.4-4.8 GHz and an LO frequency of 8.57-9.97 GHz. This C-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -110 dBc/Hz. It has an IF input impedance of 50 Ohms and an input/output return loss greater than 20 dB. The BDC has an operational input level of -45 dBm and a 1 dB compression point of greater than 10-13 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|

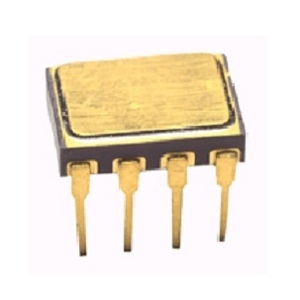

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8978501 from Broadcom is a Space Qualified Optocoupler with a withstand test voltage of 1500 VDC. It features a GaAsP light emitting diode that is optically coupled to an integrated high gain photon detector. It is designed for military and aerospace, high reliability systems, microprocessor system interface, transportation, medical, and life critical systems, isolated input line receiver, and EIA RS-232-C line receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| 60 W C-Band SATCOM Transceiver for VSAT Networks | |

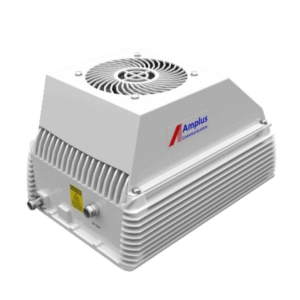

SATCOM Transceiver
from Amplus Communication
|
| The AM-9443 Series by Amplus Communication is a C-Band SATCOM Transceiver with a transmit frequency range of 5850-7025 MHz and a receive frequency range of 3625-4800 MHz. It has a transmit gain of 80 dB and a receive gain of 45 dB. It features built-in redundancy to minimize system loss and switching time and has a tricolor LED status indicator to identify the transceiver status. It measures 238 x 327 x 197 mm. It is ideally suited for crucial VSAT networks. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-20 MHz Space OCXO for GNSS modules Applications | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROD2522S2H from Rakon Limited is a Space Qualified Oscillator that synchronises its 1PPS and output clock to a specified 1PPS input signal from the GNSS system or the synchronization system output. It has a hysteresis value of 0.2 ppb. It requires a supply voltage of 3.3 V and measures 25.4 x 22.0 x 12.1 mm. It is ideal for edge grand masters, DU/CU/servers, cell-site routers, front-haul switches, NIC time cards, test equipment and GNSS modules applications. |
| |
Download Datasheet
Product Details | |
|
