| Featured Space and Satellite Products |
|
|

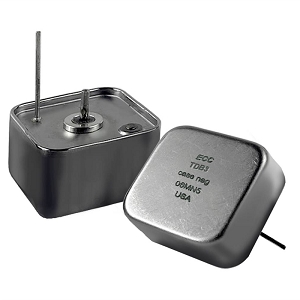

| 3.9 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB3100392 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 3900 µF. This capacitor has a direct current leakage of 100 µA to 1.00 mA and an equivalent series resistance of 60 mOhm. It has a mass of 65 g and measures 1.0 x 1.0 x 0.620 inches. The capacitor comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band to L-band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT790 from Peak Communications is a Test Loop Translator that translates an input X-band frequency of 7.9-8.4 GHz to an output L-band frequency of 950-1450 MHz. It has a maximum input power of 15 dBm and an output return loss of 15 dB. It has a conversion loss of 20 dB and a phase noise of up to -125 dBc/Hz. It features full alarm monitoring and an optional manual attenuator that is continuously variable from 0-30 dB. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analyzed. |
| |
Download Datasheet
Product Details | |
|
|
|

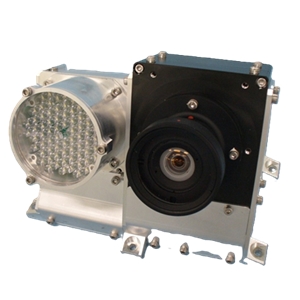

| Monitor Camera for Spacecraft Missions | |
Satellite Camera
from Meisei Electric
|
| The Monitor Camera for Satellite by Meisei Electric is a Satellite Camera that consists of a camera, floodlight, and camera controller. It is optimized for satellite-mounted component visualization and the camera controller to take pictures of deployments of satellite-mounted solar battery paddles and antennas. The camera supports still and video imaging with JPEG output and operates in both bright and shadowed areas using floodlight lighting. It features a 1/3.3-inch CMOS sensor. Its modular components weigh between 600-3500g and is ideal for various satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2-2.2 GHz Ceramic Balun for GSM Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The TCN4-22+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 1200-2200 MHz. This ceramic balun has an amplitude unbalance of 0.6 dB and a low phase unbalance of 10 degrees. It has an impedance ratio of 4 and a maximum insertion loss of 1 dB. It has an impedance value of 50 Ohms and a maximum RF power rating of up to 5 W. It features LTCC construction and is aqueous washable. This RoHS-compliant balun has a mass of 0.02 g. It is suitable for applications such as GSM, CDMA, GPS, DECT, PCN, PCS and ISM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 650 W Ka-Band Antenna Mount HPA for Satellite Applications | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5565P from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31.0 GHz. This Ka-band amplifier system has a TWT output power of 650 W and a gain greater than 70 dB. This amplifier system requires an AC supply voltage of 100-240 V and has a maximum power requirement of 1500 VA. It features an advanced cooling design that enables operation at +60°C and in direct sunlight and supports RS485, RS232, Ethernet, SMP and Webpage GUI interfaces. The amplifier system weighs 21 Kg and measures 520 x 254 x 254 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 144 Mb Radiation Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS2644KV18 from Infineon Technologies is a Space Qualified Memory with storage capacity of 144 Mb density and 4M × 36 configuration with two-word burst mode. It features separate independent read and write data ports for concurrent transactions and DDR interfaces on both read and write ports. It requires a power supply voltage of 1.7-1.9 V and an I/O supply voltage of 1.4-1.5 V. The SRAM is available in a 165-ball Ceramic Column Grid Array (CCGA) and measures 21 × 25 × 2.83 mm. It is suitable for applications such as radar and on-orbit image processing. |
| |
Download Datasheet
Product Details | |
|
|
|

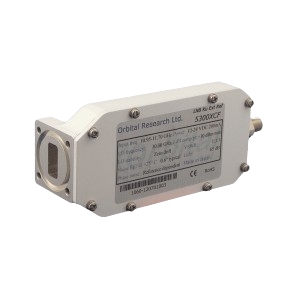

| 10.95-11.70 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1000S-750X-WN60 from Orbital Research is a Low Noise Block with an input frequency of 10.95-11.70 GHz and an output frequency of 950-1700 MHz. This Ku-band LNB has a noise figure of 0.7 dB and a gain of 60 dB. It has an MTBF of more than 175k hours and has a P1dB compression value of 10 dBm. It requires a DC supply of 12-24 V and has a current consumption of 220 mA. This external reference LNB is enhanced to provide superior gain flatness and noise figure. This RoHS and REACH complaint LNB is built for fixed or mobile satellite communications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 30 mNms Reaction Wheel for 6-12U CubeSats | |
Reaction Wheel
from Rocket Lab
|
| The 30 mNms RW-0.03 from Rocket Lab is a Reaction Wheel that has a momentum range of 0.03-0.04 Nms and a torque of ±0.5 to ±2 mNm. This CubeSat reaction wheel has a built-in control CPU for speed and torque control that supports UART or I2C/SMBus command or telemetry interface. It requires a supply voltage of 3.4-8 V and a supply power of 0.1-1.8 W. The space-qualified reaction wheel features diamond-coated hybrid ball bearings and has a radiation tolerance of greater than 20 krad. It has a mass of 185 g and measures 50 x 50 x 40 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

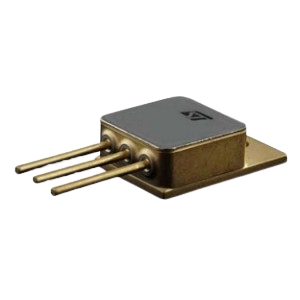

| 100 V Radiation Hardened Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS40100HR from STMicroelectronics is a Space Qualified Diode with a repetitive peak reverse voltage of 100 V and a forward current of 2 x 20 A. This Schottky rectifier diode has a forward surge current of 300 A and a low forward voltage drop of 0.9 V. It has a reverse current of up to 30 µA and a junction capacitance of 1 nF. The diode is screened to comply with the ESCC5000 specification and has a thermal resistance of upto 1.5 °C/W. It has a maximum reverse voltage rise rate of 10000 V/µs. The schottky rectifier diode ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.0 Meter Carbon Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1021 AGILIS from Sat-Lite Technologies is a SATCOM Antenna with a transmit frequency range of 7.9-31 GHz and a receive frequency range of 7.25-21.2 GHz. It has a mid-band transmit gain of 36.3-47.7 dB and a receiver gain of 35.7-44.4 dB. This flyaway antenna has a maximum axial ratio of 1.5 dB and a cross-polarization of up to -35 dB. It has an isolation of -110 to -85 dB. It has an azimuth of +/-180 degrees continuous and a reflector size of 100 cm. This Intelsat and Eutelsat-compliant antenna is ideal for commercial and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.5-40 GHz Dual-Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K5R44W+ from Mini Circuits is a Space Qualified Coupler designed for lab testing and power monitoring over wide band applications. It has an operating frequency range of 0.5 to 40 GHz. It has a coupling value of 10 dB and a coupling flatness of ±1-1.4 dB. This wideband dual-directional coupler has a directivity of 11-30 dB and a mainline loss of 1.6-5.0 dB. It requires a DC current supply of 0.56 A and has a power handling capability of 16 W. The coupler has a mass of 195 g and is ideal for 5G, mobile, fixed satellite and lab applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.5 Ah Spacecraft Battery for LEO Applications | |
Satellite Battery
from Saft
|
| The 4S1P VES16 from Saft is a Satellite Battery with a design life of up to 12 years in low-earth orbit (LEO). This satellite battery comes with a battery capacity of 4.5 Ah and has a nominal energy range of 64 Wh. It requires a voltage range of 13.2-16.4 V and has a charging voltage of 16.1 V. This compact hermetically-sealed satellite battery features a stainless steel casting with circuit breaker at cell level and is hermetically sealed. This Li-ion cell has a mass of 0.7 Kg and measures 90.5 x 84.1 x 77 mm. It is designed for microsats, nanosats and low-earth orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Rad Hard N-Channel Enhancement Mode MOSFET | |
Space Qualified MOSFETs
from STMicroelectronics
|
| The STRH100N10 from STMicroelectronics is a Space Qualified MOSFETs that has a drain-source voltage of 100 V and a continuous drain current of 30-48 A. It is developed using STripFET technology and has a pulsed drain current of 192 A. This MOSFET has a radiation tolerance TID of up to 50 krad and is 100% avalanche-tested. It has a gate source voltage of ±20 V and a gate source threshold voltage range of 1.5-5.5 V. This ESCC 5205/021-certified N-channel power MOSFET with a total gate charge of 108-162 nC and measures 20.32 x 13.84 x 6.7 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

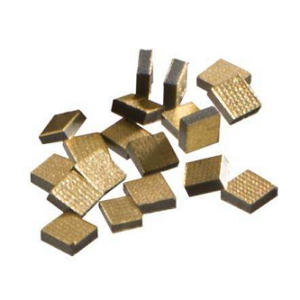

| 3 KOhm Space-Qualified Gold Chip Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 3K3CG503 from Variohm Eurosensor is a Space-Qualified Temperature Sensor with a nominal resistance value of up to 3000 ohms and a tolerance of +/-5%. It possesses excellent stability with MEAS ceramic. This ESA/ESCC Space Qualified Gold Chip NTC Thermistors has a flight heritage of 20 years. It is available with a large selection of Resistance vs Temperature Curves, and resistance values at 25°C. This temperature sensor is ideal for satellite camera systems, satellite telecom systems, temperature compensation and control panel monitoring. |
| |
Download Datasheet
Product Details | |
|
|
|

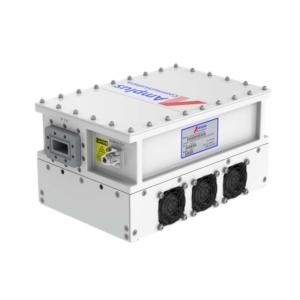

| 100 W C-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from Amplus Communication
|
| The AM-9338 100 W from Amplus Communication is a Block Upconverter with an input frequency of 950-1525 MHz and an output frequency of 5.85-6.425 GHz. It has an LO frequency of 4.9-7.375 GHz and a gain of 80 dB. It requires a AC voltage supply of 200-240 V and has a power consumption of 570 W. This block upconverter weighs 10 Kg and measures 300 x 200 x 150 mm. It is designed to support RS-232 and RS-485 interfaces for monitoring and control. The block upconverter is ideal for high power BUCs for VSAT and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
