| Featured Space and Satellite Products |
|
|

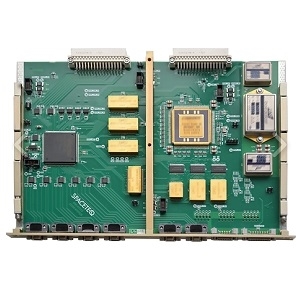

| On-Board Computer for Microsatellites & LEO Spacecraft | |
Satellite On-Board Computer (OBC)
from Spaceteq
|
| The OBC-GR712 from Spaceteq is a Satellite On-Board Computer (OBC) that is based on Cobham Gaisler GR712RC, a dual-core LEON 3FT 32-bit SPARC processor that has 256 Mbyte EDAC-protected SDRAM. It has an on-board telemetry which has a memory of 256 kbyte MRAM and EEPROM. It has a mass of 0.350 kg and measures 233 x 160 x 15.1 mm. This OBC supports the RS-422, CAN and UART interfaces which is designed for microsatellite operations and low-earth orbit spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
|

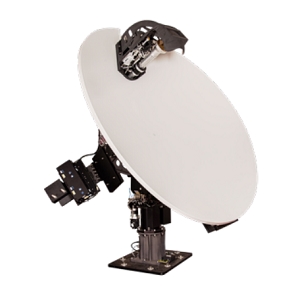

| C-band Maritime Stabilized VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 7 C from Orbit Communication Systems is a Satellite Terminal that has a RHCP/LHCP electrically switchable polarization control and a system G/T of 17 dB/Deg K. It features an electronics field replaceable units (FRUs) for streamlined maintenance with advanced WEB-UI monitoring, diagnostics and troubleshooting capabilities. The terminal weighs less than 600 Kg and measures 2.7 × 2.6 m. It was designed for connectivity between satellites in GEO/MEO/LEO constellations. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-6.04 KOhms Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The ESN-5 from Vishay is a Space Qualified Resistor with a resistance range of 0.1-6.04 K Ohm. This wirewound resistor has a power rating of 5 W. It has a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It features a complete welded construction and is high-temperature silicone coated. The space-qualified resistor has a mass of 4.2 g and measures 0.875 x 0.312 x 0.040 inches. This space-qualified resistor is MIL-PRF-39007 qualified ensuring military/established reliability. |
| |
Download Datasheet
Product Details | |
|
|
|

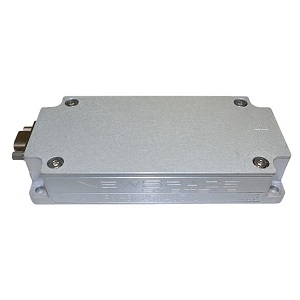

| Three-Axis Magnetometer for Satellites | |
Magnetometer
from NewSpace Systems
|
| The NMRM-Bn25o485 from NewSpace Systems is a Magnetometer with a measurement range of +/- 60 µT and a resolution of less than 8 nT. The magnetometer supports the RS-485 data interface and has a radiation tolerance TID of up to 10 krad. The magnetometer is suitable for the calculation of magnetorquer rods control torque levels, attitude determination sensors when used with an IGRF reference model and angular rate determination sensor by comparing successive measurements. |
| |
Download Datasheet
Product Details | |
|
|
|

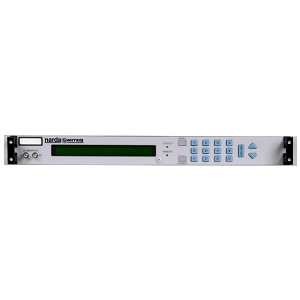

| 3.4-4.2 GHz Block Downconverter for Satellite Communication | |
Block Downconverter
from Narda-MITEQ
|
| The D-10001-1-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 3.4-4.2 GHz and an output frequency of 70 MHz. It has a frequency step size of 1 kHz and an input impedance of 50 Ohms. This frequency downconverter has an input return loss of 18 dB and an output return loss of 20 dB. It has a minimum power output of 16 dBm and an output impedance of 75 Ohms. It is designed for advanced SATCOM systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|

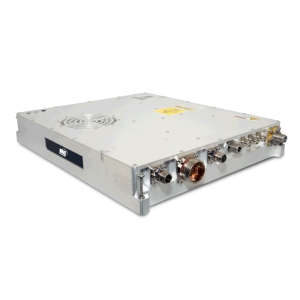

| 40 W Ku-Band SATCOM Transceiver | |
SATCOM Transceiver
from Gilat Satellite Networks
|
| The WTUE-040A01 from Gilat Satellite Networks is a SATCOM Transceiver with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. It has a phase noise of up to -122 dBc/Hz (transmit) and -122 dBc/Hz (receive). The transceiver requires an AC power supply of 115 V and has a power consumption of 350 W. It has a mass of 9.5 Kg and measures 45 × 34.5 × 6.6 cm. The transceiver is airborne-qualified for commercial and military satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Integrated Attitude Determination and Control System | |
ADCS System
from Tensor Tech
|
| The ADCS-10m from Tensor Tech is a ADCS System with maximum torque of 5 deg/s and an control accuracy of 0.4 deg. It has a maximum momentum of 13 mNms and a slew rate of 5 deg/s. The ADCS is designed with variable-speed, single-gimbal control moment gyroscope optimizing the torque-to-power-ratio. It requires a nominal voltage of 3.3-5 V and a power consumption of 2.7 W. The ADCS system has a mass of 440 g and measures 94 x 92 x 73.5 mm. It is ideal for satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5-11 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-4600 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 5000-11000 MHz. This filter has a stop band rejection loss of 20-30 dB and a pass band insertion loss of 1.5-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. The filter has a frequency cut-off of 3 dB at 4600 MHz and a maximum RF power input handling capacity of 7 W. This RoHS-complaint filter is suitable for applications such as sub-harmonic rejection and transmitters/receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

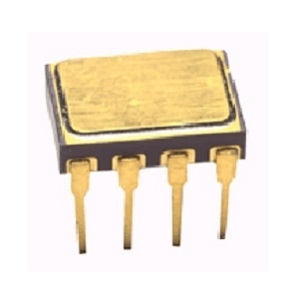

| 3.3 V Hermetically Sealed High Gain Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-0822702K from Broadcom is a Space Qualified Optocoupler with a forward voltage range of 1-1.8 V and an insulation leakage current of 1 µA. This high gain optocoupler has a capacitance value of 4 pF and a power consumption of 50-200 mW. It is designed for military and aerospace, telephone ring detection, microprocessor interface, transportation, medical, and life critical systems, isolated I/O line receiver, voltage level shifting and logic ground isolation applications. |
| |
Download Datasheet
Product Details | |
|
|
|

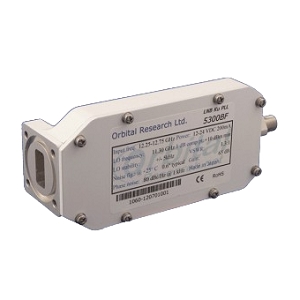

| 11.7-12.2 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1075S-500P-WN60 from Orbital Research is a Low Noise Block with an input frequency of 11.7-12.2 GHz and an output frequency of 950-1450 MHz. This Ku-band LNB has a noise figure of 0.7 dB and a gain of 60 dB. It requires a DC supply of 12-24 V and has a current consumption of 200 mA. This external reference LNB is enhanced to provide superior gain flatness and noise figure. This RoHS and REACH complaint LNB complaint LNB is built for fixed or mobile satellite communications. |
| |
Download Datasheet
Product Details | |
|
|
|

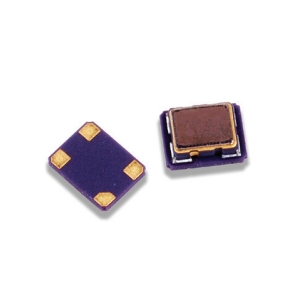

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C32 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 0.50 ppm. It has a low period jitter of 3-5 ps rms. The oscillator has an SSB phase noise of up to -150 dBc/Hz and a start-up time of 10 ms. It produces clipped sine wave with an output voltage of 1 V peak-to-peak. This oscillator comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

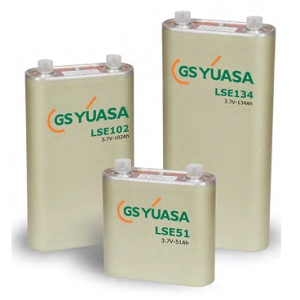

| Lithium Ion Cells For LEO Missions | |
Satellite Battery
from GS Yuasa Lithium Power
|
| The LSE51 from GS Yuasa Lithium Power is a Space qualified Li-ion Satellite cell with a capacity of 51 Ah and a nominal energy range of 189 Wh. It has an energy density of 289 Wh/L and has a specific energy of 139 Wh/kg. The battery requires a nominal voltage range of 3.7-4.1 V and a maximum continuous charge current of 25.5 A. The battery features a predictable capacity retention with long life cycle. It has a mass of 1.52 Kg. This hermetically sealed energy type cells are ideal for LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|

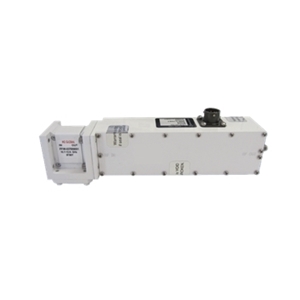

| 10.95-12.75 GHz Ku-Band Low Noise SATCOM Amplifiers | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The LKE12S70 from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 10.95-12.75 GHz and a noise temperature of 70 K. This Ku-band amplifier system has a gain of up to 66 dB and a gain flatness of ±0.5 dB over the full band. It has a gain stability of ±0.5 dB for long-term and a maximum input power of -20 dBm. These RoHS-compliant amplifier system measures 200.7 x 57.4 x 44.5 mm and designed for both fixed and transportable applications. |
| |
Download Datasheet
Product Details | |
|
|
|

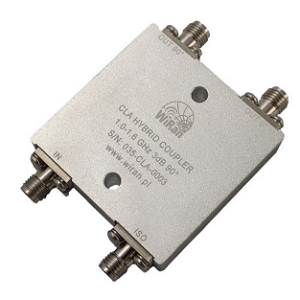

| 1-1.6 GHz L-Band Hybrid Coupler for Nanosatellites | |
Space Qualified Coupler
from WiRan
|
| The CLA from WiRan is a Space Qualified Coupler with an operating frequency range of 1-1.6 GHz. This hybrid coupler has a nominal split 3.01 ± 0.3 dB and an insertion loss of less than 0.4 dB. The coupler has a return loss of greater than 20 dB and has a power handling capacity of less than 30 W. This coupler has a mass of 60 g and allow for easy and reliable splitting of an input RF signal equally between two output ports with a 90 degree phase shift. It is ideal for nanosatellites applications. |
| |
Download Datasheet
Product Details | |
|
|
|

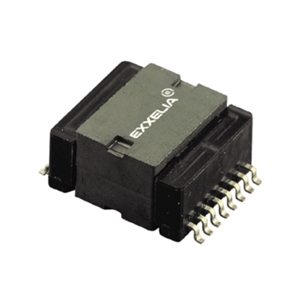

| 22.5 µH SMD Power Inductor for Space Applications | |
Space Qualified Inductor
from Exxelia Technologies
|
| The CCM 5 22K 1W from Exxelia Technologies is a Space Qualified Inductor with an inductance of 22.5 µH and an inductance tolerance of +/- 5/10 %. It has a DC resistance of 37 mOhm. The inductor features Epoxy Transfer molding technology and a ferrite core external assembly. It has an SMD package weighing 7.5 g which is designed to withstand severe environments such as space, avionics and New Space applications and is ideal for energy storage, filtering and smoothing applications. |
| |
Download Datasheet
Product Details | |
|
