| Featured Space and Satellite Products |
|
|
| 3 mH Space Grade Gate Drive Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SGD302 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 3.0 mH. This transformer has a direct current resistance of 0.5 Ohms and a dielectric withstanding voltage of 300 V. It has a turns ratio of 1:1:1:1:1 and requires an ET reference voltage of 75 V. It is available in a through-hole package that measures 0.750 × 0.750 × 0.475 inches and is suitable for applications such as power supplies, DC/DC converters and SEPIC converters. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified On Board Computer | |
Satellite On-Board Computer (OBC)
from C3S Electronics Development
|
| The On-Board Computer (OBC) from C3S Electronics Development is a Satellite On-Board Computer powered by a 32-bit ARM Cortex-M7 processor operating at 300 MHz. It has a program memory of 2 MB and a data memory of 384 kB that delivers a computing performance of up to 642 DMIPS. It measures 92 x 89.5 x 13.6 mm. It was designed for the space and satellite applications and has acquired flight heritage with the launch of RadCube mission. |
| |
Download Datasheet
Product Details | |
|
|
|

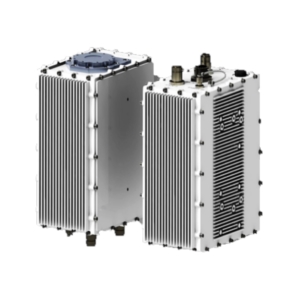

| 10 W X-Band GaN Transceiver for SATCOM Applications | |
SATCOM Transceiver
from Communications & Power Industries
|
| The TR61 from Communications & Power Industries is a SATCOM Transceiver with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. It has a transmit/receive phase noise (SSB) of up to -112 dBc/Hz. It requires an input power supply of 22-56 V and has a maximum power consumption of 120 W. The transceiver has a mass of 3.18 kg and measures 174.0 x 170.5 x 109.0 mm. It is ideal for satellite communications applications. |
| |
Download Datasheet
Product Details | |
|
|
|

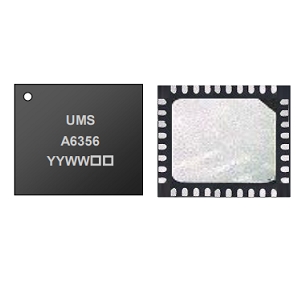

| 21.2-23.6 GHz GaAs Monolithic Power Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA6356-QXG from United Monolithic Semiconductors is a Space-Qualified RF Amplifier that operates from 21.2-23.6 GHz and has a noise figure of 4.5 dB. It has a gain of 20 dB and an output power 2 W. This power amplifier has a drain bias voltage range of 6.5 V and a drain current of 1.3 A. It is developed with a pHEMT process and has SMD ROHS compliant QFN plastic package. It is designed for Point-To-Point Radio and K-band satcom application. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10.7-12.75 GHz Ku-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-KX-109A from ETL Systems is a Block Downconverter that converts an input frequency of 10.7-12.75 GHz to an output frequency of 1100-2150 MHz. It has field replaceable redundant configuration and local control and monitoring via HMI touchscreen. It has typical applications include teleports and Earth stations, satellite operations, government and defense, telemetry, tracking and command, and high resilience applications. |
| |
Download Datasheet
Product Details | |
|
|
|

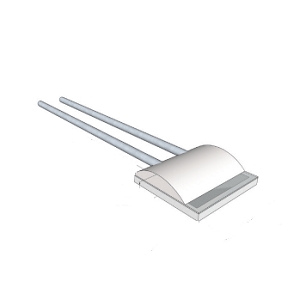

| ESCC Qualified Thin-film Temperature Sensors | |
Space Qualified Temperature Sensor
from Innovative Sensor Technology AG
|
| The 4006015-03 from Innovative Sensor Technology AG is a Space-Qualified Temperature Sensor with a resistance of 200 Ohms. It has a maximum operating current of 0.7 A and has a maximum rated current of 2.8 A. This ESCC qualified temperature sensor measures 2.0 x 2.2 x 1.1 mm and is connected to 10 mm platinum wires. The platinum wires are designed to be processed including brazing, resistance-welding, laser-welding, crimping and TIN-soldering. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|

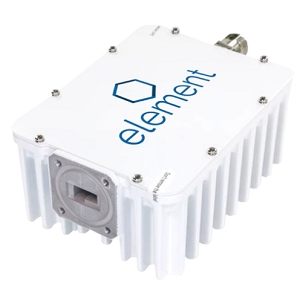

| 3 W Ku-Band Block Upconverter for Communication Systems | |
Block Upconverter
from Norsat
|
| The ELMTBKU003 from Norsat is a Block Upconverter with a transmit frequency range of 14–14.5 GHz (Standard) and 13.75–14.5 GHz (Extended). It has an IF frequency range of 950–1450 MHz (Standard) and 950–1700 MHz (Extended). It has an output spurious of less than -60 dBc and an input/output VSWR of 2.0:1. It requires an input voltage of 15–24 V DC, and has a maximum current of 1.3 A and a power consumption of 20 W. It weighs 700 g. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25 mm Space Camera for Monitoring and In-orbit Servicing | |
Satellite Camera
from Sodern
|
| The Auricam D35 from Sodern is a Satellite Camera with a camera resolution of 2048 X 2048 pixel. This camera requires a supply of 4.6-6 V which has a power consumption of less than 2W. It has a design life of 7 years in LEO and 15 years in GEO. This ITAR-free camera has high robustness and a magnitude of 6-8 object 1 m. This 44" pixel angular resolution camera is designed for space surveillance and detection (SSA, SDA), In-Orbit Services and Navigation. |
| |
Download Datasheet
Product Details | |
|
|
|
| 512K x 8-bit Monolithic Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6408 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 512K x 8-bit memory. It operates over the full military temperature range. It is available with CMOS compatible I/O ports. The memory cell is single event upset hardened with multi layer metal power busing and small collection volumes of SOI provide superior single event effect and dose rate hardening. It is designed for use in systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 15 V Dual DC-DC Converter for High Reliability Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2815S from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage of 28 V. This converter has an output voltage of 15 V and an output current of up to 4.33 A. It has an output power of up to 60 W and an output ripple of 30-110 mV p-p. It has a line regulation range of 0-20 mV and a load regulation of up to 20 mV. It measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, small size, and high efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hermetically Sealed Non-Latching Relay | |
Space Qualified Solid State Relay
from FIRST SwitchTech
|
| The 317 2RT from FIRST SwitchTech is a Space Qualified Solid-State Relay that operates at a frequency of 400 Hz. This relay system has a resistive load rating of 15 A. It has a low-level contact rating of 2 mA and an insulation resistance of greater than 100 Mohm. It has an operating voltage range of 6-130 V (direct current) and 115-122 V (alternating current). It weighs 42-46 g and is suited for several market sectors such as space, military aeronautics and railways. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band to L-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TLR-29.75 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 29.25-30.00 GHz and an output frequency range of 0.95-1.70 GHz. It has an LO frequency of 28.3 GHz and an impedance of 50 Ohms. It has a noise figure of 15-25 dB and a phase noise of up to -120 dBc/Hz. The test loop translator is designed for SATCOM applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

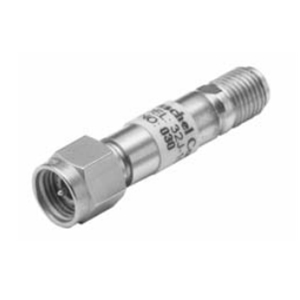

| 8 dB Space-Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32J-8 from Spectrum Control is a Space-Qualified Fixed Attenuator with a frequency range of DC to 32.0 GHz. It has a nominal impedance of 50 Ohms and a standing wave ratio of 1.25. The attenuator has a mass of 8 g and features a passivated stainless steel body and connectors with gold-plated beryllium copper contacts. It is designed to meet the environmental requirements of MIL-DTL-3933 and is suitable for space and airborne applications. |
| |
Download Datasheet
Product Details | |
|
|
|

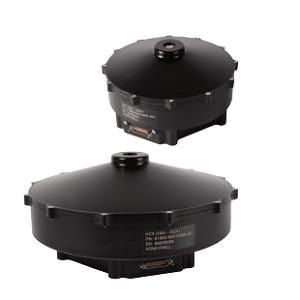

| 0.2 Nm Torque Reaction Wheel for Small Satellites | |
Reaction Wheel
from Honeywell Aerospace
|
| The HC7 from Honeywell Commercial is a Satellite Reaction Wheel that is designed for small satellites with a mission life of about 7 years and a storage life of about 2 years. It supports RS 422 digital bus interface for speed and torque command and has high-output, low-jitter performance for precision position and pointing control, plug-and-play ACS insertion, minimized vehicle integration time and application scalable optimization. It measures 105 x 200 mm in dimension. |
| |
Download Datasheet
Product Details | |
|
|
|
| 98 cm Elliptical Satellite Antenna System for SATCOM Applications | |
SATCOM Antenna
from C-COM
|
| The FLY-98H from C-COM is a SATCOM Antenna with a transmit frequency range of 29.5-30 GHz and a receive frequency range of 19.2-20.2 GHz. It has an elevation range of 0-90 degrees and an azimuth range of +/- 175 degrees. It has a reflector mass of 28.6 Kg and measures 109 x 109 x 29 cm. It is ideally suited for industries such as oil & gas, military communications, disaster management, SNG, emergency communications backup and cellular backhaul. |
| |
Download Datasheet
Product Details | |
|
