| Featured Space and Satellite Products |
|
|

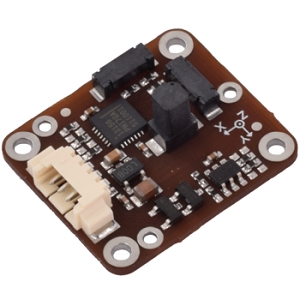

| Low Noise Magnetometer for Attitude Determination Systems | |
Magnetometer
from GomSpace
|
| The NanoSense M315 from GomSpace is a Magnetometer with a measurement range of +/- 800 µT and a temperature measurement accuracy of +/1 Degree C. It has a maximum sample frequency of 140 Hz and a linearity of 0.5%. This three-axis magnetometer requires a supply voltage of 3.2-5 V and a supply current of 0.1-2.5 mA. It has a mass of 8g and measures 23 x 20 x 8 mm. This magnetometer is designed especially for nano-satellites and is used for satellite attitude determination and detumbling. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-40 GHz Space-Qualified Directional Coupler | |
Space Qualified Coupler
from KRYTAR
|
| The 101040010-SQ from KRYTAR is a Space Qualified Coupler with an operating frequency range of 1-40 GHz. The coupler has a frequency sensitivity range of ±1.2-1.52 dB and has standard 2.92 mm female connectors. It has a mass of 36.85 g and measures 2 x 0.40 x 0.65 inches. The coupler is ideal for space, electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, EMC testing environments and broadband applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8 m Ku-Band Auto Fly-Away Satellite Terminal | |
Satellite Terminal
from Norsat
|
| The WFA180KU-NA from Norsat is a Satellite Terminal with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. It has an automatic 3-axis acquisition and a manual backup pointing operation. It has a cross-polarization on the axis of greater than 35 dB. It requires an AC supply voltage of 110-230 V and has a power consumption of 400 W. It has a mass of up to 50 kg and measures 121 x 44 x 68 cm. It is ideal for remote enterprise, energy, emergency and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Attitude Control System (ACS) for 6U CubeSats | |
ADCS System
from Blue Canyon Technologies
|
| The XACT-100 from Blue Canyon Technologies is an Attitude Control System (ACS) that is designed for 6U CubeSats for LEO orbits with a spacecraft lifetime greater than 5 years. It has a momentum storage of 100 mNms per axis and a maximum torque value of 0.006 Nm. It has a pointing accuracy of ±0.003 deg for 2 axes and ±0.007 deg for 3rd axis with a slew rate of 10 deg/sec. It has a low-jitter reaction wheel design and user-friendly software that supports simulation, integration and customization. |
| |
Download Datasheet
Product Details | |
|
|
|

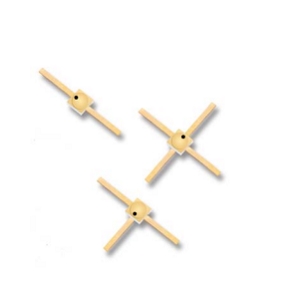

| 500-600 mV Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DMJ2303 from Skyworks is a Space Qualified Diode with a frequency range of 2-8 GHz. This diode has a forward voltage of 500-600 mV. It has a power dissipation of 75 mW/junction and a resistance of up to 5 Ohms. This diode has a total capacitance of 0.60 pF and a reverse breakdown voltage of 4 V. It features low noise and low intermodulation distortion. This Schottky barrier mixer has a ceramic hermetic package and is suitable for applications in microwave integrated circuits, mixers and detectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.25-12.75 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1130S-500P-WN60 from Orbital Research is a Low Noise Block with an input frequency of 12.25 to 12.75 GHz and an output frequency of 950-1450 MHz. This Ku-band LNB has a noise figure of 0.7 dB and a gain of 60 dB. It requires a DC supply of 12-24 V and has a current consumption of 200 mA. It measures 124 x 60 x 22 mm. This RoHS and REACH complaint LNB compliant LNB is built for less demanding phase noise application such as consumer video, broadband or DVB-S2 and DVB-S2X waveforms. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|
| 600-1200 MHz Ceramic Balun for GSM Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The TCN2-122+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 400-1200 MHz. It has an impedance ratio of 2 and a maximum insertion loss of 1 dB. The balun has an impedance value of 50 Ohms and a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. This balun has a mass of 0.02 g and measures 0.12 x 0.06 x 0.037 inches. It is suitable for applications such as GSM, WCDMA and ISM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8876902 from Broadcom is a space-qualified optocoupler with a forward voltage range of 1.0-1.8 V and an insulation leakage current of 1 µA. It has a low output voltage of 0.5 V. This single-channel optocoupler is available in an 8-pin DIP package measuring 10.03 x 8.13 mm and is designed for military and space, transportation, high-speed line receiver, isolated bus driver, pulse transformer replacement, ground loop elimination and computer-peripheral interface applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 400 W X-Band Rack Mount TWTA for Satellite Applications | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STR1240 from Spacepath Communications is a SATCOM Amplifier System that has a frequency range of 7.9-8.4 GHz. It has a TWT output power of 400 W and a minimum gain of 70 dB. This amplifier system has a transmit/receiver band noise power of -70 dBW/4 kHz. It has an input/output VSWR of 1.3:1 and a phase noise of -50 dBc. It requires a voltage supply of 99-265 V and has a maximum power requirement of 1500 VA. It has a mass of 25 Kg and measures 653.3 x 483.6 x 174 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75-14.35 GHz Test Loop Translator for Satellite Communication | |
Test Loop Translator
from Jersey Microwave
|
| The KTLT-137145-109117-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 13.75-14.35 GHz and an output frequency range of 10.95-11.55 GHz. The test loop translator supports RS-422 and RS-485 interfaces and features an auto-switchover of external references. It requires a supply voltage of 90-260 V AC and has a power consumption of up to 25 W. The translator is designed for testing the SATCOM between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|

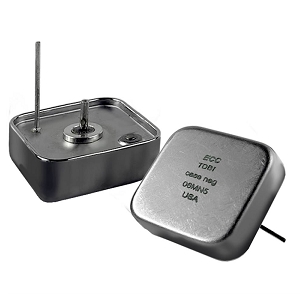

| 1.3 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1100132 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 1300 µF. It has a voltage rating of 100 V. It has a mass of 35 g and measures 1.0 x 1.0 x 0.329 (L x W x H) inches. The capacitor comes in a hermetically sealed welded tantalum case and is qualified to NASA EEE-INST-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 V/kWhr Lithium-Ion Battery for Spacecraft Operations | |
Satellite Battery
from Ibeos
|
| The B50-1000 from Ibeos is a Satellite Battery with a BOL capacity of 1000 Whr and a typical cell temperature rise with a 2C discharge rate of 15 deg C. It has a radiation tolerance TID of up to 30 kRad (Si) and a Single Event Effect rating LET of greater than 55. The battery features over-voltage and under-voltage built-in protection. It has aluminum and PEEK packaging that enables robust mechanical and thermal spacecraft interfacing. The battery has a mass of 7.5 Kg and measures 84 x 252 x 280 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| Spacecraft Reaction Wheel for LEO Missions | |
Reaction Wheel
from Surrey Satellite Technology
|
| The SSW-110-NLX-1500 from Surrey Satellite Technology is a Reaction Wheel with a design life of 7.5 years in low-earth orbit. This reaction wheel has a torque of 11 mNm and angular momentum of 1.5 Nms. It has a maximum speed of 5000 rpm. It requires a DC voltage of 24.1-35 V and has a maximum power consumption of 113 W. The reaction wheel has a mass of 2.6 Kg and measures Ø128 x 124 mm. It has a radiation tolerance TID of less than 5 krad at wheel electronics and is suitable for LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|

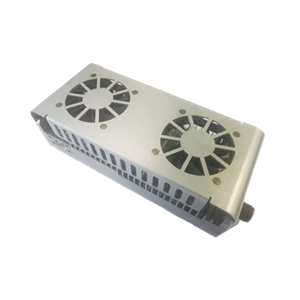

| 25 W Ka-Band Block Upconverter for SATCOM applications | |
Block Upconverter
from KMIC Technology
|
| The KMU275300B01-25 from KMIC Technology is a Block Upconverter that converts an input IF frequency of 950-2000 MHz to an output RF frequency of 27.5-30.0 GHz. This GaN-based BUC has a switchable LO frequency and an input/return loss of 15 dB. It has a linear power of 12 W and features a small size and a wide band switchable output. The converter weighs 1.3 Kg and measures 200 x 85 x 60 mm. The block upconverter is ideal for high-power BUCs for VSAT and SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V N-Channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLG77110 from Infineon Technologies is a space-qualified N-channel power MOSFET that has a drain-source voltage of 100 V and a continuous drain current of up to 1.8 A. It has a radiation tolerance TID of up to 100 krad with an advanced R7 logic-level technology and has a pulsed drain current of 7.2 A. It has a total gate charge of 11 nC and a gate input resistance of 10 ohm. The MOSFET has a mass of 1.3 g and is ideal when used to interface directly with most logic gates, linear IC’s and micro-controllers. |
| |
Download Datasheet
Product Details | |
|
