| Featured Space and Satellite Products this Week |
|
|
| 600-1200 MHz Ceramic Balun for GSM Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The TCN2-122+ from Mini Circuits is a space-qualified RF Balun with a wideband frequency range of 400-1200 MHz. This ceramic balun has an amplitude unbalance of 0.3 dB and a low phase unbalance of 4 degrees. It has an impedance ratio of 2 and a maximum insertion loss of 1 dB. It has an impedance value of 50 Ohms and a maximum RF power rating of up to 3 W.This RoHS-compliant balun has a mass of 0.02 g and measures 0.12 x 0.06 x 0.037 inches. It is suitable for applications such as GSM, WCDMA, and ISM applications. |
| |
Download Datasheet |
Product Details | |
|
|
|

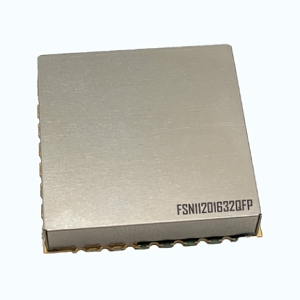

| 16-32 GHz Programmable Low-Noise Microwave Frequency Synthesizer | |
Space Qualified Frequency Synthesizer
from ReliaSat
|
| The FSN11201632QFP from ReliaSat is a Programmable Low-Noise Microwave Frequency Synthesizer with a frequency range from 16 to 32 GHz. It delivers an output power of -10 to 2 dBm. This frequency synthesizer requires a DC supply of 3.3-5 V and has a current consumption of 150-350 mA. It is available in a surface-mount package that weighs 4 g and measures 25.40 x 25.40 x 6.35 mm. This frequency synthesizer is ideal for satellite communications, radar, mobile communications, and 5G applications. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Space Asset Monitoring Camera | |
Satellite Camera
from Infinity Avionics
|
| The SelfieCam from Infinity Avionics is a small-form-factor satellite camera, TRL 9, space asset monitoring camera with demonstrated flight heritage through numerous space missions. It features a field of view of up to 110 degrees. The camera can capture and save images in non-volatile memory with an onboard storage of 500 images. The camera has a mass of 10 g and measures 50 mm x 30 mm in dimensions. It is designed with ease of integration and operation in mind, providing on-orbit imaging capability to your mission. |
| |
Download Datasheet |
Product Details | |
|
|
|

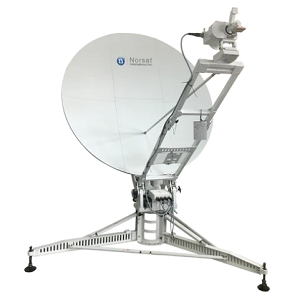

| 1.8 m Ku-Band Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA180KU-EU from Norsat is a SATCOM Antenna with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. The antenna has a cross-polarization on the axis of greater than 35 dB and has an operational wind rating of 36 km/h. It requires an AC supply voltage of 110-230 V and has a maximum power consumption of 550 W. It has a mass of 22-30 kg and measures 84.5 x 62 x 49 cm. The antenna is ideal for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet |
Product Details | |
|
|
|
| GNSS Receiver for LEO & GEO Orbits | |
GNSS Receiver
from General Dynamics Mission Systems
|
| The Sentinel M-Code GPS Receiver from General Dynamics Mission Systems is a Space-Qualified GNSS Receiver that is designed for LEO, GEO, MEO, and HEO applications. It has a DC power consumption of about 9 W for LEO and 8 W for GEO orbits. This M-Code receiver has 32 Channels, L1 and L2 signals, and C/A, P(Y), and modernized M-Code, with an optional L2C civil signal. It provides near real-time position, velocity, and time measurements. This GNSS receiver has a mass of 2.5 Kg and measures 180 x 160 x 160 mm. |
| |
Download Datasheet |
Product Details | |
|
|
|
| Attitude Control System (ACS) for 6U CubeSats | |
ADCS System
from Blue Canyon Technologies
|
| The XACT-100 from Blue Canyon Technologies is an Attitude Control System (ACS) that is designed for 6U CubeSats for LEO orbits with a spacecraft lifetime greater than 5 years. It has a momentum storage of 100 mNms per axis and a maximum torque value of 0.006 Nm. It has a pointing accuracy of ±0.003 deg for 2 axes and ±0.007 deg for 3rd axis with a slew rate of 10 deg/sec. The XACT-100 requires a DC supply of 12 V and supports an RS-422 interface. This ACS system has a mass of 1.38 Kg and measures 100 x 100 x 50 mm. |
| |
Download Datasheet |
Product Details | |
|
|
|
| 50 V/kWhr Li-Ion Battery for Spacecraft | |
Satellite Battery
from Ibeos
|
| The B50-1000 from Ibeos is a Satellite Battery with a BOL capacity of 1000 Whr and a typical cell temperature rise with a 2C discharge rate of 15 deg C. It has a radiation tolerance TID of up to 30 kRad (Si) and a Single Event Effect rating LET of greater than 55 (survive). The battery features over-voltage and under-voltage built-in protection. It has aluminum and PEEK packaging that enables robust mechanical and thermal spacecraft interfacing. The battery module has a mass of 7.5 Kg and measures 84 x 252 x 280 mm. |
| |
Download Datasheet |
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

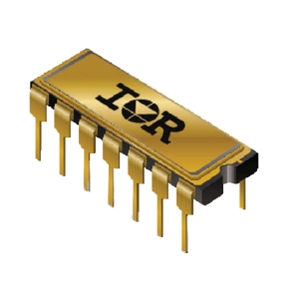

| 100 V N-Channel Rad-Hard Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLG77110 from Infineon Technologies is a space-qualified N-channel power MOSFET that has a drain-source voltage of 100 V and a continuous drain current of up to 1.8 A. The MOSFET has a gate source voltage of ±10 V and a gate source threshold voltage range of 1-2 V. It has a total gate charge of 11 nC and a gate input resistance of 10 ohms. The MOSFET has a mass of 1.3 g and is ideal when used to interface directly with most logic gates, linear ICs, and micro-controllers. |
| |
Download Datasheet |
Product Details | |
|
|
|

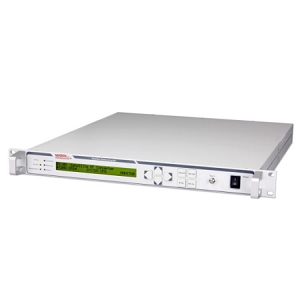

| 2.025-2.290 GHz S-Band Block Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-S / VSCD-S from WORK Microwave is a Block Downconverter that has an input RF frequency range of 2.025-2.290 GHz and an LO frequency of up to 2580 MHz. This S-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -112 dBc/Hz. The downconverter requires an input supply of 100-240 V AC and has a power consumption of 35 W. The converter features automatic reference recognition and an adjustable gain equalizer. It weighs 8.4 Kg and measures 483 x 44 x 505 mm. |
| |
Download Datasheet |
Product Details | |
|
|
|

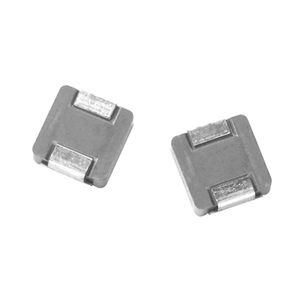

| 0.1-10 µH Space Grade Tin/Lead Shielded Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-2525CZ-L7 from Vishay is a Space-Qualified Inductor with an inductance range of 0.1-10 µH and an inductance tolerance of +/- 5 %. This tin/lead inductor has a direct current resistance of 1.35-97.71 mOhm and a self-resonant frequency of 16-400 MHz. It is suitable for tolerance DCR for current sense, PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery-powered devices, DC/DC converters in distributed systems, and DC/DC converters for FPGAs. |
| |
Download Datasheet |
Product Details | |
|
|
|

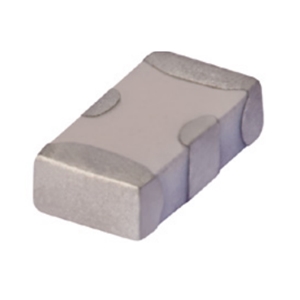

| 1.22-4.6 GHz LTCC High Pass RF Filter | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-1200 from Mini Circuits is a space-qualified RF Filter with a frequency range of 1220-4600 MHz. This high-pass filter has a stop band rejection loss of 20-40 dB and a pass band insertion loss of 1.3-2 dB. It has a stop band VSWR of 20:1 and a pass band VSWR of 1.5:1. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-compliant ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters/receivers, and lab use. |
| |
Download Datasheet |
Product Details | |
|
