| Featured Space and Satellite Products |
|
|
| High-Power Differential Phase Shifter For RF Devices | |
Analog Phase Shifter
from Scientific Microwave Corporation
|
| The WR187 from Scientific Microwave Corporation is a Analog Phase Shifter with a frequency range of 5.40-5.90 GHz. This waveguide component integrates a hybrid coupler with H-bends and a ferrite-loaded phase shifter section to enable accurate differential phase control for dynamic beamforming and signal steering. This phase shifter is ideal for high power industrial, scientific, radar systems and advanced communication platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| 8.4-12.5 GHz Passive GaAs MMIC Bandpass Filter | |
Space Qualified RF Filter
from Marki Microwave
|
| The MFBA-00004BH from Marki Microwave is a Passive MMIC Bandpass Filter with a passband from 8.4 to 12.5 GHz. It is designed using GaAs MMIC technology which allows the production of smaller filter constructions that replace larger form factor constructions and its tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. This MMIC filter is available in a connectorized housing that measures 30.1 x 9.5 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 Wh CubeSat Battery for LEO Missions | |
Satellite Battery
from AAC Clyde Space
|
| The OPTIMUS-40 from AAC Clyde Space is a Satellite Battery with a capacity of 40 Wh. This battery has a charge/discharge current of 2.6 A and a charge/discharge rate of 1.53 discharge voltage limit. It has a minimum discharge voltage limit of 6.2 V and a maximum charge voltage limit of 8.4 V. This battery is compatible with International Space Station deployment safety requirements and is optimized for low-earth orbit missions with a maximum altitude of 850 km. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26.5 V DPDT General Purpose Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The 7-1617529-1 from TE Connectivity is a Space Qualified General Purpose Signal Relay with double-pole relay supports switching currents of up to 5 A at 28 VDC. This signal relay operates with a coil voltage range of 6.3-110 VDC. It offers a typical operate time of 5 ms and a release time of 5 ms. The MIL-R-5757/10 qualified relay is hermetically sealed and weigh upto 17 g. It is ideal for avionics, satellite systems and mission-critical applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Three-Axis Magnetometer for CubeSat Missions | |
Magnetometer
from CubeSpace
|
| The CubeMag GEN 2 from CubeSpace is a three-axis magnetometer built for robustness and including a back-up sensor. The magnetometer has an update rate of 5 Hz with a radiation value of 24 k Rad. The magnetometer requires a supply voltage of 3.3 V. It has a mass of 16 g for the deployable module with a mass of 6 g for the compact module and measures 17 x 6.5 x 82 mm for the deployable module with 24 x 7.8 x 24 mm for the compact module. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3-100 MHz Voltage Controlled Crystal Oscillator | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT725C from Q-Tech Corporation is a Space Qualified Oscillator with an operating frequency range of 3 MHz to 1.3MHz. It has a frequency stability of 50-30 ppm and a maximum control voltage of 5 Vdc. It has a rise/fall time 2.5-5 nS and a startup time of 10 ms. The oscillator has a radiation tolerance of up to 100 kRad (Si) and uses CMOS technology and has a 20-pin FlatPack. It is screened to MIL-PRF-55310 and is suitable for space flight missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-Precision Reaction Wheel for Imaging Satellites | |
Reaction Wheel
from Dragonfly Aerospace
|
| The RW-1Nms from Dragonfly Aerospace is a Reaction Wheel that is designed for imaging satellites that demand exceptional platform stability and precise control while minimising disturbance torques. This reaction wheel has an angular momentum of 1.0 Nms and a torque of ±39 mNm. It has a rotation speed range of ±10000 rpm and supports CAN and RS485 interfaces. This reaction wheel is designed with latch-up protection and has a regenerative braking system. |
| |
Download Datasheet
Product Details | |
|
|
|
| InGaP HBT MMIC RF Amplifier | |
RF Amplifier
from Teledyne e2v HiRel Electronics
|
| The TDGB014CL2 from Teledyne e2v HiRel Electronics is a Space Qualified RF amplifier that operates from 0.1-14 GHz. This InGaP HBT designed amplifier has a gain of 18.4 dB and a noise figure of 5.5 dB. This gain block has a IP3 value of 28 dBm and is designed using Heterojunction Bipolar Transistor (HBT), Indium Gallium Phosphide (InGaP) process. The amplifier is ideal for general-purpose, high-reliability RF and microwave amplification needs. |
| |
Download Datasheet
Product Details | |
|
|
|
| Onboard Computer for Global Satellite Applications | |
Satellite On-Board Computer (OBC)
from Airbus
|
| The Amethyst from Airbus is a Satellite On-Board Computer (OBC) based on a high-performance ARM processor designed for safety-critical applications. The OBC supports ethernet, SpaceWire, RS-422, and CAN bus interfaces. It requires an input power bus voltage of 22-38 V and has a power consumption of 20-50 W. It has a mass of 3.5 Kg and measures 110 x 240 x 170 mm. The OBC is ideal for constellation applications and global satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Monolithic Rad-Hard Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6408 from Honeywell Aerospace is a Space Qualified Memory with a configuration of 512K x 8-bit memory. This space-qualified SRAM is available with CMOS compatible I/O ports. The memory cell is single event upset hardened with multi layer metal power busing and small collection volumes of SOI provide superior single event effect and dose rate hardening. This space-qualified SRAM is designed for use in systems operating in radiation environments. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|
| 10-100 Arcsecond Star Tracker for High-Volume Applications | |
Star Tracker
from Rocket Lab
|
| The ST-16HV from Rocket Lab is a Star Tracker with an absolute accuracy of 10-100 arcsec with a maximum slew rate of 2 deg/sec. This star tracker has an angular rates at 2 Hz with zero initial acquisition time and has a 2592 x 1944 CMOS active-pixel sensor. It requires a DC supply of 9-34 V and has a power consumption of up to 1 W. This star tracker supports two half-duplex RS-485 interfaces with a commercial grade 16 mm f/1.8 lens. It has a mass of 148 g. |
| |
Download Datasheet
Product Details | |
|
|
|

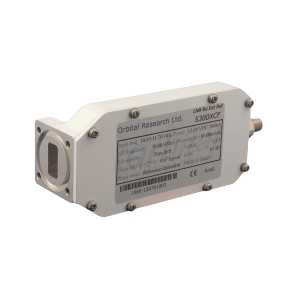

| 11.70-12.20 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1075S-500X-WN60 from Orbital Research is a Low Noise Block with an input frequency of 11.70 to 12.20 GHz and an output frequency of 950-1450 MHz. It requires a DC supply of 12-24 V and has a current consumption of 220 mA. This external reference LNB is enhanced to provide superior gain flatness and noise figure. It has a mass of 350 g. This RoHS and REACH complaint LNB is built for fixed or mobile satellite communications. |
| |
Download Datasheet
Product Details | |
|
|
|

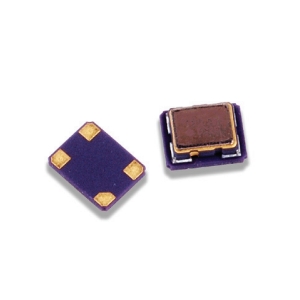

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C33 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 1.50 ppm. This space-grade oscillator has an SSB phase noise of up to -150 dBc/Hz and a start-up time of 10 ms. It produces a clipped sine wave with an output voltage of 1 V peak-to-peak. It comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

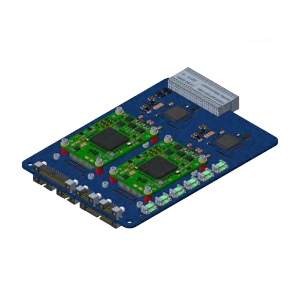

| Onboard Computer for Mini and Micro Satellites | |
Satellite On-Board Computer (OBC)
from D-Orbit
|
| The OBC CORE from D-Orbit is a Satellite On-Board Computer (OBC) that features a high-performance AVR32 microcontroller. The on-board computer comes with a FreeRTOS operating system and a Python onboard control procedure engine that enables satellite operators to upload scripts to increase the operational autonomy of the satellite. It supports CAN Bus and RS-422 data interfaces. This OBC is ideal for general application on mini and microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|

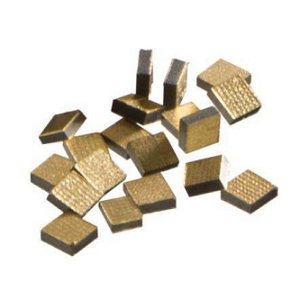

| 5 KOhm Space-Qualified Gold Chip Temperature Sensor | |
Space Qualified Temperature Sensor
from Variohm Eurosensor
|
| The 5K3CG517 from Variohm Eurosensor is a Space Qualified Temperature Sensor with a nominal resistance value of up to 5000 ohms and a tolerance of +/-5%. It possesses excellent stability with MEAS ceramic and has a flight heritage of 20 years. This high-reliability gold chip temperature sensor that measures 1.143 x 1.143 x 0.305 mm and is ideal for satellite camera systems, satellite telecom systems, temperature compensation and control panel monitoring. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.22-4.6 GHz LTCC High Pass Filter for Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The HFCN-1200 from Mini Circuits is a Space Qualified RF Filter with a frequency range of 1220-4600 MHz. The filter has a frequency cut-off of 3 dB at 1180 MHz and a maximum RF power input handling capacity of 7 W. It features LTCC construction and has a hermetically sealed packaging weighing 0.02 g. This RoHS-complaint ceramic filter is suitable for applications such as sub-harmonic rejection, transmitters /receivers and lab use. |
| |
Download Datasheet
Product Details | |
|
|
|
| 200 W X-band Transceiver for SATCOM Applications | |
SATCOM Transceiver
from ACORDE
|
| The ACTR-X200W-E1-V1 from ACORDE is a SATCOM Transceiver with a Tx input frequency range of 950-1450 GHz and an Rx IF frequency range of 7.25-7.75 GHz. It has a Tx output frequency of 7.9-8.4 GHz and an Rx output frequency of 950-1450 MHz. The transceiver measures 495 x 265 x 255 mm. It is designed for harsh environmental conditions and professional and military satellite communication systems such as ground, SOTP, SOTM and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-10 µH Space Grade Tin/Lead Shielded Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-2525CZ-L7 from Vishay is a Space-Qualified Inductor with an inductance range of 0.1-10 µH and an inductance tolerance of +/- 5 %. It features a shielded construction with IHLP design and Tin/lead Sn/Pb plated terminals. It is suitable for tolerance DCR for current sense, PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery-powered devices, DC/DC converters in distributed systems and FPGAs. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.025-2.290 GHz S-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-S / VSCD-S from WORK Microwave is a Block Downconverter that has an input RF frequency range of 2.025-2.290 GHz. The block downconverter has an operational input level of -45 dBm. It supports remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, Ethernet supporting TCP/IP command interface, Web browser interface and SNMP. The converter features automatic reference recognition and an adjustable gain equalizer. |
| |
Download Datasheet
Product Details | |
|
|
|
| SelfieCam-Video - Space Asset Monitoring Camera | |
Satellite Camera
from Infinity Avionics
|
| The SelfieCam from Infinity Avionics is a small form factor satellite camera, TRL 9, space asset monitoring camera with demonstrated flight heritage through numerous space missions. The camera can capture and save images in non-volatile memory with an on-board storage of 500 imgaes. It has a mass of 10 g and measures 50 mm x 30 mm. It is designed with ease of integration and operation in mind, providing on-orbit imaging capability to your mission. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 0.1-12.1 KOhms Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The ESS-2A from Vishay is a Space Qualified Resistor with a resistance range of 0.1-12.1 KOhms. This resistor has a power rating of 2 W and a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It features a complete welded construction and is high-temperature silicone coated. It is MIL-PRF-39007 qualified. The resistor is available in non-inductive styles (type N) with Ayrton-Perry winding and measures 0.812 x 0.187 x 0.032 Inches in dimension. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8m Ku-Band Flyaway Antenna for SATCOM Applications | |
SATCOM Antenna
from Norsat
|
| The WFA180KU-EU from Norsat is a SATCOM Antenna with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. This Ku-band antenna has an Rx gain of 45.3 dBi and a Tx gain of 46.3 dBi. It requires an AC supply voltage of 110-230 V and has a max. power consumption of 550 W. It has a mass of 22-30 kg and measures 84.5 x 62 x 49 cm. The antenna is ideal for remote enterprise, energy, emergency and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|

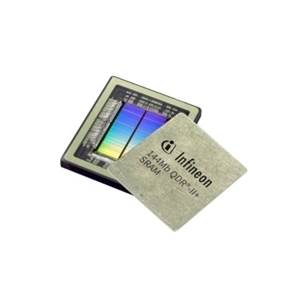

| 144 Mb Radiation Hardened Synchronous Pipelined SRAM | |
Space Qualified Memory
from Infineon Technologies
|
| The CYRS2645KV18 from Infineon Technologies is a Space Qualified Memory with a storage capacity of 144 Mb density and a 4M × 36 configuration with four-word burst mode. This SRAM has a maximum operating frequency of 250/300 MHz and a maximum operating current of 1040/1070 mA. It features separate independent read and write data ports for concurrent transactions and double data rate (DDR) interfaces on both read and write ports. |
| |
Download Datasheet
Product Details | |
|
|
|
| 435-524 MHz Hybrid Quad Coupler for Radio Transceivers | |
Space Qualified Coupler
from Crane Aerospace & Electronics
|
| The QHDZ-2H-0.48G SQ from Crane Aerospace & Electronics is a Space-Qualified Coupler operating at the frequency range of 435-524 MHz. It has an isolation value of 25 dB and has an insertion loss of 0.25 dB. This coupler has a maximum amplitude balance of ±0.20 dB and a phase balance value of 90 ±3°. This coupler is ideal for use in IQ networks, power amplifiers, receiver multi-couplers, radio transceivers, and RF signal distribution systems. |
| |
Download Datasheet
Product Details | |
|
|
|

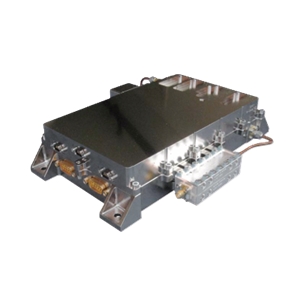

| Integrated High-Speed Downlink Transmitter for SmallSat LEO missions | |
Software Defined Radio
from Honeywell Aerospace
|
| The CDL-MS02 from Honeywell Aerospace is an Integrated High-Speed Downlink Transmitter that has a Tx frequency of 5100 to 5300 MHz and provides up to a 40 Mbps downlink to ground infrastructure. It comprises a radio transmitter with a high efficiency GaN SSPA, power distribution unit providing accurate regulation and delivery of power across the system and digital baseband. This C-band transmitter weighs 1500 g and measures 179 x 232 x 47 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Redundancy Switch System for SATCOM Applications | |
SATCOM Redundancy Switch
from WORK Microwave
|
| The RSCM Series from WORK Microwave is a SATCOM Redundancy Switch with a frequency range of DC-40 GHz. This modular switch can be configured from the front panel of the controller or remotely via RS232, RS422/485 or TCP/IP over Ethernet. It requires a mains power input supply of 100-240 V AC and has a power consumption of up to 7W. It has a mass of 4 kg. It can be used in upconverters and downconverters and is ideal for SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
