| Featured Space and Satellite Products |
|
|
| Surface Mount Diplexer for GPS Applications | |
Space Qualified RF Diplexer
from Mini Circuits
|
| The LDP-1050-252+ from Mini Circuits is a Space Qualified Diplexer designed to operate over a combined frequency range of 1-2500 MHz with defined passbands from 1–1050 MHz (low pass) and 1650–2500 MHz (high pass). It has a stop band isolation of 31 dB for low pass and 18-32 dB for high pass with an RF input power up to 2 W. This RoHS-compliant diplexer has a mass of 0.02 g and measures 3.2 x 1.8 x 0.86 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

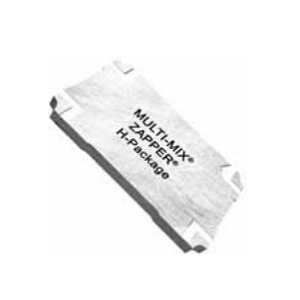

| 435-524 MHz Hybrid Quad Coupler for Radio Transceivers | |
Space Qualified Coupler
from Crane Aerospace & Electronics
|
| The QHDZ-2H-0.48G SQ from Crane Aerospace & Electronics is a Space-Qualified Coupler operating at the frequency range of 435-524 MHz. It has an isolation value of 25 dB and has an insertion loss of 0.25 dB. This coupler has a maximum amplitude balance of ±0.20 dB and a phase balance value of 90 ±3°. This space-qualified coupler provides 3 dB 90° coupling and has a maximum input power value of 125 W. It measures 14.22 x 8.89 x 2.03 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 23.1 V Lithium-Ferrite Modular Battery System for Small Satellites | |
Satellite Battery
from Berlin Space Technologies
|
| The BAT-110 from Berlin Space Technologies is a Satellite Battery with a nominal voltage of 23.1 V and a capacity of 172 Wh. This flight-proven battery has a design life of 5 years of LEO and is radiation tested to 30 kRad. It is protected for over charging (non-destructive) tolerant against deep discharge (non-destructive) and offers cell balancing. The battery has a mass of 3 kg and measures 240 x 119 x 87 mm³. |
| |
Download Datasheet
Product Details | |
|
|
|

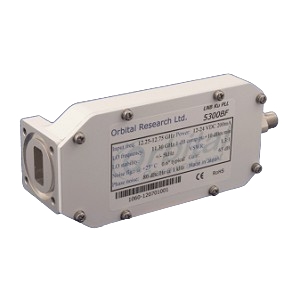

| 12.25-12.75 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1130S-500P-WN60 from Orbital Research is a Low Noise Block with an input frequency of 12.25 to 12.75 GHz and an output frequency of 950-1450 MHz. This Ku-band LNB has a noise figure of 0.7 dB and a gain of 60 dB. It requires a DC supply of 12-24 V and has a current consumption of 200 mA. This external reference LNB measures 124 x 60 x 22 mm. It is ideal for applications such as consumer video, broadband, or DVB-S2 and DVB-S2X waveforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-20 MHz Space OCXO for GNSS modules Applications | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROD2522S2H from Rakon Limited is a Space Qualified Oscillator that synchronises its 1PPS and output clock to a specified 1PPS input signal from the GNSS system or the synchronization system output. It has a nominal frequency of 10-20 MHz and supports an I²C bus interface for device status and commands. This PPS disciplined oscillator has a frequency stability of 0.5 ppb. The oscillator requires a supply voltage of 3.3 V and measures 25.4 x 22.0 x 12.1 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

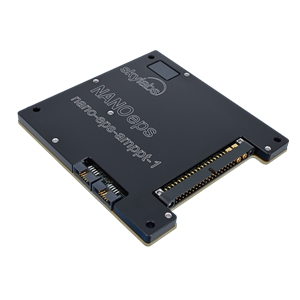

| Solar Array Energy Conversion Subsystem | |
Satellite Electrical Power System
from SkyLabs d.o.o.
|
| NANOeps-AMPPT subsystem from SkyLabs d.o.o. supports the safest and most accurate solar array energy conversion method using well well-proven analog maximum power point tracking feature. NANOeps-AMPPT is a fully autonomous unit and compliant with the NANOeps subsystem. Several intelligent built-in functions enable NANOeps-AMPPT to provide a rich set of TM for its autonomous analog MPPT conversion loop. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 MP Monochrome Camera for Space Domain Awareness Applications | |
Satellite Camera
from Infinity Avionics
|
| The Lynx4MP-550 from Infinity Avionics is a 550mm ruggedized optical assembly with TRL 9 camera technology and can support precise image capture timing requirements. It has a spectral range of 400-1000 nm and a focal length of 550 mm. The RGB/Monochrome camera has a pixel resolution of 2048 x 2048 and supports UART, RS485, USB2, and Ethernet data interfaces. The camera has a mass of 1.5 Kg and measures 100 x 100 x 250 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|
| 1.8 m Ku-Band Auto Fly-Away Satellite Terminal | |
Satellite Terminal
from Norsat
|
| The WFA180KU-NA from Norsat is a Satellite Terminal with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. This Ku-band antenna has an Rx gain of 45.3 dBi and a Tx gain of 46.3 dBi. It has an azimuth range of +/- 180 degrees and an elevation range of 0 to 90 degrees. It has a mass of up to 50 kg and measures 121 x 44 x 68 cm. The antenna is ideal for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Multi-Mode Standard Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-100 from General Dynamics Mission Systems is a Space-Qualified Multi-Mode Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. This S-band transponder has a telemetry data rate of 1– 512kbps and a command data rate of up to 4 Kbps. It requires a DC supply power of 21–36 V and has a power consumption of 44-46 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| Redundancy Switch System for SATCOM Applications | |
SATCOM Redundancy Switch
from WORK Microwave
|
| The RSCM Series from WORK Microwave is a SATCOM Redundancy Switch with a frequency range of DC-40 GHz. This redundancy switch system has an insertion loss of 0.2-0.8 dB and an isolation of 50-85 dB. It requires a mains power input supply of 100-240 V AC and has a power consumption of up to 7W. The redundancy switch has a mass of 4 kg and measures 483 x 44 x 270 mm. It can be used in upconverters and downconverters. |
| |
Download Datasheet
Product Details | |
|
|
|
| Horizon Sensor for Nano Satellites | |
Earth/Horizon Sensor
from Solar MEMS
|
| The HSNS from Solar MEMS is a Quad Thermopile Horizon Sensor that has an accuracy of less than 1 ° (EOL). It has an output data rate of 10 Hz and a field of view of ±2.5 degrees of reach IR eye. This sensor can measure infrared radiation from space and earth with 4 IR eyes with accuracy, and supports UART and I2C electrical interfaces. It requires a supply voltage of up to 5V and a current consumption of 30 mA. |
| |
Download Datasheet
Product Details | |
|
|
|
| 200 W Block Upconverter for SATCOM Applications | |
Block Upconverter
from ERZIA
|
| The ERZ-BUC-4775-4825-37 from ERZIA is a Block Upconverter that converts an input frequency of 1.25-1.75 GHz to an output frequency of 47.75-48.25 GHz. It has a maximum LO frequency of 9.7 GHz and has a bandwidth of 500 MHz. It has a small signal gain of 50-52 dBm and an output power of 36-38 dBm. This MIL-STD screened converter requires a supply of 24-32 V and a power consumption value of 200 W. It is ideal for SATCOM and aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|

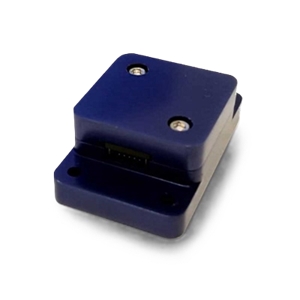

| Magnetometer for Autonomous Satellite Attitude Control | |
Magnetometer
from AAC Clyde Space
|
| The MM200 from AAC Clyde Space is a Magnetometer with a range of 800 μT and has a maximum sampling rate of up to 500 Hz. The magnetometer has a radiation tolerance of up to 30 krad and a total noise spectral density of 1.18 nT/√Hz. It supports the I2C interface and has a power consumption of 0.5-10 mA. The magnetometer has a mass of 12 g and measures 33 x 20 x 11.3 mm. It is designed for autonomous satellite attitude control or scientific measurements. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.1-2.5 GHz S-Band Low-Noise SATCOM Amplifier System | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The LSH2S35 from Communications & Power Industries is a low-noise SATCOM Amplifier System with a frequency range of 2100-2500 MHz and a low noise temperature of 35 K. It has a gain stability of ±0.5 dB for the long term. It requires a power supply of 11-15 V and utilizes state-of-the-art MMIC technology. This RoHS-compliant amplifier system measures 93.0 x 32.0 x 30.5 mm and is designed for both fixed and transportable applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

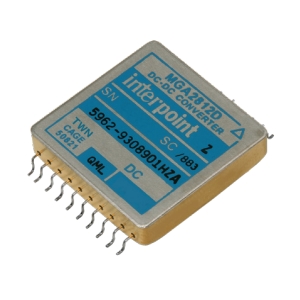

| 12 V Dual DC-DC Converter for Power Supplies Applications | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MGA2812D from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage of 28 V. This converter has an output voltage of 12 V and an output current of up to ±208-416 mA. It has an output power of up to ±2.50-5 W and an output ripple of 40-250 mV p-p. The converter has a line regulation range of 10-180 mV and a load regulation of 10-200 mV. It has a mass of 15 g and measures 28.19 × 28.19 × 6.35 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

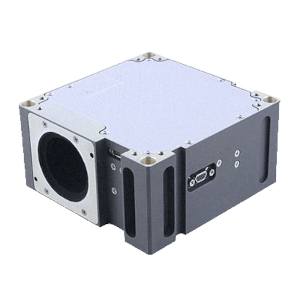

| Attitude Control System for CubeSats | |
ADCS System
from Blue Canyon Technologies
|
| The XACT-15 from Blue Canyon Technologies is an ADCS System that has momentum storage of 15 mNms and a maximum torque of 0.005 Nm. It has a slew rate of up to 10 deg/sec and a pointing accuracy of ±10.8 arcsec for 2 axes. The ADCS system has a lifetime of up to 5 years in low-earth orbit with a radiation tolerance of greater than 40 Krad. It supports the RS-422 interface and requires a DC supply of 12 V. |
| |
Download Datasheet
Product Details | |
|
|
|

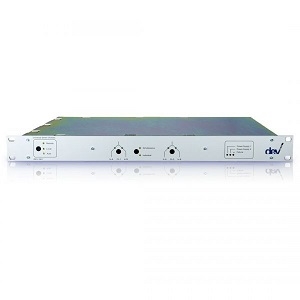

| Universal Redundancy Switch for SATCOM Applications | |
SATCOM Redundancy Switch
from DEV Systemtechnik
|
| The DEV 1992/75 from DEV Systemtechnik is a SATCOM Redundancy Switch that operates up to frequency range of 950-2300 MHz and has a maximum impedance value of 75 Ohms. This redundancy switch has an RF return loss of greater than 23 dB and an insertion loss of less than 2 dB. It has an isolation of up to 60 dB and a flatness value of +/-0.5 dB. It has a mass of 5 Kg and measures 483 x 44 x 220 mm in dimensions. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band to L-Band Test Loop Translator for Signal Transmission | |
Test Loop Translator
from Peak Communications
|
| The TLT184 from Peak Communications is a Test Loop Translator that translates an input X-band frequency of 17.3-18.4 GHz to an output L-band frequency of 950-2050 MHz. This test loop translator has a maximum input power of +15 dBm and an output return loss of 15 dB. It has a conversion loss of 20 dB and a phase noise of up to -125 dBc/Hz (at 1MHz). The test loop translator weighs 4.5 Kg and measures 19 × 1.75 × 15.7 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

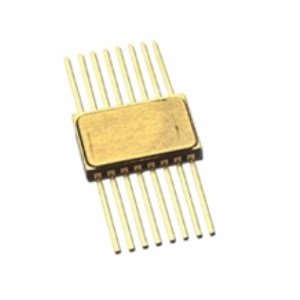

| Hermetically Sealed High Gain Logic Gate Optocouplers | |
Space Qualified Optocoupler
from Broadcom
|
| The 5962-8876903 from Broadcom is a space-qualified optocoupler with a forward voltage range of 1.0-1.8 V and an insulation leakage current of 1 µA. It has a low output voltage of 0.5 V and a peak input current requirement of 2-8 mA. This surface-mount optocoupler has an input capacitance value of 20 pF and an output power dissipation of 200 mW. This single-channel optocoupler is available in an 16-pin flat package measuring 10.03 x 8.13 x 2.84 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

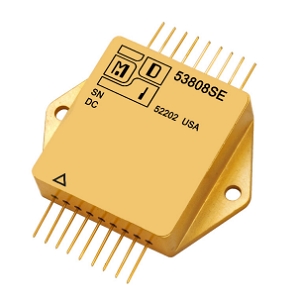

| Radiation Hardened Hybrid Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53808 from Modular Devices is a Space Qualified Solid State Relay with an input bias voltage of 4.7-5.3 V and an input bias current of 30-50 mA. This solid-state relay has a maximum contact voltage rating of 50 V and a current of 10 A. It has a contact resistance of up to 0.2 Ohm and a leakage current of up to 100 µA. It has a mass of 30 grams and an 18-pin seam-weld chassis mount rugged hermetic package. This relay is ideal for military and aerospace applications. |
| |
Download Datasheet
Product Details | |
|
