| Featured Products this Week |
|
|

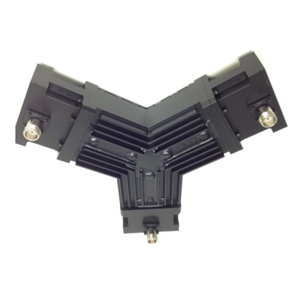

| 1-2 GHz Three-Port Double-Ridged Coax Circulators | |
Space Qualified Circulator
from Scientific Microwave Corporation
|
| The 1-2 GHz Circulator from Scientific Microwave Corporation is a 3-Port Circulator that operates from 1 to 2 GHz. It has an insertion loss of 0.6 dB and provides an isolation of 14 dB. This circulator can handle a peak input power of up to 20 kW and has a VSWR of 1.5:1. It is available in a metallic enclosure that measures 29.88 x 25.89 inches and has N-Type (Female) connectors. This double-ridged circulator has high-power handling for average and peak powers. |
| |
Download Datasheet
Product Details | |
|
|
|

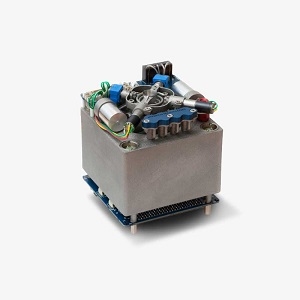

| Bipropellant Thruster for Attitude In-orbit Applications | |
Spacecraft Thruster
from AAC Clyde Space
|
| The PM200 from AAC Clyde Space is a Bipropellant Thruster that has a thrust of 0.5 N and a specific impulse of 285 sec. This thruster can be used in 3-6U CubeSats and supports I2C, RS-422, and RS-485 interfaces. This bipropellant thruster requires a supply voltage of 5-12 V and a power consumption of 0.1-12 W. It has a mass of 1.1 Kg and measures 97.7 x 95.4 x 95.4 mm. This bipropellant thruster is ideal for in-orbit maneuvers and Hohmann transfer orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|

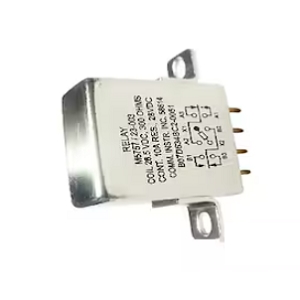

| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The B07D111BC4-0006 from TE Connectivity is a Space Qualified General Purpose Power Relay that operates with a coil voltage rating of 26.5 VDC and has a maximum coil power of 2.341 W. It has a non-polarized monostable coil magnetic system with a coil resistance of 300 ohms and has a contact rating of 10 A. The relay is hermetically sealed and has a configuration feature of a 2 Form C DPDT-CO contact arrangement. |
| |
Download Datasheet
Product Details | |
|
|
|
| Magnetorquer for Nanosatellites | |
Magnetorquer
from CubeSpace
|
| The CubeTorquer Gen 1 from CubeSpace is a nanosatellite magnetic torquer designed for detumbling, coarse attitude adjustment, and reaction wheel desaturation. It has magnetic moments ranging from ±0.24-1.90 Am² and a magnetic gain of up to 25 Am²/A and a linearity of 97.5%. The S variant weighs 28 g and measures 18 x 14 x 62 mm, the M variant weighs 36 g and measures 18 x 14 x 77 mm, and the L variant scales up to 72 g and 18 x 14 x 153 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

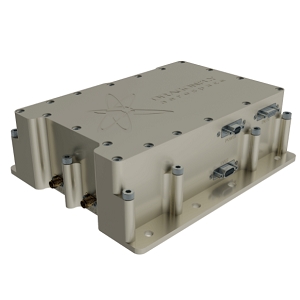

| Dual Channel DVB-S2 X-Band Transmitter for LEO Spacecraft | |
Space Transmitter
from Dragonfly Aerospace
|
| The HDRTx-3 from Dragonfly Aerospace is a dual-channel X-band transmitter tailored for micro and mini satellites in low Earth orbit. Featuring advanced DVB-S2 encoding, it maximizes data throughput, with each channel supporting symbol rates of up to 300 Msps for reliable, high-performance communication in space missions. Available exclusively as part of our spacecraft system solutions. Contact us for more information. |
| |
Download Datasheet
Product Details | |
|
|
|

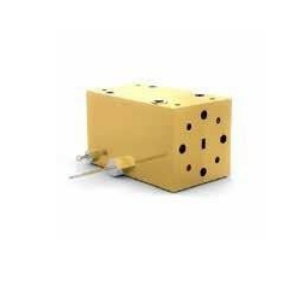

| GNSS Receiver for Radar and Communication Systems | |
GNSS Receiver
from ReliaSat
|
| The W-x8RX-SM-9296 from ReliaSat is a GNSS Receiver with an RF frequency range of 92-96 GHz and an IF frequency range of 2-6 GHz. This receiver has an LO frequency of 10.80-11.40 GHz and has an image rejection of 20 dB. The module contains Arralis monolithic millimetre-wave P-HEMT integrated circuits and patented technology allowing very large-scale integration. The receiver has a mass of 90 g and measures 20(W) x 35 (L) x 20 (H)mm. |
| |
Download Datasheet
Product Details | |
|
|
|

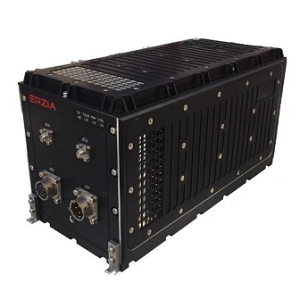

| 47.75-48.25 GHz Block-Up Converter for SATCOM Applications | |
Block Upconverter
from ERZIA
|
| The ERZ-BUC-4775-4825-37 from ERZIA is a Block Upconverter that converts an input frequency of 1.25-1.75 GHz to an output frequency of 47.75-48.25 GHz. It has a maximum LO frequency of 9.7 GHz and has a bandwidth of 500 MHz. The block-up converter has a small signal gain of 50-52 dBm. It is a MIL-STD screened converter that requires a supply of 24-32 V and a power consumption of 200 W. The block-up converter is ideal for SATCOM and aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|

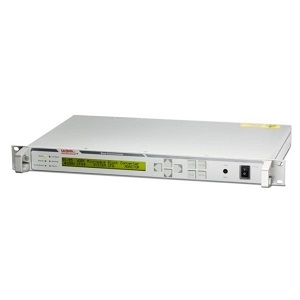

| 10.7-12.75 GHz Ku-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHBD-VSBD-VHBDR-VSBDR-Ku2Ku3 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 10.7-12.75 GHz and an output frequency of 950-2000 MHz. This Ku-band downconverter has an LO frequency of 9.75-10.75 Hz and a phase noise of up to -140 dBc/Hz. It has an impedance of 50 Ohms and an input/output return loss greater than 18 dB. It weighs 6 Kg and measures 483 x 44 x 270 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

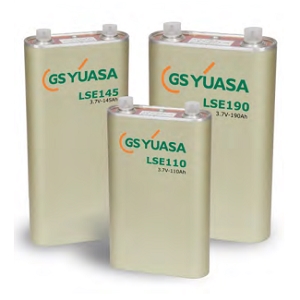

| Lithium Ion Cells For GEO Missions | |
Satellite Battery
from GS Yuasa Lithium Power
|
| The LSE110 from GS Yuasa Lithium Power is a space-qualified Li-ion Satellite cell with a capacity of 110 Ah and a nominal energy range of 407 Wh. It has an energy density of 334 Wh/L and has a specific energy of 163 Wh/kg. The battery requires a nominal voltage range of 3.7-4.1 V and a maximum continuous charge current of 55 A. The battery features a predictable capacity retention with a long life cycle. It has a mass of 2.77 Kg with a dimension of 130 x 208 x 50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

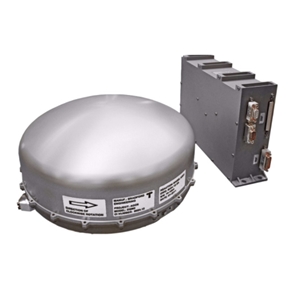

| 0.248 Nm Reaction Wheel Unit for Satellites | |
Reaction Wheel
from Bradford Space
|
| The W45 from Bradford Space is a Reaction Wheel that consists of a wheel drive electronics box and a reaction wheel assembly. This reaction wheel unit has a momentum storage of 40 Nms and a maximum operational speed of 4000 RPM. It has a maximum gross torque of 0.248 Nm. It requires a power bus supply voltage of 28/50 VDC and has a peak power consumption of 168 W. The assembly has a mass of 6.70 Kg and measures 365 × 125 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

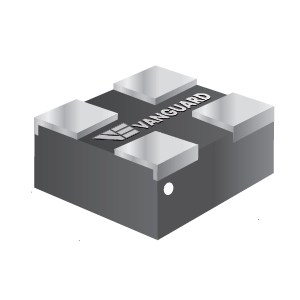

| 3.6 mH Space Grade Gate Drive Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SGD102 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 3.6 mH. This transformer has a direct current resistance of 1.1 Ohms and a dielectric withstanding voltage of 300 V. It has a turns ratio of 1:1 and requires an ET reference voltage of 37.5 V. The transformer features tin-lead terminations. The transformer is available in a through-hole package that measures 0.410 × 0.410 × 0.240 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7.1-8.5 GHz X-Band Hybrid Coupler for Nanosatellites | |
Space Qualified Coupler
from WiRan
|
| The CXA from WiRan is a Space Qualified Coupler with an operating frequency range of 7.1-8.5 GHz. This hybrid coupler has a nominal split of 3.01±0.5 dB and an isolation of greater than 20 dB. It has an insertion loss of less than 0.8 dB and a phase balance of less than ±5°. The coupler has a return loss of greater than 17.5 dB and has a power handling capacity of less than 30 W. It features low insertion loss, low VSWR, high power handling, and high isolation. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1K x 36-bit Radiation Hardened First-In First-Out Memory | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6136 from Honeywell Aerospace is a space-qualified memory with a configuration of 1K x 36. This radiation-hardened memory has a high-performance 1024-word by 36-bit memory array that is fabricated with Honeywell’s SOI CMOS technology with a 150 angstrom gate oxide. It has a write access time of 36 ns and a storage capacity of 36 Mb. This monolithic static RAM has an average output current of 25 mA and has a package power dissipation of 2.5 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| 950-2150 MHz Rack-Mounted Multiband VSAT Terminal | |
Satellite Terminal
from Gilat Satellite Networks
|
| The SkyEdge II-c Capricorn Pro S2X from Gilat Satellite Networks supports input frequencies of 950–2150 MHz and output up to 2400 MHz. The terminal supports forward high-speed services up to 200 Mbps and return speeds of up to 100 Mbps using advanced DVB-S2X modulation with LDPC and BCH coding. It requires a supply voltage of 100–240V AC and has a power consumption of 20 W. This satellite terminal weighs 3.5 kg and measures 441.5 x 242 x 44.4 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 45 V High-Efficient Schottky Rectifier for Space Applications | |
Space Qualified Diode
from Infineon Technologies
|
| The 30CLJQ045 from Infineon Technologies is a Space Qualified Diode with a maximum DC reverse voltage of 45 V and a maximum average forward current of 30 A. This Hi-Rel Schottky rectifier has a low forward voltage drop of 0.62-1.09 V and a reverse leakage current of 0.08-10 mA. It has a maximum junction capacitance of 375 pF and a series inductance of 4.8 nH. It has a surface-mount hermetically sealed package measuring 70 x 92 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Orbital Class Reusable Launch Vehicle Platform | |
Satellite Launch Vehicle Platform
from SpaceX
|
| The Falcon 9 from SpaceX is a reusable two-stage Satellite Launch Vehicle Platform designed for reliable and safe transport of people and payloads into Earth orbit and beyond. It has a payload capacity of 22800 kg to LEO, 8300 kg to GTO, and 4020 kg to Mars. This launch vehicle platform uses aluminium-lithium material and has a Monocoque structure. It has a mass of 5,49,054 kg and measures 70 x 3.66 m. |
| |
Download Datasheet
Product Details | |
|
|
|

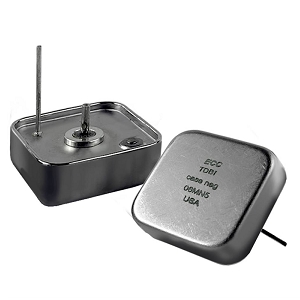

| 5 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1050502 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 5000 µF. This capacitor has a direct current leakage of 70 µA to 0.70 mA and an equivalent series resistance of 90 mOhm. It has a voltage rating of 50 V and a surge voltage of 55 V. It has a mass of 35 g and measures 1.0 x 1.0 x 0.329 (L x W x H) inches. The capacitor comes in a hermetically sealed, welded tantalum case and is qualified to NASA EEE-INST-002. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.25-12.75 GHz Ku-band Low Noise Block for SATCOM applications | |
Low Noise Block
from Orbital Research
|
| The LNB1130S-500X-WN60 from Orbital Research is a Low Noise Block with an input frequency of 12.25-12.75 GHz and an output frequency of 950-1450 MHz. This Ku-band LNB has a noise figure of 0.7 dB and a gain of 60 dB. It has an MTBF of more than 175k hours and has a P1dB compression value of 10 dBm. It requires a DC supply of 12-24 V and has a current consumption of 220 mA. It has a mass of 350 g and measures 125 x 60 x 23 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

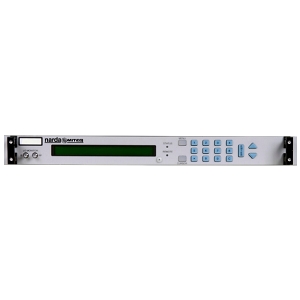

| 0.95–2.15 GHz Block Downconverter for Satellite Communication Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-10000-3-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 0.95–2.15 GHz and an output frequency of 70 MHz. It has a frequency step size of 1 kHz and an input impedance of 50 Ohms. This frequency downconverter has an input return loss of 18 dB and an output return loss of 20 dB. It has a minimum power output of 16 dBm.The downconverter weighs 5.4 kg and measures 482.60 x 44.45 x 560 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

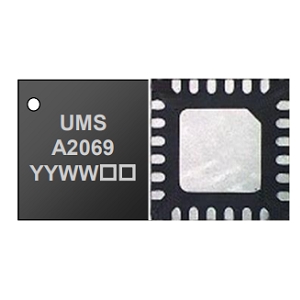

| 18-31 GHz GaAs Monolithic Low Noise Amplifier | |
RF Amplifier
from United Monolithic Semiconductors
|
| The CHA2069-QDG from United Monolithic Semiconductors is a Space-Qualified RF Amplifier that operates from 18-31 GHz and has a noise figure of 3-4.5 dB. It has a drain bias voltage range of 5 V and a drain current of 85 mA. This amplifier has a maximum input return loss of -2 dB and a maximum output return loss of -2.5 dB. This low noise amplifier is designed for ISM, Military, point-to-point, point-to-multi-point Radio, and VSAT telecommunication applications. |
| |
Download Datasheet
Product Details | |
|
