| Featured Space and Satellite Products |
|
|
| 4-16 GHz GaAs Surface Mount MMIC IQ Mixer for Band Shifting | |
Space Qualified RF Mixer
from Marki Microwave
|
| The MMIQ-0416LSM-2 is a GaAs MMIC mixer for low-frequency applications with an RF/LO frequency from 4-16 GHz and an IF frequency from 0-6 GHz. The mixer has an IP3 of 4-16 dBm and a banded performance is possible at LO drive as low as +4dBm. This RoHS-compliant mixer is ideal for applications such as Single Sideband and Image Rejection Mixing, IQ Modem, Vector Amplitude Modulation, and Band Shifting. |
| |
Download Datasheet
Product Details | |
|
|
|
| SmallSat Mass Memory and Communications Protocol Unit | |
Satellite On-Board Computer (OBC)
from AAC Clyde Space
|
| The SIRIUS TCM LEON3FT from AAC Clyde Space is a Satellite On-Board Computer with a real-time operating system that runs on a 32-bit LEON3FT fault-tolerant processor. It has a processor clock of 50 MHz and an SCET of 15.25 us accuracy. It has a mass of 130 g and measures 95.89 x 90.17 x 17.20 mm. It is designed and qualified for five years of operation in low-earth orbit and is ideal for advanced satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-125 MHz Space-Qualified Oscillator for Space Applications | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT735LA from Q-Tech Corporation is a space-qualified oscillator with an operating frequency range of 1—125 MHz. The oscillator has a radiation tolerance of up to 50 kRad (Si) and has a phase noise of up to 158 dBc/Hz. It has an output voltage of 0.1-0.9 V and an output current of 8 mA. This oscillator is available in a surface-mount package, ideal for commercial satellites, low Earth orbit, and New Space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

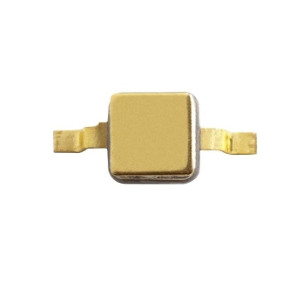

| InGaP HBT MMIC Amplifier for High Reliability RF Applications | |
RF Amplifier
from Teledyne e2v HiRel Electronics
|
| The TDGB014CL2 from Teledyne e2v HiRel Electronics is a space-qualified RF amplifier that operates from 0.1-14 GHz. This gain block has an IP3 value of 28 dBm and is designed using Heterojunction Bipolar Transistor (HBT), Indium Gallium Phosphide (InGaP) process and utilizes proprietary MMIC design techniques. The amplifier is ideal for general-purpose, high-reliability RF and microwave amplification needs. |
| |
Download Datasheet
Product Details | |
|
|
|
| Stirling Cycle Cryocooler for Space Cryogenic Applications | |
Space Cryocooler
from Honeywell Aerospace
|
| The Stirling Cycle Cryocooler from Honeywell Aerospace is a Stirling Cycle Cryocooler that has a cooling power of 0.25-5 W (80K). It has an expected life of over 10 years and is currently part of several satellite systems. This stirling cycle cryocooler is suited for space cryogenic applications such as high-speed imaging and sensing infrared detectors (focal plane arrays), sensor systems, and high-resolution cameras. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4 Ah Flight Proven Spacecraft Battery | |
Satellite Battery
from Blue Canyon Technologies
|
| The 1P8S from Blue Canyon Technologies is a Satellite Battery with a nameplate capacity of 3.4 Ah. This battery has an energy of 99 Wh and an operating voltage range of 24-33.6 V. It features under-voltage protection, over-current protection, and cell balancing. The battery has a mass of less than 6500 g. It offers short lead times, high energy density and BMS protection. The battery has flown on several successful space missions. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | Low LO Drive Passive GaAs MMIC IQ Mixer | | MMIQ-0626LCH-2 is a low LO drive, passive GaAs MMIC IQ mixer that operates down to an unrivaled +3 dBm LO drive level. This ultra-broadband mixer spans 6 to 26 GHz on the RF and LO ports with an IF from DC to 6 GHz. Up to 40 dB of image rejection is available due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid. Click Here | | | |
|
|

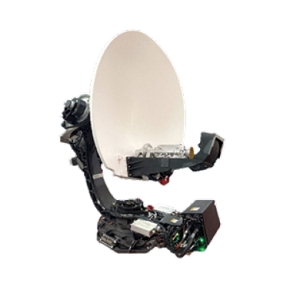

| Maritime Satellite Terminal for X/Ka/Ku-Band | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 4 Mil X/Ka/Ku from Orbit Communication Systems is a Space-Qualified Satellite Terminal with an X/Ka/Ku-band transmitter frequency range of 7.9-8.4 GHz for X-band, 13.75 to 14.5 GHz for Ku-band, and 29-31 GHz for Ka-band. This VSAT system has a RHCP/LHCP co-cross polarization control for Ka-band, HOR/VER cross-polarization for X/Ku-band. It has a continuous azimuth range of -30° to +120°. |
| |
Download Datasheet
Product Details | |
|
|
|
| 120 Nm Spacecraft Thruster | |
Spacecraft Thruster
from Moog
|
| The 058E151 from Moog is a Spacecraft Thruster with a nominal thrust of 120 Nm at 6.9 bar. This cold gas thruster has a proof pressure of 70 bar and a burst pressure of 111.4 bar. It has an opening response of 5 msec, a closing response time of 3 msec, and a coil resistance of 75 Ohms nominal (20 Deg C). It measures 19.1 x 41.0 mm. It has a life of greater than 1000000 cycles and was flown on the Spitzer Space Telescope. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku to C-Band Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT142 from Peak Communications is a Test Loop Translator that translates an input Ku-band frequency of 12.25-12.75 GHz to an output C-band frequency of 3.7-4.2 GHz. It requires a power supply of 90-264 VAC and has a power consumption of 30 W. It weighs 4.5 Kg and measures 19 x 1.75 x 15.7 inches. It is designed to take a sample of the transmit signal and convert it to a frequency at which it can be monitored or analysed. |
| |
Download Datasheet
Product Details | |
|
|
|

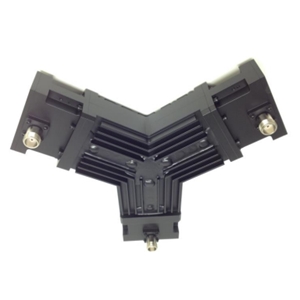

| 3-Port Circulator from 2-4 GHz | |
Space Qualified Circulator
from Scientific Microwave Corporation
|
| The 2-4 GHz Circulator from Scientific Microwave Corporation is a 3-Port Circulator that operates from 2 to 4 GHz. This circulator has an insertion loss of 0.6 dB and provides an isolation of 15 dB. It can handle a peak input power of up to 10 kW. This double-ridged circulator has high-power handling for average/peak powers, combined with low loss and VSWR, making this circulator a very sought-after addition to any EMC system. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multi-Frequency GNSS Receivers for Space Navigation | |
GNSS Receiver
from Rakon Limited
|
| The GNSS DB from Rakon Limited is a GNSS Receiver with multi-band and multi-constellation support designed of small and nanosatellites. It has a time accuracy of 5-20 nsec with a time to first fix of 45 sec cold start and 20 sec hot start. It requires an input DC voltage of 3.3 V. The receiver measures 55 x 41 x 16 mm. It is ideal for data monitoring, navigation algorithms like orbit propagation, and clock synchronisation. |
| |
Download Datasheet
Product Details | |
|
|
|
| SmallSat Payload Power and Data Handling Unit | |
Payload Data Handling System
from Berlin Space Technologies
|
| The PPDH110-1PL from Berlin Space Technologies is a Power and Data Handling Unit that is designed for small satellite payloads. It acts as the single interface unit between the bus and the payload. The payload data handling unit has a design life of 5 years in low-earth orbit and combines the functions of power conditioning and data handling for the payload units. It has a mass of 780 g and measures 186 x 98 x 46 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Marki Microwave | | |
|
|
| Earth/Horizon Sensor for Nanosatellites | |
Earth/Horizon Sensor
from CubeSpace
|
| The CubeSense Gen 1 from CubeSpace is a Earth/Horizon Sensor that has an accuracy of 0.2° and with a field of view of 170°. It has a maximum slew rate of 10°/s and has an output data rate of 2 Hz. This CMOS-based sun sensor requires a supply voltage of 3.3 V and has a peak power value of 200mW. It has a mass of 30 g and measures 41.7 x 17.7 x 22.9 mm. It is ideal for CubeSats and nano-satellite missions ranging from 2U-16U. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25.5-27 GHz Hemispherical Antenna Pointing Mechanism | |
Antenna Positioning Mechanism
from Airbus
|
| The LEO Ka-Band from Airbus is an antenna pointing mechanism designed for hemispheric coverage in low Earth orbit communications. This antenna pointing mechanism offers a pointing accuracy of less than 0.3° and a rotational velocity under 10°/s. It has a frequency range of 25.5–27 GHz and delivers a high antenna gain of 31 dBi. This LEO Ka-band has a slip ring for electrical signal transmission. The unit has a mass of less than 9 kg. |
| |
Download Datasheet
Product Details | |
|
|
|
| 17.7-20.2 GHz Ka-Band SATCOM Low Noise Amplifiers | |
SATCOM Amplifier System
from Orbital Research
|
| The WB Ka LNA from Orbital Research is a SATCOM Amplifier System with a frequency range of 17.7-20.2 GHz and a low noise temperature of 120 K. This Ka-band amplifier system has a gain of up to 55 dB and a gain flatness of ±1 dB over any 500 MHz. This amplifier system has a mass of 250 g. It is designed for satellite teleports and gateways, telemetry, tracking and command applications (TT&C) and airborne terminals. |
| |
Download Datasheet
Product Details | |
|
|
|
| 27.5-31 GHz Ka-Band Block-Up Converter for SATCOM Applications | |
Block Upconverter
from ERZIA
|
| The ERZ-BUC-2750-3100-43 from ERZIA is a Block Upconverter that converts an input frequency of 0.95-1.95 GHz to an output frequency of 27.5-31 GHz. The block-up converter has an adjustable signal gain of 45-75 dBm and an output power of 40-43 dBm. It is a MIL-STD screened converter that requires a supply of 24-32 V and power consumption of 90-130 W. It is ideal for Ka-band SATCOM and airborne applications. |
| |
Download Datasheet
Product Details | |
|
|
|

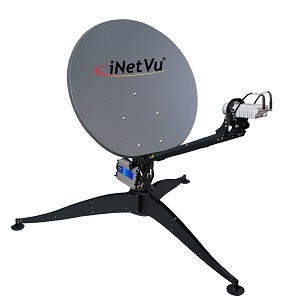

| 98 cm Elliptical Satellite Antenna System for SATCOM Applications | |
SATCOM Antenna
from C-COM
|
| The FLY-98G from C-COM is a SATCOM Antenna with a transmit frequency range of 29.5-30 GHz and a receive frequency range of 19.2-20.2 GHz. It is designed to work with the iNetVu 7710 controller, providing fast satellite acquisition. It is ideally suited for industries such as oil & gas exploration, military communications, disaster management, SNG, emergency communications backup and cellular backhaul. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2 Meter Carbon Fiber Flyaway Antenna for Military Applications | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1221 AGILIS from Sat-Lite Technologies is a SATCOM Antenna with a transmit frequency range of 6.725-31 GHz and a receive frequency range of 4.5-21.2 GHz. This flyway antenna has an elevation of 5-90 degrees and has a polarization of ± 90°. It has a reflector case weighing 29.5 Kg and measures 30 x 30 x 15.25 inches. This Intelsat and Eutelsat-compliant antenna is ideal for commercial and military application. |
| |
Download Datasheet
Product Details | |
|
|
|

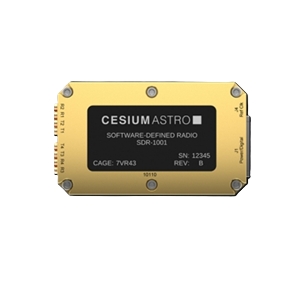

| 300 MHz to 6 GHz Software-Defined Radio for LEO Applications | |
Software Defined Radio
from CesiumAstro
|
| The SDR-1001 from CesiumAstro is a Software-Defined Radio that operates from 300 MHz to 6 GHz. It has four 100 MHz transmit channels, four 100 MHz receive channels and two independent tunable LOs. It is designed to operate in LEO and is suitable for demanding RF, digital signal processing and communications applications supporting custom waveform development or DVB-S2/DVB-S2X and CCSDS modems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 MP RGB/Monochrome Camera for Space Asset Monitoring | |
Satellite Camera
from Infinity Avionics
|
| The Lynx4MP-10 from Infinity Avionics is a 4MP RGB/Monochrome camera with a 10 mm focal length wide-angle ruggedized optical assembly. It has an onboard RAM capacity of 30 full-resolution images and a flash memory of 800 images. It has a power supply of 5 V and a power consumption of 2.75 W. It has a mass of 440 grams. It is ideal for space-based space asset monitoring and close-proximity applications. |
| |
Product Details | |
|
