| Featured Space and Satellite Products |
|
|
| 2-12 GHz GaAs MMIC Double Balanced Mixer | |
Space Qualified RF Mixer
from Marki Microwave
|
| The MM1-0212HCH-2 is a low-power GaAs MMIC double-balanced mixer for low-frequency applications. It has an RF/LO frequency from 2-12 GHz and an IF frequency from 0-3 GHz. The mixer has an IP3 of 23 dBm and has a low conversion loss and high LO to RF isolation at moderate LO powers. It is ideal for test and measurement equipment applications. This RoHS-compliant low-frequency S-band mixer is available as a 2.27×1.17 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2-18 GHz 5-bit Digital Attenuator for Satellite Communications | |
Space Qualified Variable Attenuator
from Qorvo
|
| The CMD279C3 from Qorvo is a Space Qualified Variable Attenuator with a frequency range of 2-18 Hz. This attenuator has a low insertion loss of 3.5 dB and a return loss of 13 dB. It is controlled by a single voltage of either 0 V or +5 V to control RF signal levels over an attenuation range of 15.5 dB. It requires an input P1dB value of 27 dBm and has an input IP3 value of 42 dBm. The attenuator is Pb-free RoHS-compliant and is housed in a 3x3 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 MP Optical Imager for Nano Satellites | |
Satellite Camera
from AAC Clyde Space
|
| The IM200 from AAC Clyde Space is a Satellite Camera that comes with a 4-megapixel resolution. It has a pixel scan rate above 30 MP/s and has a very low power consumption of less than 700 mW. This optical imager requires a maximum voltage supply of 5 V and has a maximum current consumption of 200 mA. This flight-proven imager has a radiation tolerance qualified up to 9 krad (Si). It has a mass of 59 g and measures 29 x 29 x 70.7 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

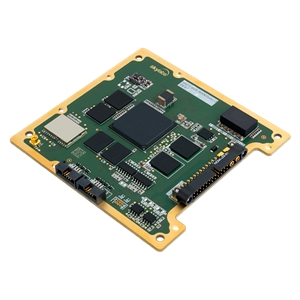

| Flight Proven On-Board Computer with CMM | |
Satellite On-Board Computer (OBC)
from SkyLabs d.o.o.
|
| The NANOobc-2 from SkyLabs d.o.o. is an on-board computer that represents the second generation of SkyLabs's flight-proven OBC for the emerging space market. Its fault tolerance by design provides remarkable reliability and robustness against SEE. NANOobc-2 features redundant mass storage and sufficient capacity of non-volatile and volatile program and data memories to assure functionality for the most demanding space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

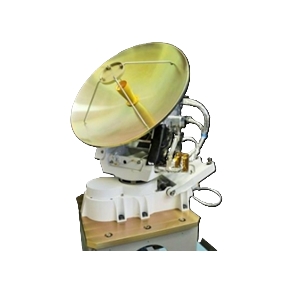

| 22.5–23.5 GHz Hemispherical Antenna Pointing Mechanism | |
Antenna Positioning Mechanism
from Airbus
|
| The MEO K-Band from Airbus is an Antenna Positioning Mechanism designed for hemispheric coverage in medium earth orbit communications. It offers an accuracy of less than 0.25° and a rotational velocity under 10°/s. It has a frequency range of 22.5–23.5 GHz and has a power of 15 W. This MEO Ka-band has a slip ring for electrical signal transmission. The unit has a mass of less than 11.5 kg and a moving envelope of 35 x 50 cm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 30-31 GHz Ka-Band SATCOM On-The-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-24M Ka MIL from General Dynamics Mission Systems is a Satellite Terminal with a transmit frequency range of 30-31 GHz and a receive frequency range of 20.20-21.20 GHz. This Ka-band satellite terminal has a G/T of 16.4 dB/K and an EIRP of 53.5 dBW at midband and P1dB. It has a beamwidth of 1.1-1.6 degrees and an axial ratio of 1-1.5 dB. The terminal has an azimuth travel of 360 degrees and an elevation travel of 0-95 degrees. |
| |
Download Datasheet
Product Details | |
|
|
|
| Accelerometer for Solar Tracking/Pointing Systems | |
Space Qualified Accelerometer
from Solar MEMS
|
| The Sensor MASS-X from Solar MEMS are space-qualified accelerometers that integrate a 3-axis accelerometer and a high-precision sun sensor designed to measure the incidence angle of sun rays, direct normal irradiance (DNI) solar radiation, along with the azimuth and elevation positions of the device. The sensors offer selectable fields of view of 10°, 30°, 50°, or 120°. Each sensors have a mass of 100 g and measures Ø 80 × 27 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click Here | | | |
|
|
| Hollow Parallel Pre-stressed Actuator for Space Applications | |
Space Actuator
from Cedrat Technologies
|
| The HPPA-8 from Cedrat Technologies is a Direct Piezo Actuator with an 8 mm diameter internal hole available for an optical function. It delivers a stroke of 8 µm with an operating voltage range of -20 V to -150 V. It has a resonance frequency of 25 kHz and provides a blocked force of 2500 N. It has a mass of 21 g and has an outer diameter of 30 mm with a height of 25 mm. It is ideal for optical delay line, refocusing, and tuning of external laser cavity applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.1 mN Iodine Gridded Ion Thruster for Deep-Space Missions | |
Spacecraft Thruster
from Busek
|
| The BIT-3 from Busek is a Spacecraft Thruster with a thrust value of 1.1 mN and a specific impulse of 2150 seconds. It is compatible with iodine propellant and has a demonstrated drop-in replacement for xenon in terms of thrust and Isp performance. The thruster has a propellant mass flow of 52 µg/sec and supports RS-485 as a communication interface. It has a thruster mass of 1.4 Kg with gimbals and measures 180 x 88 x 102 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

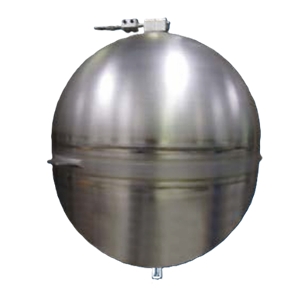

| 96L Monopropellant Diaphragm Tank for Spacecrafts | |
Spacecraft & Satellite Propellant Tank
from MT Aerospace
|
| The PTD-96 from MT Aerospace is a Spacecraft & Satellite Propellant Tank with a total volume of 96 L and a maximum expected operating pressure of 24.0 bar. It has a tank dry mass of 8.2 kg and a propellant mas of 71 kg. The propellant tank has a proof pressure of 36 bar and a burst pressure of 48 bar. It is compatible with hydrazine propellant and pressurant gases such as helium and nitrogen. It measures 685 x 545 mm with equatorial mounting tabs. |
| |
Download Datasheet
Product Details | |
|
|
|

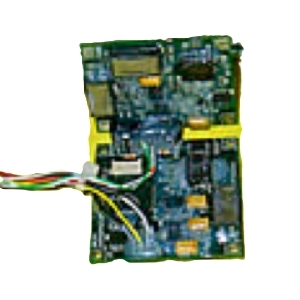

| Inertial Measurement Units for Small Satellite Attitude Detection | |
Inertial Measurement Unit
from Micro Aerospace Solutions
|
| The MASIMU03 from Micro Aerospace Solutions is an Inertial Measurement Unit for small satellite attitude detection systems with a drift of less than 0.013 deg/min. It has an input voltage of 5 to 12 V and has a power rating of 1.3 W. It has an innovative data fusion using MEMS inertial sensors and supports RS-485/232 interface. The IMU has a mass of 150 g and has an enclosure measuring 4 x 3 x 1.5 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

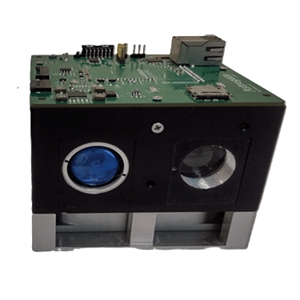

| Satellite Laser Communication Terminal for CubeSats and NanoSats | |
Satellite Laser Communication Terminal
from Astrogate Labs
|
| The ASTRO-LINK from Astrogate Labs is a Satellite Laser Communication Terminal with up to 1 Gbps downlink on 1550nm. It is SWaP (size, weight, and power) compatible for cube/nanosats, allowing for secure, long-distance wireless communications in space-to-ground and space-to-space links. The terminal supports ground beacon acquisition within ±5 °. It measures 95 x 95 x 80 mm and is ideal for CubeSats and Nanosats space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

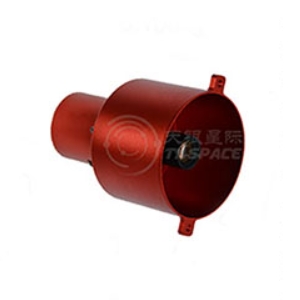

| Optical Star Pattern Simulator | |
Star Tracker Simulator
from TY-Space Technology Ltd
|
| The Optical Star Pattern Simulator (OSPS) from TY-Space Technology static star simulator tests the functioning and performance of star trackers. It has a field of view of 15 × 15 degrees and generates precise star patterns in challenging environments such as thermal vacuum and thermal cycling experiments. It can simulate more than 15 stars in a selected sky district, typically the North Pole area. It weighs 108 g and measures Φ65 × 73mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2-14 GHz Block Up/Down Converter for Communication Systems | |
Block Up/Down Converter
from Lotus Communication Systems
|
| The BUDC2G14G from Lotus Communication Systems is a wideband Block Up/Down Converter that operates with an RF frequency range of 2-14 GHz and an IF frequency range of 500 MHz to 6 GHz. It integrates a low-phase-noise local oscillator supporting frequencies from 1-12 GHz, eliminating the need for an external reference. The converter offers a typical conversion loss of 8.0 dB at 5.8 GHz. It weighs 42 g and measures 2.8125 x 1.3125 x 0.49 inches. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 12-18 GHz Coupler for Geostationary Satellites | |
Space Qualified Coupler
from CTech
|
| The SemaLink Ku-OMUX WR 75 from CTech is a Space Qualified Coupler with an operating frequency of 12-18 GHz. It has an insertion loss of 0.5 dB and an isolation of 28 dB. It has a flight heritage with the TÜRKSAT 6A satellite mission and supports WR 75 as data interfaces. The coupler has more than 15 years of lifetime and is fully space qualified for geostationary satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6 U Nanosatellite Bus for Earth Observation and Climate Monitoring | |
Satellite Bus & Platform
from SPACEMANIC
|
| The Corvus 6U Nanosatellite Bus from SPACEMANIC is a Satellite Bus & Platform with a design life of up to 5 years. It has 3x and 6x configurable channels of 3.3, 5, and 12 V. It has a battery stored energy of 92 Wh, which supports RS485, CAN, and I2C interface. This platform requires a voltage supply of 12 V and has a power rating of up to 48 W. It has a payload mass of up to 7.5 kg and a payload volume of up to 6 U. |
| |
Download Datasheet
Product Details | |
|
|
|
| 71-76 GHz GaAs HEMT Medium Power Amplifier | |
RF Amplifier
from Northrop Grumman Corporation
|
| The APH670 from Northrop Grumman Corporation is a space-qualified RF Amplifier that operates from 71-76 GHz. This GaAs HEMT-designed amplifier has a linear signal gain of 18-21 dB and a saturated power value of 25 dBm. It requires a supply voltage of 4 V and has a current consumption of 305 mA. This amplifier has an input return loss of 6-10 dB and an output return loss of 8-11 dB. It is ideal for E-band communication systems, short-haul/high-capacity links. |
| |
Download Datasheet
Product Details | |
|
|
|

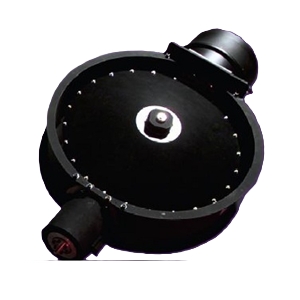

| 25-75 Nms Spacecraft Control Moment Gyroscope | |
Control Moment Gyroscope
from Honeywell Aerospace
|
| The M50 from Honeywell Aerospace is a Control Moment Gyroscope with an angular momentum range of 25-75 Nms and has a tolerance of ±4 %. It has a maximum torque of 75 Nm and has a rotational range of 360 degrees. This CMG has a bandwidth of 10 Hz and has a gimbal position indication accuracy of ±1 %. The CMG has a vehicle rate of 1.5 degree/s and has a maximum power consumption of 113 W. It has a total weight of 28 kg. |
| |
Download Datasheet
Product Details | |
|
|
|

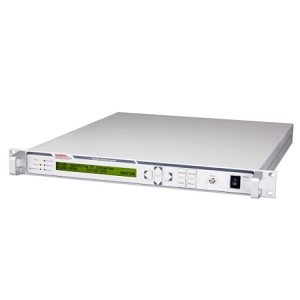

| 2-2.6 GHz S-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-S4 / VSCD-S4 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 2-2.6 GHz and an output frequency of up to 3050 MHz. This S-band downconverter has an LO frequency of 3.18 GHz and a phase noise of up to -112 dBc/Hz. It has an impedance of 50 Ohms and an input/output return loss greater than 20 dB. It weighs 8.4 Kg and measures 322 x 108 x 391 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

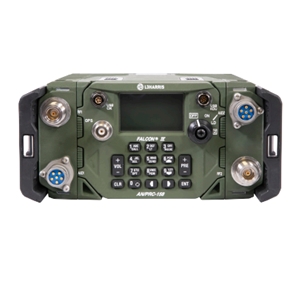

| 30-2500 MHz Multi-channel Manpack Software Defined Radio | |
Software Defined Radio
from L3Harris Technologies
|
| The L3Harris Falcon IV AN/PRC-158 is a Software Defined Radio that delivers dual-channel connectivity with a frequency range of 30-2500 MHz. The MCMP provides forward-deployed warfighters with an unrivaled level of tactical communications flexibility. It has an embedded SAASM GPS receiver that enhances situational awareness. It has an enclosure with N-type connectors that weighs 12.7 lbs and measures 3.50 H x 7.36 W x 14.25 D inches. |
| |
Download Datasheet
Product Details | |
|
