| Featured Space and Satellite Products |
|
|
| 4-16 GHz GaAs Surface Mount MMIC IQ Mixer for Band Shifting | |
Space Qualified RF Mixer
from Marki Microwave
|
| The MMIQ-0416LSM-2 is a GaAs MMIC mixer for low-frequency applications. It has a banded performance is possible at LO drive as low as +4dBm. This RoHS-compliant mixer is ideal for applications such as Single Sideband and Image Rejection Mixing, IQ Modulation/Demodulation, Vector Amplitude Modulation and Band Shifting. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.3-15 V Space Qualified DC-DC Converters | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The SMSA from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 16-40 V. This converter has an output voltage range of 3.3-15 V and an efficiency of 65-74%. It has an output power range of 4-5 W and has a screening of QML Class H or K RHA up to R. This converter is ideal for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
| InGaP HBT MMIC Amplifier for High Reliability RF Applications | |
RF Amplifier
from Teledyne e2v HiRel Electronics
|
| The TDGB014CL2 from Teledyne e2v HiRel Electronics is a space-qualified RF amplifier that operates from 0.1-14 GHz. This InGaP HBT-designed amplifier has a gain of 13.6 dB and a noise figure of 5.5 dB. It requires a maximum supply voltage of 4.2 V. It is ideal for general-purpose, high-reliability RF and microwave amplification needs. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 MP RGB/ Monochrome Camera for Space Applications | |
Satellite Camera
from Infinity Avionics
|
| The ORION12MP from Infinity Avionics is a 12 Megapixel RGB/ Monochrome Satellite Camera. It has a pixel size of 5.5 um. It is suitable for a range of space applications such as Earth observation, hyperspectral imaging, space-based space surveillance and docking/rendezvous applications based on the selected optical assembly. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Multi-Mode Standard Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-100 from General Dynamics Mission Systems is a Space-Qualified Multi-Mode Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz. It is ideal to provide reliable earth-to-space craft, spacecraft-to-spacecraft communications, telemetry and command, proximity link and crosslink applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4 Ah Flight Proven Spacecraft Battery | |
Satellite Battery
from Blue Canyon Technologies
|
| The 1P8S from Blue Canyon Technologies is a Satellite Battery with a nameplate capacity of 3.4 Ah. This battery has an energy of 99 Wh and an operating voltage range of 24-33.6 V. The battery has a mass of less than 6500 g. It offers short lead times, high energy density, and BMS protection. The battery has flown on several successful space missions. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

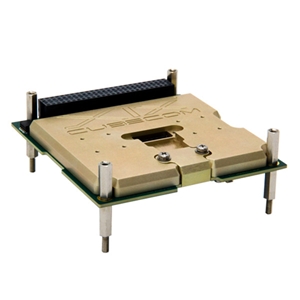

| 8.025 -8.4 GHz C-band Transmitter for Space Applications | |
Space Transmitter
from Cubecom
|
| The XTX from Cubecom is a Space Transmitter that has a frequency range of 8.025-8.4 GHz. It requires an input voltage of 7-20 V and has a power consumption of 15 W. This transmitter has a total mass of 120 g and measures 96 x 90 mm in dimension. It is designed with a Cubesat Kit PC/104 form factor for Nanosatellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|

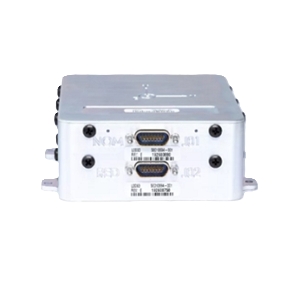

| Dual String Three-Axis Magnetometer for Attitude Control | |
Magnetometer
from Honeywell Aerospace
|
| The Three-Axis from Honeywell Aerospace is a Magnetometer designed specifically for small satellites requiring low cost and SWaP (Size, Weight, and Power). It features a dual-string three-axis magnetometer used for attitude control by the satellite ADCS. This dual-string magnetometer provides a design life of 6.5 years in LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 400-480 MHz Wide Band High Power Circulator | |
Space Qualified Circulator
from RF-Lambda
|
| The RFLC101M40M48 from RF-Lambda is a Space Qualified Circulator that has a frequency range of 400-480 MHz. It has an insertion loss of 0.6 dB and provides an isolation of 17 dB. It has a case material of aluminum alloy with a nickel plating and an impedance value of 50 ohms. It is ideal for aerospace and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|
| 120 pF Space Qualified Capacitor | |
Space Qualified Capacitor
from Exxelia Technologies
|
| The CM Series from Exxelia Technologies is a Space Qualified Capacitor with a capacitance range of 0.2 nF to 120 pF. It has a rated DC voltage range of 50-500 V and has a tolerance of up to ±10%. This Mica capacitor features high stability, low tolerance and low dielectric losses. It is MIL-certified and is ideal for AC filtering and RC Circuits. |
| |
Download Datasheet
Product Details | |
|
|
|

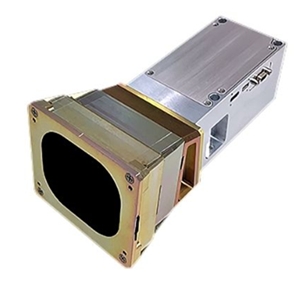

| Mid Extension NST Star Tracker for LEO and GEO Missions | |
Star Tracker
from Blue Canyon Technologies
|
| The Mid Extension NST Star Tracker from Blue Canyon Technologies is a Star Tracker with an altitude accuracy of 6-40 arcseconds and a data update rate of 5 Hz. It has a mass of 0.46 kg and measures 17 x 8.5 x 7 cm. The star tracker supports RS-422 and RS-485 interfaces and is ideal for LEO and GEO standalone missions or constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

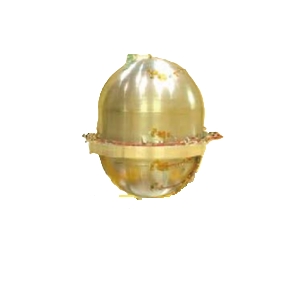

| 3-1494 L Propellant Tanks for Space missions | |
Spacecraft & Satellite Propellant Tank
from IHI Aerospace
|
| The Propellant Tanks from IHI Aerospace is a Spacecraft & Satellite Propellant Tank. These tanks are engineered to meet stringent international standards such as MIL-STD-1522A, JAXA, NASA and ESA. It is tested under rigorous conditions, including stress analysis, dynamic testing, leak-before-burst (LBB) evaluation and flow growth analysis. |
| |
Download Datasheet
Product Details | |
|
