| Featured Space and Satellite Products |
|
|
| 500 kHz to 6 GHz Surface Mount Broadband Balun | |
Space Qualified RF Balun
from Marki Microwave
|
| The BAL-0006SMG from Marki Microwave is a broadband surface-mount balun that operates from 500 kHz to 6 GHz (Balanced to Unbalanced Transformer). It transforms a 50-ohm input into a 100-ohm differential output and is tuned for optimal phase/amplitude balance. The balun has a maximum insertion loss of 6.5 dB and has an isolation value of 8 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The 7-1617529-1 from TE Connectivity is a Space Qualified General Purpose Signal Relay with double-pole relay supports switching currents of up to 5 A at 28 VDC. The relay operates with a coil voltage range of 6.3-110 VDC and has a maximum coil power of 1.5 W. It offers a typical operating time of 5 ms and a release time of 5 ms. The insulation resistance is rated at 10,000 MΩ (minimum) at 500 VDC. |
| |
Download Datasheet
Product Details | |
|
|
|
| 512K x 8-bit Monolithic Radiation Hardened Static RAM | |
Space Qualified Memory
from Honeywell Aerospace
|
| The HX6408 from Honeywell Aerospace is a Space-Qualified Memory with a configuration of 512K x 8-bit memory. This monolithic static RAM is a high-performance 524,288-word x 8-bit static random access memory that is fabricated with Honeywell’s radiation-hardened technology with an 80 angstrom gate oxide. It has a write access time of 20 ns and a storage capacity of 8 Mb. |
| |
Download Datasheet
Product Details | |
|
|
|
| Bipropellant Thruster for Attitude In-orbit Applications | |
Spacecraft Thruster
from AAC Clyde Space
|
| The PM200 from AAC Clyde Space is a Bipropellant Thruster that has a thrust of 0.5 N and a specific impulse of 285 sec. This thruster can be used in 3-6U CubeSats and supports I2C, RS-422, and RS-485 interfaces. This bipropellant thruster requires a supply voltage of 5-12 V and a power consumption of 0.1-12 W. It has a mass of 1.1 Kg and measures 97.7 x 95.4 x 95.4 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Coaxial High-Gain Pyramidal Horn Antenna | |
Satellite Antenna
from Scientific Microwave Corporation
|
| The WR28 from Scientific Microwave Corporation is a Coaxial High-Gain Pyramidal Horn Antenna that operates from 26.5-40 GHz. It delivers an antenna gain of 17-20 dB and a half-power beamwidth (HPBW) of 20° (E/H-Plane). It features excellent performance in terms of gain, bandwidth, and radiation pattern. This antenna has a side-lobe level (SLL) of less than -12 dB and a VSWR value of 1.40:1. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.3 V Star Tracker for Earth observation Applications | |
Star Tracker
from CubeSpace
|
| CubeStar GEN 2 is a medium to high accuracy star tracker designed by CubeSpace for low power consumption, in a small form factor. The tracker outputs quaternions directly and has both “lost in space” and tracking modes. It has an accuracy of 0.02-0.06° and a data update rate of 1 Hz. It requires a supply voltage of 3.3 V. It has a mass of 47 g and measures 35 x 49 x 24 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 9-14 GHz High Power Amplifier for Telecom and Space Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-HPA-0900-1400-34 from ERZIA is an RF Amplifier that operates in a frequency range of 9-14 GHz. This high-power amplifier has a small signal gain of 32 dB and a gain flatness of +/- 2.0 dB. It has a saturated output power of 33-36 dBm and an input/output VSWR of 1.8:1. The amplifier requires a DC supply voltage of 9-15 V and has a power consumption of 16 W. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| Software-Defined Satellite Modem for Communication Systems | |
Satellite Modem
from Digisat International
|
| The QFlex-400 from Digisat International is a Satellite Modem with dual IF/L-band support that has a maximum data rate of 345 Mbps and an L-band frequency of 950-2450 MHz. This modem has an IF frequency of 50-180 MHz and supports symbol rates from 100 ksps to 100 Msps. It supports DVB-S2/S2X and FastLink LDPC for enhanced bandwidth efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|

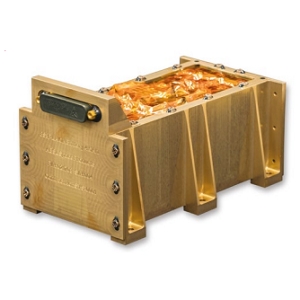

| 8.4 Ah Space-Qualified Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s3p 28V 8.4Ah from EnerSys is a Satellite Battery with a capacity of 8.4 Ah and an energy of 248.64 Wh. This satellite battery has a voltage range of 24-33.6 V with a nominal voltage of 29 V. It has an 8s3p configuration and features ABSL Li-ion cell technology. The battery does not require cell balancing electronics. It has a mass of 1.66 Kg and measures 176 x 96 x 98 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

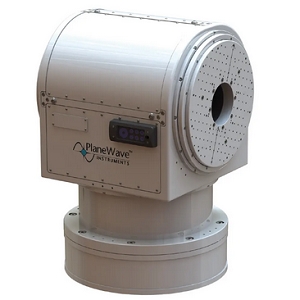

| Direct-Drive Gimbal for Pointing and Tracking Applications | |
Gimbal
from PlaneWave
|
| The T-600 from PlaneWave is a Direct-Drive Gimbal that has a load capacity of up to 600 lbs and has a pointing accuracy of 10 arcseconds RMS with PointXP modeling. This alt-azimuth/equatorial mount gimbal has a pointing precision of 2 arcseconds at sidereal velocity and supports a velocity of up to 150°/s. This gimbal has a mass of 605 lbs and measures 34 x 20 x 23.5 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

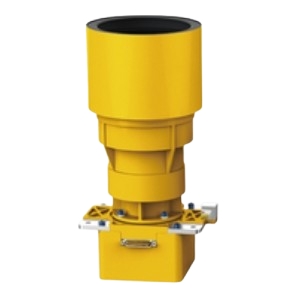

| 3-30 arcseconds Star Tracker for Nano-Satellites | |
Star Tracker
from TY-Space Technology Ltd
|
| The NST20-G2 from TY-Space Technology Ltd is a Star Tracker with an attitude accuracy of 3-30 arcsecs with a maximum slew rate of 20 deg/sec. This star tracker has an update rate of 20 Hz and an acquisition rate of 2 seconds. It requires a DC supply of 5 V and has a field of view of 15 x 15 degrees. It has a mass of 1.2 kg and measures 90 x 100 x 268 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3U Satellite Bus & Platform for Nanosatellite Missions | |
Satellite Bus & Platform
from ISISPACE
|
| The CubeSat 3U Platform from ISISPACE is a Satellite Bus & Platform for nanosatellite missions. It has a payload volume of 1.5 to 2 U with a mass of up to 2kg/U and a data storage capacity of up to 64 GB. This satellite bus has an ADCS system with a pointing accuracy of 10 degrees in sunlight and down to 1 degree in the whole orbit. This 3U platform has a TT&C uplink of up to 9.6 kbps. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.499 Ohms Space Qualified Wire-Wound Resistor | |
Space Qualified Resistor
from KOA Global
|
| The RWS83 from KOA Global is a Space Qualified Resistor that has a minimum resistance of 0.499 ohms and a maximum resistance of 7k (?0.025 mm) and 1.8k (?0.04 mm). This JAXA-qualified component features lead-solder plating and a fixed wire-wound construction. It has a maximum resistance tolerance value of ±5.0%. This resistor has a mass of 4 g and measures 18.5 x 6.5 x 1.0 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
