| Featured Space and Satellite Products |
|
|
| 8.4-12.5 GHz Passive GaAs MMIC Bandpass Filter | |
Space Qualified RF Filter
from Marki Microwave
|
| The MFBA-00004BH from Marki Microwave is a Passive MMIC Bandpass Filter with a passband from 8.4 to 12.5 GHz. It has a center frequency of 10.19 GHz with an insertion loss of 2.29 dB and provides a rejection of better than -20 dB. This BPF provides a return loss of 23 dB and has a group delay of 578 ps. This MMIC filter is available in a connectorized housing that measures 30.1 x 9.5 mm and has a 2.92 mm (female) connector. |
| |
Download Datasheet
Product Details | |
|
|
|
| GNSS Receiver for Radar and Communication Systems | |
GNSS Receiver
from ReliaSat
|
| The W-x8RX-SM-9296 from ReliaSat is a GNSS Receiver with an RF frequency range of 92-96 GHz and an IF frequency range of 2-6 GHz. This receiver has LO frequency of 10.80-11.40 GHz and has an image rejection of 20 dB. The module contains Arralis monolithic millimetre-wave P-HEMT integrated circuits and patented technology allowing very large-scale integration. The receiver has a mass of 90 g and measures 20(W) x 35 (L) x 20 (H)mm. |
| |
Download Datasheet
Product Details | |
|
|
|

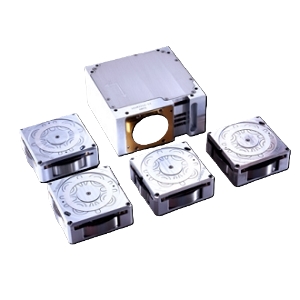

| Attitude Control System (ACS) for 6U CubeSats | |
ADCS System
from Blue Canyon Technologies
|
| The XACT-100 from Blue Canyon Technologies is an Attitude Control System (ACS) that is designed for 6U CubeSats for LEO orbits with a spacecraft lifetime greater than 5 years. It has a momentum storage of 100 mNms per axis and a maximum torque value of 0.006 Nm. This ACS system consists of a powerful processing core coupled with reaction wheel assemblies and provides precise attitude knowledge & control. It has a mass of 1.38 Kg and measures 100 x 100 x 50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The 7-1617529-1 from TE Connectivity is a Space Qualified General Purpose Signal Relay with double-pole relay supports switching currents of up to 5 A at 28 VDC. The relay operates with a coil voltage range of 6.3-110 VDC and has a maximum coil power of 1.5 W. It offers a typical operating time of 5 ms and a release time of 5 ms. The insulation resistance is rated at 10,000 MΩ at 500 VDC. The MIL-R-5757/10 qualified relay is hermetically sealed and weighs up to 17 g. |
| |
Download Datasheet
Product Details | |
|
|
|
| OnBoard Computer for Global Satellite Applications | |
Satellite On-Board Computer (OBC)
from Airbus
|
| The Amethyst from Airbus is a Satellite On-Board Computer (OBC) based on a high-performance ARM processor designed for safety-critical applications. This OBC has a 192 MBytes SDRAM CPU with error detection and 64 MBytes SDRAM IO with ECC. It interfaces with AOCS sensors and actuators, including magnetorquers and solar array step motors. It requires an input power bus voltage of 22-38 V. It has a mass of 3.5 Kg and measures 110 x 240 x 170 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

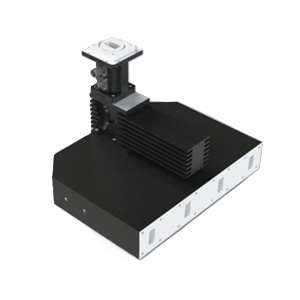

| Four-way Isolated Power Combiner/Divider | |
Space Qualified Power Divider
from Scientific Microwave Corporation
|
| The SMC-120090 from Scientific Microwave Corporation is a Four-Way Isolated Power Combiner/Divider with a frequency range of 8.20-12.40 GHz. It has a WR-90 rectangular waveguide interface and offers a low VSWR of 1.4:1, ensuring efficient impedance matching and signal transmission. It supports full-band operation with both standard and custom configurations, including pressurized and TVAC models upon request. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-4.8 GHz C-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-C1 / VSCD-C1 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 3.4-4.8 GHz and an LO frequency of 8.57-9.97 GHz. This C-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -110 dBc/Hz. It has an IF input impedance of 50 Ohms and an input/output return loss greater than 20 dB. It weighs 8.4 Kg (Indoor housing) and measures 483 x 44 x 505 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| 7.75 to 8.5 GHz X-Band Low Noise Block Downconverter | |
Low Noise Block
from Orbital Research
|
| The LNBX-EO from Orbital Research is an X-Band Earth Observation Low Noise Block (LNB) Downconverter that converts an input RF frequency of 8.0-8.5 GHz and an IF frequency of 950-1450 MHz. This LNB provides a bandwidth of 500 MHz and has a noise figure of 0.6 dB. It has a gain of 60 dB and has a P1dB value of 15 dBm. This LNB has an IP67-rated Aluminium sealed enclosure which weighs 1130 g and measures 270 x 79 x 55 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Multi-Mode Standard Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-100 from General Dynamics Mission Systems is a Space-Qualified Multi-Mode Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. This S-band transponder has a telemetry data rate of 1– 512kbps and a command data rate of up to 4 Kbps. The transponder has a mass of 6 lbs and measures 9.40 x 7.30 x 2.30 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| Electron Launch Vehicle Platform | |
Satellite Launch Vehicle Platform
from Rocket Lab
|
| The Electron from Rocket Lab is a Satellite Launch Vehicle Platform designed specifically to place small satellites of up to 300 kg into a wide range of low earth orbits (LEO). It has a vehicle mass of 13,000 kg and functions in a 2+ kick stage. This launch vehicle platform uses carbon fiber composite material and has a Monocoque structure. It utilizes 1x Rutherford Vacuum propulsion engine in Stage 2 and 9x Rutherford Sea Level Engines in Stage 1. |
| |
Download Datasheet
Product Details | |
|
|
|

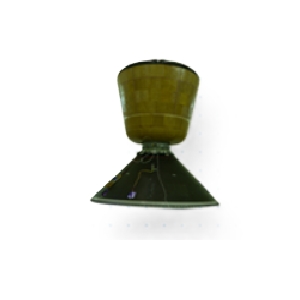

| Satellite Separation System for Spring Thrusters | |
Separation System
from Antrix Corporation Limited
|
| The 1194IF CLAMP BAND from Antrix Corporation Limited is a satellite separation system designed for up to 4000 kg satellites. It is released by a redundant bolt cutter actuation and has a system preload tuning that can be varied to cater to different satellite inertial properties. This separation system incorporates a tension release device employed to reduce the separation shock. It requires a power supply of 5 A and has a time duration of 10 ms. |
| |
Download Datasheet
Product Details | |
|
|
|

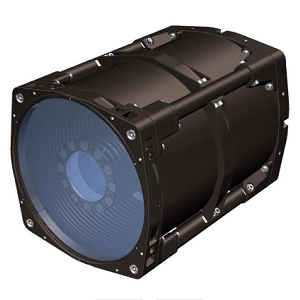

| 65.4 MP High Resolution Satellite Camera | |
Satellite Camera
from Simera Sense
|
| The TriScape200 from Simera Sense is a Satellite Camera with a focal length of 1067 mm and an aperture of 190 mm. It has a field of view (FOV) of 1.6° (across-track) x 1.2° (along-track) and has a pixel resolution of 9344 x 7000. This RGB Bayer pattern camera has a CMOS Global shutter sensor technology with a pixel size of 3.2 µm and has a pixel depth of 10 bits. It has a mass of 12.31 kg and measures 311 x 216 x 216 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

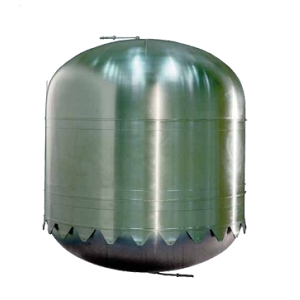

| 700-1108 L Propellant Tank for Spacecrafts | |
Spacecraft & Satellite Propellant Tank
from Orbital Propulsion Centre
|
| The SURFACE TENSION PROPELLANT TANK OST 22/X from Orbital Propulsion Centre is a Spacecraft & Satellite Propellant Tank with a net tank volume range of 700-1108 L and a maximum expected operating pressure of 19.5 bar. This propellant tank is compatible with MON respectively MMH propellants, and has 24 suspension tabs with floating nuts. It has a proof pressure of 24.38 bar and a burst pressure of 29.25 bar. |
| |
Download Datasheet
Product Details | |
|
|
|

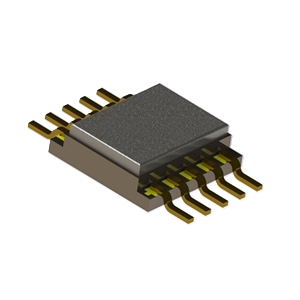

| Hermetically Sealed Space Qualified Single-Channel Optocoupler | |
Space Qualified Optocoupler
from Micropac Industries
|
| The 66177-817 from Micropac Industries is a Space Qualified Single-Channel Optocoupler with a forward voltage range of 0.7-1.7 V and a static reverse current of 100 µA. It has a collector-to-emitter breakdown voltage of 40 V and an emitter-to-base breakdown voltage of 7 V. This radiation-tolerant optocoupler has a continuous collector current of 50 mA and a continuous transistor power dissipation of 300 mW. It has an on-state collector current of 0.5-10 mA. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| Non-Pyrotechnic Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The FC4 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Launch Vehicle Actuator with a maximum load support capability of 3400 lbf. This actuator has a function time of 35 seconds and a life of 60 cycles/min. It requires a supply voltage of 22-105 V and has a power consumption of 111 W. The actuator draws a current of up to 2.9 A and has a resistance of 9.7-90 Ohms. It has a mass of 55 g and measures 1.45 x 0.95 x 0.257 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.95-1.45 GHz Ceramic Balun for Cable TV Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The TCN1-152-75+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 950-1450 MHz. This ceramic balun has an amplitude unbalance of 0.65-1.10 dB and a low phase unbalance of 0.24-6.63 degrees. It has an impedance ratio of 1 and a maximum insertion loss of 1 dB. The balun has an impedance value of 50 Ohms. This RoHS-compliant balun has a mass of 0.008 g and measures 0.12 x 06 x.037 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

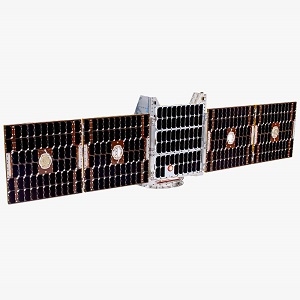

| 161 W Satellite Bus & Platform for Space Missions | |
Satellite Bus & Platform
from Kongsberg NanoAvionics
|
| The MP42H 15" Mid from Kongsberg NanoAvionics is a Satellite Bus & Platform with a sun tracking payload power of 161 W and bus power of 216 W. It supports a data rate of 3 Mbps in the S-band with uplink frequencies ranging from 2025-2110 MHz and a data rate of 1 Mbps for downlink frequencies from 2200-2290 MHz. The platform enables data routing from the payload at up to 200 Mbps with downlink frequencies ranging between 8025-8400 MHz. |
| |
Download Datasheet
Product Details | |
|
|
|

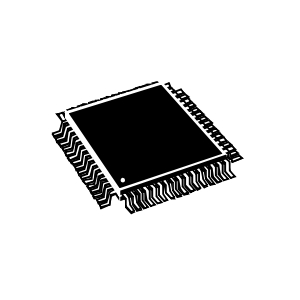

| 32-bit Microcontroller for Aerospace Applications | |
Space Qualified Microcontroller
from STMicroelectronics
|
| The STM32F303Rx from STMicroelectronics is a high-performance 32-bit microcontroller built on the Arm Cortex-M4 core with a Floating-Point Unit (FPU) and requires an operating frequency of up to 72 MHz. This MCU has a flash memory of up to 512 KB and 64 KB of SRAM, including 16 KB of Core-Coupled Memory (CCM) for time-critical operations. This MCU is available in a surface-mount package that measures up to 10 x 10 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| UHF Linearly Polarized Antenna for Satellite Communications | |
Satellite Antenna
from PlaneWave
|
| The PW0404-100 from PlaneWave is a Satellite Antenna is a UHF Linearly Polarized Satellite Antenna designed for TT&C applications in harsh space environments. It operates over a frequency range of 395–405 MHz and provides omnidirectional coverage with a gain of 0.5 dBi. This antenna supports up to 20 W of power handling and has a maximum VSWR value of 3.6:1.This satellite antenna has a mass of 630 g and measures 7.8 x 6.4 x 0.93 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

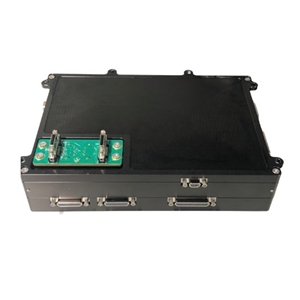

| Payload Support Unit for LEO Satellites | |
Payload Data Handling System
from Berlin Space Technologies
|
| The Payload Support Unit (PLSU) from Berlin Space Technologies is a high-performance electronic system designed to operate spacecraft payloads while receiving, storing, processing, and compressing payload data. It includes 1 TB of onboard storage with an 850 MB/s write speed and provides user-defined FPGA-based output interfaces up to 10 Gbit/s. The payload support unit operates at 3.3 V (DPU). It has a mass of 985 g and dimensions of 53.0 x 139.8 x 194.6 mm. |
| |
Download Datasheet
Product Details | |
|
