| Featured Space and Satellite Products this Week |
|
|
| 500 kHz to 6 GHz Surface Mount Broadband Balun | |
Space Qualified RF Balun
from Marki Microwave
|
| The BAL-0006SMG from Marki Microwave is a broadband surface mount balun that operates from 500 kHz to 6 GHz (Balanced to Unbalanced Transformer).This space-qualified balun transforms a 50-ohm input into a 100-ohm Differential output and are tuned for optimal phase/amplitude balance. The balun can be used in analog to digital converters, balanced receivers, baseband digital modulation and signal integrity. |
| |
Download Datasheet
Product Details | |
|
|
|
| 800-1175 MHz Power Splitter for Cellular Applications | |
Space Qualified Power Divider
from Mini Circuits
|
| The SCN-2-11 from Mini-Circuits is a Space Qualified Power Divider that operates from 800-1175 MHz. This power divider has an insertion loss of 0.5-0.8 dB and an isolation of 15-20 dB. It has a maximum phase unbalance of up to 3 degrees and an amplitude unbalance of 0.1-0.3 degrees. It has a mass of 0.02 g and requires an input power of up to 20 W. The power divider is ideal for GSM, ISM and cellular applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Earth/Horizon Sensor for Nanosatellites | |
Earth/Horizon Sensor
from CubeSpace
|
| The CubeSense Gen 1 from CubeSpace is a Earth/Horizon Sensor that has an accuracy of 0.2° and with a field of view of 170°. It has a maximum slew rate of 10°/s and has an output data rate of 2 Hz. This CMOS-based sun sensor requires a supply voltage of 3.3 V and has a peak power value of 200mW. The earth/horizon sensor measures 41.7 x 17.7 x 22.9 mm. It is ideal for CubeSats and nano-satellite missions ranging from 2U-16U. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 MP Optical Imager for Nano Satellites | |
Satellite Camera
from AAC Clyde Space
|
| The IM200 from AAC Clyde Space is a Satellite Camera that comes with a 4-megapixel resolution. This radiation-tolerant imager offers on-board image compression and holds a framebuffer that contains up to 25 full-frame raw images. This flight-proven imager has a radiation tolerance qualified up to 9 krad (Si). It has a mass of 59 g and measures 29 x 29 x 70.7 mm. It is suitable for applications on larger satellite platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| Rubidium Atomic Frequency Standard for GNSS Applications | |
Space Qualified Atomic Clock
from Airbus
|
| The RAFS from Airbus is a space-qualified atomic clock that delivers a 10.00 MHz output based on the Rb87 atomic spectral absorption line. It has a design life of over 15 years and is suited for LEO, MEO and GEO missions. It has proven in missions like Giove-A/B, Galileo and ISRO programs. It is ideal for GNSS overlay systems, navigation payloads, high-performance communications and scientific instruments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-100 Arcsecond Star Tracker for High-Volume Applications | |
Star Tracker
from Rocket Lab
|
| The ST-16HV from Rocket Lab is a Star Tracker with an absolute accuracy of 10-100 arcsec with a maximum slew rate of 2 deg/sec. This star tracker has an angular rates at 2 Hz with zero initial acquisition time and has a 2592 x 1944 CMOS active-pixel sensor. It requires a DC supply of 9-34 V and has a power consumption of up to 1 W. This star tracker supports two half-duplex RS-485 interfaces with a commercial grade 16 mm f/1.8 lens. It measures 62 x 56 x 38 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| Integrated High-Speed Downlink Transmitter for SmallSat LEO missions | |
Software Defined Radio
from Honeywell Aerospace
|
| The CDL-MS02 from Honeywell Aerospace is an Integrated High-Speed Downlink Transmitter that has a Tx frequency of 5100 to 5300 MHz and provides up to a 40 Mbps downlink to ground infrastructure. It comprises a radio transmitter with a high-efficiency SSPA, a power distribution unit providing accurate regulation and delivery of power across the system and a digital baseband. It measures 179 x 232 x 47 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

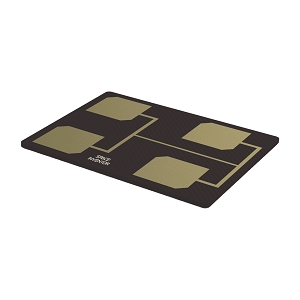

| S-band Satellite Antenna for SATCOM Applications | |
Satellite Antenna
from Space Inventor
|
| The PATCH2X2-S-R from Space Inventor is a Satellite Antenna designed to operate in the S-band frequency range. It features four antenna elements on a substrate with a feed network. This satellite patch antenna has a single port offering improved gain, reliability and versatility for applications like satellite communication, radar systems and wireless networks. It is ideal for satellite, maritime and military settings. |
| |
Download Datasheet
Product Details | |
|
|
|

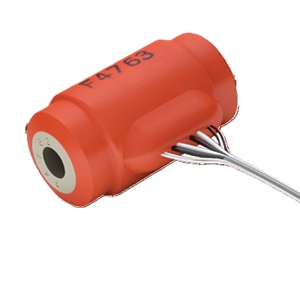

| Non-Pyrotechnic Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The FC4 from Ensign-Bickford Aerospace & Defense Company (EBAD) is a Launch Vehicle Actuator with a maximum load support capability of 3400 lbf. This actuator has a function time of 35 sec and a life of 60 cycles/min. This Launch Vehicle Actuator features a redundant firing unit and is ideal for applications such as solar arrays and instrument deployment, instrument launch locks, optic covers and satellite separation systems. |
| |
Download Datasheet
Product Details | |
|
|
|

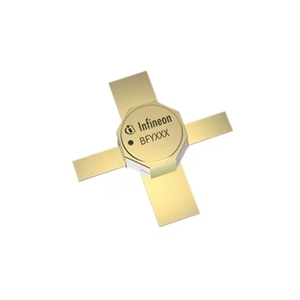

| Space-Qualified HiRel NPN Silicon RF Transistor | |
Space Qualified RF Transistor
from Infineon Technologies
|
| The BFY740B-01 (ES) from Infineon Technologies is a Space-Qualified HiRel NPN Silicon RF Transistor that has a collector-emitter voltage of 4 V and a collector-base voltage of 13 V. This high-gain ultra-low-noise transistor has a collector current of 30 mA and a base current of 3 mA. It has an insertion power gain of 24 dB and a noise figure of 1.0 dB. It measures 4.40 x 1.25 mm and is ideal for flight applications. |
| |
Download Datasheet
Product Details | |
|
|
|

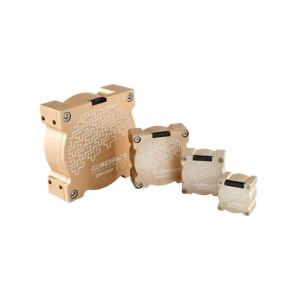

| 37 mNm Reaction Wheel for Microsatellites | |
Reaction Wheel
from CubeSpace
|
| The CW5000 from CubeSpace is a Reaction Wheel for microsatellites that has a maximum speed of 10000 RPM and a momentum of 500 mNms. It has a saturation torque of 37 mNm and supports CAN, UART and RS-485 data interfaces. It is integrated with a radiation-tolerant electronic drive circuit and speed controller. The reaction wheel includes a high-load space-rated bearings coupled with precision balancing. |
| |
Download Datasheet
Product Details | |
|
|
|

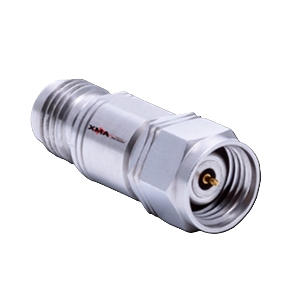

| DC to 65 GHz Space Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from XMA Corporation
|
| The 10618286 from XMA Corporation is a Space Qualified Fixed Attenuator designed to operate over a wide frequency range from DC to 65 GHz and has a nominal attenuation of 4 dB. It provides precise attenuation accuracy of ±0.75-2.5 dB at higher frequencies and a unit has 1.85 mm male-to-female connectors. This space-qualified fixed attenuator is engineered to reduce input power by a fixed amount in a matched RF system. |
| |
Download Datasheet
Product Details | |
|
|
|

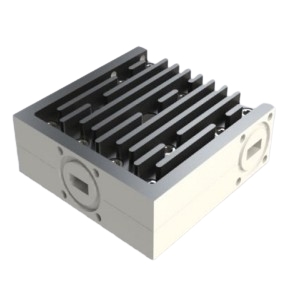

| 7.05-10 GHz Rectangular Waveguide Circulators | |
Space Qualified Circulator
from Scientific Microwave Corporation
|
| The SMC-0200112 from Scientific Microwave Corporation is a Rectangular Waveguide Circulator that operates from 7.05-10 GHz. This circulator has a return loss of 20 dB that is equipped with pressurized and TVAC units which features full band operation and deep matching. It is available in waveguide package that measures 5 x 5 x 1.63 mm and is ideal for RF source protection, radar systems and satellite applications. |
| |
Download Datasheet
Product Details | |
|
