| Featured Space and Satellite Products |
|
|
| 500 kHz to 6 GHz Surface Mount Broadband Balun | |
Space Qualified RF Balun
from Marki Microwave
|
| The BAL-0006SMG from Marki Microwave is a broadband surface mount balun that operates from 500 kHz to 6 GHz (Balanced to Unbalanced Transformer). It transforms a 50-ohm input into a 100-ohm Differential output and are tuned for optimal phase/amplitude balance. The balun has a maximum insertion loss of 6.5 dB and has an isolation value of 8 dB. It has a total input power value of 1 W and a VSWR value of 1.5. |
| |
Download Datasheet
Product Details | |
|
|
|
| Rubidium Atomic Frequency Standard for GNSS Applications | |
Space Qualified Atomic Clock
from Airbus
|
| The RAFS from Airbus is a space-qualified atomic clock that delivers a 10.00 MHz output based on the Rb87 atomic spectral absorption line. The unit features low thermal sensitivity and magnetic sensitivity, ensuring consistent performance under extreme conditions. The atomic clock supports a bus voltage input of 26–48.5 V and has a power consumption value of 30 W in steady-state operation. It has a mass of 3.3 kg and measures 210 x 106 x 107 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Electron Launch Vehicle Platform | |
Satellite Launch Vehicle Platform
from Rocket Lab
|
| The Electron from Rocket Lab is a Satellite Launch Vehicle Platform designed specifically to place small satellites of up to 300 kg into a wide range of low earth orbits (LEO). It has a vehicle mass of 13,000 kg and functions in a 2+ kick stage. This launch vehicle platform uses carbon fiber composite material and has a Monocoque structure. It utilizes 1x Rutherford Vacuum propulsion engine in Stage 2 and 9x Rutherford Sea Level Engines in Stage 1. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Multi-Mode Standard Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-100 from General Dynamics Mission Systems is a Space-Qualified Multi-Mode Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. This S-band transponder has a telemetry data rate of 1– 512kbps and a command data rate of up to 4 Kbps. The transponder has a mass of 6 lbs and measures 9.40 x 7.30 x 2.30 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4 Ah Flight Proven Spacecraft Battery | |
Satellite Battery
from Blue Canyon Technologies
|
| The 1P8S from Blue Canyon Technologies is a Satellite Battery with a nameplate capacity of 3.4 Ah. This battery has an energy of 99 Wh and an operating voltage range of 24-33.6 V. It features under-voltage protection, over-current protection, and cell balancing. The battery has a mass of less than 6500 g and measures 1.8 x 4.2 x 3.5 inches. It offers short lead times, high energy density, and BMS protection. The battery has flown on several successful space missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| GNSS Receiver for Accurate Muzzle Velocity Testing | |
GNSS Receiver
from ReliaSat
|
| The W-x4RX-SM-9296 from ReliaSat is a GNSS Receiver with an RF frequency range of 92-96 GHz and an IF frequency range of 2-6 GHz. This receiver has a LO frequency of 21.65-22.65 GHz and has an image rejection of 20 dB. The module contains Arralis monolithic millimetre-wave p-HEMT integrated circuits and patented technology allowing very large-scale integration. The receiver has a mass of 90 g and measures 20(W) x 35 (L) x 20 (H)mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25.5-27 GHz Hemispherical Antenna Pointing Mechanism | |
Antenna Positioning Mechanism
from Airbus
|
| The LEO Ka-Band from Airbus is an antenna pointing mechanism designed for hemispheric coverage in low Earth orbit communications. It offers a pointing accuracy of less than 0.3° and a rotational velocity under 10°/s. It has a frequency range of 25.5–27 GHz and delivers a high antenna gain of 31 dBi. This LEO Ka-band has a slip ring for electrical signal transmission. The unit has a mass of less than 9 kg and a moving envelope of 70 x 72 cm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| 1.8 m Ku-Band Auto Fly-Away Satellite Terminal | |
Satellite Terminal
from Norsat
|
| The WFA180KU-NA from Norsat is a Satellite Terminal with an Rx frequency range of 10.7-12.75 GHz and a Tx frequency range of 13.75-14.5 GHz. This Ku-band antenna has an Rx gain of 45.3 dBi and a Tx gain of 46.3 dBi. It has an azimuth range of +/- 180 degrees. This satellite terminal has an automatic 3-axis acquisition and a manual backup pointing operation. It weighs up to 50 kg and measures 121 x 44 x 68 cm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-20 MHz OCXO for Ground Stations | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROD2522S2H from Rakon Limited synchronises its 1PPS and output clock to a specified 1PPS input signal from the GNSS system or the synchronization system output. It has a nominal frequency of 10-20 MHz and supports an I²C bus interface for device status and commands. This PPS disciplined oscillator has a frequency stability of 0.5 ppb. The oscillator requires a supply voltage of 3.3 V and measures 25.4 x 22.0 x 12.1 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Surface Mount Diplexer for GPS Applications | |
Space Qualified RF Diplexer
from Mini Circuits
|
| The LDP-1050-252+ from Mini Circuits is a Space Qualified Diplexer designed to operate over a combined frequency range of 1-2500 MHz with defined passbands from 1–1050 MHz (low pass) and 1650–2500 MHz (high pass). It features a low insertion loss of 0.6-2.9 dB. It has a stop band isolation of 31 dB for low pass and 18-32 dB for high pass with an RF input power up to 2 W. This RoHS-compliant diplexer has a mass of 0.02 g and measures 3.2 x 1.8 x 0.86 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

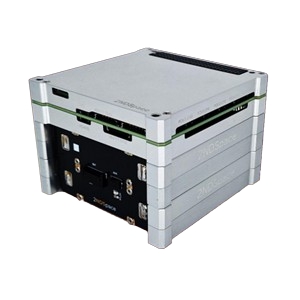

| 24-Channel Modular CubeSat Electrical Power System | |
Satellite Electrical Power System
from 2NDSpace SRL
|
| The SOLO-EPS X4 from 2NDSPACE is a Modular CubeSat Electrical Power System (EPS) designed to provide robust and reliable power management for small satellite missions. It is configured with a Power Distribution and Control Unit (PDCU) and four Battery Management Systems (BMS) supporting CubeSats ranging from 1U to 27U. It can deliver a peak channel current of up to 3.3 A over 6 channels. It has a mass of 966g and measures 97 x 92 x 66 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

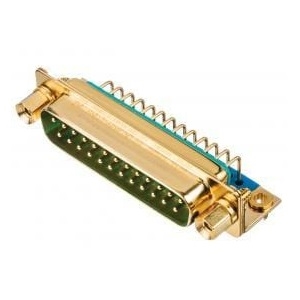

| 4 mOhms Multi-port Connector for Spaceflight Applications | |
Space Qualified RF Connector
from Positronic
|
| The SND Series from Positronic is a Space Qualified RF Connector with an insulation resistance of 5 Gohm and an initial contact resistance of 4 mohm. This connector has a working voltage of 300 V and a proof voltage of 1000 V. This RoHS-compliant connector uses an aluminum/stainless steel shell material with an electroless nickel or stainless steel passivated shell finish. The connector has a mechanical durability of 1000 cycles. |
| |
Download Datasheet
Product Details | |
|
|
|

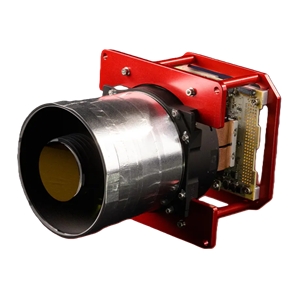

| 460–860 mm High-Resolution Satellite Camera for CubeSats | |
Satellite Camera
from Simera Sense
|
| The HyperScape100 from Simera Sense is a Satellite Camera with a focal length of 580 mm and an aperture of 95 mm. It has a field of view (FOV) of 2.22° (across-track) and a resolution of 4096 pixels. This Pushbroom configuration-based camera has a CMOS global shutter sensor technology with a pixel size of 5.5 µm and has a pixel depth of 12 bits. The camera has a DC supply voltage of 5 V. It has a mass of 1.26 kg and measures 176.5 x 98.3 x 98.3 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

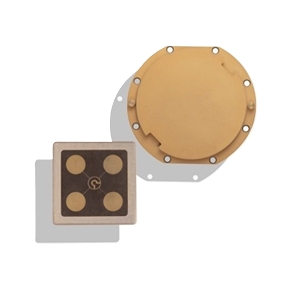

| S-Band Patch Antenna for CubeSat Missions | |
Satellite Antenna
from AAC Clyde Space
|
| The PULSAR-SANTC from AAC Clyde Space is a high-gain S-Band patch antenna designed to be mounted on the nadir facing side of a 3U CubeSat. It requires a frequency range of 2.2–2.3 GHz and delivers a gain of over 7 dBi with a wide 60° beamwidth. The patch antenna supports left or right-hand circular polarization and integrates easily with CubeSat structures through a 1U form factor and SMA female connector. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 1.1 mN Iodine Gridded Ion Thruster for Deep-Space Missions | |
Spacecraft Thruster
from Busek
|
| The BIT-3 from Busek is a Spacecraft Thruster with a thrust value of 1.1 mN and a specific impulse of 2150 seconds. It is compatible with iodine propellant and has a demonstrated drop-in replacement for xenon in terms of thrust and Isp performance. The thruster has a propellant mass flow of 52 µg/sec and supports RS-485 as a communication interface. It has a thruster mass of 1.4 Kg with gimbals and measures 180 x 88 x 102 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

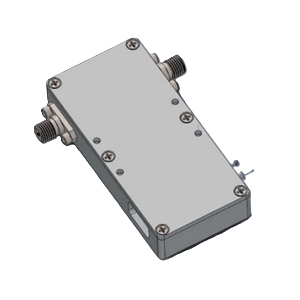

| 2-14 GHz Block Up/Down Converter for Communication Systems | |
Block Up/Down Converter
from Lotus Communication Systems
|
| The BUDC2G14G from Lotus Communication Systems is a wideband Block Up/Down Converter that operates with an RF frequency range of 2-14 GHz and an IF frequency range of 500 MHz to 6 GHz. It integrates a low-phase-noise local oscillator supporting frequencies from 1-12 GHz, eliminating the need for an external reference. The converter offers a typical conversion loss of 8.0 dB at 5.8 GHz. It weighs 42 g and measures 2.8125 x 1.3125 x 0.49 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

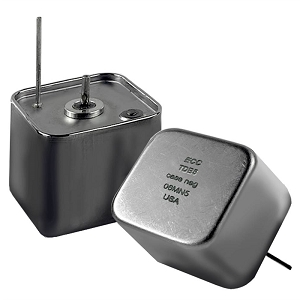

| 6.5 mF Space Grade Tantalum based Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB5100652 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 6500 µF. This capacitor has a direct current leakage of 150 µA to 1.50 mA and an equivalent series resistance of 30 mOhm. It has a voltage rating of 100 V and a surge voltage of 110 V. This lead-free RoHS-compliant capacitor is rated for greater than 2000 hrs. It has a mass of 95 g and measures 1.0 x 1.0 x 0.912 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| Outdoor Satellite Modem for Maritime Applications | |
Satellite Modem
from VT iDirect
|
| The ASM1200 Series from VT iDirect is a Satellite Modem with a Tx frequency range of 950-2400 MHz and an Rx frequency range of 950-2150 MHz. This outdoor modem has a TX output power level of -35 dBm to 0 dBm and an output power step size of 0.5 dB. It features DVB-S2/DVB-S2X with adaptive TDMA returns and is OpenAMIP compatible for ease of integration. The modem weighs 2.5 Kg and measures 230 x 230 x 43 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 120-125 kOhms Space Qualified Chip Resistor | |
Space Qualified Resistor
from TT Electronics
|
| The RM0705 from TT Electronics is a Space Qualified Resistor with a resistance range of 120-125 kOhms and a resistance tolerance of +/- 0.1-10%. This resistor has a temperature coefficient of resistance of 100 ppm/degrees C and is qualified to MIL-PRF-55342 Space Level T. It has a rated voltage of 50 V. The chip resistor is designed using TaN film technology and has a Sn/Pb solder over nickel barrier terminations. It measures 0.081 x 0.05 x 0.02 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

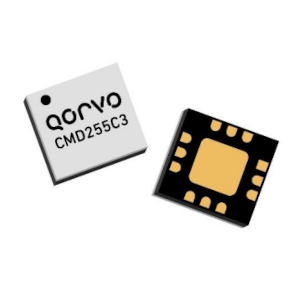

| 16-26 GHz Space-Qualified Double Balanced Mixer | |
Space Qualified RF Mixer
from Qorvo
|
| The CMD255C3 from Qorvo is a Space-Qualified RF Mixer designed for up-and-down converting applications. It has an RF frequency of 16-26 GHz and a wide IF frequency of DC to 9 GHz. This fundamental mixer has a low conversion loss of 6.5 dB and an input IP3 of 24 dBm. It has a LO-RF isolation of 40 dB and an RF-IF isolation of 30 dB. It requires an RF/IF input power of 25 dBm. This Pb-Free RoHs-compliant mixer has a 3x3 mm SMT package. |
| |
Download Datasheet
Product Details | |
|
