| Featured Space and Satellite Products |
|
|
| 500 kHz to 6 GHz Surface Mount Broadband Balun | |
Space Qualified RF Balun
from Marki Microwave
|
| The BAL-0006SMG from Marki Microwave is a broadband surface mount balun that operates from 500 kHz to 6 GHz (Balanced to Unbalanced Transformer). It transforms a 50-ohm input into a 100-ohm Differential output and are tuned for optimal phase/amplitude balance. The balun has a maximum insertion loss of 6.5 dB and has an isolation value of 8 dB. It has a total input power value of 1 W and a VSWR value of 1.5. |
| |
Download Datasheet
Product Details | |
|
|
|

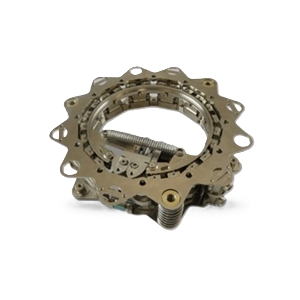

| Non-Pyrotechnic Space Vehicle Separation System | |
Separation System
from Rocket Lab
|
| The 2003336B from Rocket Lab is a Separation System that is designed to separate space vehicles from launch vehicles. The separation system has a total mass of 3000 Kg and has integrated springs, switches and connectors that streamline mission design. It requires a supply voltage of 24-32 V. It has a deployed life of 20 years and is suitable for commercial, government, private and university customers for LEO, GEO and interplanetary orbits. |
| |
Download Datasheet
Product Details | |
|
|
|

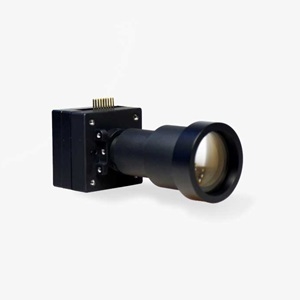

| 4 MP Optical Imager for Nano Satellites | |
Satellite Camera
from AAC Clyde Space
|
| The IM200 from AAC Clyde Space is a Satellite Camera that comes with a 4-megapixel resolution. It has a pixel scan rate above 30 MP/s and has a very low power consumption of less than 700 mW. It supports TTL UART interface for command and USB, RS422, RS485, and I2C interface as optional. This imager has a radiation tolerance qualified up to 9 krad (Si). It measures 29 x 29 x 70.7 mm. The imager is suitable for applications on larger satellite platforms. |
| |
Download Datasheet
Product Details | |
|
|
|

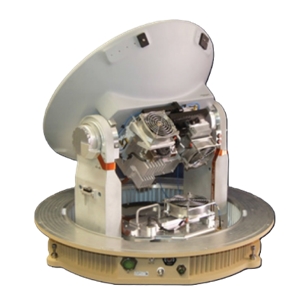

| 30-31 GHz Ka-Band SATCOM On-The-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-24M Ka MIL from General Dynamics Mission Systems is a Satellite Terminal with a Tx frequency range of 30-31 GHz and a Rx frequency range of 20.20-21.20 GHz. It measures 28.9 inches (height), 28.6 inches (radome diameter), and 27.5 inches (diameter footprint at base). It was specifically designed for ground vehicle command, control and communications missions where beyond the line of sight SATCOM capabilities are mission critical. |
| |
Download Datasheet
Product Details | |
|
|
|

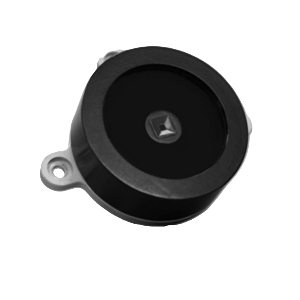

| Accelerometer for Solar Tracking/Pointing Systems | |
Space Qualified Accelerometer
from Solar MEMS
|
| The Sensor MASS-X from Solar MEMS are space-qualified accelerometers that integrate a 3-axis accelerometer and a high-precision sun sensor designed to measure the incidence angle of sun rays, direct normal irradiance (DNI) solar radiation along with the azimuth and elevation positions of the device. They are ideal for applications such as heliostats, solar tracking/pointing systems, sun radiation monitoring and attitude control using light sources. |
| |
Download Datasheet
Product Details | |
|
|
|

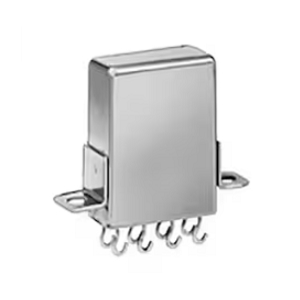

| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The 7-1617529-1 from TE Connectivity is a Space Qualified General Purpose Signal Relay with double-pole relay supports switching currents of up to 5 A at 28 VDC. The relay operates with a coil voltage range of 6.3-110 VDC and has a maximum coil power of 1.5 W. It offers a typical operate time of 5 ms and a release time of 5 ms. The relay is hermetically sealed and weigh upto 17 g. It is ideal for avionics, satellite systems and mission-critical applications. |
| |
Download Datasheet
Product Details | |
|
|
|

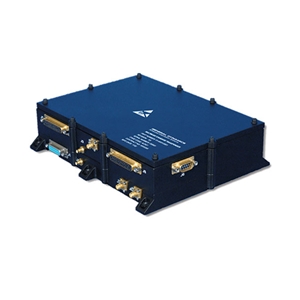

| Space Qualified Multi-Mode Standard Transponder | |
Satellite Transponder
from General Dynamics Mission Systems
|
| The MST-100 from General Dynamics Mission Systems is a Space-Qualified Multi-Mode Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. It has a frequency stability of less than 0.5 ppm and a noise figure of 2.5 dB. It is ideal to provide reliable earth-to-space craft, spacecraft-to-spacecraft comm., telemetry and command, proximity link and crosslink applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

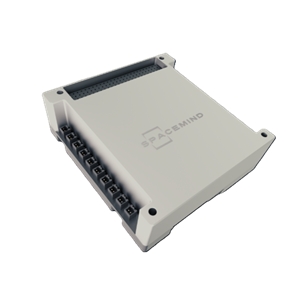

| Satellite Electrical Power System for CubeSats | |
Satellite Electrical Power System
from NPC SPACEMIND
|
| The GEMINI from NPC SPACEMIND is a Satellite Electrical Power System for 1-16 U CubeSat platforms. It supports 6 input channels each handling a voltage range of 5-20 V and can accommodate up to 8 parallel battery packs. It has a battery pack capacity per unit of 84 Wh for 8 cells. It features a programmable output bus supporting 3.3V, 5V, 6/12V and 24V, and also incorporates protection circuitries such as overvoltage (OV), overcurrent (OC), and overpower (OP). |
| |
Download Datasheet
Product Details | |
|
|
|

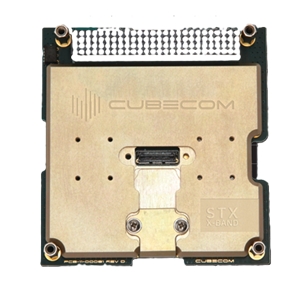

| 2.2-2.3 GHz S-Band Space Transmitter for Nanosatellites | |
Space Transmitter
from Cubecom
|
| The STX from Cubecom is a Space Transmitter operating from 2.2-2.29 GHz and has a maximum data rate of 25 Mbps. The transmitter implements the DVB-S2 standard up to MODCOD 28, which supports QPSK, 8-PSK, 16-APSK and 32-APSK modulation at a symbol rate of 5 Msps with a maximum encoded data rate of 25 Mbps for commercial S-band. The transmitter is designed for nanosatellite missions with a CubeSat Kit PC/104 form factor. |
| |
Download Datasheet
Product Details | |
|
|
|

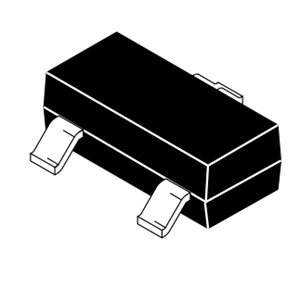

| 60 V Space Qualified N-channel MOSFET for Power Management | |
Space Qualified MOSFETs
from onsemi
|
| The 2N7002LT1 from onsemi is a Space Qualified N-channel MOSFET that has a drain-source breakdown voltage of over 60 V and a gate threshold voltage of 1-2.5 V. It has a drain-source on-resistance of 7.5-13.5 ohms and a power dissipation of less than 225 mW. This MOSFET is available in a surface-mount package that measures 2.9 x 1.3 x 1 mm. It is ideal for automotive and other applications requiring unique site and control change requirements. |
| |
Download Datasheet
Product Details | |
|
|
|

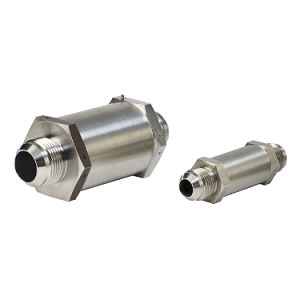

| 20.68 MPa Space-Qualified Valve for Spacecrafts | |
Spacecraft Valve
from Marotta Controls
|
| The CVM304 from Marotta Controls is a Spacecraft Valve with a pressure of up to 20.68 MPa. It has a proof pressure of 31.02 MPa and a burst pressure of 51.71 MPa. This valve incorporates a poppet with internal flow passages for minimal pressure drop. It has wide variety of fluids GN2, GHe, Seawater, Cryogenic H2, MMH and N2O4. The poppet has a large L/D ratio for maximizing poppet guide and minimizing chatter for smooth operation. |
| |
Download Datasheet
Product Details | |
|
|
|

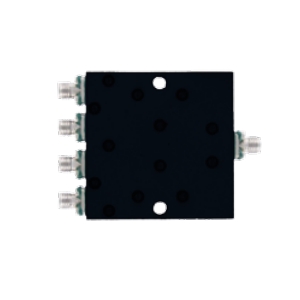

| 10.7-14.5 GHz Space-Qualified Power Divider | |
Space Qualified Power Divider
from Crane Aerospace & Electronics
|
| The PDM-41-12.6G SQ from Crane Aerospace & Electronics is a Space Qualified Power Divider that has a frequency range of 10.7-14.5 GHz. This power divider has a maximum insertion loss of 1.3 dB and an amplitude balance of 0.3 dB. It has an isolation value of 20 dB and has a phase balance value of 8°. The power divider features a conventional Wilkinson design with a 4-way SMA. It is ideal for space based communication systems. |
| |
Download Datasheet
Product Details | |
|
|
|

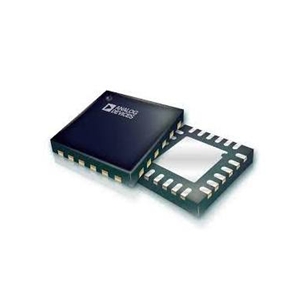

| GaAs Low-Noise Amplifier for SATCOM Applications | |
RF Amplifier
from Analog Devices
|
| The HMC8413 from Analog Devices is an RF Low-Noise gallium arsenide (GaAs) Amplifier that operates from 0.01-9 GHz. It enables the low noise amplifier to function as a local oscillator (LO) driver and features inputs and outputs that are internally matched to 50 ohms making the device ideal for high-capacity microwave radio applications. This RoHS-compliant pHEMT amplifier is ideal for Low Earth orbit (LEO) space payloads and satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|

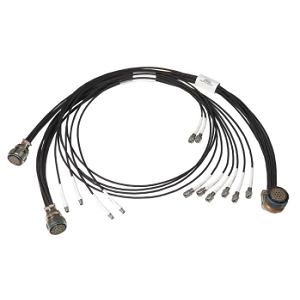

| DC to 26.5 GHz Space Qualified Flexible RF Cable Assemblies | |
Space Qualified Cable Assembly
from Amphenol CIT
|
| The MCJ205A from Amphenol CIT is a Space Qualified Cable Assembly with a maximum frequency value of 26.5 GHz. It is constructed using a low or ultra-low density PTFE dielectric offering excellent loss characteristics, phase stability, flexibility and light weight. It is radiation resistant up to 100 MRads and features real-time X-ray capability. It has a nominal outer diameter of 5.21 mm and comes with a solid center conductor with more amplitude stability. |
| |
Download Datasheet
Product Details | |
|
|
|

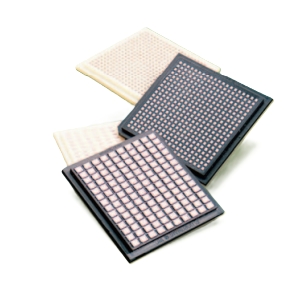

| High Reliability Surface Mount Ceramic Chip Capacitors | |
Space Qualified Capacitor
from Presidio Components
|
| The SR#M123A Series from Presidio Components are high-reliability surface-mount ceramic chip capacitors developed for space flight and high-reliability aerospace applications where stability, durability and performance are critical. These capacitors are available with a variety of termination options including plated SnPb over Ni (NT9), PdAg, and Au over Ni, making them adaptable to different soldering and mounting processes. |
| |
Download Datasheet
Product Details | |
|
